Approval Details

Valid E.O.

Validity

This Executive Order approved the specified parts on on July 2, 2002.
As of Thursday, November 7th, 2024 this Executive Order has not been overturned or superceeded.

Approved Parts

Part NumberModelsModification
M-6066-ZX32000 through 2002 Ford Focus vehiclesThe Ford Focus Supercharger Kit includes the following main components: Eaton supercharger with a 3.0" diameter pulley designed to give a maximum boost of 6 psi at redline, and a new intake manifold. The factory air filter housing is retained.

This Executive Order may be listed as:
  • C.A.R.B.E.O. D-431-2
  • Executive Order 431-2 / D431-2
  • ARB # D-431-2
  • Executive Order No: D-431-2
  • C.A.R.B. No. D-431-2
  • Resolution D-431-2
For Free CARB Executive Order Status verification, email an image of the device Executive Order label as well as the Year/Make/Model and Test Group # of the vehicle to [email protected]

Download: Executive Order D-431-2 PDF

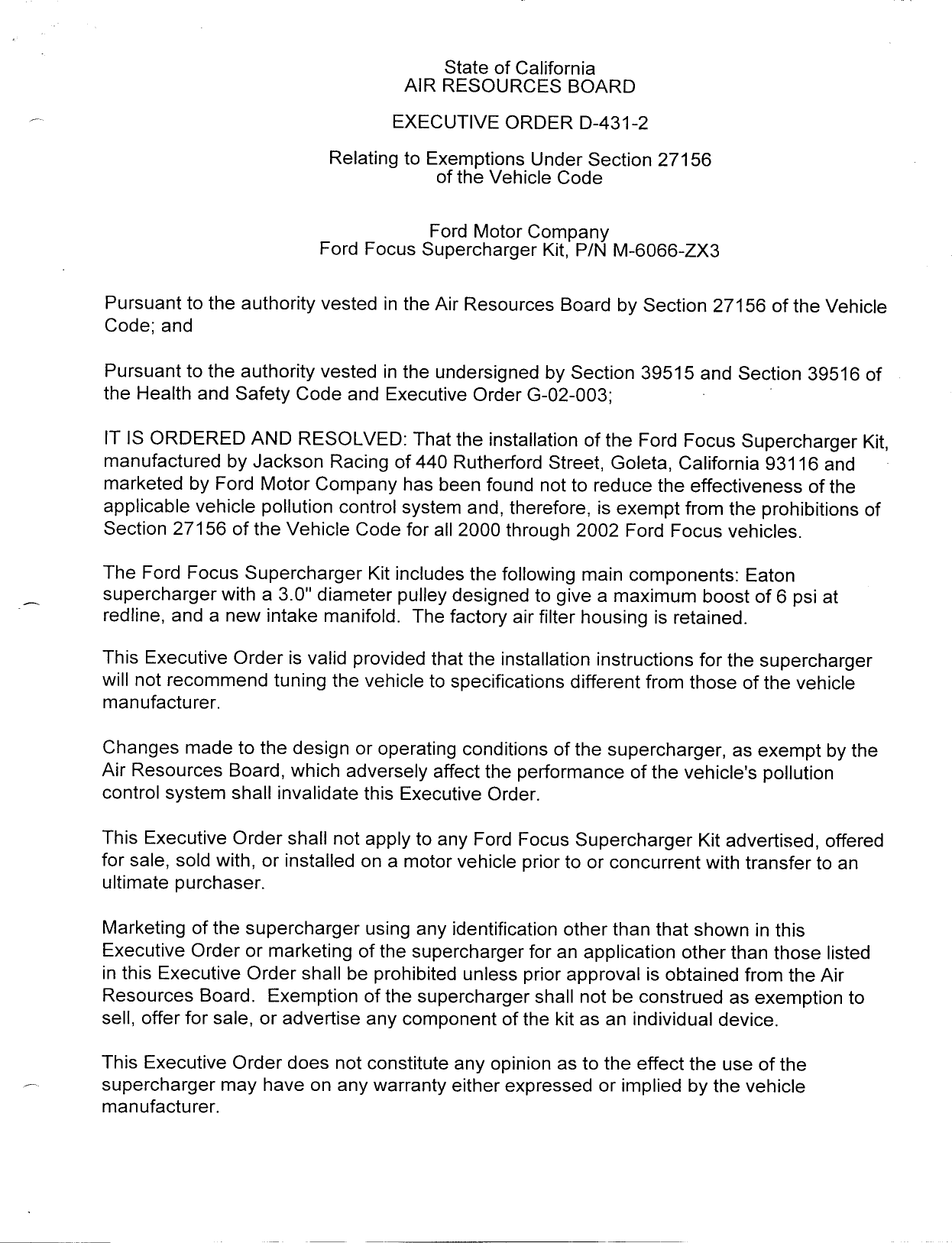

D-431-2 Document:


CARB_D-431-2

                                        State of California
                                    AIR RESOURCES BOARD

                                   EXECUTIVE ORDER D—431—2
                           Relating to Exemptions Under Section 27156
                                        of the Vehicle Code


                                      Ford Motor Company
                          Ford Focus Supercharger Kit, P/N M—6066—ZX3


Pursuant to the authority vested in the Air Resources Board by Section 27156 of the Vehicle
Code; and

Pursuant to the authority vested in the undersigned by Section 39515 and Sectlon 39516 of
the Health and Safety Code and Executive Order G—02—003;

IT IS ORDERED AND RESOLVED: That the installation of the Ford Focus Supercharger Kit,
manufactured by Jackson Racing of 440 Rutherford Street, Goleta, California 93116 and
marketed by Ford Motor Company has been found not to reduce the effectiveness of the
applicable vehicle poliution control system and, therefore, is exempt from the prohibitions of
Section 27156 of the Vehicle Code for all 2000 through 2002 Ford Focus vehicles.

The Ford Focus Supercharger Kit includes the following main components: Eaton
supercharger with a 3.0" diameter pulley designed to give a maximum boost of 6 psi at
redline, and a new intake manifold. The factory air filter housing is retained.

This Executive Order is valid provided that the installation instructions for the supercharger
will not recommend tuning the vehicle to specifications different from those of the vehicle
manufacturer.

Changes made to the design or operating conditions of the supercharger, as exempt by the
Air Resources Board, which adversely affect the performance of the vehicle‘s pollution
control system shall invalidate this Executive Order.

This Executive Order shall not apply to any Ford Focus Supercharger Kit advertised, offered
for sale, sold with, or installed on a motor vehicle prior to or concurrent with transfer to an
ultimate purchaser.

Marketing of the supercharger using any identification other than that shown in this
Executive Order or marketing of the supercharger for an application other than those listed
in this Executive Order shall be prohibited unless prior approval is obtained from the Air
Resources Board. Exemption of the supercharger shall not be construed as exemption to
sell, offer for sale, or advertise any component of the kit as an individual device.

This Executive Order does not constitute any opinion as to the effect the use of the
supercharger may have on any warranty either expressed or implied by the vehicle
manufacturer.


                                               2.

This Executive Order is granted based on emissions test data generated on a 2002 Ford
Focus certified to the Ultra Low—Emission Vehicle (ULEV) emission standards. Emission
levels of the modified vehicle met the applicable emission standards over the Cold—Start
CVS—75 Federal Test Procedure (FTP) and the Supplemental Federal Test Procedure
(USO6/S5C03) test cycles. Results are in grams per mile with deterioration factors added to
CVS—75 FTP results:

                              CVS—75                           USO6/SCO3

                  NMOG CO         NOx     HCHO            NMHC+NOx         CO
Standards         0.040 1.7       0.2     0.008           0.14/0.20        8.0/2.7
Device            0.034 0.6       0.04    0.001           0.06/0.01        0.6/0.1

This Executive Order is also based on an On—Board Diagnostic II (OBD II) test conducted on
the same test vehicle. Test data showed that the supercharger when installed on the
vehicle did not affect the vehicle‘s ability to perform its OBD II monitoring.

In addition to the foregoing, the ARB reserves the right in the future to review this Executive
Order and the exemption provided herein to assure that the exempted add—on or modified
part continues to meet the standards and procedures of Title 13, California Code of
Regulations, Section 2222, et seq.

THIS EXECUTIVE ORDER DOES NOT CONSTITUTE A CERTIFICATION,
ACCREDITATION, APPROVAL, OR ANY OTHER TYPE OF ENDORSEMENT BY THE AIR
RESOURCES BOARD OF ANY CLAIMS OF THE APPLICANT CONCERNING
ANTI—POLLUTION BENEFITS OR ANY ALLEGED BENEFITS OF THE FORD FOCUS
SUPERCHARGER KIT.

No claim of any kind, such as "Approved by the Air Resources Board", may be made with
respect to the action taken herein in any advertising or other oral or written communication.

Violation of any of the above conditions shall be grounds for revocation of this order. The
order may be revoked only after a ten—day written notice of intention to revoke the order, in
which period the holder of the order may request in writing a hearing to contest the proposed
revocation. If a hearing is requested, it shall be held within ten days of receipt of the request
and the order may not be revoked until a determination has been made after the hearing
that grounds for revocation exist.

Executed at El Monte, California, this Z*" day of July 2002.



                                 Allen "éyons, Chief
                                  Mobile Source Operations Division




         FORD MOTOR COMPANY—FORD FOCUS SUPERCHARGER KIT—D—431—2


                            AFTERMARKET PARTS SECTION
               VC Sections 27156 and 38391 Exemption Update Check—Out List

For each exemption update request, the project engineer is to complete this "check—out" list to
make sure that there are no changes in the applicable vehicles and device design.

GENERAL INFORMATION:
    Date application received:                     6/13/021
—




    Name of Applicant:                             Jackson Racing
N




    Address of Applicant:                          440 Rutherford Street, Goleta, CA 93116
c




    Applicant Phone:                               805 681—3410
B




    Name of Manufacturer:                          same
o




    Manufacturer‘s Phone:                          same
J




    Address of Manufacturer:                       same
n




    Name of Device:                                Ford Focus Supercharger Kit
o




 9. Latest EO and Date:                            D—344—9 6/2002
 10.Device Testing:                                manufacturer
 11.Vehicle application covered by existing        2000—2002 ULEV and SFTP Ford Focus
 EO‘s:
 12.Vehicle application now fequested:             Same

 13.Pollution Control systems on previous          OEM
 vehicle(s):
 14.Pollution control systems on present           OEM
 vehicle(s):
 15.1Is present vehicle/engine a carryover from    N/A
 previous vehicle/engine?
 16.List design changes in device:                 None

 17.Will changes affect emissions?                 N/A

 18.Special reason to update besides inclusion     Private label for Ford Motor Company
 of newer vehicle model:
 19.Are legal issues involved? If so, has ARB      no
 legal been consulted?
 20.EO number issued:                              D—431—2
 21.Bases for issuance of an EO:

Jackson Racing is extending their recently exempted Ford Focus Supercharger Kit to Ford Motor
Company. All the specifications for the kit will remain the same other than the name change on
the product.



Document Created: 2005-09-01 12:41:44
Document Modified: 2005-09-01 12:41:44
