Approval Details

Valid E.O.

Validity

This Executive Order approved the specified parts on on May 7, 2003.
As of Friday, December 6th, 2024 this Executive Order has not been overturned or superceeded.

Approved Parts

ModelsModification
2000-2003 Ford 2.0L Focus, 2002-2003 Ford 2.0L Focus SVT, 2000-2003 2.0L Ford Escape and Mazda TributeThe Ford Supercharger Kit includes the following main components: Eaton supercharger designed to give a maximum boost of 6 psi at redline, and a new intake manifold. The factory air filter housing is retained. The kit uses the stock crankshaft pulley, the supercharger pulley diameter on the Focus SVT is 3.6", and a 3.0" diameter pulley on the other models

This Executive Order may be listed as:
  • C.A.R.B.E.O. D-431-3
  • Executive Order 431-3 / D431-3
  • ARB # D-431-3
  • Executive Order No: D-431-3
  • C.A.R.B. No. D-431-3
  • Resolution D-431-3
For Free CARB Executive Order Status verification, email an image of the device Executive Order label as well as the Year/Make/Model and Test Group # of the vehicle to [email protected]

Download: Executive Order D-431-3 PDF

D-431-3 Document:


CARB_D-431-3

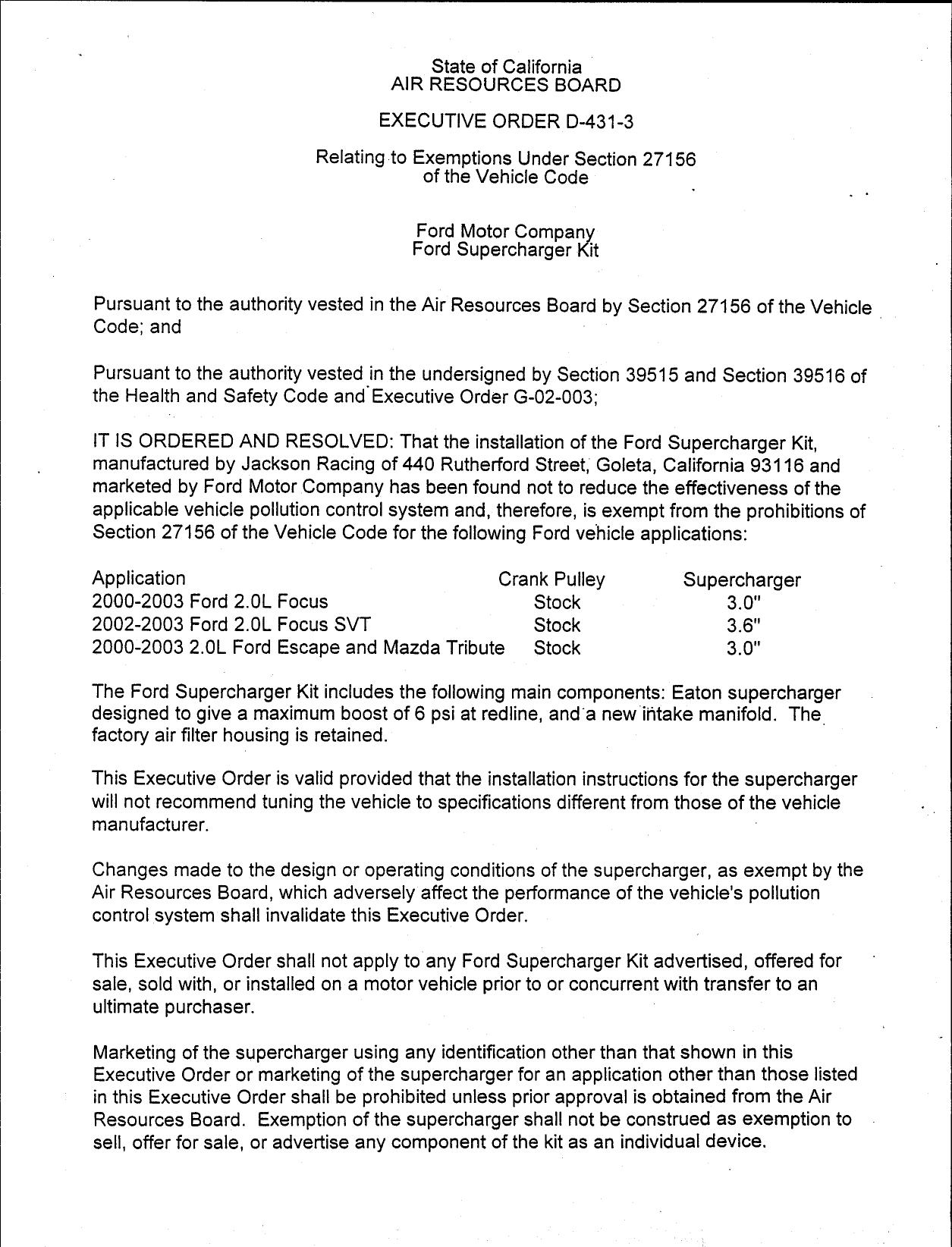

                                          State of California —
                                     AlIR RESOURCES BOARD

                                    EXECUTIVE ORDER D—431—3
                            Relating to Exemptions Under Section 27156
                                         of the Vehicle Code


                                        Ford Motor Compan
                                        Ford Supercharger Kit

Pursuant to the authority vested in the Air Resources Board by Section 27156 of the Vehicle .
Code; and

Pursuant to the authority vested in the undersigned by Section 39515 and Section 39516 of
the Health and Safety Code and Executive Order G—02—003;

IT 1S ORDERED AND RESOLVED: That the installation of the Ford Supercharger Kit,
manufactured by Jackson Racing of 440 Rutherford Street, Goleta, California 93118 and
marketed by Ford Motor Company has been found not to reduce the effectiveness of the
applicable vehicle pollution control system and, therefore, is exempt from the prohibitions of
Section 27156 of the Vehicle Code for the following Ford vehicle applications:

Application                                        Crank Pulley           Supercharger
2000—2003 Ford 2.0L Focus                              Stock                   3.0"
2002—2003 Ford 2.0L Focus SVT                          Stock                   3.6"
2000—2003 2.0L Ford Escape and Mazda Tribute           Stock                   3.0"

The Ford Supercharger Kit includes the following main components: Eaton supercharger
designed to give a maximum boost of 6 psi at redline, and a new intake manifold. The
factory air filter housing is retained.

This Executive Order is valid provided that the installation instructions for the supercharger
will not recommend tuning the vehicle to specifications different from those of the vehicle
manufacturer.

Changes made to the design or operating conditions of the supercharger, as exempt by the
Air Resources Board, which adversely affect the performance of the vehicle‘s pollution
control system shall invalidate this Executive Order.

This Executive Order shall not apply to any Ford Supercharger Kit advertised, offered for
sale, sold with, or installed on a motor vehicle prior to or concurrent with transfer to an
ultimate purchaser.

Marketing of the supercharger using any identification other than that shown in this
Executive Order or marketing of the supercharger for an application other than those listed
in this Executive Order shall be prohibited unless prior approval is obtained from the Air
Resources Board. Exemption of the supercharger shall not be construed as exemption to
sell, offer for sale, or advertise any component of the kit as an individual device.


                                               «3.


This Executive Order does not constitute any opinion as to the effect the use of the
supercharger may have on any warranty either expressed or implied by the vehicle
manufacturer.

This Executive Order is granted based on emissions test data generated on a 2002 Ford
Focus certified to the Ultra Low—Emission Vehicle (ULEV) emission standards. Emission
levels of the modified vehicle met the applicable emission standards over the Cold—Start
CVS—75 Federal Test Procedure (FTP) and the Supplemental Federal Test Procedure
(USO6/S5C03) test cycles. Results are in grams per mile with deterioration factors added to
CVS—75 FTP results:                                                                         ’
                            CVS—75                          USO6/SCO3

                  NMOG CO         NOx     HCHO            NMHC+NOx        CO
Standards         0.040 1.7       —0.2    0.008           0.14/0.20       .8.0/2.7
Device            0.034 0.6       0.04    0.001           0.06/0.01       0.6/0.1

This Executive Order is also based on an On—Board Diagnostic II (OBD II) test conducted on
the same test vehicle. Test data showed that the supercharger when installed on the
vehicle did not affect the vehicle‘s ability to perform its OBD II monitoring.

In addition to the foregoing, the ARB reserves the right in the future to review this Executive
Order and the exemption provided herein to assure that the exempted add—on or modified
part continues to meet the standards and procedures of Title 13, California Code of
Regulations, Section 2222, et seq.

THIS EXECUTIVE ORDER DOES NOT CONSTITUTE A CERTIFICATION,
ACCREDITATION, APPROVAL, OR ANY OTHER TYPE OF ENDORSEMENT BY THE AIR
RESOURCES BOARD OF ANY CLAIMS OF THE APPLICANT CONCERNING
ANTI—POLLUTION BENEFITS OR ANY ALLEGED BENEFITS OF THE FORD
SUPERCHARGER KIT.

No claim of any kind, such as "Approved by the Air Resources Board", may be made with
respect to the action taken herein in any advertising or other oral or written communication.

Violation of any of the above conditions shall be grounds for revocation of this order. The
order may be revoked only after a ten—day written notice of intention to revoke the order, in
which period the holder of the order may request in writing a hearing to contest the proposed
revocation. If a hearing is requested, it shall be held within ten days of receipt of the request
and the order may not be revoked until a determination has been made after the hearing
that grounds for revocation exist.

Executed at El Monte, California, this Z"’      day of May 2003.




                                  Allei%yons, Chief
                                  Mobile Source Operations Division


              FORD MOTOR COMPANY—FORD SUPERCHARGER KIT—D—431—3



Document Created: 2005-09-01 12:41:46
Document Modified: 2005-09-01 12:41:46

Previous E.O. D-431-2 | Previous E.O. D-430 | Next E.O. D-431-4 | Next E.O. D-432
