Approval Details

Valid E.O.

Validity

This Executive Order approved the specified parts on on February 17, 2004.
As of Thursday, August 22nd, 2019 this Executive Order has not been overturned or superceeded.

Approved Parts

ModelsModificationRemarks
2003 Altima, FX35, Murano, Maxima, Pathfinder, QX4, 350Z, G35, I35 2004 Altima, Frontier, Pathfinder, Xterra, FX35, 350Z, G35, I35The Stillen Supercharger Kit consists of a Magnuson Products, Inc. supercharger assembly that is rated at a maximum boost of 6.1 psi. at 6500 rpms using a 2.2" diameter pulley. The kit also includes an upper intake manifold, a supercharger bypass valve, an add-on fuel injector that uses a metal fuel rail, an intercooler, and a stand alone fuel management unit to operate the additional fuel injector. Installation of the supercharger kit requires the rerouting of the positive crankcase ventilation hose. All supplied hoses and lines are SAE30R9 which is rated at 15 gm/m2/24hrs. The kit retains the stock air cleaner housing.Excluded are the following 2004 model-year LEV II LEV test groups: 4NSXV03.5G7C, 4NSXT03.5G7A and 4NSXV03.5G7A.

This Executive Order may be listed as:
  • C.A.R.B.E.O. D-436-10
  • Executive Order 436-10 / D436-10
  • ARB # D-436-10
  • Executive Order No: D-436-10
  • C.A.R.B. No. D-436-10
  • Resolution D-436-10
For Free CARB Executive Order Status verification, email an image of the device Executive Order label as well as the Year/Make/Model and Test Group # of the vehicle to [email protected]

Download: Executive Order D-436-10 PDF

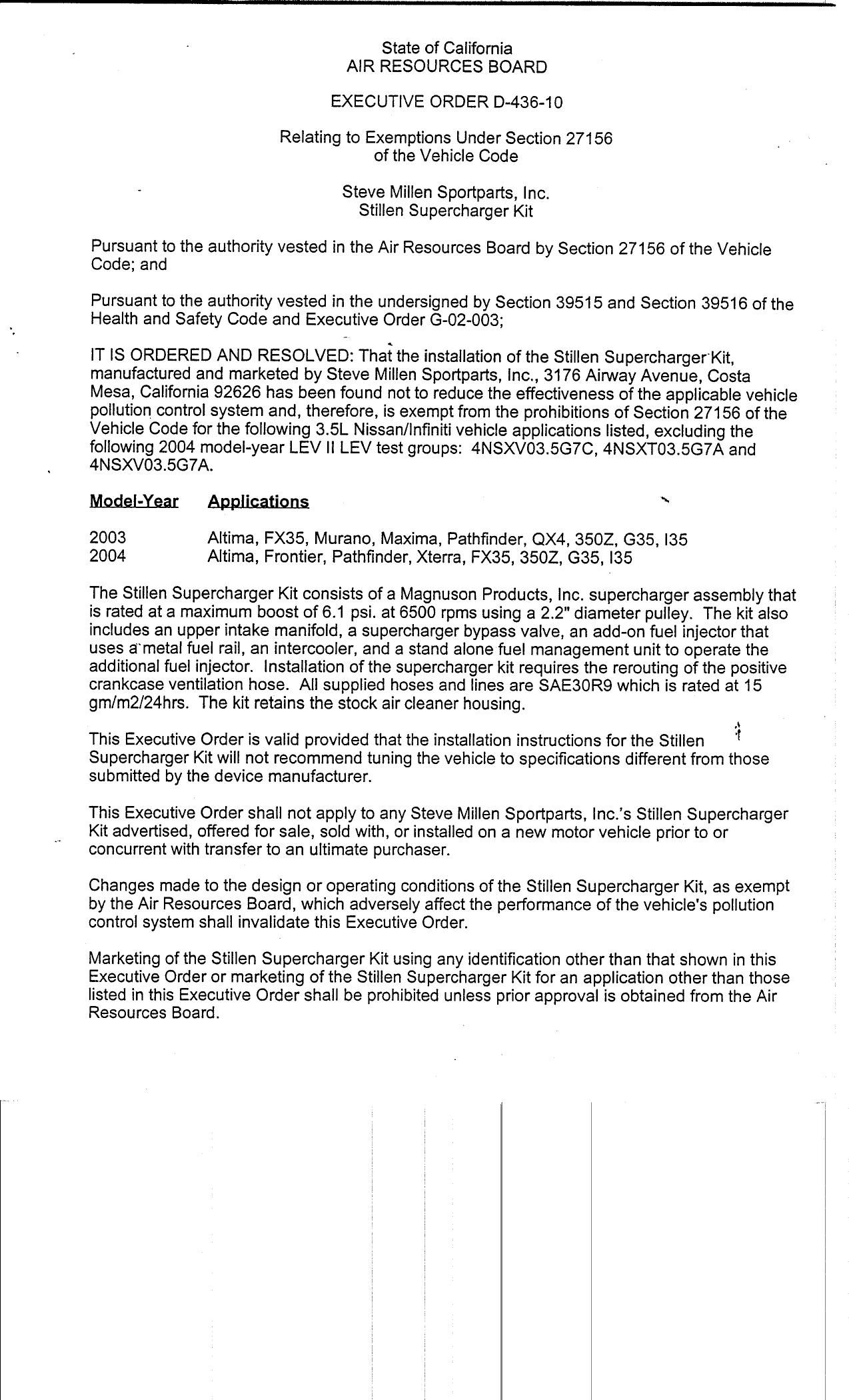

D-436-10 Document:



                                        State of California
                                    AIR RESOURCES BOARD

                                  EXECUTIVE ORDER D—436—10

                           Relating to Exemptions Under Section 27156
                                        of the Vehicle Code

                                   Steve Milien Sportparts, Inc.
                                     Stillen Supercharger Kit

Pursuant to the authority vested in the Air Resources Board by Section 27156 of the Vehicle
Code; and

Pursuant to the authority vested in the undersigned by Section 39515 and Section 39516 of the
Health and Safety Code and Executive Order G—02—003;

IT IS ORDERED AND RESOLVED: That the installation of the Stillen SuperchargerKit,
manufactured and marketed by Steve Millen Sportparts, Inc., 3176 Airway Avenue, Costa
Mesa, California 92626 has been found not to reduce the effectiveness of the applicable vehicle
pollution control system and, therefore, is exempt from the prohibitions of Section 27156 of the
Vehicle Code for the following 3.5L Nissan/Infiniti vehicle applications listed, excluding the
following 2004 model—year LEV II LEV test groups: 4NSXVO3.5G7C, 4NSXTO03.5G7A and
4NSXVO3.5G7A.

Model—Year      Applications                                                     *

2003            Altima, FX35, Murano, Maxima, Pathfinder, QX4, 3507, G35, 135
2004            Altima, Frontier, Pathfinder, Xterra, FX35, 350Z7, G35, 135

The Stillen Supercharger Kit consists of a Magnuson Products, Inc. supercharger assembly that
is rated at a maximum boost of 6.1 psi. at 6500 rpoms using a 2.2" diameter pulley. The kit also
includes an upper intake manifold, a supercharger bypass valve, an add—on fuel injector that
uses a‘metal fuel rail, an intercooler, and a stand alone fuel management unit to operate the
additional fuel injector. Installation of the supercharger kit requires the rerouting of the positive
crankcase ventilation hose. All supplied hoses and lines are SAE30R9 which is rated at 15
gm/m2/24hrs. The kit retains the stock air cleaner housing.
                                                                                            &

This Executive Order is valid provided that the installation instructions for the Stillen 1
Supercharger Kit will not recommend tuning the vehicle to specifications different from those
submitted by the device manufacturer.

This Executive Order shall not apply to any Steve Millen Sportparts, Inc.‘s Stillen Supercharger
Kit advertised, offered for sale, sold with, or installed on a new motor vehicle prior to or
concurrent with transfer to an ultimate purchaser.

Changes made to the design or operating conditions of the Stillen Supercharger Kit, as exempt
by the Air Resources Board, which adversely affect the performance of the vehicle‘s pollution
control system shall invalidate this Executive Order.

Marketing of the Stillen Supercharger Kit using any identification other than that shown in this
Executive Order or marketing of the Stillen Supercharger Kit for an application other than those
listed in this Executive Order shall be prohibited unless prior approval is obtained from the Air
Resources Board.


                                                  2.


Exemption of the Stillen Supercharger Kit shall not be construed as exemption to sell, offer for
sale, or advertise any component of the kit as an individual device.

This Executive Order does not constitute any opinion as to the effect the use of the Stillen
Supercharger Kit may have on any warranty either expressed or implied by the vehicle
manufacturer.

This Executive Order is granted based on emissions test data generated on a 2003 Nissan
350Z certified to the Low—Emission Vehicle (LEV) emission standards. Emission levels of the
modified vehicle met the applicable emission standards over the Cold—Start CVS—75 Federal
Test Procedure (FTP) and the Supplemental Federal Test Procedure (USO6/SC03) test cycles.
Results are in grams per mile with deterioration factors added to CVS—75 results:

                             CVS—75      .                    USO6/SCO3

                  NMOG CO          NOx   HCHO          _   NMHC+NOx       CO
Standards         0.075 3.4       0.2     0.015            0.14/0.20      8.0/2.7
Device            0.066 1.1       0.1    0.001             0.14/0.18      0.8/0.96

This Executive Order is also based on an On—Board Diagnostic I! (OBD II) test conducted on the
same test vehicle. Test data showed that the supercharger when installed on the vehicle did not
affect the vehicle‘s ability to perform its OBD II monitoring.

THIS EXECUTIVE ORDER DOES NOT CONSTITUTE A CERTIFICATION, ACCREDITATION,
APPROVAL, OR ANY OTHER TYPE OF ENDORSEMENT BY THE AIR RESOURCES BOARD
OF ANY CLAIMS OF THE APPLICANT CONCERNING ANTI—POLLUTION BENEFITS OR ANY
ALLEGED BENEFITS OF STEVE MILLEN SPORTPARTS, INC.‘S STILLEN SUPERCHARGER
KIT.

No claim of any kind, such as "Approved by the Air Resources Board", may be made with respect
to the action taken herein in any advertising or other oral or written communication.

Violation of any of the above conditions shall be grounds for revocation of this order. The order
may be revoked only after a ten-day written notice of intention to revoke the order, in which period . :
the holder of the order may request in writing a hearing to contest the proposed revocation. If a
hearing is requested, it shall be held within ten days of receipt of the request and the order may
not be revoked until a determination is made after the hearing that grounds for revocation exist.

Executed at El Monte, California, this /7 4& day of February 2004.


                                             u_ y_Q_ )e
                                       llen Lyons, Chief
                                      Mobile Source Operations Division




       STEVE MILLEN SPORTPARTS, INC. — STILLEN SUPERCHARGER KIT — D—436—10



Document Created: 2005-09-01 12:45:13
Document Modified: 2005-09-01 12:45:13

Previous E.O. D-436-9 | Previous E.O. D-435 | Next E.O. D-436-11 | Next E.O. D-437
