Approval Details

Valid E.O.

Validity

This Executive Order approved the specified parts on on December 15, 2005.
As of Tuesday, June 18th, 2019 this Executive Order has not been overturned or superceeded.

Approved Parts

Part NumberModelsModificationRemarks
407350IC2003 Nissan 3.5L 350ZStock crankshaft pulley, 2.2" diameter supercharger pulleyThe Stillen Supercharger Kit consists of a Magnuson Products, Inc. supercharger assembly that is rated at a maximum boost of 6.0 pounds per square inch. The kit also includes an upper intake manifold, a supercharger bypass valve, an add-on fuel injector that uses a metal fuel rail, an intercooler, and a stand alone fuel management unit to operate the additional fuel injector. Installation of the supercharger kit requires the rerouting and replacement of the positive crankcase ventilation hose; the new hose has a SAE30R7 rating. All fuel lines added are manufactured out of metal. The kit retains the stock air cleaner housing.

This Executive Order may be listed as:
  • C.A.R.B.E.O. D-436-11
  • Executive Order 436-11 / D436-11
  • ARB # D-436-11
  • Executive Order No: D-436-11
  • C.A.R.B. No. D-436-11
  • Resolution D-436-11
For Free CARB Executive Order Status verification, email an image of the device Executive Order label as well as the Year/Make/Model and Test Group # of the vehicle to [email protected]

Download: Executive Order D-436-11 PDF

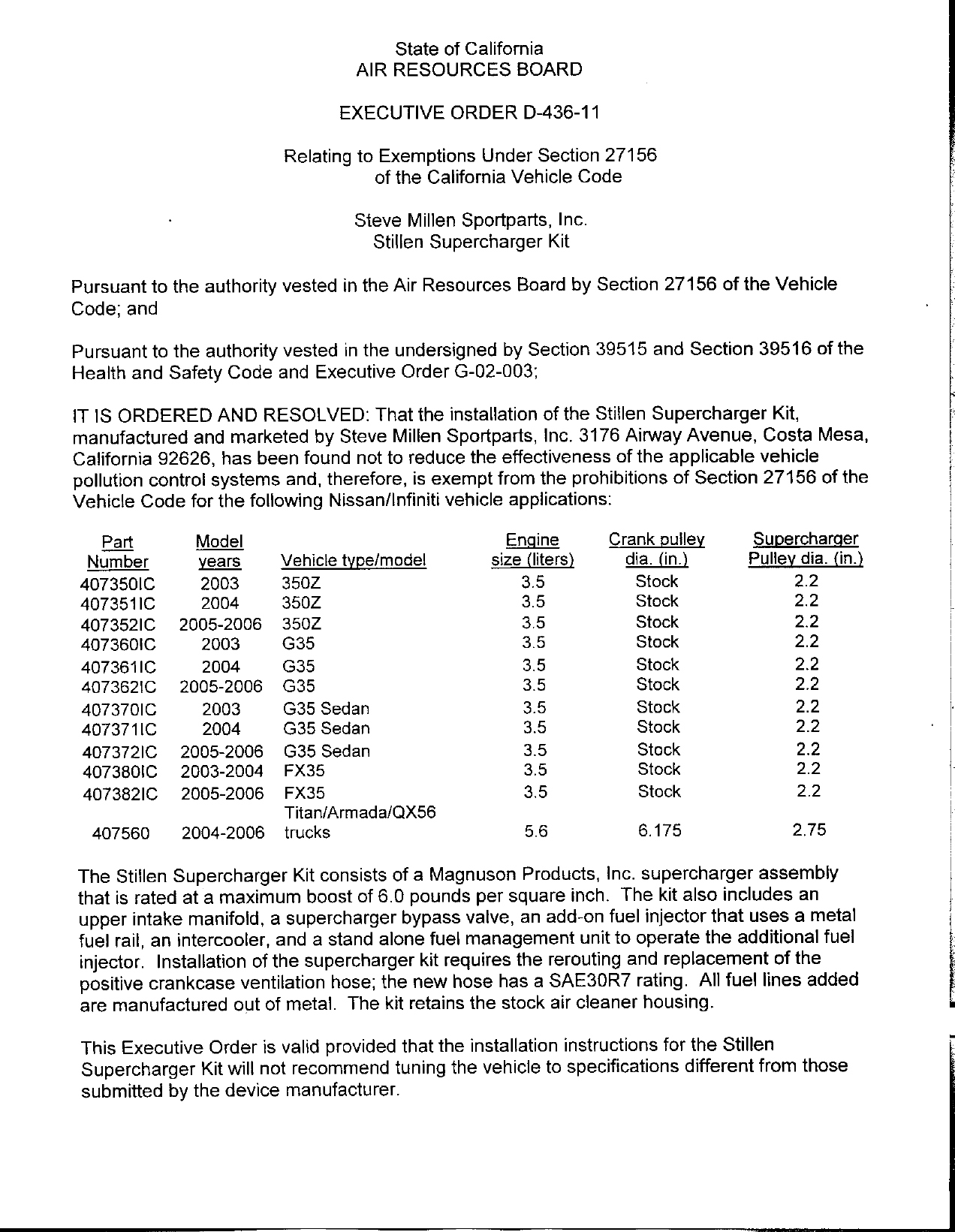

D-436-11 Document:



                                        State of California
                                    AIR RESOURCES BOARD

                                   EXECUTIVE ORDER D—436—11

                          Relating to Exemptions Under Section 27156
                                      of the California Vehicle Code

                                    Steve Millen Sportparts, Inc.
                                      Stillen Supercharger Kit

Pursuant to the authority vested in the Air Resources Board by Section 27156 of the Vehicle
Code; and

Pursuant to the authority vested in the undersigned by Section 39515 and Section 39516 of the
Health and Safety Code and Executive Order G—02—003;

IT 1S ORDERED AND RESOLVED: That the installation of the Stitlen Supercharger Kit,
manufactured and marketed by Steve Milien Sportparts, Inc. 3176 Airway Avenue, Costa Mesa,
California 92626, has been found not to reduce the effectiveness of the applicable vehicle
pollution control systems and, therefore, is exempt from the prohibitions of Section 27156 of the
Vehicle Code for the following Nissan/Infiniti vehicle applications:

  Part         Model                                   Engine       Crank pulley    Supercharger
 Number        years     Vehicle type/model|        size(liters)      dia. (in.)   Pulley dia. (in.)
4073501C      2003       3502                           3.5            Stock             2.2
40735110      2004       3507                           3.5            Stock             2.2
4073521C    2005—2006    3502                           3.5            Stock             2.2
4073601C      2003       G35                            3.5            Stock             2.2
4073611C      2004       G35                            3.5            Stock             2.2
4073621C    2005—2006    G35                            3.5            Stock             2.2
4073701C       2003      G35 Sedan                      3.5            Stock             2.2
40737 11C      2004      G35 Sedan                      3.5            Stock             2.2
4073721C    2005—2006     G35 Sedan                     3.5            Stock             2.2
40738010    2003—2004    FX35                           3.5            Stock             2.2
4073821C    2005—2006    FX35                           3.5            Stock             2.2
                         Titan/Armada/QX56
  407560     2004—2006    trucks                        5.6            6.175             2.75

The Stillen Supercharger Kit consists of a Magnuson Products, Inc. supercharger assembly
that is rated at a maximum boost of 6.0 pounds per square inch. The kit also includes an
upper intake manifold, a supercharger bypass valve, an add—on fuel injector that uses a metal
fuel rail, an intercooler, and a stand alone fuel management unit to operate the additional fuel
injector. Installation of the supercharger kit requires the rerouting and replacement of the
positive crankcase ventilation hose; the new hose has a SAE3ORT7rating. All fuel lines added
are manufactured out of metal. The kit retains the stock air cleaner housing.

This Executive Order is valid provided that the installation instructions for the Stillen
Supercharger Kit will not recommend tuning the vehicle to specifications different from those
submitted by the device manufacturer.


                                                w2


Changes made to the design or operating conditions of the Stillen Supercharger Kit, as exempt
by the Air Resources Board, which adversely affect the performance of the vehicle‘s pollution
control system shall invalidate this Executive Order.

This Executive Order shall not apply to any Stillen Supercharger Kit advertised, offered for sale,
sold with, or installed on a new motor vehicle prior to or concurrent with transfer to an ultimate
purchaser.

Marketing of the Stillen Supercharger Kit using any identification other than that shown in this
Executive Order or marketing of the Stillen Supercharger Kit for an application other than those
listed in this Executive Order shall be prohibited unless prior approval is obtained from the Air
Resources Board.

This Executive Order does not constitute any opinion as to the effect the use of the Stillen
Supercharger Kit may have on any warranty either expressed or implied by the vehicle
manufacturer.

This Executive Order is granted based on emission test results in the modified configuration
using the Cold—Start CVS—75 Federal Test Procedure, Supplemental Federal Test Procedure
(USO6/SC03), and an examination of the On—Board Diagnostic II (OBD II) system. A 2004
Nissan 350Z with a 3.5 liter engine (4NSXVO3.5G7A, LEV 11 LEV, PC) was used for the
evaluation of the Stillen Supercharger Kit. Results from emissions testing conducted at
University of California, Riverside are shown belfow (in grams per mile with deterioration factors
applied):
                          CVS—75                             USO6/SCO3
                   NMOG CO     NOx        HCHO            NMHC+NOx     CO
Standards 50k      0.075 34    0.05       0.015           0.14/0.20    8.0/2.7
Device             0.065 15     0.05      0.001           0.08/0.05    5.0/2.1

 The emission test results in the modified configuration were at or below the applicable
certification standards. Examination of the OBD II system showed the Nissan/infiniti
Supercharger Kit does not affect OBD II system operation.

THIS EXECUTIVE ORDER DOES NOT CONSTITUTE A CERTIFICATION, ACCREDITATION,
APPROVAL, OR ANY OTHER TYPE OF ENDORSEMENT BY THE AIR RESOURCES BOARD
OF ANY CLAIMS OF THE APPLICANT CONCERNING ANTI—POLLUTION BENEFITS OR ANY
ALLEGED BENEFITS OF THE STILLEN SUPERCHARGER KIT.

No claim of any kind, such as "Approved by the Air Resources Board", may be made with
respect to the action taken herein in any advertising or other oral or written communication.




       STEVE MILLEN SPORTPARTS, INC. — STILLEN SUPERCHARGER KIT — D—436—11


Violation of any of the above conditions shall be grounds for revocation of this order. The order
may be revoked only after a ten—day wriften notice of intention to revoke the order, in which
period the holder of the order may request in writing a hearing to contest the proposed
revocation. _ If a hearing is requested, it shall be held within ten days of receipt of the request
and the order may not be revoked untit a determination is made after the hearing that grounds
for revocation exist.

Executed at El Monte, California, this    [25 rd     day of December 2005.




       STEVE MILLEN SPORTPARTS, INC. — STILLEN SUPERCHARGER KIT — D—436—11



Document Created: 2005-12-28 12:15:13
Document Modified: 2005-12-28 12:15:13
