Approval Details

Valid E.O.

Validity

This Executive Order approved the specified parts on on August 31, 2009.
As of Friday, December 14th, 2018 this Executive Order has not been overturned or superceeded.

Approved Parts

ModelsRemarks
See PDFThe Stillen Supercharger Kit consists of a Magnuson Products, Inc. supercharger assembly that is rated at a maximum boost of 6.0 pounds per square inch. The kit also includes an upper intake manifold, replacement fuel pump, a supercharger bypass valve, an add-on fuel injector that uses a metal fuel rail (5.6L applications use additional fuel injectors for even fuel distribution), an intercooler, and a stand alone fuel management unit. Installation of the supercharger kit requires the rerouting and replacement of the positive crankcase ventilation hose; the new hose has a SAE30R7 rating. All fuel lines added are manufactured out of metal. The kit retains the stock air cleaner housing.

This Executive Order may be listed as:
  • C.A.R.B.E.O. D-436-15
  • Executive Order 436-15 / D436-15
  • ARB # D-436-15
  • Executive Order No: D-436-15
  • C.A.R.B. No. D-436-15
  • Resolution D-436-15
For Free CARB Executive Order Status verification, email an image of the device Executive Order label as well as the Year/Make/Model and Test Group # of the vehicle to [email protected]

Download: Executive Order D-436-15 PDF

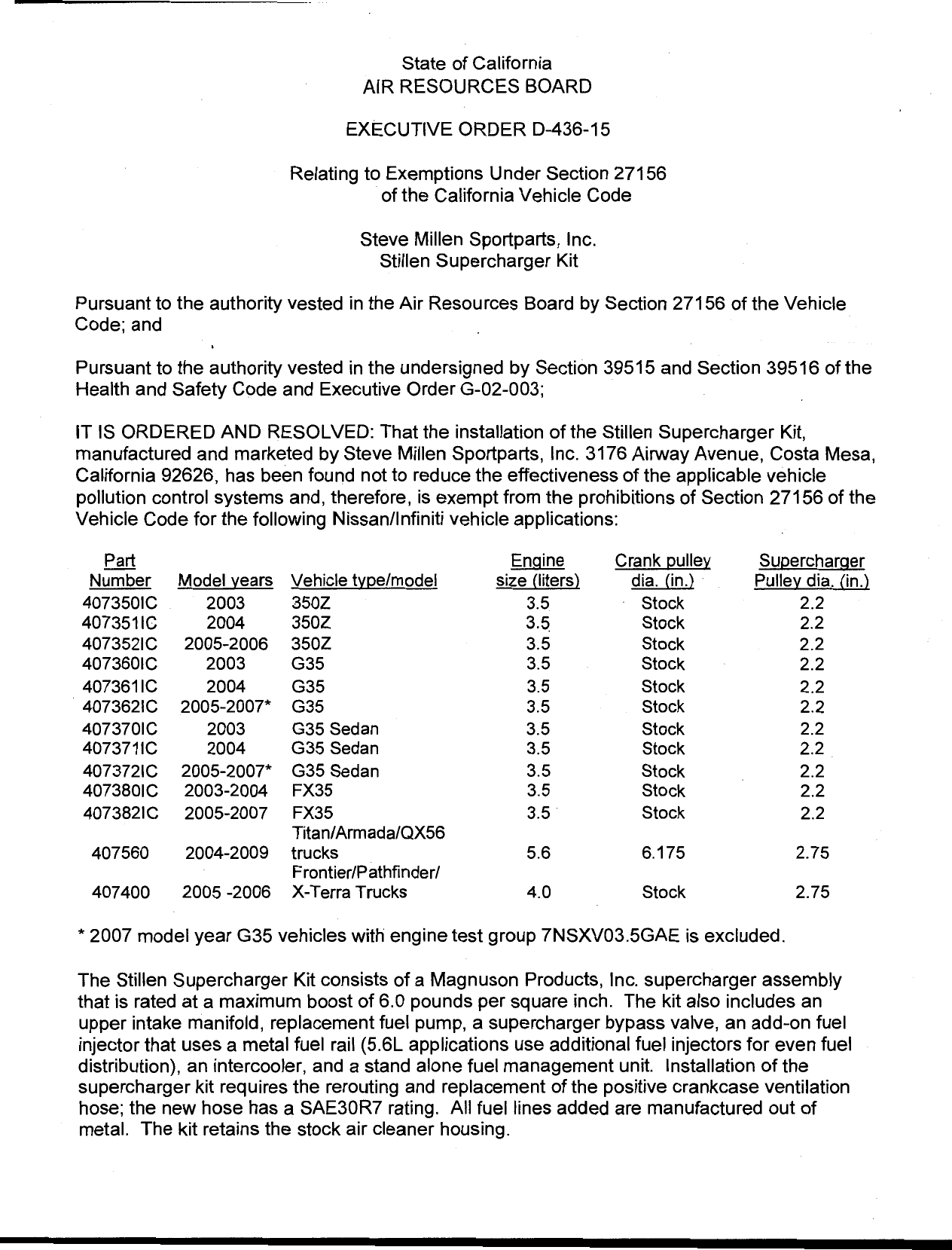

D-436-15 Document:



                                        State of California
                                    AIR RESOURCES BOARD

                                  EXECUTIVE ORDER D—436—15

                           Relating to Exemptions Under Section 27156
                                      _of the California Vehicle Code

                                    Steve Millen Sportparts, Inc.
                                      Stillen Supercharger Kit

Pursuant to the authority vested in the Air Resources Board by Section 27156 of the Vehicle
Code; and

Pursuant to the authority vested in the undersigned by Section 39515 and Section 39516 of the
Health and Safety Code and Executive Order G—02—003;                      .

IT IS ORDERED AND RESOLVED: That the installation of the Stillen Supercharger Kit,
manufactured and marketed by Steve Millen Sportparts, Inc. 3176 Airway Avenue, Costa Mesa,
California 92626, has been found not to reduce the effectiveness of the applicable vehicle
pollution control systems and, therefore, is exempt from the prohibitions of Section 27156 of the
Vehicle Code for the following Nissan/Infiniti vehicle applications:

   Part                                                 Engine       Crank pulley      Supercharger
  Number      Modelyears   Vehicle type/model        size (liters)      dia. (in.) :   Pulley dia. (in.)
 4073501C        2003      3507                          3.5           _ Stock               2.2
 4073511C        2004      3507                          3.5              Stock              2.2
 4073521C      2005—2006   3507                          3.5              Stock              2.2
 4073601C        2003      G35                           3.5              Stock              2.2
40736110         2004      G35                           3.5              Stock              2.2
 4073621C    2005—2007*    G35                           3.5              Stock              2.2
 407370IC        2003      G35 Sedan                     3.5              Stock              2.2
 4073711C        2004      G35 Sedan                     3.5              Stock              2.2 .
 4073721C    —2005—2007*    G35 Sedan                    3.5              Stock              2.2
 407380IC    2003—2004     FX35                          3.5              Stock              2.2
 4073821C      2005—2007    FX35                         3.5¢             Stock              2.2
                           Titan/Armada/QX56
  407560     2004—2009      trucks    .                  5.6              6.175              2.75
               |           Frontier/Pathfinder/
  407400     2005 —2006     X—Terra Trucks               4.0              Stock              2.75

* 2007 model year G35 vehicles with engine test group 7ZNSXVO3.5GAE is excluded.

The Stillen Supercharger Kit consists of a Magnuson Products, Inc. supercharger assembly
that is rated at a maximum boost of 6.0 pounds per square inch. The kit also includes an
upper intake manifold, replacement fuel pump, a supercharger bypass valve, an add—on fuel
injector that uses a metal fuel rail (5.6L applications use additional fuel injectors for even fuel
distribution), an intercooler, and a stand alone fuel management unit. Installation of the
supercharger kit requires the rerouting and replacement of the positive crankcase ventilation
hose; the new hose has a SAE30RT7rating. All fuel lines added are manufactured out of
metal. The kit retains the stock air cleaner housing.


                                                «2.


This Executive Order is valid provided that the installation instructions for the Stillen
Supercharger Kit will not recommend tuning the vehicle to specifications different from those
submitted by the device manufacturer.

Changes made to the design or operating conditions of the Stillen Supercharger Kit, as exempt
by the Air Resources Board, which adversely affect the performance of the vehicle‘s pollution
control system shall invalidate this Executive Order.

This Executive Order shall not apply to any Stillen Supercharger Kit advertised, offered for sale,
sold with, or installed on a new motor vehicle prior to or concurrent with transfer to an ultimate
purchaser.

Marketing of the Stillen Supercharger Kit using any identification other than that shown in this
Executive Order or marketing of the Stillen Supercharger Kit for an application other than those
listed in this Executive Order shall be prohibited unless prior approval is obtained from the Air
Resources Board.

This Executive Order does not constitute any opinion as to the effect the use of the Stillen
Supercharger Kit may have on any warranty either expressed or implied by the vehicle
manufacturer.

This Executive Order is granted based on prior emissions test data generated on a 2004 model
year Nissan 3507 with a 3.5 liter engine (4NSXVO3.5G7A, LEV II LEV, PC). Testing consisted
of Cold—Start CVS—75 Federal Test Procedure, Supplemental Federal Test Procedure
(USO6/SCO03), and an examination of the On—Board Diagnostic II (OBD II) system. Emission
levels of the 350Z with the Stillen Supercharger Kit installed, met the vehicle‘s applicable
emission standards. The following test results are in grams per mile with the deterioration
factors applied:
                          CVS—75                            USO6/SCO3
                   NMOG CO      NOx       HCHO           NMHC+NOx     CO
Standards 50k      0.075 3.4   0.05       0.015          0.14/0.20    8.0/2.7
Device             0.065 1.5   0.05       0.001          0.08/0.05    5.0/2.1

Examination of the OBD II system showed the Nissan/Infiniti Supercharger Kit does not affect
OBD I! system operation.

THIS EXECUTIVE ORDER DOES NOT CONSTITUTE A CERTIFICATION, ACCREDITATION,
APPROVAL, OR ANY OTHER TYPE OF ENDORSEMENT BY THE AIR RESOURCES BOARD
OF ANY CLAIMS OF THE APPLICANT CONCERNING ANTI—POLLUTION BENEFITS OR ANY
ALLEGED BENEFITS OF THE STILLEN SUPERCHARGER KIT.

No claim of any kind, such as "Approved by the Air Resources Board", may be made with
respect to the action taken herein in any advertising or other oral or written communication.



      STEVE MILLEN SPORTPARTS, INC. — STILLEN SUPERCHARGER KIT — D—436—15


Violation of any of the above conditions shall be grounds for revocation of this order. The order
may be revoked only after a ten—day written notice of intention to revoke the order, in which
period the holder of the order may request in writing a hearing to contest the proposed
revocation. If a hearing is requested, it shall be held within ten days of receipt of the request
and the order may not be revoked until a determination is made after the hearing that grounds
for revocation exist.

Executed at El Monte, California, this     5l        day of August 2009.




                                     Annette Hebert, Chief             .
                                     Mobile Source Operations Division




      STEVE MILLEN SPORTPARTS, INC. — STILLEN SUPERCHARGER KIT — D—436—15
