Approval Details

Valid E.O.

Validity

This Executive Order approved the specified parts on on February 4, 1998.
As of Friday, October 11th, 2024 this Executive Order has not been overturned or superceeded.

Approved Parts

ModelsModification
1998 and older Harley Davidson motorcycles equipped with the V-Twin carbureted engineIt is an adjustable replacement ignition module that features four pre-programmed timing curves and four pre-programmed rev-limiter settings. The four different advance curves range from a slightly modified stock profile (2.5 degrees above stock) thru increasing degrees of retard. The four user selectable RPM limit settings range from 6000 to 7500 RPMs. No modification are required for installation or operation.

This Executive Order may be listed as:
  • C.A.R.B.E.O. D-443-2
  • Executive Order 443-2 / D443-2
  • ARB # D-443-2
  • Executive Order No: D-443-2
  • C.A.R.B. No. D-443-2
  • Resolution D-443-2
For Free CARB Executive Order Status verification, email an image of the device Executive Order label as well as the Year/Make/Model and Test Group # of the vehicle to [email protected]

Download: Executive Order D-443-2 PDF

D-443-2 Document:


CARB_D-443-2

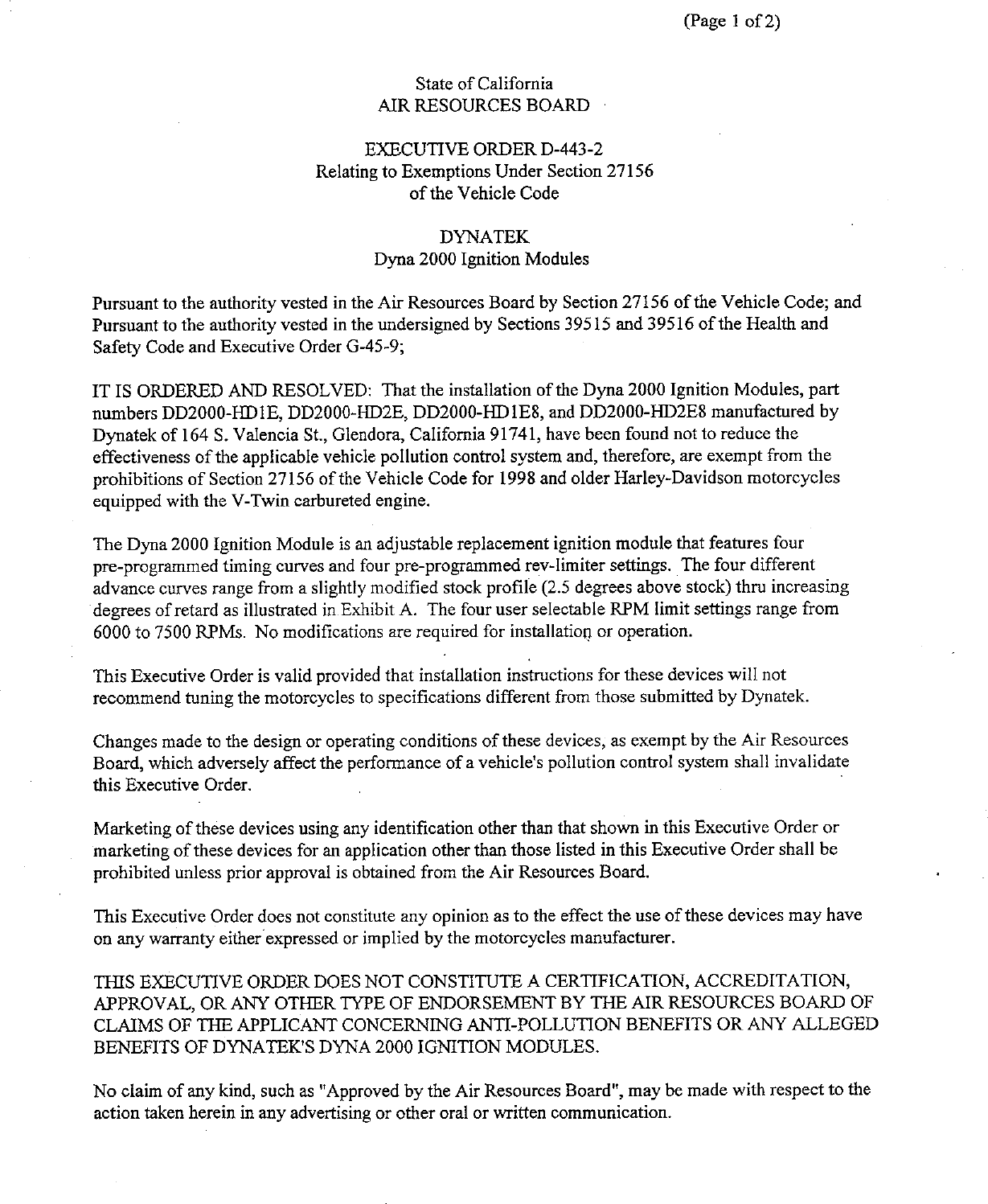

                                                                                 (Page 1 of 2)


                                           State of California
                                       AIR RESOURCES BOARD

                                     EXECUTIVE ORDER D—443—2
                              Relating to Exemptions Under Section 27156
                                           of the Vehicle Code

                                               DYNATEK
                                      Dyna 2000 Ignition Modules

Pursuant to the authority vested in the Air Resources Board by Section 27156 of the Vehicle Code; and
Pursuant to the authority vested in the undersigned by Sections 39515 and 39516 of the Health and
Safety Code and Executive Order G—45—9;

IT IS ORDERED AND RESOLVED: That the installation of the Dyna 2000 Ignition Modules, part
numbers DD2000—HD1E, DD2000—HD2E, DD2000—HD1ES, and DD2000—HD2E8 manufactured by
Dynatek of 164 S. Valencia St., Glendora, California 91741, have been found not to reduce the
effectiveness of the applicable vehicle pollution control system and, therefore, are exempt from the
prohibitions of Section 27156 of the Vehicle Code for 1998 and older Harley—Davidson motorcycles
equipped with the V—Twin carbureted engine.

The Dyna 2000 Ignition Module is an adjustable replacement ignition module that features four
pre—programmed timing curves and four pre—programmed rev—limiter settings. The four different
advance curves range from a slightly modified stock profile (2.5 degrees above stock) thru increasing
degrees of retard as illustrated in Exhibit A. The four user selectable RPM limit settings range from
6000 to 7500 RPMs. No modifications are required for installation or operation.

This Executive Order is valid provided that installation instructions for these devices will not
recommend tuning the motorcycles to specifications different from those submitted by Dynatek.

Changes made to the design or operating conditions of these devices, as exempt by the Air Resources
Board, which adversely affect the performance of a vehicle‘s pollution control system shall invalidate
this Executive Order.                                                                                j

Marketing of these devices using any identification other than that shown in this Executive Order or
marketing of these devices for an application other than those listed in this Executive Order shall be
prohibited unless prior approvalis obtained from the Air Resources Board.

This Executive Order does not constitute any opinion as to the effect the use ofthese devices may have
on any warranty either expressed or implied by the motorcycles manufacturer.

THIS EXECUTIVE ORDER DOES NOT CONSTITUTE A CERTIFICATION, ACCREDITATION,
APPROVAL, OR ANY OTHER TYPE OF ENDORSEMENT BY THE AIR RESOURCES BOARD OF
CLAIMS OF THE APPLICANT CONCERNING ANTI—POLLUTION BENEFITS OR ANY ALLEGED
BENEFITS OF DYNATEK‘S DYNA 2000 IGNITION MODULES.

No claim of any kind, such as "Approved by the Air Resources Board", may be made with respectto the
action taken herein in any advertising or other oral or written communication.


Dynatek                                                                          Executive Order D—443—2
Ignition Module                                                                  (Page 2 of 2)




Violation of any of the above conditions shall be grounds for revocation of this order. The order may be
revoked only after ten day written notice ofintention to revoke the order, in which period the holder of
the order may request in writing a hearing to contest the proposed revocation. If a hearing is requested, it
shall be held within ten days of receipt of the request and the order may not be revoked until a
determination after hearing that grounds for revocation exist.
                           Hfomin this 6
Executed at El Monte, California, this T day of




                                  R. B. Shmmerfield, Chief
                                  Mobile Source Operations Division


                                                                  NORMAL VOES MODE ADVANCE CURVES

                            OE abyanke cugve wifH
                            yooaks: switen acHVE >                                                                       "1 C ap§                              RPM LIMIT CHOICES
                40                         —                                                                                  ('X« /‘/                     d         d    —dr           o


            '                                                                                                        RBe          |                        €         m     3            m
                35                 P                            cURVEH 1.                                 of E_               |
                                                           9
                                                           D/
                                                                          M                         lA      :            ze
                                                                                                                                  i7
                30                                  $                    AZ                                 l«                    i=—                            —
 ADV                                   —            Q’/,/         /           a\s// //,//                                               l                                          clll

CDEG)           o5                             AlM              _X                                                       t                                                 J_LL_
        .                              ‘37\// V le#l                      12                         37                                               .
                                       R%                                         P                                                                                                TT
                20             142                                            l                 bg!—             4
                                   A   /       _1.... /.                 //                                                                                                                 %



                15
                                   inarr
                                   /  ////
                                         ann —                                                                                                        CCC
                                                                                                                                                      —
                                                                                                                                                         E oEo
                10                     AZ                                                       —                                             |                                —
                               1. / V fe]                                             0CP                                                                                          OCOECE
                5                      t                                                                                                          :

                    0          +                T                    T                      T                        T                   1                *~               t

                        o              1000                      2000             3000                           4000                   000           _ 6000             7000

DD2000          ————————                                             ENGINE ‘ RPM
EM MODULE _—————


                                                                                                DD2000— ——— OEM ADVANCE CURVES _



Document Created: 2005-09-01 12:41:24
Document Modified: 2005-09-01 12:41:24
