Approval Details

Valid E.O.

Validity

This Executive Order approved the specified parts on on March 4, 1999.
As of Sunday, December 16th, 2018 this Executive Order has not been overturned or superceeded.

Approved Parts

ModelsModification
1990-99 Mazda Miatas equipped with a 4 cyl engine. 1990-93 crankshaft dia. 5.12", supercharger dia. 2.88", 1994-99 crankshaft dia. 5.125", supercharger dia. 2.64", 6 psi. max boost.Moss Motors' Mazda Supercharger Kit includes an Eaton supercharger designed to give a maximum boost of 6 psi., a new fuel pressure regulator and an aftermarket open element air cleaner to replace the original equipment air cleaner. Modifications to the emissions control system include a relocation of the throttle body, and a 4 degree retard in ignition timing

This Executive Order may be listed as:
  • C.A.R.B.E.O. D-453-1
  • Executive Order 453-1 / D453-1
  • ARB # D-453-1
  • Executive Order No: D-453-1
  • C.A.R.B. No. D-453-1
  • Resolution D-453-1
For Free CARB Executive Order Status verification, email an image of the device Executive Order label as well as the Year/Make/Model and Test Group # of the vehicle to [email protected]

Download: Executive Order D-453-1 PDF

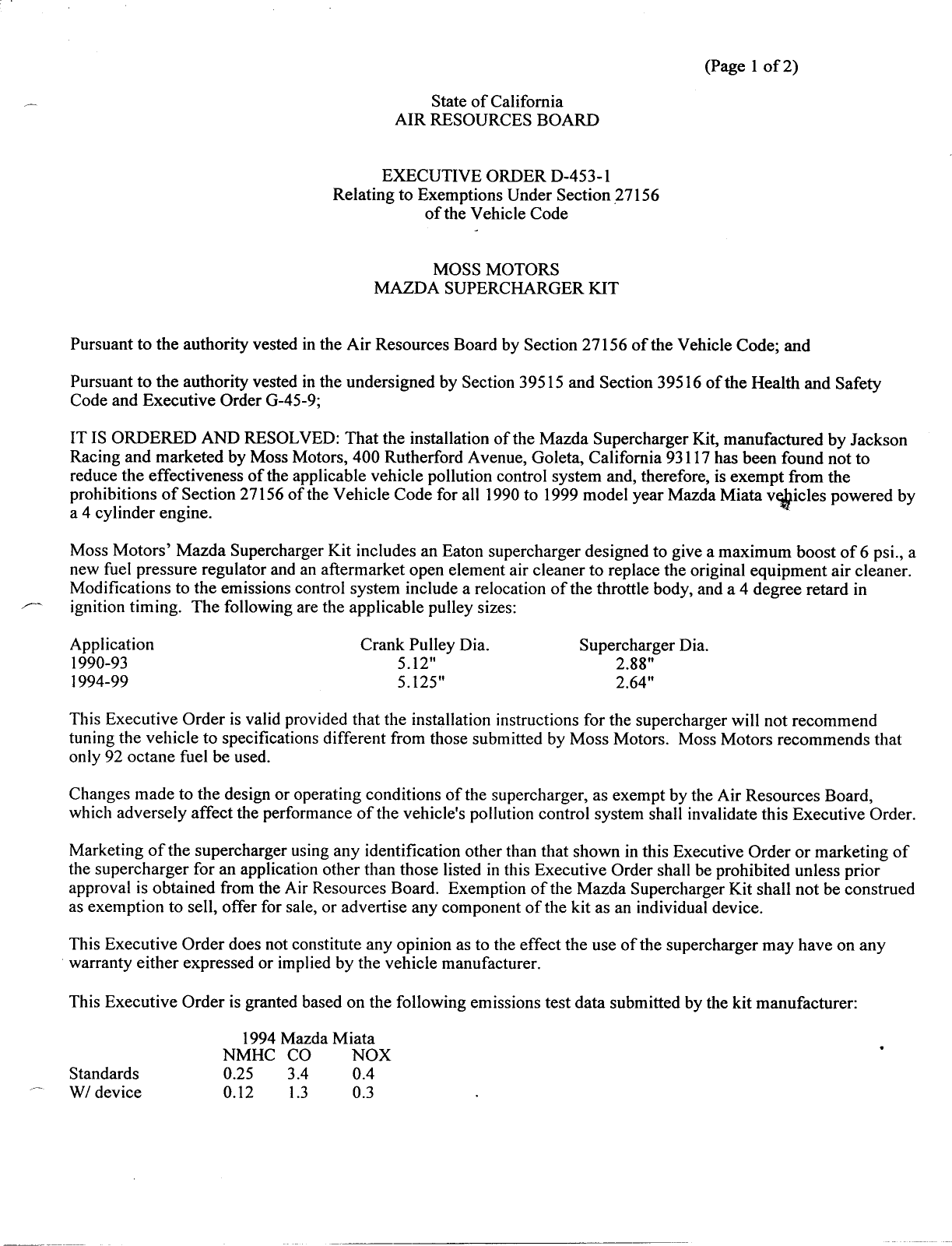

D-453-1 Document:



                                                                                           (Page 1 of 2)

                                                    State of California
                                                AIR RESOURCES BOARD


                                               EXECUTIVE ORDER D—453—1
                                     Relating to Exemptions Under Section 27156
                                                  of the Vehicle Code


                                                MoOSS MOTORS
                                           MAZDA SUPERCHARGER KIT


Pursuant to the authority vested in the Air Resources Board by Section 27156 of the Vehicle Code; and

Pursuant to the authority vested in the undersigned by Section 39515 and Section 39516 of the Health and Safety
Code and Executive Order G—45—9;

IT IS ORDERED AND RESOLVED: That the installation of the Mazda Supercharger Kit, manufactured by Jackson
Racing and marketed by Moss Motors, 400 Rutherford Avenue, Goleta, California 93117 has been found not to
reduce the effectiveness of the applicable vehicle pollution control system and, therefore, is exempt from the
prohibitions of Section 27156 of the Vehicle Code for all 1990 to 1999 model year Mazda Miata ve&icles powered by
a 4 cylinder engine.

Moss Motors® Mazda Supercharger Kit includes an Eaton supercharger designed to give a maximum boost of 6 psi., a
new fuel pressure regulator and an aftermarket open element air cleaner to replace the original equipment air cleaner.
Modifications to the emissions control system include a relocation of the throttle body, and a 4 degree retard in
ignition timing. The following are the applicable pulley sizes:

Application                              Crank Pulley Dia.               Supercharger Dia.
 1990—93                                        5.12"                         2.88"
 1994—99                                        5.125"                        2.64"

This Executive Order is valid provided that the installation instructions for the supercharger will not recommend
tuning the vehicle to specifications different from those submitted by Moss Motors. Moss Motors recommends that
only 92 octane fuel be used.

Changes made to the design or operating conditions of the supercharger, as exempt by the Air Resources Board,
which adversely affect the performance of the vehicle‘s pollution control system shall invalidate this Executive Order.

Marketing of the supercharger using any identification other than that shown in this Executive Order or marketing of
the supercharger for an application other than those listed in this Executive Order shall be prohibited unless prior
approval is obtained from the Air Resources Board. Exemption of the Mazda Supercharger Kit shall not be construed
as exemption to sell, offer for sale, or advertise any component of the kit as an individual device.

  This Executive Order does not constitute any opinion as to the effect the use of the supercharger may have on any
© warranty either expressed or implied by the vehicle manufacturer.

 This Executive Order is granted based on the following emissions test data submitted by the kit manufacturer:

                         1994 Mazda Miata
                      NMHC CO         NOX
 Standards            0.25     3.4    0.4
 W/ device            0.12     1.3       0.3


1998 Honda Civic certified to   a Low Emission Vehicle (LEV) emission standard
                    NMOG         CO     NOX     HCHO
Standards           0.075        3.4    0.2     0.015
device w/ dfs       0.071        1.5    0.1     0.002

Test results showed that the Supercharger Kit when installed on the vehicles did not cause tailpipe emissions to exceed
the vehicle‘s applicable emission standard during a Cold Start CVS—75 Federal Test Procedure. This Executive Order is
also based on On Board Diagnostic II (OBD II) testing conducted on the same 1999 Mazda Miata and 1998 Honda
Civic. Test data showed that the Supercharger Kit when installed on the vehicles did not affect the vehicle‘s ability to
perform its OBD II monitoring. The same emissions impact is expected when the Mazda Supercharger Kit is installed
on the vehicles for which exemption is granted.

However, the ARB finds that reasonable grounds exist to believe that use of the Mazda Supercharger Kit may adversely
affect emissions of motor vehicles when operating under conditions outside the parameters of the previously prescribed
test procedures. Accordingly, the ARB reserves the right to conduct additional emission tests, in the future, as such
tests are developed, that will more adequately measure emissions from all cycle phases. If such test results
demonstrate that the Mazda Supercharger Kit adversely affect emissions during off—cycle conditions (defined as those
conditions which are beyond the parameters of the Cold—Start CVS—75 Federal Test Procedure), this Executive Order
shall be effectively rescinded as of the date the test results are validated. Further, if such test results or other evidence
provides the ARB with reason to suspect that the Mazda Supercharger Kit will affect the durability of the emission
control system, Moss Motors shall be required to submit durability data to show that the durability of the vehicle
emission control system is not, in fact, affected and/or that the add—on or modified part demonstrates adequate
durability.

In addition to the foregoing, the ARB reserves the right in the future to review this Executive Order and the
exemption provided herein to assure that the exempted add—on or modified part continues to meet the standards and
procedures of Title 13, California Code of Regulations, Section 2222, et seq.

THIS EXECUTIVE ORDER DOES NOT CONSTITUTE A CERTIFICATION, ACCREDITATION, APPROVAL,
OR ANY OTHER TYPE OF ENDORSEMENT BY THE AIR RESOURCES BOARD OF ANY CLAIMS OF THE
APPLICANT CONCERNING ANTI—POLLUTION BENEFITS OR ANY ALLEGED BENEFITS OF MOSS
MOTORS‘ MAZDA SUPERCHARGER KIT.

No claim of any kind, such as "Approved by the Air Resources Board", may be made with respect to the action taken
herein in any advertising or other oral or written communication.

Violation of any of the above conditions shall be grounds for revocation of this order. The order may be revoked only
after a ten—day written notice of intention to revoke the order, in which period the holder of the order may request in
writing a hearing to contest the proposed revocation. If a hearing is requested, it shall be held within ten days of
receipt of the request and the order may not be revoked until a determination after hearing that grounds for revocation
exist.

Executive Order D—453, dated April, 1998, is superseded and of no further force and effect.

Executed at El Monte, California, this              day o




                                           .   B.   Summerfield, Chief
                                          Mobile Source Operations Division



Document Created: 2005-09-01 12:41:20
Document Modified: 2005-09-01 12:41:20
