Approval Details

Valid E.O.

Validity

This Executive Order approved the specified parts on on June 24, 1998.
As of Sunday, August 25th, 2019 this Executive Order has not been overturned or superceeded.

Approved Parts

Part NumberModels
13.19101991-98 NSX 3.0/3.2L

This Executive Order may be listed as:
  • C.A.R.B.E.O. D-455-2
  • Executive Order 455-2 / D455-2
  • ARB # D-455-2
  • Executive Order No: D-455-2
  • C.A.R.B. No. D-455-2
  • Resolution D-455-2
For Free CARB Executive Order Status verification, email an image of the device Executive Order label as well as the Year/Make/Model and Test Group # of the vehicle to [email protected]

Download: Executive Order D-455-2 PDF

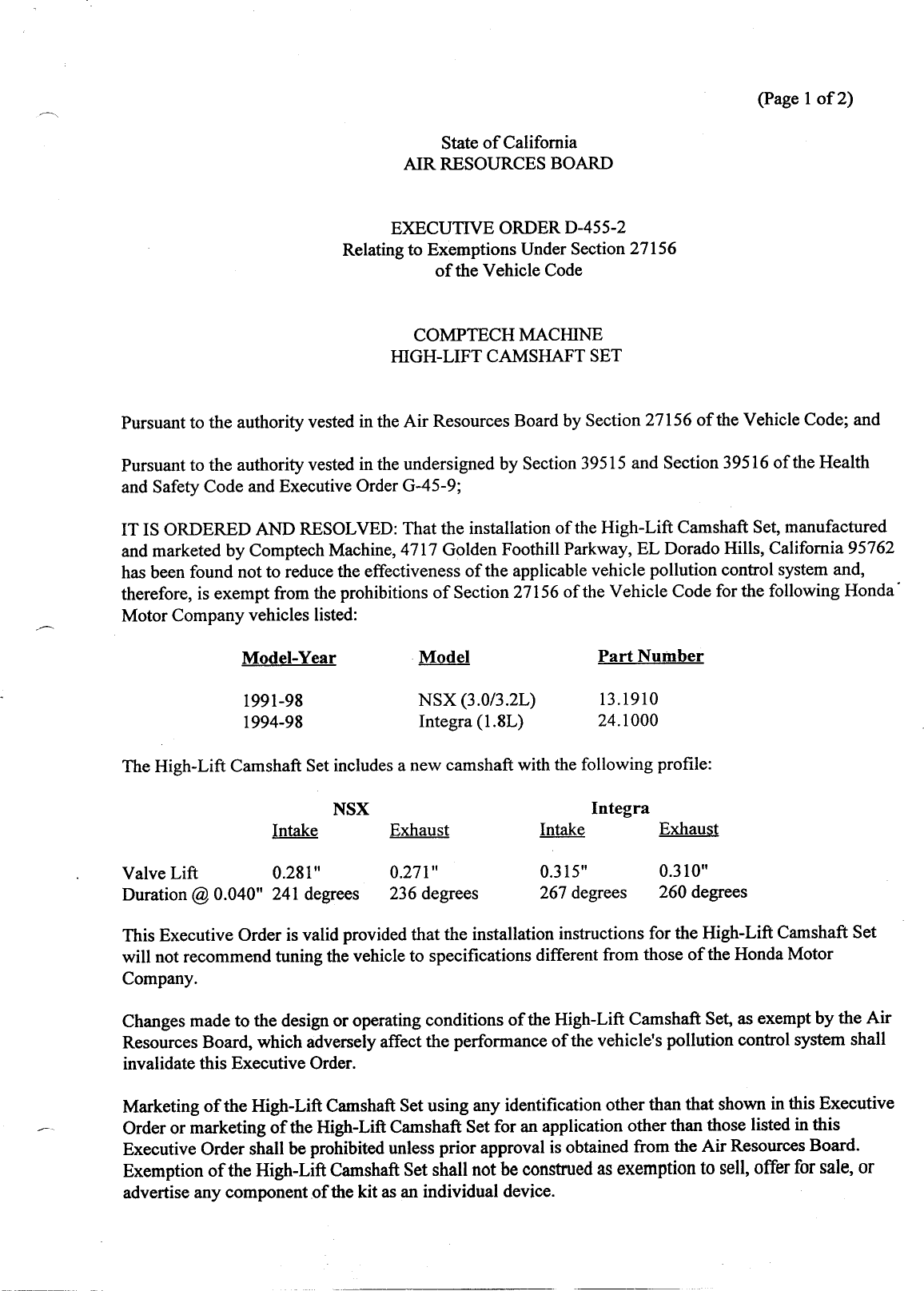

D-455-2 Document:



                                                                                           (Page 1 of 2)

                                           State of California
                                       AIR RESOURCES BOARD



                                    EXECUTIVE ORDER D—455—2
                              Relating to Exemptions Under Section 27156
                                           of the Vehicle Code


                                       COMPTECH MACHINE
                                     HIGH—LIFT CAMSHAFT SET


Pursuant to the authority vested in the Air Resources Board by Section 27156 of the Vehicle Code; and

Pursuant to the authority vested in the undersigned by Section 39515 and Section 39516 of the Health
and Safety Code and Executive Order G—45—9;

IT IS ORDERED AND RESOLVED: That the installation of the High—Lift Camshaft Set, manufactured
and marketed by Comptech Machine, 4717 Golden Foothill Parkway, EL Dorado Hills, California 95762
has been found not to reduce the effectiveness of the applicable vehicle pollution control system and,
therefore, is exempt from the prohibitions of Section 27156 of the Vehicle Code for the following Honda
Motor Company vehicles listed:

                Model—Year              — Model                    Number

                 1991—98                 NSX (3.0/3.2L)            13.1910
                 1994—98                 Integra (1.8L)            24.1000

The High—Lift Camshaft Set includes a new camshaft with the following profile:

                             NSX                                   Integra
                    Intake           Exhaust              Intake             Exhaust

Valve Lift        0.281"             0.271"               0.315"             0.310"
Duration @ 0.040" 241 degrees        236 degrees          267 degrees        260 degrees

This Executive Order is valid provided that the installation instructions for the High—Lift Camshaft Set
will not recommend tuning the vehicle to specifications different from those of the Honda Motor
Company.

Changes made to the design or operating conditions of the High—Lift Camshaft Set, as exempt by the Air
Resources Board, which adversely affect the performance of the vehicle‘s pollution control system shall
invalidate this Executive Order.

Marketing of the High—Lift Camshaft Set using any identification other than that shown in this Executive
Order or marketing of the High—Lift Camshaft Set for an application other than those listed in this
Executive Order shall be prohibited unless prior approval is obtained from the Air Resources Board.
Exemption of the High—Lift Camshaft Set shall not be construed as exemption to sell, offer for sale, or
advertise any component of the kit as an individual device.


COMPIECH MAUCHINE                                                         Executive urder 1)—45>—2
High—Lift Camshaft Set                                                    (Page 2 of 2)




This Executive Order does not constitute any opinion as to the effect the use of the High—Lift Camshaft
Set may have on any warranty either expressed or implied by the vehicle manufacturer.

This Executive Order is granted based on the following submitted emissions test data on a 1997 Acura
NSX certified to a tier 1 emission standard:
                     NMHC       CO      NOX
Standards            0.25       3.4     0.4
device w/ dfs        0.19       1.2     0.2

Test results showed that tailpipe emissions with the High—Lift Camshaft Set installed on the vehicle met
the vehicle‘s applicable emission standard during Cold Start CVS—75 Federal Test Procedure. This
Executive Order is also based on On Board Diagnostic II (OBD II) testing conducted on the same 1997
Acura NSX. Test data showed that the High—Lift Camshaft Set when installed on the vehicle did not
affect the vehicle‘s ability to perform its OBD II monitoring.

THIS EXECUTIVE ORDER DOES NOT CONSTITUTE A CERTIFICATION, ACCREDITATION,
APPROVAL, OR ANY OTHER TYPE OF ENDORSEMENT BY THE AIR RESOURCES BOARD OF
ANY CLAIMS OF THE APPLICANT CONCERNING ANTI—POLLUTION BENEFITS OR ANY    *
ALLEGED BENEFITS OF COMPTECH MACHINE‘S HIGH—LIFT CAMSHAFT SET .

No claim of any kind, such as "Approved by the Air Resources Board", may be made with respect to the
action taken herein in any advertising or other oral or written communication.

Violation of any of the above conditions shall be grounds for revocation of this order. The order may be
revoked only after a ten—day written notice of intention to revoke the order, in which period the holder of
the order may request in writing a hearing to contest the proposed revocation. If a hearing is requested, it
shall be held within ten days of receipt of the request and the order may not be revoked until a
determination after hearing that grounds for revocation exist.

Executed at El Monte, California, this 3 51 day of June 1998.




                                        R. B. Summerfield, Chief
                                        Mobile Source Operations Division



Document Created: 2005-09-01 12:45:02
Document Modified: 2005-09-01 12:45:02
