Approval Details

Valid E.O.

Validity

This Executive Order approved the specified parts on on July 14, 2009.
As of Thursday, June 20th, 2019 this Executive Order has not been overturned or superceeded.

Approved Parts

Part NumberModelsRemarks
10-1607-B150582007-2009 4.6L Ford Mustang with the following test group numbers: 7FMXV05.4VEK 8FMXV05.4VEK 9FMXV05.4VEKSupplemental kit 06-1604-B19222 is required when installing the Series VI Supercharger Kit on 2009 model year vehicles.

This Executive Order may be listed as:
  • C.A.R.B.E.O. D-473-13
  • Executive Order 473-13 / D473-13
  • ARB # D-473-13
  • Executive Order No: D-473-13
  • C.A.R.B. No. D-473-13
  • Resolution D-473-13
For Free CARB Executive Order Status verification, email an image of the device Executive Order label as well as the Year/Make/Model and Test Group # of the vehicle to [email protected]

Download: Executive Order D-473-13 PDF

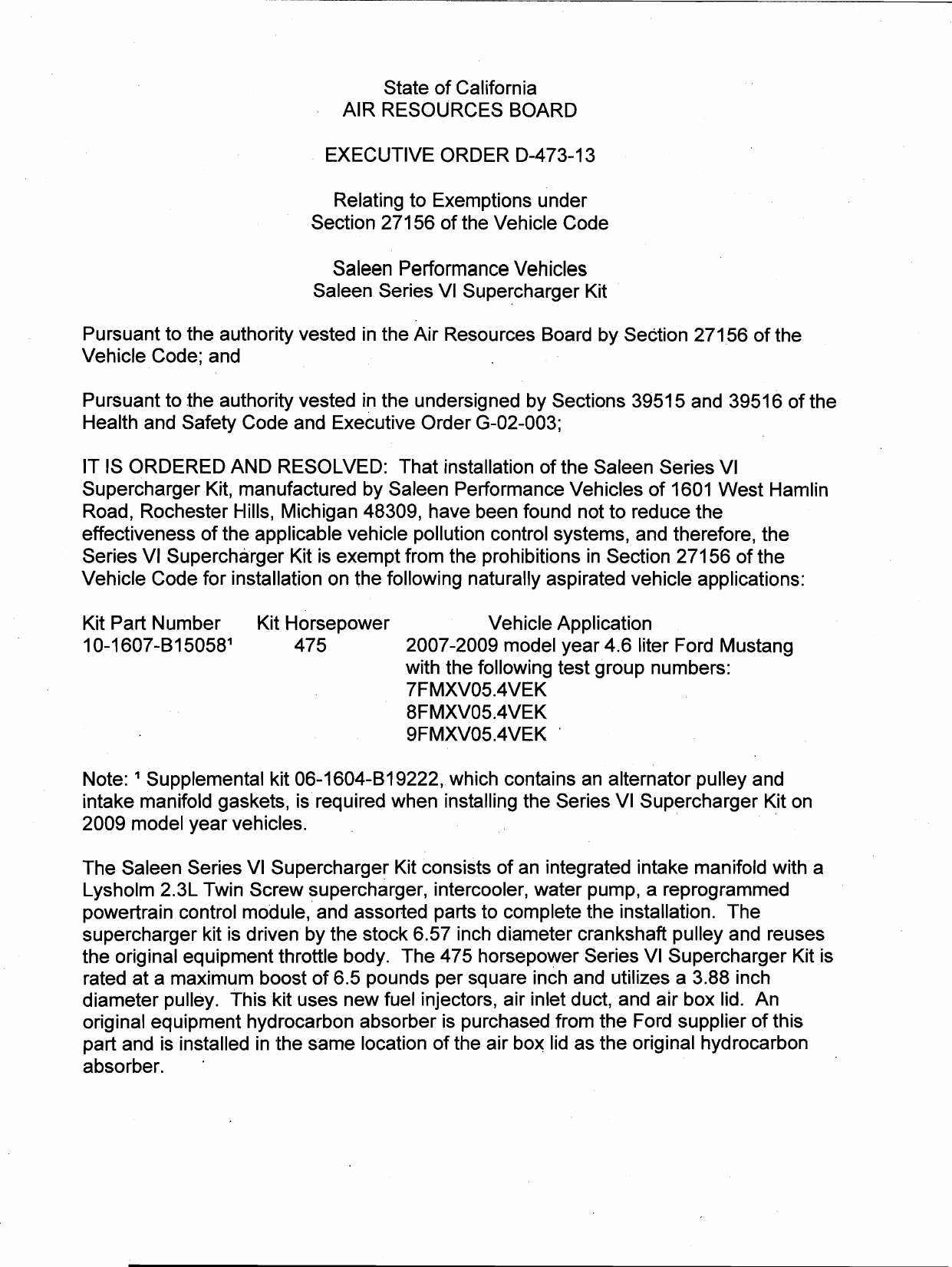

D-473-13 Document:



                                  State of California
                              AIR RESOURCES BOARD

                            EXECUTIVE ORDER D-473-13

                             Relating to Exemptions under
                           Section 27156 of the Vehicle Code

                             Saleen Performance Vehicles
                           Saleen Series VI Supercharger Kit

Pursuant to the authority vested in the Air Resources Board by Section 27156 of the
Vehicle Code; and

Pursuant to the authority vested in the undersigned by Sections 39515 and 39516 of the
Health and Safety Code and Executive Order G-02-003;

IT IS ORDERED AND RESOLVED: That installation of the Saleen Series VI
Supercharger Kit, manufactured by Saleen Performance Vehicles of 1601 West Hamlin
Road, Rochester Hills, Michigan 48309, have been found not to reduce the
effectiveness of the applicable vehicle pollution control systems, and therefore, the
Series VI Supercharger Kit is exempt from the prohibitions in Section 27156 of the
Vehicle Code for installation on the following naturally aspirated vehicle applications:

Kit Part Number     Kit Horsepower           Vehicle Application
10-1607-B15058I          475       2007-2009 model year 4.6 liter Ford Mustang
                                   with the following test group numbers:
                                   7FMXV05.4VEK
                                   8FMXV05.4VEK
                                   9FMXV05.4VEK         '




Note: Supplemental kit 06-1604-B19222, which contains an alternator pulley and
intake manifold gaskets, is required when installing the Series VI Supercharger Kit on
2009 model year vehicles.

The Saleen Series VI Supercharger Kit consists of an integrated intake manifold with a
Lysholm 2.3L Twin Screw supercharger, intercooler, water pump, a reprogrammed
powertrain control module, and assorted parts to complete the installation. The
supercharger kit is driven by the stock 6.57 inch diameter crankshaft pulley and reuses
the original equipment throttle body. The 475 horsepower Series VI Supercharger Kit is
rated at a maximum boost of 6.5 pounds per square inch and utilizes a 3.88 inch
diameter pulley. This kit uses new fuel injectors, air inlet duct, and air box lid. An
original equipment hydrocarbon absorber is purchased from the Ford supplier of this
part and is installed in the same location of the air box lid as the original hydrocarbon
absorber.      .


This Executive Order is granted based on emissions tests submitted by Saleen
Performance Vehicles in certifying their supercharged 2009 model year Saleen S281
(4.6 liter engine) and S302 (5.0 liter engine) models as small volume new vehicles
(E.O. A-324-0025, test group 9S3XV05.OJDC Low Emission Vehicle (LEV) II LEV).
Saleen Performance Vehicles determined that the supercharged Saleen S302 Extreme
model, which is a 5.0 liter modified version of the 4.6 liter original equipment engine,
was the worst case vehicle for emission testing. The final configuration of the
2007-2009 model year 4.6 liter Ford Mustang equipped with the Saleen Series VI
Supercharger Kit will be the same as the Saleen S281 Supercharged vehicle.

The certification emission results and exhaust emission standards are shown below (in
grams per mile):
                                 FTP
                     NMOG CONOX          HCHO
Standards, 50K       0.075 3.4 0.05 0.015
Emission results     0.037 2.2 0.04 NIA

Standards, 120K      0.090 4.2 0.07        0.018
Emission results     0.045. 2.9 0.05       NIA

                           US06 ISC03
                     NMHC+NOx        CO
Standards, 4K        0.14 10.20    8.0 12.7
Emission results     0.1 1 10.01   6.5 / 0.5

The emission test results submitted for new vehicle certification have been accepted as
representative of emissions in the modified configuration and were below the applicable
certification standards. Examination of the OBD II system in the 2009 model year
supercharged Saleen vehicles showed the Saleen Series Vl Supercharger Kit does not
affect OBD II system operation.

If evidence provides the Air Resources Board with reasons to suspect that the Saleen
Series VI Supercharger Kit will affect the durability of the emission control system,
Saleen Performance Vehicles shall be required to submit durability data to show that
the durability of the vehicle emission control system is not, in fact, affected andlor that
the add-on or modified parts demonstrate adequat8'burability.

This Executive Order is valid provided that installation instructions for the Saleen Series
VI Supercharger Kit do not recommend tuning the vehicle to specifications different from
those of the vehicle manufacturer.

Changes made to the design or operating conditions of the Saleen Series VI
Supercharger Kit, as exempt by the Air Resources Board, which adversely affect the
performance of the vehicles' emission control system, shall invalidate this Executive
Order.




   SALEEN PERFORMANCE VEHICLES - SALEEN SERIES VI SUPERCHARGER KIT - D-473-13


Marketing of the Saleen Series VI Supercharger Kit using identification other than that
shown in this Executive Order or for an application other than that listed in this
Executive Order shall be prohibited unless prior approval is obtained from the Air
Resources Board.

This Executive Order shall not apply to any Saleen Series VI Supercharger Kit
advertised, offered for sale, sold with, or installed on a motor vehicle prior to or
concurrent with transfer to an ultimate purchaser.

This Executive Order does not constitute any opinion as to the effect the use of the
Saleen Series VI Supercharger Kit may have on any warranty either expressed or
implied by the vehicle manufacturer.

No claim of any kind, such as "Approved by the Air Resources Board," may be made
with respect to the action taken herein in any advertising or other oral or written
communication.

In addition to the foregoing, the Air Resources Board reserves the right in the future to
review this Executive Order and the exemption provided herein to assure that the
exempted add-on or modified part continues to meet the standards and procedures of
California Code of Regulations, Title 13, Section 2222, et seq.

THIS EXECUTIVE ORDER DOES NOT CONSTITUTE A CERTIFICATION,
ACCREDITATION, APPROVAL, OR ANY OTHER TYPE OF ENDORSEMENT BY THE
AIR RESOURCES BOARD OF ANY CLAIMS OF THE APPLICANT CONCERNING
ANTI-POLLUTION BENEFITS OR ANY ALLEGED BENEFITS OF SALEEN
PERFORMANCE VEHICLES' SERIES VI SUPERCHARGER KIT.

Violation of any of the above conditions shall be grounds for revocation of this Executive
Order. The Executive Order may be revoked only after a ten day written notice of
intention to revoke the Executive Order, in which period the holder of the Executive
Order may request in writing a hearing to contest the proposed revocation. If a hearing
is requested, it shall be held within ten days of receipt of the request, and the Executive
Order may not be revoked until a determination is made after the hearing that grounds
for revocation exist.

Executed at El Monte, California, this      / y day of July 2009.

                                      L/'
                                         Annette Hebert, Chief
                                         Mobile Source Operations Division




   SALEEN PERFORMANCE VEHICLES - SALEEN SERIES VI SUPERCHARGER KIT - D-473-13



Document Created: 2009-07-27 15:36:59
Document Modified: 2009-07-27 15:36:59

Previous E.O. D-473-12 | Previous E.O. D-472 | Next E.O. D-473-14 | Next E.O. D-474
