Approval Details

Valid E.O.

Validity

This Executive Order approved the specified parts on on November 29, 2010.
As of Wednesday, December 19th, 2018 this Executive Order has not been overturned or superceeded.

Approved Parts

Part NumberModelsRemarks
10-1607-B150582007-2009 model year 4.6L Ford Mustang with the following test group numbers: 7FMXV05.4VEK, 7FMXV04.6VBB, 8FMXV05.4VEK, 8FMXV04.6VBB, 9FMXV05.4VEK, 9FMXV04.6VBBThis is a 475 HP kit. Also, supplemental kit 06-1604-B19222 is required when installing the Series VI Supercharger Kit on 2009 model year vehicles.

This Executive Order may be listed as:
  • C.A.R.B.E.O. D-473-15
  • Executive Order 473-15 / D473-15
  • ARB # D-473-15
  • Executive Order No: D-473-15
  • C.A.R.B. No. D-473-15
  • Resolution D-473-15
For Free CARB Executive Order Status verification, email an image of the device Executive Order label as well as the Year/Make/Model and Test Group # of the vehicle to [email protected]

Download: Executive Order D-473-15 PDF

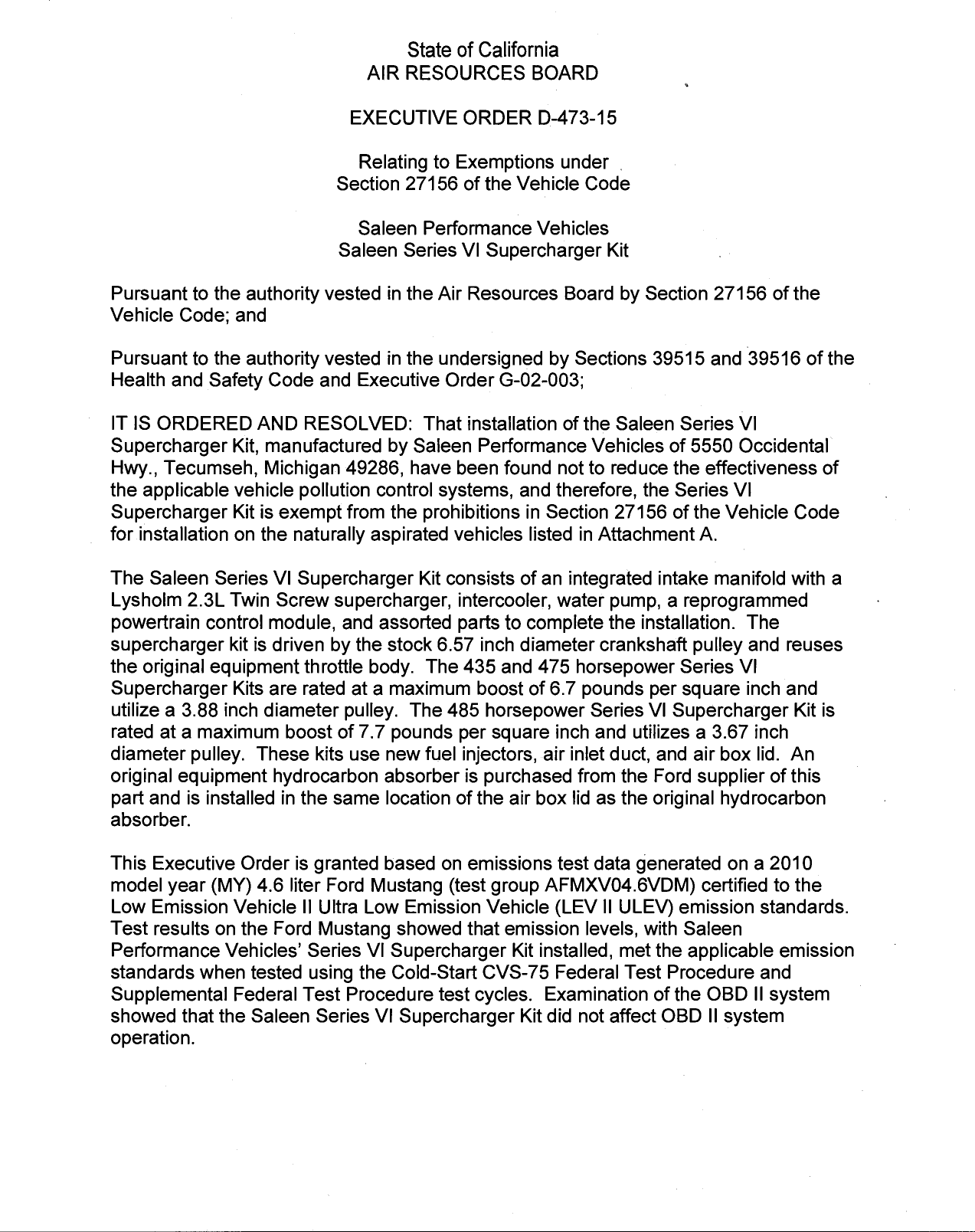

D-473-15 Document:



                                   State of California
                               AIR RESOURCES BOARD

                             EXECUTIVE ORDER D—473—15

                               Relating to Exemptions under .
                            Section 27156 of the Vehicle Code

                              Saleen Performance Vehicles
                            Saleen Series VI Supercharger Kit

Pursuant to the authority vested in the Air Resources Board by Section 27156 of the
Vehicle Code; and

Pursuant to the authority vested in the undersigned by Sections 39515 and 39516 of the
Health and Safety Code and Executive Order G—02—003;

IT IS ORDERED AND RESOLVED: That instailation of the Saleen Series VI
Supercharger Kit, manufactured by Saleen Performance Vehicles of 5550 Occidental
Hwy., Tecumseh, Michigan 49286, have been found not to reduce the effectiveness of
the applicable vehicle pollution control systems, and therefore, the Series VI
Supercharger Kit is exempt from the prohibitions in Section 27156 of the Vehicle Code
for installation on the naturally aspirated vehicles listed in Attachment A.

The Saleen Series VI Supercharger Kit consists of an integrated intake manifold with a
Lysholm 2.3L Twin Screw supercharger, intercooler, water pump, a reprogrammed
powertrain control module, and assorted parts to complete the installation. The
supercharger kit is driven by the stock 6.57 inch diameter crankshaft pulley and reuses
the original equipment throttle body. The 435 and 475 horsepower Series VI
Supercharger Kits are rated at a maximum boost of 6.7 pounds per square inch and
utilize a 3.88 inch diameter pulley. The 485 horsepower Series VI Supercharger Kit is
rated at a maximum boost of 7.7 pounds per square inch and utilizes a 3.67 inch
diameter pulley. These kits use new fuel injectors, air inlet duct, and air box lid. An
original equipment hydrocarbon absorber is purchased from the Ford supplier of this
part and is installed in the same location of the air box lid as the original hydrocarbon
absorber.

This Executive Order is granted based on emissions test data generated on a 2010
model year (MY) 4.6 liter Ford Mustang (test group AFMXVO4.6VDM) certified to the
Low Emission Vehicle II Ultra Low Emission Vehicle (LEV II ULEV) emission standards.
Test results on the Ford Mustang showed that emission levels, with Saleen
Performance Vehicles‘ Series VI Supercharger Kit installed, met the applicable emission
standards when tested using the Cold—Start CVS—75 Federal Test Procedure and
Supplemental Federal Test Procedure test cycles. Examination of the OBD II system
showed that the Saleen Series VI Supercharger Kit did not affect OBD II system
operation.


                                               2.

The 2010 MY 4.6 liter Ford Mustang emission test results and exhaust emission
standards are shown below:

                                    FTP Emissions (grams/mile)
                                  NMOG       __CO          . NOx
    Average Test Results
         wHI20K DF                 0.040 _          —
                                                        0.9          0.04
       120K Standards              0.070                2.1          0.04

                                  USO6 Emissions (grams/mile)
                                   NMHC+NOx             CO
        Test Results                    0.07                  1.6
        4K Standards                    0.14                  8.0
   Test Results w/120K DF                                     1.7
       120K Standards                                         11.1

                                  SCO3 Emissions (grams/mile)
                                    NMHC+NOx                  CO
         Test Results                   0.02                  0.5
     4K Standards x 80%                 016                   2.2
   Test Results w/120K DF                                     0.6
    120K Standards x 80%                                      3.0



If evidence provides the Air Resources Board with reasons to suspect that the Saleen
Series VI Supercharger Kit will affect the durability of the emission control system,
Saleen Performance Vehicles shall be required to submit durability data to show that
the durability of the vehicle emission control system is not, in fact, affected and/or that
the add—on or modified parts demonstrate adequate durability.

This Executive Order is valid provided that installation instructions for the Saleen Series
VI Supercharger Kit do not recommend tuning the vehicle to specifications different from
those of the vehicle manufacturer.

Changes made to the design or operating conditions of the Saleen Series VI
Supercharger Kit, as exempt by the Air Resources Board, which adversely affect the
performance of the vehicles‘ emission control system, shall invalidate this Executive
Order.

Marketing of the Saleen Series VI Supercharger Kit using identification other than that
shown in this Executive Order or for an application other than that listed in this
Executive Order shall be prohibited unless prior approval is obtained from the Air
Resources Board.

This Executive Order shall not apply to any Saleen Series VI Supercharger Kit
advertised, offered for sale, sold with, or installed on a motor vehicle prior to or
concurrent with transfer to an ultimate purchaser.

   SALEEN PERFORMANCE VEHICLES — SALEEN SERIES— VI SUPERCHARGER KIT — D—473—15


                                              —3—

This Executive Order does not constitute any opinion as to the effect the use of the
Saleen Series VI Supercharger Kit may have on any warranty either expressed or
implied by the vehicle manufacturer.                             ’

No claim of any kind, such as "Approved by the Air Resources Board," may be made
with respect to the action taken herein in any advertising or other oral or written
communication.

In addition to the foregoing, the Air Resources Board reserves the right in the future to
review this Executive Order and the exemption provided herein to assure that the
exempted add—on or modified part continues to meet the standards and procedures of
California Code of Regulations, Title 13, Section 2222, et seq.

THIS EXECUTIVE ORDER DOES NOT CONSTITUTE A CERTIFICATION,
ACCREDITATION, APPROVAL, OR ANY OTHER TYPE OF ENDORSEMENT BY THE
AIR RESOURCES BOARD OF ANY CLAIMS OF THE APPLICANT CONCERNING
ANTI—POLLUTION BENEFITS OR ANY ALLEGED BENEFITS OF SALEEN
PERFORMANCE VEHICLES®‘ SERIES VI SUPERCHARGER KIT.

Violation of any of the above conditions shall be grounds for revocation of this Executive
Order. The Executive Order may be revoked only after a ten day written notice of
intention to revoke the Executive Order, in which period the holder of the Executive
Order may request in writing a hearing to contest the proposed revocation. If a hearing
is requested, it shall be held within ten days of receipt of the request, and the Executive
Order may not be revoked until a determination is made after the hearing that grounds
for revocation exist.

Executed at El Monte, California, this     2 ?      day of November 2010.




                                         Annette Hebert, Chief
                                         Mobile Source Operations Division




   SALEEN PERFORMANCE VEHICLES — SALEEN SERIES VI SUPERCHARGER KIT — D—473—15


                                                   ATTACHMENT A




      a                    Kit                      Vehicle                             Test Group
    Kit Part No.       Horsepower                 Application                             Number
                                                                                7FMXVO5.4VEK, 7FMXVO4.6VBB
  10—1607—B15058           475           2(110;-'_2'(__)2?d'}\’::s‘:'a‘r’]ear   SFMXVO5.4VEK, SFMXVO4.6VBB
                                              >                         9       9FMXVO5.4VEK, IFMXVO4.GVBR
                                             2010 model year
 10—1607—B19331A           435            46L Ford Mustang                            AFMXVO4.svOM
 10—1607—B19332A           485               2010 model year
                                           4.6L Ford Mustang
                                                                                      AFMXVO4.6VDM

Note: Supplemental kit 06—1604—B19222, which contains an alternator pully and intake manifold gaskets,
is required when installing the Series VI Supercharger Kit on 2009 model year vehicles.



Document Created: 2010-12-02 10:31:37
Document Modified: 2010-12-02 10:31:37

Previous E.O. D-473-14 | Previous E.O. D-472 | Next E.O. D-473-16 | Next E.O. D-474
