Approval Details

Valid E.O.

Validity

This Executive Order approved the specified parts on on August 17, 2005.
As of Monday, December 17th, 2018 this Executive Order has not been overturned or superceeded.

Approved Parts

Part NumberModels
178-6132003-2004 4.6 litter Ford Mustang GT

This Executive Order may be listed as:
  • C.A.R.B.E.O. D-473-9
  • Executive Order 473-9 / D473-9
  • ARB # D-473-9
  • Executive Order No: D-473-9
  • C.A.R.B. No. D-473-9
  • Resolution D-473-9
For Free CARB Executive Order Status verification, email an image of the device Executive Order label as well as the Year/Make/Model and Test Group # of the vehicle to [email protected]

Download: Executive Order D-473-9 PDF

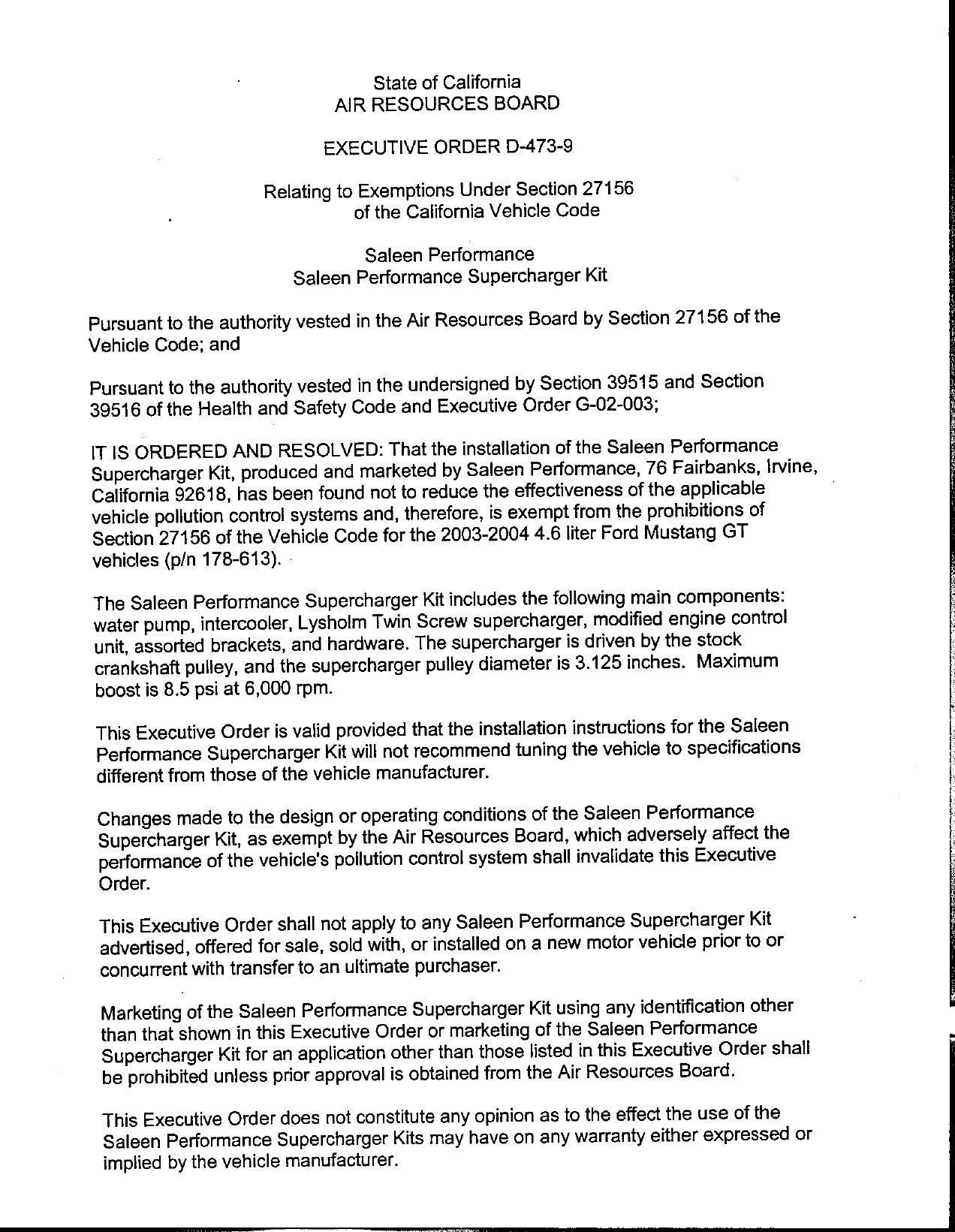

D-473-9 Document:



                                    State of California
                               AIR RESOURCES BOARD

                              EXECUTIVE ORDER D—473—9

                      Relating to Exemptions Under Section 27156
                                 of the California Vehicle Code

                                 Saleen Performance
                         Saleen Performance Supercharger Kit

Pursuant to the authority vested in the Air Resources Board by Section 27156 of the
Vehicle Code; and

Pursuant to the authority vested in the undersigned by Section 39515 and Section
39516 of the Health and Safety Code and Executive Order G—02—003;

IT IS ORDERED AND RESOLVED: That the installation of the Saleen Performance
Supercharger Kit, produced and marketed by Saleen Performance, 76 Fairbanks, Irvine,
California 92618, has been found not to reduce the effectiveness of the applicable
vehicle poliution control systems and, therefore, is exempt from the prohibitions of
Section 27156 of the Vehicle Code for the 2003—2004 4.6 liter Ford Mustang GT
vehicles (p/n 178—613). —

The Saleen Performance Supercharger Kit includes the following main components:
water pump, intercooler, Lysholm Twin Screw supercharger, modified engine control
unit, assorted brackets, and hardware. The superchargeris driven by the stock
crankshaft pulley, and the supercharger pulley diameter is 3.125 inches. Maximum
boost is 8.5 psi at 6,000 rom.

This Executive Order is valid provided that the installation instructions for the Saleen
Performance Supercharger Kit will not recommend tuning the vehicle to specifications
different from those of the vehicle manufacturer.

Changes made to the design or operating conditions of the Saleen Performance
Supercharger Kit, as exempt by the Air Resources Board, which adversely affect the
performance of the vehicle‘s pollution control system shall invalidate this Executive
Order.

This Executive Order shall not apply to any Saleen Performance Supercharger Kit
advertised, offered for sale, sold with, or installed on a new motor vehicle prior to or
concurrent with transfer to an ultimate purchaser.
                                                                                            P
Marketing of the Saleen Performance Supercharger Kit using any identification other
than that shown in this Executive Order or marketing of the Saieen Performance
Supercharger Kit for an application other than those listed in this Executive Order shall
be prohibited untess prior approval is obtained from the Air Resources Board.

This Executive Order does not constitute any opinion as to the effect the use of the
Saleen Performance Supercharger Kits may have on any warranty either expressed or
implied by the vehicle manufacturer.


                                              13.


 This Executive Orderis granted based on emission results submitted by Saleen
 Performance in certifying their supercharged Mustang GT as a small volume new
 vehicle (Saleen S281 SC, E.0. A—324—0014, engine family 4S3XVO4.6JFA, ULEV/Bin8,
 PC). The final configuration of a 2004 Ford Mustang GT equipped with the Saleen
 Performance Supercharger Kit is the same as the Saleen S$281 SC. The certification
 emission results are shown below (in grams per mile):

                   FTP                                                   USO6

       50k      NMOG         CO      NOx      HCHO                  NMHC+ NOx          CO
 Emission Level 0.098        0.8     0.09      n/a         Emission   0.05             1.3
 {w. DF applied)                                           Level
       STD         0.100     34       0.14     0.015       STD          0.14           8.0

      100k      NMOG         CO      NOx      HCHO
 Emission Level 0.105        0.9     0.1       n/a
 (w. DF applied)
       STD       0.125       4.2      0.20     0.018

 The certification emission test results submitted for new vehicle certification have been
 accepted as representative of emissions in the modified configuration. The certification
 emission test results were below the applicable certification standards. Examination of
 the OBD i system was not performed since Saleen Performance has demonstrated
 OBD 1 compliance during certification of the Saleen $281 SC coupe.

  if evidence provides the Air Resources Board with reason to suspect that the Saleen
  Performance Supercharger Kit will affect the durability of emission control systems,
© Saleen Performance shall be required to submit durability data to show that the
  durability of vehicle emission control systems are not, in fact, affected and/or that the
 add—on or modified part demonstrates adequate durability.

 The Air Resources Board reserves the right in the future to review this Executive Order
 and the exemption provided herein to assure that the exempted add—on or modified part
 continues to meet the standards and procedures of Title 13, California Code of
 Regulations, Section 2222, et seq.

 THIS EXECUTIVE ORDER DOES NOT CONSTITUTE A CERTIFICATION,
 ACCREDITATION, APPROVAL, OR ANY OTHER TYPE OF ENDORSEMENT BY THE
 AIR RESOURCES BOARD OF ANY CLAIMS OF THE APPLICANT CONCERNING
 ANTI—POLLUTION BENEFITS OR ANY ALLEGED BENEFITS OF SALEEN
 PERFORMANCE‘S SALEEN PERFORMANCE SUPERCHARGER KIT.

 No claim of any kind, such as "Approved by the Air Resources Board", may be made
 with respect to the action taken herein in any advertising or other oral or written
 communication.

 Violation of any of the above conditions shall be grounds for revocation of this order.
 The order may be revoked only after a ten—day written notice of intention to revoke the
 order, in which period the holder of the order may request in writing a hearing to contest
 the proposed revocation. If a hearing is requested, it shall be held within ten days of
        SALEEN PERFORMANCE —— SALEEN PERFORMANCE SUPERCHARGER KIT — D—473—9


                                            —3—

receipt of the request and the order may not be revoked until a determination is made
after the hearing that grounds for revocation exist.                      ’

Executed at El Monte, California, this       / Z‘fj“day of August 2005.




                                   en Lyons, Chief
                                 Mobile Source Operations Division




       SALEEN PERFORMANCE —— SALEEN PERFORMANCE SUPERCHARGER KIT — D—473—9
