Approval Details

Valid E.O.

Validity

This Executive Order approved the specified parts on on January 26, 1999.
As of Wednesday, September 11th, 2024 this Executive Order has not been overturned or superceeded.

Approved Parts

ModelsModification
For the following Toyota Motor Corporation trucks listed, excluding any vehicle certified to a low emission vehicle standard. Model-Year, Engine, Part Number 1988-95, 22R/RE, 89100 1981-87, 22R/RE, 89101 1988-95, 3.0L V6, 89102 1995-99, 2.7L, 89103The following engine families are certified to a low emission vehicle standard and are excluded from this exemption: 1997, VTY2.71JG2GK, 1998, WTYXT02.7DXH, 1999, XTYXT02.7DXJ: The Exhaust Header is a long tube style header manufactured out of 14 gage mild steel tubing. The location of the oxygen sensor is either at the collector or in front of the catalyst, similar to the stock configuration.

This Executive Order may be listed as:
  • C.A.R.B.E.O. D-474
  • Executive Order 474 / D474
  • ARB # D-474
  • Executive Order No: D-474
  • C.A.R.B. No. D-474
  • Resolution D-474
For Free CARB Executive Order Status verification, email an image of the device Executive Order label as well as the Year/Make/Model and Test Group # of the vehicle to [email protected]

Download: Executive Order D-474 PDF

D-474 Document:

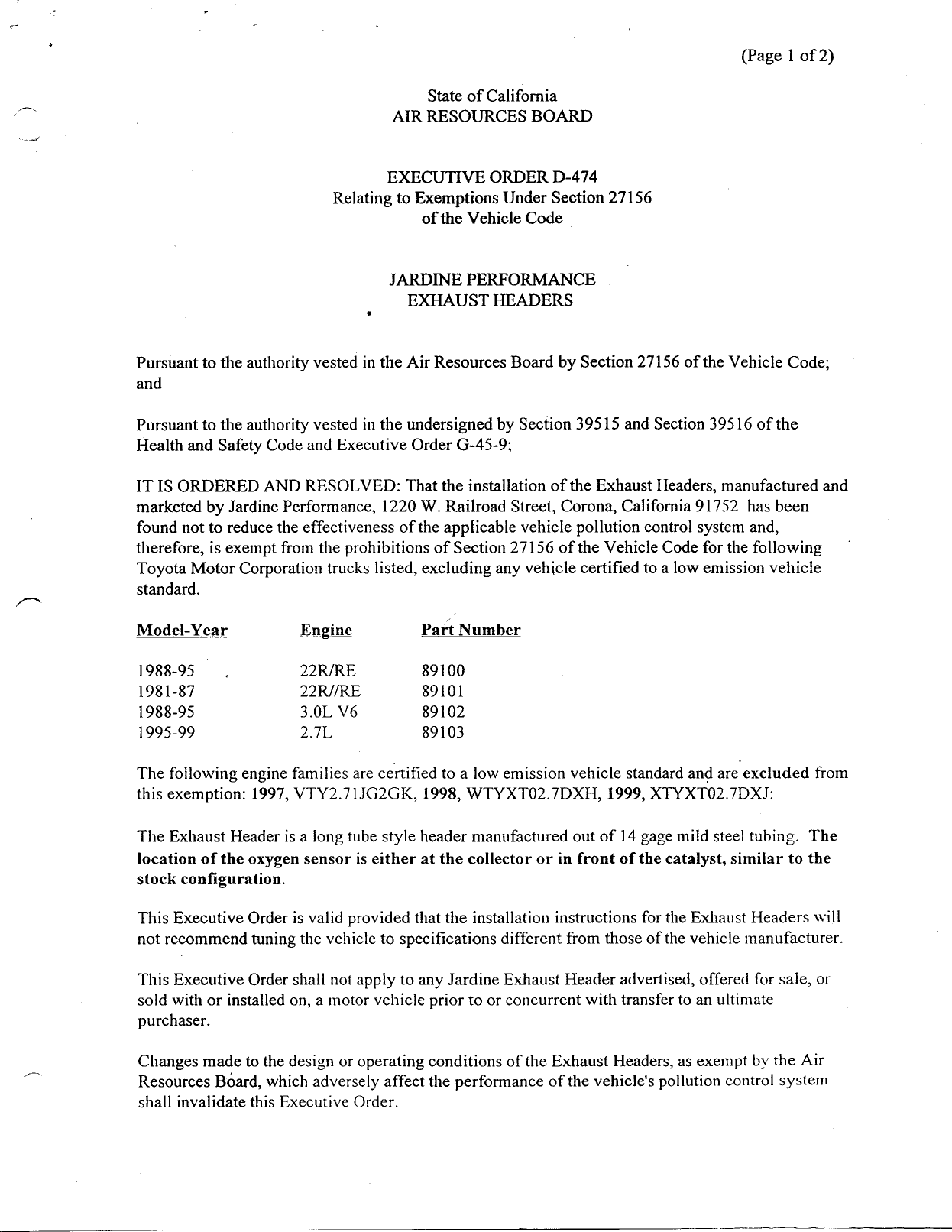

CARB_D-474

                                                                                       (Page 1 of 2)

                                        State of Califomia
                                    AIR RESOURCES BOARD



                                    EXECUTIVE ORDER D—474
                            Relating to Exemptions Under Section 27156
                                         of the Vehicle Code


                                    JARDINE PERFORMANCE _
                                      EXHAUST HEADERS


Pursuant to the authority vested in the Air Resources Board by Section 27156 of the Vehicle Code;
and

Pursuant to the authority vested in the undersigned by Section 39515 and Section 39516 of the
Health and Safety Code and Executive Order G—45—9;

IT IS ORDERED AND RESOLVED: That the installation of the Exhaust Headers, manufactured and
marketed by Jardine Performance, 1220 W. Railroad Street, Corona, California 91752 has been
found not to reduce the effectiveness of the applicable vehicle pollution control system and,
therefore, is exempt from the prohibitions of Section 27156 of the Vehicle Code for the following
Toyota Motor Corporation trucks listed, excluding any vehicle certified to a low emission vehicle
standard.

Model—Year             Engine            Part Number

1988—95 .              22R/RE            89100
1981—87                22R//RE           89101
1988—95                3.0L V6           89102
1995—99                2.7L              89103
The following engine families are certified to a low emission vehicle standard and areexcluded from
this exemption: 1997, VTY2.71JG2GK, 1998, WTYXTO2.7DXH, 1999, XTYXTO2.7DXJ:

The Exhaust Header is a long tube style header manufactured out of 14 gage mild steel tubing. The
location of the oxygen sensor is either at the collector or in front of the catalyst, similar to the
stock configuration.

This Executive Order is valid provided that the installation instructions for the Exhaust Headers will
not recommend tuning the vehicle to specifications different from those of the vehicle manufacturer.

This Executive Order shall not apply to any Jardine Exhaust Header advertised, offered for sale, or
sold with or installed on, a motor vehicle prior to or concurrent with transfer to an ultimate
purchaser.

Changes made to the design or operating conditions of the Exhaust Headers, as exempt by the Air
Resources Board, which adversely affect the performance of the vehicle‘s pollution control system
shall invalidate this Executive Order.


Marketing of the Exhaust Headers using any identification other than that shown in this Executive
Order or marketing of the Exhaust Headers for an application other than those listed in this Executive
Order shall be prohibited unless prior approval is obtained from the Air Resources Board.

Exemption of the Exhaust Headers shall not be construed as exemption to sell, offer for sale, or
advertise any component of the kit as an individual device.

This Executive Order does not constitute any opinion as to the effectthe use of the Exhaust Headers
may have on any warranty either expressed or implied by the vehicle manufacturer.

This Executive Order is granted based on the following submitted emissions test data on a 1998
Toyota Tacoma certified to a Tier 1 emission standard:
                    NMHC CO            NOX
Standards           0.25       3.4     0.4
device w/ dfs       0.14       2.2     0.1

Test results showed that tailpipe emissions with the Exhaust Headers installed on the vehicle met the
vehicle‘s applicable emission standard during Cold Start CVS—75 Federal Test Procedure. This
Executive Order is also based on On Board Diagnostic II (OBD II) testing conducted on the same 1998
Tacoma. Test data showed that the Exhaust Headers when installed on the vehicle did not affect the
vehicle‘s ability to perform its OBD II monitoring.

THIS EXECUTIVE ORDER DOES NOT CONSTITUTE A CERTIFICATION,
ACCREDITATION, APPROVAL, OR ANY OTHER TYPE OF ENDORSEMENT BY THE AIR
RESOURCES BOARD OF ANY CLAIMS OF THE APPLICANT CONCERNING
ANTI—POLLUTION BENEFITS OR ANY ALLEGED BENEFITS OF JARDINE
PERFORMANCE‘S EXHAUST HEADERS .

No claim of any kind, such as "Approved by the Air Resources Board", may be made with respect to
the action taken herein in any advertising or other oral or written communication.

Violation of any of the above conditions shall be grounds for revocation of this order. The order
may be revoked only after a ten—day written notice of intention to revoke the order, in which period
the holder of the order may request in writing a hearing to contest the proposed revocation. If a
hearing is requested, it shall be held within ten days of receipt of the request and the order may not
be revoked until a determination after hearing that grounds for revocation exist.
                                            L
Executed at El Monte, California, this Zéf-day of January 1999.




                                                ummerfield, Chief
                                        Mobile Source Operations Division



Document Created: 2005-09-01 12:41:12
Document Modified: 2005-09-01 12:41:12
