Approval Details

Valid E.O.

Validity

This Executive Order approved the specified parts on on July 8, 2008.
As of Friday, September 20th, 2019 this Executive Order has not been overturned or superceeded.

Approved Parts

Part NumberModelsModification
See PDFSee PDFSee PDF

This Executive Order may be listed as:
  • C.A.R.B.E.O. D-488-14
  • Executive Order 488-14 / D488-14
  • ARB # D-488-14
  • Executive Order No: D-488-14
  • C.A.R.B. No. D-488-14
  • Resolution D-488-14
For Free CARB Executive Order Status verification, email an image of the device Executive Order label as well as the Year/Make/Model and Test Group # of the vehicle to [email protected]

Download: Executive Order D-488-14 PDF

D-488-14 Document:

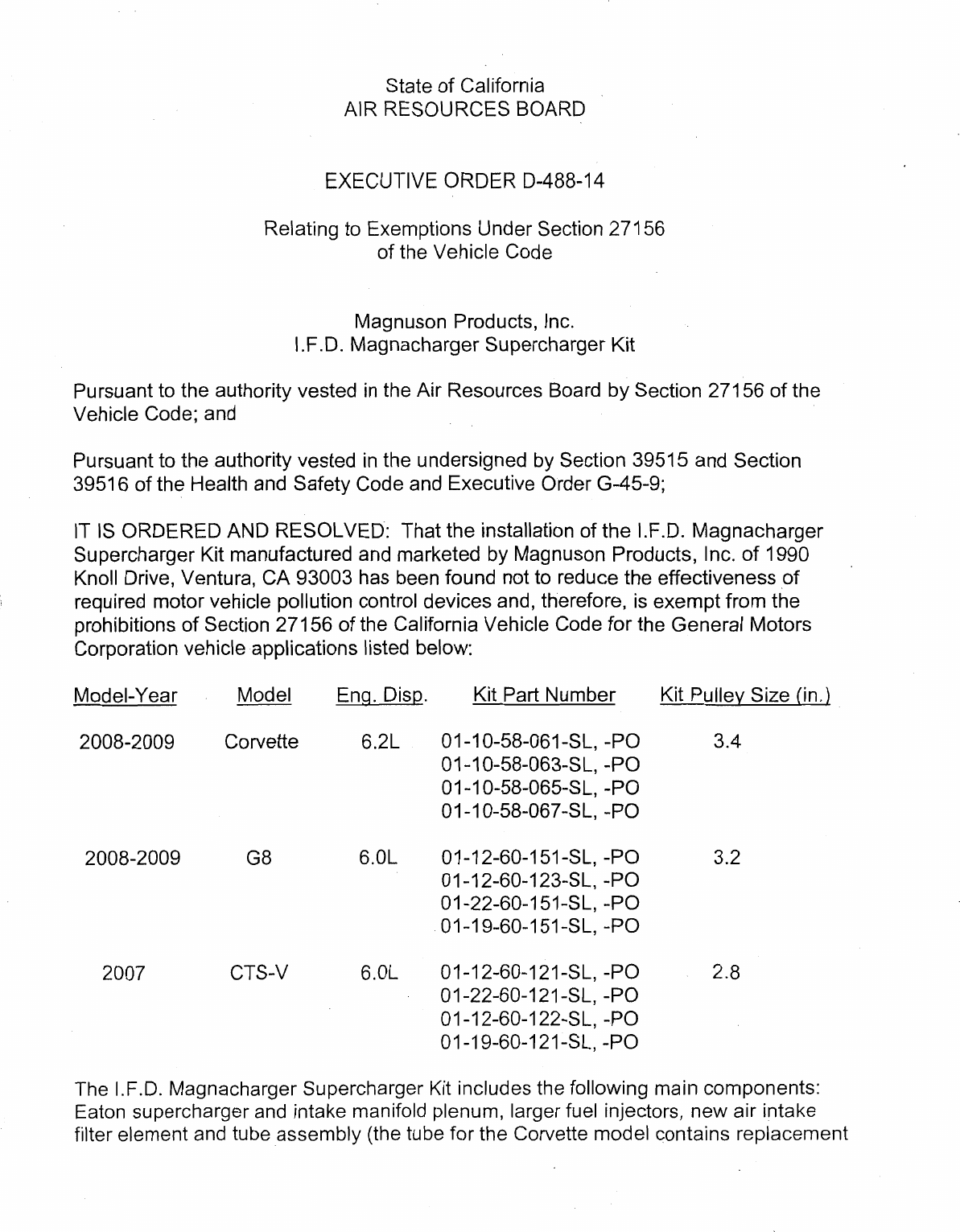

                                   State of Califorr~ia
                               AIR RESOURCES BOARD


                             EXECU1-IVE ORDER D-488-14

                     Relating to Exemptions Under Section 27156
                                  of the Vehicle Code


                                 Magnuson Products, Inc.
                          I.F.D. Magnacharger Supercharger Kit

Pursuant to the authority vested in the Air Resources Board by Section 271 56 of the
Vehicle Code; and

Pursuant to the authority vested in the undersigned by Section 39515 and Section
39516 of the Health and Safety Code and Executive Order G-45-9;

IT IS ORDERED AND RESOLVED: That the installation of the I.F.D. Magnacharger
Supercharger Kit manufactured and marketed by Magnuson Products, Inc. of 1990
Knoll Drive, Ventura, CA 93003 has been found not to reduce the effectiveness of
required motor vehicle pollution control devices and, therefore, is exempt from the
prohibitions of Section 271 56 of the California Vehicle Code for the General Motors
Corporation vehicle applications listed below:

Model-Year        Model       Eng. Disp.      Kit Part Number      Kit P u l l e ~Size (in.)

2008-2009        Corvette       6.2L       01-10-58-061-SL, -PO           3.4
                                           01-10-58-063-SL, -PO
                                           01-1 0-58-065-SL, -PO
                                           01-1 0-58-067-SL, -PO




   2007          CTS-V          6.0L       01-12-60-121-SL, -PO
                                           01-22-60-121-SL, -PO
                                           01-12-60-122-SL, -PO
                                           01-19-60-121-SL, -PO

The I.F.D. Magnacharger Supercharger Kit includes the following main components:
Eaton supercharger and intake manifold plenum, larger fuel injectors, new air intake
filter element and tube assembly (the tube for the Corvette model contains replacement


hydrocarbon adsorber pads), air-to-water intercooler, and new fuel and timing map
calibrations. A longer intake air temperature harness is used in conjunction with the
relocated sensor on the supercharger manifold, and the stock fuel pump is
complemented with a voltage booster (Corvette and CTS-V models only). All other
emission-related components are in the stock location relative to the throttle body. All
crankshaft pulleys are stock and maximum boost is limited to 7 psi.

This Executive Order shall not apply to any I.F.D. Magnacharger Supercharger Kit
advertised, offered for sale, sold with, or installed on a new motor vehicle prior to or
concurrent with transfer to an ultimate purchaser.

This Executive Drder is valid provided that the installation instructions for the I.F.D.
Magnacharger Supercharger Kit will not recommend tuning the vehicle to specifications
different from those of the vehicle manufacturer.

Changes made to the design or operating conditions of the device, as exempted by the
Air Resources Board, that adversely affect the performance of a vehicle's pollution
control system shall invalidate this Executive Order.

Marketing of this device using any identification other than that shown in this Executive
Order or marketing of this device for an application other than those listed in this
Executive Order shall be prohibited unless prior approval is obtained from the Air
Resources Board.

This Executive Order does not constitute any opinion as to the effect that the use of this
device may have on any warranty either expressed or implied by the vehicle
manufacturer.

This exemption is issued based on submitted emissions test data from an independent
laboratory on a 2008 model year General Motors Corporation Corvette vehicle (Test
Group 8GMXV06.2086) certified to the Low Emission Vehicle II Ultra Low Emission
Vehicle (LEV II ULEV) and Supplemental Federal Test Procedure (SFTP) standards.
The exhaust emission measurements from the 2008 model year Corvette is as follows:

Federal Test Procedure:

                                                 NMOG        -
                                                             CO        NOX
Standards (g/mi)                                 0.070       2.1       0.04
Device (gimi) with df's applied                  0.051       1.5       0.03

SFTP (US06 Cvcle):


Standards (gimi)
Device (glmi)



  MAGNUSON PRODUCTS, INC. - 1.F.D MAGNACHARGER SUPERCHARGER KIT - D-488-14


SFTP (SC03 Alternative AC2 Cycle):

                                                 NMHC+NOX            -
                                                                     CO
Standards (glmi)                                    0.20             2.7
Device (glmi)                                       0.04             1.8

The test results show that the I.F.D. Magnacharger Supercharger Kit when installed on
a representative vehicle will not likely cause exhaust emissions to exceed the applicable
emission standards during the Cold Start Federal Test Procedure or SFTP cycles. This
Executive Order is also based on specific On-Board Diagnostic II (OBD 11) testing
conducted on the modified test vehicle. The I.F.D. Magnacharger Supercharger Kit
when installed on the test vehicle did not affect the vehicle's ability to perform its OBD II
monitoring.

In addition, the Air Resources Board reserves the right in the future to review this
Executive Order and the exemption provided herein to assure that the exempted add-on
or modified part continues to meet the standards and procedures of Title 13, California
Code of Regulations, Section 2222, et seq.

THIS EXECUTIVE ORDER DOES NOT CONSTITUTE A CERTIFICATION,
ACCREDITATION, APPROVAL, OR ANY OTHER TYPE OF ENDORSEMENT BY THE
AIR RESOURCES BOARD OF ANY CLAIMS OF THE APPLICANT CONCERNING
ANTI-POLLUTION BENEFITS OR ANY ALLEGED BENEFITS OF THE I.F.D.
MAGNACHARGER SUPERCHARGER KIT.

No claims of any kind, such as "Approved by the Air Resources Board" may be made
with respect to the action taken herein in any advertising or other oral or written
communication.

Violation of any of the above conditions shall be grounds for revocation of this order.
The order may be revoked only after a ten day written notice of intention to revoke the
order, in which period the holder of the order may request in writing a hearing to contest
the proposed revocation. If a hearing is requested, it shall be held within ten days of
receipt of the request and the order may not be revoked until a determination is made.
after the hearing that grounds for revocation exist.




                                       Annette Hebert, Chief
                                       Mobile Source Operations Division




  MAGNUSON PRODUCTS, INC. - 1.F.D MAGNACHARGER SUPERCHARGER KIT - D-488-14
