Approval Details

Valid E.O.

Validity

This Executive Order approved the specified parts on on October 19, 2010.
As of Wednesday, December 12th, 2018 this Executive Order has not been overturned or superceeded.

Approved Parts

Part NumberModelsModification
(See PDF)2006-2011 GM Passenger Cars (6.0L, 6.2L, 7.0L)(See PDF)

This Executive Order may be listed as:
  • C.A.R.B.E.O. D-488-17
  • Executive Order 488-17 / D488-17
  • ARB # D-488-17
  • Executive Order No: D-488-17
  • C.A.R.B. No. D-488-17
  • Resolution D-488-17
For Free CARB Executive Order Status verification, email an image of the device Executive Order label as well as the Year/Make/Model and Test Group # of the vehicle to [email protected]

Download: Executive Order D-488-17 PDF

D-488-17 Document:

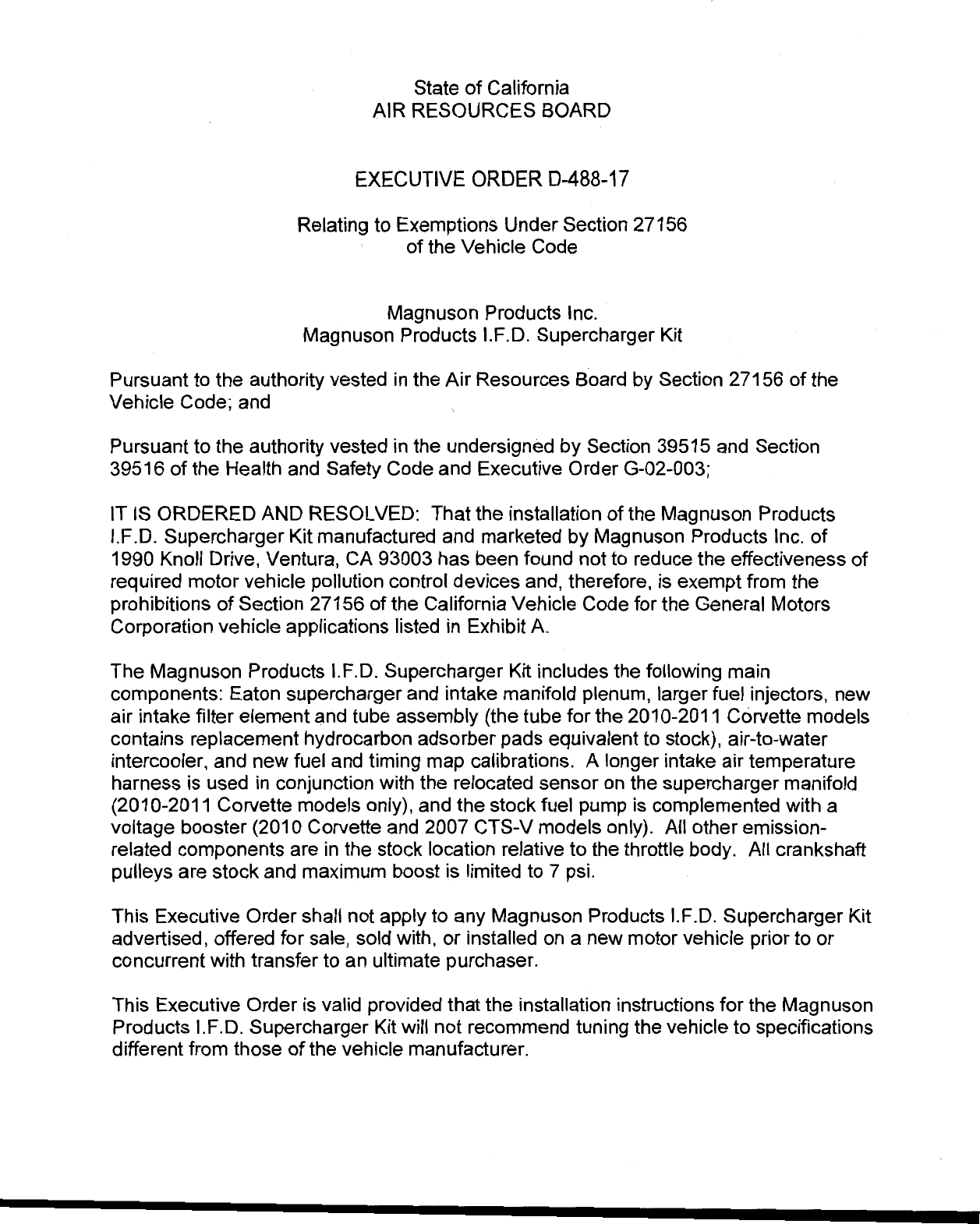

                                    State of California
                               AIR RESOURCES BOARD


                             EXECUTIVE ORDER D—488—17

                      Relating to Exemptions Under Section 27156
                                   of the Vehicle Code


                               Magnuson Products Inc.
                       Magnuson Products |.F.D. Supercharger Kit

Pursuant to the authority vested in the Air Resources Board by Section 27156 of the
Vehicie Code; and

Pursuant to the authority vested in the undersigned by Section 39515 and Section
39516 of the Health and Safety Code and Executive Order G—02—003;

IT IS ORDERED AND RESOLVED: That the installation of the Magnuson Products
1.F.D. Supercharger Kit manufactured and marketed by Magnuson Products Inc. of
1990 Knoll Drive, Ventura, CA 93003 has been found not to reduce the effectiveness of
required motor vehicle pollution control devices and, therefore, is exempt from the
prohibitions of Section 27156 of the California Vehicle Code for the General Motors
Corporation vehicle applications listed in Exhibit A.

The Magnuson Products 1.F.D. Supercharger Kit includes the following main
components: Eaton supercharger and intake manifold plenum, larger fuel injectors, new
air intake filter element and tube assembly (the tube for the 2010—2011 Corvette models
contains replacement hydrocarbon adsorber pads equivalent to stock), air—to—water
intercooler, and new fuel and timing map calibrations. A longer intake air temperature
harness is used in conjunction with the relocated sensor on the supercharger manifold
(2010—2011 Corvette models only), and the stock fuel pump is complemented with a
voltage booster (2010 Corvette and 2007 CTS—V models only). All other emission—
related components are in the stock location relative to the throttle body. All crankshaft
pulleys are stock and maximum boost is limited to 7 psi.

This Executive Order shall not apply to any Magnuson Products 1.F.D. Supercharger Kit
advertised, offered for sale, sold with, or installed on a new motor vehicle prior to or
concurrent with transfer to an ultimate purchaser.

This Executive Order is valid provided that the installation instructions for the Magnuson
Products 1.F.D. Supercharger Kit will not recommend tuning the vehicle to specifications
different from those of the vehicle manufacturer.


                                            «3.


Changes made to the design or operating conditions of the device, as exempted by the
Air Resources Board, that adversely affect the performance of a vehicle‘s pollution
control system shall invalidate this Executive Order.

Marketing of this device using any identification other than that shown in this Executive
Order or marketing of this device for an application other than those listed in this
Executive Order shall be prohibited unless prior approval is obtained from the Air
Resources Board.

This Executive Order does not constitute any opinion as to the effect that the use of this
device may have on any warranty either expressed or implied by the vehicle
manufacturer.

This exemption is issued based on previously submitted emissions test data from an
independent laboratory on a 2008 model year General Motors Corporation Corvette
vehicle (Test Group 8GMXVO6.2086) certified to the Low Emission Vehicle II Uitra Low
Emission Vehicle (LEV II ULEV) and Supplemental Federal Test Procedure (SFTP)
standards. The exhaust emission measurements from the 2008 model year Corvette
are as follows:

Federal Test Procedure:

                                                  NMOG       CO        NOX
Standards (g/mi)                                  0.070      2.1       0.04
Device (g/mi) with df‘s applied                   0.051      1.5       0.03

SFTP (USO6 Cycle):

                                                  NMHC+NOX           CoO
Standards (g/mi)                                     0.14            8.0
Device (g/mi)                                         0.06            1.5


SFTP (SC03 Alternative AC2 Cycle):

                                                  NMHC+NOX           CO
Standards (g/mi)                                     0.20            2.7
Device (g/mi)                                        0.04            1.8

The test results show that the Magnuson Products 1.F.D. Supercharger Kit when
installed on a representative vehicle will not likely cause exhaust emissions to exceed
the applicable emission standards during the Cold—Start Federal Test Procedure or
SFTP cycles. This Executive Order is also based on specific On—Board Diagnostic II
(OBD II) testing conducted on the modified test vehicle. The Magnuson Products |.F.D.
Supercharger Kit when installed on the test vehicle did not affect the vehicle‘s ability to
perform its OBD II monitoring.


 MAGNUSON PRODUCTS INC. — MAGNUSON PRODUCTS I.F.D SUPERCHARGER KIT — D—488—17


                                            —3—


In addition, the Air Resources Board reserves the right in the future to review this
Executive Order and the exemption provided herein to assure that the exempted add—on
or modified part continues to meet the standards and procedures of Title 13, California
Code of Regulations, Section 2222, et seq.

THIS EXECUTIVE ORDER DOES NOT CONSTITUTE A CERTIFICATION,
ACCREDITATION, APPROVAL, OR ANY OTHER TYPE OF ENDORSEMENT BY THE
AIR RESOURCES BOARD OF ANY CLAIMS OF THE APPLICANT CONCERNING
ANTI—POLLUTION BENEFITS OR ANY ALLEGED BENEFITS OF THE MAGNUSON
PRODUCTS |.F.D. SUPERCHARGER KIT.

No claims of any kind, such as "Approved by the Air Resources Board" may be made
with respect to the action taken herein in any advertising or other oral or written
communication.

Violation of any of the above conditions shall be grounds for revocation of this order.
The order may be revoked only after a ten day written notice of intention to revoke the
order, in which period the hoilder of the order may request in writing a hearing to contest
the proposed revocation. If a hearing is requested, it shall be held within ten days of
receipt of the request and the order may not be revoked until a determination is made
after the hearing that grounds for revocation exist.


Executed at El Monte, California, this   / Ci day of October 2010.




                                     m Chief
                                     Mobile Source Operations Division




 MAGNUSON PRODUCTS INC. — MAGNUSON PRODUCTS |.F.D SUPERCHARGER KIT — D—488—17


                                        EXHIBIT A
                                        E.0.# D—488—17
                                         ENGINE KIT PART NUMBER      PULLEY
 YEAR         MAKE         MODEL         SIZE (L)                    SIZE {IN.)

2008—2011   CHEVROLET     CORVETTE        6.2     01—10—58—061—SL.      3.4
                                                  01—10—58—061—PO        °
                                                  01—10—58—063—SL       3.4
                                                  01—10—58—063—PO
                                                  01—10—58—065—BL
                                                  01—10—58—065—CH       3.3
                                                  01—10—58—065—PO
                                                  01—10—58—067—BL.
                                                  01—10—58—067—CH       3.4
                                                  01—10—58—067—PO

2006—2011   CHEVROLET    CORVETTE ZO6     7.0
                                                  01—10—58—083—BL
                                                  01—10—58—083—CH        3.2
                                                  01—10—58—083—PO
                                                  01—10—58—085—BL.
                                                  01—10—58—085—CH        3.2
                                                  01—10—58—085—PO

2009—2010    PONTIAC        G8IGXP         6.2




2008—2010    PONTIAC          G8           6.0


                                                  01—1     1
                                                  01—19—60—153—CH
                                                  01—2     151—BL
                                                  01—23—60—151—CH
                                                  01—           L
                                                  01—23—60—173—CH
2010—2011    CHEVROLET     CAMARO          6.2
                                                  01—19—60—171—BL
                                                  01—19—60—171—CH
                                                                         3.8
                                                  01—19—60—173—BL
                                                  01—19—60—173—CH
                                                  01—23—60—171—BL
                                                  01—23—60—171—CH
                                                                         3.8
                                                  01—23—60—173—BL
                                                  01—23—60—173—CH


   2007      CADILLAC        CTS—V         6.0
                                                    1—      1

                                                   1—22—60—121
                                                  01—22—60—121—PO
                                                   1—      121
                                                  01—19—60—121—CH
                                                  01—23—60—121—BL
                                                  01—23—60—121—CH



Document Created: 2010-11-02 13:28:11
Document Modified: 2010-11-02 13:28:11
