Approval Details

Valid E.O.

Validity

This Executive Order approved the specified parts on on June 5, 2012.
As of Monday, October 21st, 2019 this Executive Order has not been overturned or superceeded.

Approved Parts

Part NumberModels
01-19-50-015-(BL, -CH, -FB); 01-2011-2012 Ford F-150 5.0L

This Executive Order may be listed as:
  • C.A.R.B.E.O. D-488-20
  • Executive Order 488-20 / D488-20
  • ARB # D-488-20
  • Executive Order No: D-488-20
  • C.A.R.B. No. D-488-20
  • Resolution D-488-20
For Free CARB Executive Order Status verification, email an image of the device Executive Order label as well as the Year/Make/Model and Test Group # of the vehicle to [email protected]

Download: Executive Order D-488-20 PDF

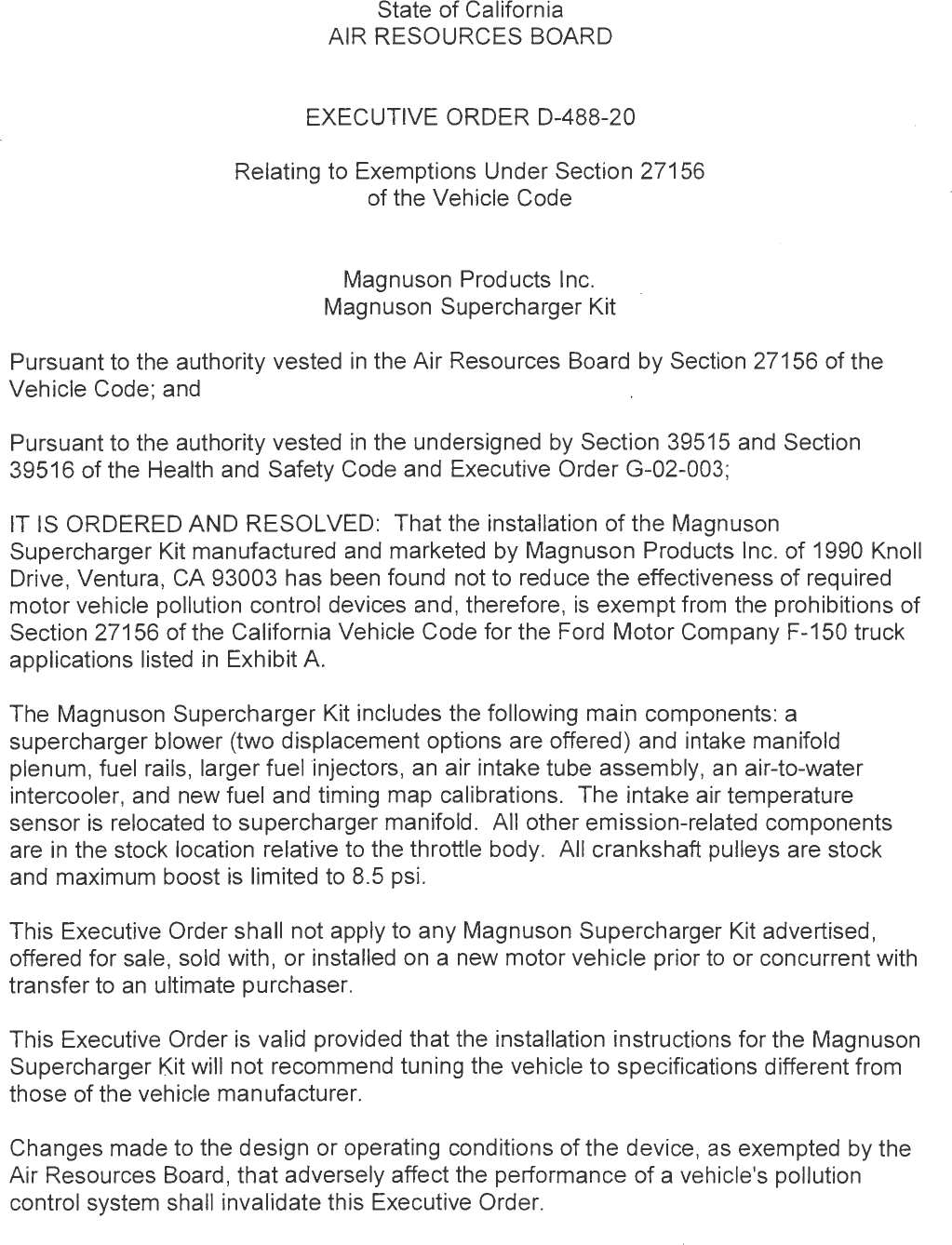

D-488-20 Document:



                                     State of California
                                 AIR RESOURCES BOARD


                              EXECUTIVE ORDER D-488-20

                       Relating to Exemptions Under Section 27156
                                    of the Vehicle Code


                                 Magnuson Products Inc.
                                Magnuson Supercharger Kit

Pursuant to the authority vested in the Air Resources Board by Section 27156 of the
Vehicle Code ; and

Pursuant to the authority vested in the undersigned by Section 39515 and Section
39516 of the Health and Safety Code and Executive Order G-02-003 ;

IT IS ORDERED AND RESOLVED : That the installation of the Magnuson
Supercharger Kit manufactured and marketed by Magnuson Products Inc. of 1990 Knoll
Drive , Ventura, CA 93003 has been found not to reduce the effectiveness of required
motor vehicle pollution control devices and , therefore , is exempt from the prohibitions of
Section 27156 of the California Vehicle Code for the Ford Motor Company F-150 truck
applications listed in Exhibit A.

The Magnuson Supercharger Kit includes the following main components : a
supercharger blower (two displacement options are offered) and intake manifold
plenum , fuel rails , larger fuel injectors, an air intake tube assembly, an air-to-water
intercooler, and new fuel and timing map calibrations. The intake air temperature
sensor is relocated to supercharger manifold . All other emission-related components
are in the stock location relative to the throttle body. All crankshaft pulleys are stock
and maximum boost is limited to 8.5 psi .

This Executive Order shall not apply to any Magnuson Supercharger Kit advertised,
offered for sale , sold with , or installed on a new motor vehicle prior to or concurrent with
transfer to an ultimate purchaser.

This Executive Order is valid provided that the installation instructions for the Magnuson
Supercharger Kit will not recommend tuning the vehicle to specifications different from
those of the vehicle manufacturer.

Changes made to the design or operating conditions of the device , as exempted by the
Air Resources Board , that adversely affect the performance of a vehicle's pollution
control system shall invalidate this Executive Order.


                                            -2-


Marketing of this device using any identification other than that shown in this Executive
Order or marketing of this device for an application other than those listed in th is
Executive Order shall be prohibited unless prior approval is obtained from the Air
Resources Board .

This Executive Order does not constitute any opinion as to the effect that the use of th is
device may have on any warranty either expressed or implied by the vehicle
manufacturer.

This exemption is issued based on previously submitted emissions test data on a 2011
model year Ford Mustang GT (Test Group BFMXV05.0VD5) equipped with a similar 5.0
liter engine and Magnuson Supercharger Kit, and certified to the Low Emission Vehicle
II Ultra Low Emission Vehicle (LEV II ULEV) and more stringent Supplemental Federal
Test Procedure (SFTP) standards . The exhaust emission measurements from this
vehicle are as follows :

Federal Test Procedure:

                                                  NMOG       co        NOX
Standards (g/mi)                                  0.070      2.1       0.04
Device (g/mi) with df's applied                   0.061      0.9       0.02

SFTP (US06 Cycle):.

                                                  NMHC+NOX           co
Standards (g/mi)                                     0.14            8.0
Device (g/mi)                                        0.08            1.5


SFTP (SC03 Alternative AC2 Cycle) :

                                                  NMHC+NOX           co
Standards (g/mi)                                     0.20            2.7
Device (g/mi)                                        0.04            0.6


The test results show that the Magnuson Supercharger Kit when installed on applicable
vehicles will not cause exhaust emissions to exceed the applicable emission standards
during the Cold-Start Federal Test Procedure or SFTP cycles. This Executive Order is
also based on On-Board Diagnostic II (OBD II) testing conducted on the same modified
test vehicle . The Magnuson Supercharger Kit when installed on the test vehicle did not
affect the vehicle 's ability to perform its OBD II monitoring .

In addition , the Air Resources Board reserves the right in the future to review this
Executive Order and the exemption provided herein to assure that the exempted add-on
or modified part continues to meet the standards and procedures of title 13, California
Code of Regulations, Section 2222, et seq .
         MAGNUSON PRODUCTS INC. - MAGNUSON SUPERCHARGER KIT - D-488-20


THIS EXECUTIVE ORDER DOES NOT CONSTITUTE A CERTIFICATION,
ACCREDITATION, APPROVAL, OR ANY OTHER TYPE OF ENDORSEMENT BY THE
AIR RESOURCES BOARD OF ANY CLAIMS OF THE APPLICANT CONCERNING
ANTI—POLLUTION BENEFITS OR ANY ALLEGED BENEFITS OF THE MAGNUSON
SUPERCHARGER KIT.

No claims of any kind, such as "Approved by the Air Resources Board" may be made
with respect to the action taken herein in any advertising or other oral or written
communication.

Violation of any of the above conditions shall be grounds for revocation of this order.
The order may be revoked only after a ten day written notice of intention to revoke the
order, in which period the holder of the order may request in writing a hearing to contest
the proposed revocation. If a hearing is requested, it shall be held within ten days of
receipt of the request and the order may not be revoked until a determination is made
after the hearing that grounds for revocation exist.


Executed at El Monte, California, this    \;    day of June 2012.




                                         Annette Hebert, Chief
                                         Mobile Source Operations Division




        MAGNUSON PRODUCTS INC. — MAGNUSON SUPERCHARGER KIT — D—488—20


                                                      Exhibit A
                                                (E.O.# D-488-20)


                                                                        Engine                          Pulley
     Year          Make                       Model                     Size (L)   Kit Part Number*    Size (in)


  2011-2012        Ford                        FlSO                        5.0     01-19-50-015-BL
                                                                                   01-19-50-015-CH        3.3
                                                                                   01-19-50-0 15-FB
                                                                                   01-23-50-015-BL
                                                                                   01-23-50-015-CH        3.9
                                                                                   01-23-50-015-FB


*Kits are designed for use with premium unleaded gasoline only; flexible fuels (e.g., E85) are not compatible.



Document Created: 2012-11-28 17:37:01
Document Modified: 2012-11-28 17:37:01
