Approval Details

Valid E.O.

Validity

This Executive Order approved the specified parts on on December 10, 2012.
As of Friday, December 6th, 2024 this Executive Order has not been overturned or superceeded.

Approved Parts

Part NumberModels
01-23-50-005-BL (-FB, -CH); 01-12011-2013 Ford Mustang

This Executive Order may be listed as:
  • C.A.R.B.E.O. D-488-23
  • Executive Order 488-23 / D488-23
  • ARB # D-488-23
  • Executive Order No: D-488-23
  • C.A.R.B. No. D-488-23
  • Resolution D-488-23
For Free CARB Executive Order Status verification, email an image of the device Executive Order label as well as the Year/Make/Model and Test Group # of the vehicle to [email protected]

Download: Executive Order D-488-23 PDF

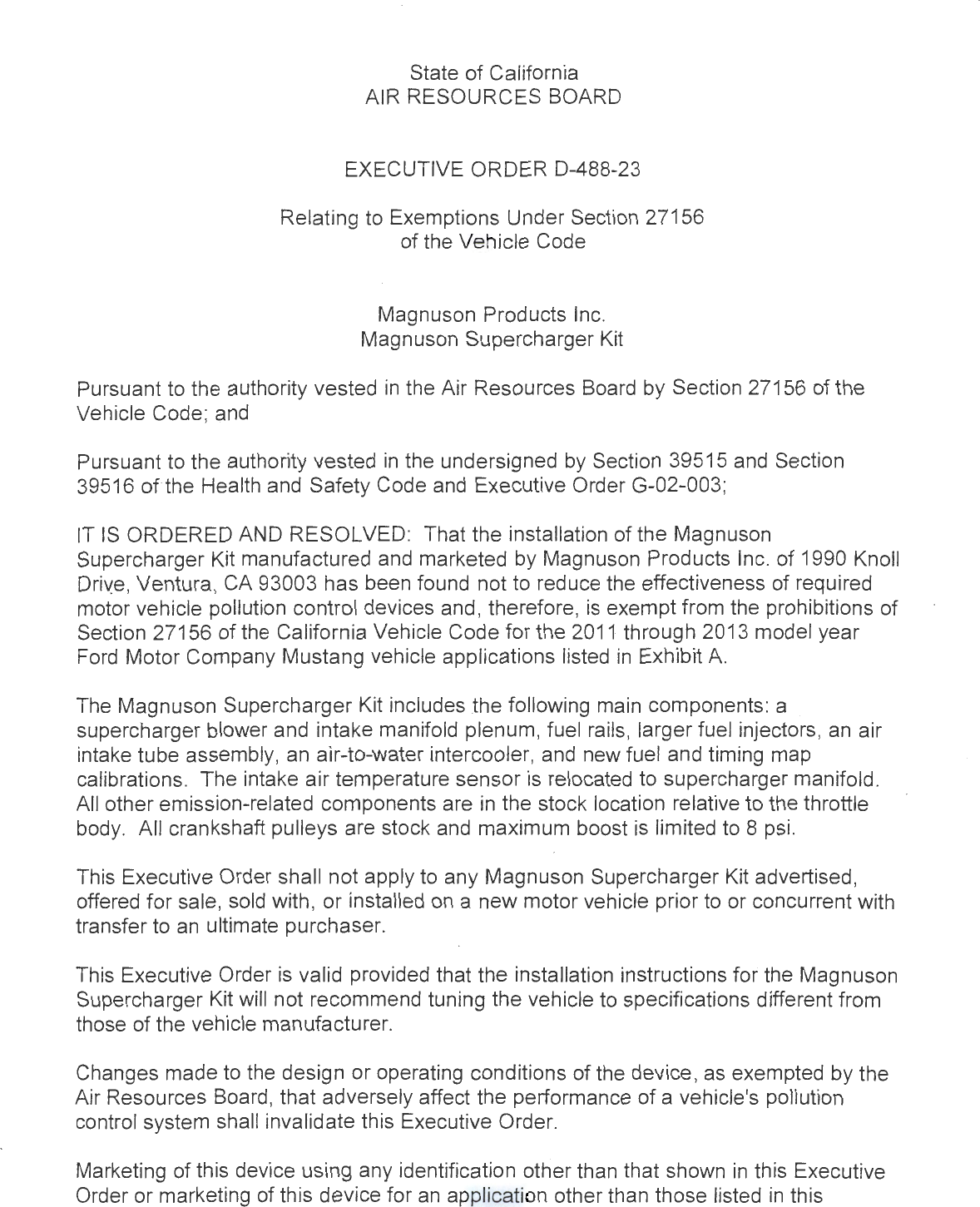

D-488-23 Document:


CARB_D-488-23

                                    State of California
                                AIR RESOURCES BOARD



                              EXECUTIVE ORDER D—488—23

                       Relating to Exemptions Under Section 27156
                                    of the Vehicle Code


                                 Magnuson Products Inc.
                                Magnuson Supercharger Kit

Pursuant to the authority vested in the Air Resources Board by Section 27156 of the
Vehicle Code; and

Pursuant to the authority vested in the undersigned by Section 39515 and Section
39516 ofthe Health and Safety Code and Executive Order G—02—003;

IT IS ORDERED AND RESOLVED: That the installation of the Magnuson
Supercharger Kit manufactured and marketed by Magnuson Products Inc. of 1990 Knoll
Drive, Ventura, CA 93003 has been found not to reduce the effectiveness of required
motor vehicle pollution control devices and, therefore, is exempt from the prohibitions of
Section 27156 of the California Vehicle Code for the 2011 through 2013 model year
Ford Motor Company Mustang vehicle applications listed in Exhibit A.

The Magnuson Supercharger Kit includes the following main components: a
supercharger blower and intake manifold plenum, fuel rails, larger fuel injectors, an air
intake tube assembly, an air—to—water intercooler, and new fuel and timing map
calibrations. The intake air temperature sensor is relocated to supercharger manifold.
All other emission—related components are in the stock location relative to the throttie
body. All crankshaft pulleys are stock and maximum boost is limited to 8 psi.

This Executive Order shall not apply to any Magnuson Supercharger Kit advertised,
offered for sale, sold with, or installed on a new motor vehicle prior to or concurrent with
transfer to an ultimate purchaser.

This Executive Order is valid provided that the installation instructions for the Magnuson
Supercharger Kit will not recommend tuning the vehicle to specifications different from
those of the vehicle manufacturer.

Changes made to the design or operating conditions of the device, as exempted by the
Air Resources Board, that adversely affect the performance of a vehicle‘s pollution
control system shall invalidate this Executive Order.

Marketing of this device using any identification other than that shown in this Executive
Order or marketing of this device for an application other than those listed in this


                                             -2-


Executive Order shall be prohibited unless prior approval is obtained from the Ai r
Resources Board.

This Executive Order does not constitute any opinion as to the effect that the use of this
device may have on any warranty either expressed or implied by the vehicle
manufacturer.

This exemption is issued based on submitted emissions test data from an independent
laboratory on a 2011 model year Ford Mustang GT (Test Group BFMXV05.0VD5)
certified to the Low Emission Vehicle II Ultra Low Emission Vehicle (LEV II ULEV) and
Supplementa l Federal Test Procedure (SFTP) standards . The exhaust emission
measurements from this truck are as follows :

Federal Test Procedure :

                                                   NMOG       co       NOX
Standards (g/mi)                                   0.070     2.1       0.04
Device (g/mi) with df's applied                    0.061     0.9       0.02

SFTP (US06 Cycle):

                                                   NMHC+NOX          co
Standards (g/mi)                                      0.14           8.0
Device (g/mi)                                         0.08           1.5


SFTP (SC03 Alternative AC2 Cycle) :

                                                   NMHC+NOX          co
Standards (g/mi)                                      0.20           2 .7
Device (g/m i)                                        0.04           0.6

The test results show that the Magnuson Supercharger Kit when installed on a
representative vehicle will not likely cause exhaust emissions to exceed the applicable
emission standards during the Cold-Start Federal Test Procedure or SFTP cycles . This
Executive Order is also based on specific On-Board Diagnostic II (OBD II) testing
conducted on the modified test vehicle . The Magnuson Supercharger Kit when installed
on the test vehicle did not affect the vehicle 's ability to perform its OBD II monitoring.

In addition , the Air Resources Board reserves the right in the future to review this
Executive Order and the exemption provided herein to assure that the exempted add-on
or modified part continues to meet the standards and procedures of title 13, California
Code of Regulations , Section 2222, et seq.




        MAGNUSON PRODUCTS INC. - MAGNUSON SUPERCHARGER KIT- D-4 88-23


                                               -3-


THIS EXECUTIVE ORDER DOES NOT CONSTITUTE A CERTIFICATION ,
ACCREDITATION , APPROVAL, OR ANY OTHER TYPE OF ENDORSEMENT BY THE
AIR RESOURCES BOARD OF ANY CLAIMS OF THE APPLICANT CONCERNING
ANTI-POLLUTION BENEFITS OR ANY ALLEGED BENEFITS OF THE MAGNUSON
SUPERCHARGER KIT.

No claims of any kind , such as "Approved by the Air Resources Board" may be made
with respect to the action taken herein in any advertising or other oral or written
communication .

Violation of any of the above conditions shall be grounds for revocation of this order.
The order may be revoked only after a ten day written notice of intention to revoke the
order, in which period the holder of the order may request in writing a hearing to contest
the proposed revocation . If a hearing is requested , it shall be held within ten days of
receipt of the request and the order may not be revoked until a determination is made
after the hearing that grounds for revocation exist.


Executed at El Monte, California , this    /f:? day of December 2012.


                                          Annette Hebert, Chief
                                          Mobile Source Operations Division




        MAGNUSON PRODUCTS INC.- MAGNUSON SUPERCHARGER KIT- D-488-23


                         Exhibit A
                     (E.O.# D-:488-23)


                                         Engine                         Pulley
  Year      Make   Model                 Size (L)   Kit Part Number    Size (in)

2011-2013   Ford   Mustang                 5.0      01-23-50-005-BL
                                                    0 1-23-50-005-FB      3.9
                                                    01-23-50-005-CH
                                                    0 1-19-50-005-BL
                                                    0 1-19-50-005-FB      3.3
                                                    01-19-50-005-CH



Document Created: 2012-12-26 17:01:48
Document Modified: 2012-12-26 17:01:48
