Approval Details

Valid E.O.

Validity

This Executive Order approved the specified parts on on November 21, 2013.
As of Sunday, August 25th, 2019 this Executive Order has not been overturned or superceeded.

Approved Parts

Part Number
see pdf

This Executive Order may be listed as:
  • C.A.R.B.E.O. D-488-27
  • Executive Order 488-27 / D488-27
  • ARB # D-488-27
  • Executive Order No: D-488-27
  • C.A.R.B. No. D-488-27
  • Resolution D-488-27
For Free CARB Executive Order Status verification, email an image of the device Executive Order label as well as the Year/Make/Model and Test Group # of the vehicle to [email protected]

Download: Executive Order D-488-27 PDF

D-488-27 Document:

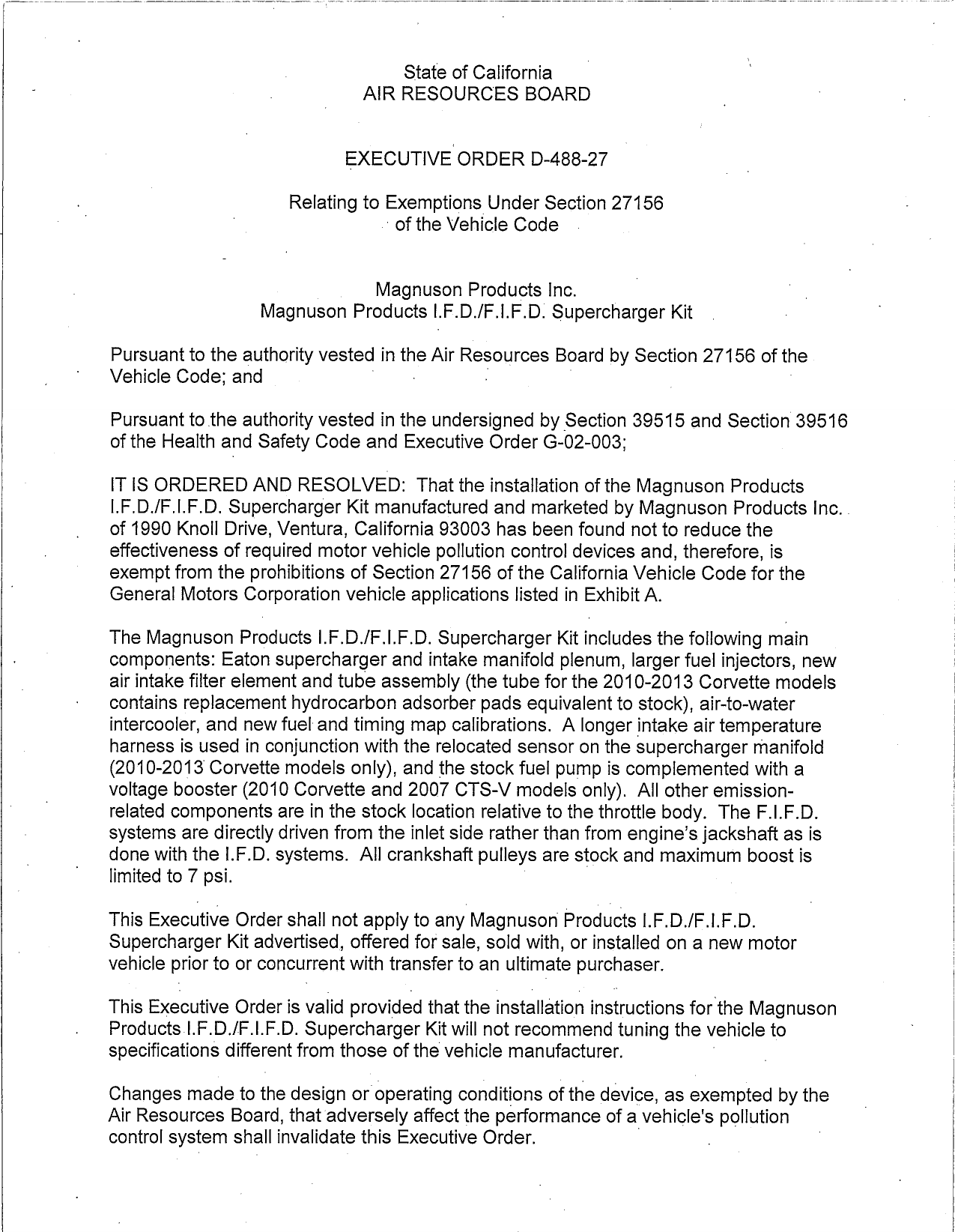

                                    State of California
                               AIR RESOURCES BOARD


                             EXECUTIVE:ORDER D—488—27

                      Relating to Exemptions Under Section 27156
                                 — of the Vehicle Code


                              Magnuson Products Inc.
                   Magnuson Products I.F.D./F.I.F.D; Supercharger Kit

Pursuant to the authority vestedin the Air Resources Board by Section 27156 of the
Vehicle Code; and                             —

Pursuant to the authority vested in the undersigned by Section 39515 and Section 395186
of the Health and Safety Code and Executive Order G—02—003;

IT IS ORDERED AND RESOLVED: That the installation of the Magnuson Products
L.F.D./F.1.F.D. Supercharger Kit manufactured and marketed by Magnuson Products Inc. .
of 1990 Knoll Drive, Ventura, California 93003 has been found not to reduce the
effectiveness of required motor vehicle pollution control devices and, therefore, is
exempt from the prohibitions of Section 27156 of the California Vehicle Code for the
General Motors Corporation vehicle applications listed in Exhibit A.

The Magnuson Products |.F.D./F.1.F.D. Supercharger Kit includes the following main
components: Eaton supercharger and intake manifold plenum, larger fuel injectors, new
air intake filter element and tube assembly (the tube for the 2010—2013 Corvette models
contains replacement hydrocarbon adsorber pads equivalent to stock), air—to—water
intercooler, and new fuel and timing map calibrations. A longer intake air temperature
harness is used in conjunction with the relocated sensor on the supercharger manifold
(2010—2013 Corvette model!s only), and the stock fuel pump is complemented with a
voltage booster (2010 Corvette and 2007 CTS—V models only). All other emission—
related components are in the stock location relative to the throttle body. The F.I.F.D.
systems are directly driven from the inlet side rather than from engine‘s Jackshaft as is
done with the I.F.D. systems. All crankshaft pulleys are stock and maximum boost is
limited to 7 psi.

This Executivé Order shall not apply to anyMagnuson’ Producits I.F.D./F .1.F.D.
Supercharger Kit advertised, offered for sale, sold with, or installed on a new motor
vehicle prior to or concurrent with transfer to an ultimate purchaser.

This Executlve Order is valid provnded that the lnstalla‘uon mstructlons for the Magnuson
Products 1.F.D./F.1.F.D. Supercharger Kit will not recommend tuning the vehlcle to
specifications different from those of the vehicle manufacturer.

Changes made to the design or'bperating cohditions of the device, as exempted by the
Air Resources Board, that adversely affect the performance of a vehicle‘s pollution
control system shall invalidate this Executive Order.


                                                 2.

    Marketing of this device using any identification other than that shown in this Executive
    Order or marketing of this device for an application other than those listed in this
    Executive Order shall be prohibited unless prior approval is obtained from the Air
    Resources Board.

    This Executive Order does not constitute any opinion as to the effect that the use of this
    device may have on any warranty either expressed or implied by the vehicle
    manufacturer.

    This exemption is issued based on previously submitted emissions test data from an
    independent laboratory on a 2008 model year General Motors Corporation Corvette
    vehicle (Test Group 8GMXVO6.20868) certified to the Low Emission Vehicle I1 Uitra Low
    Emission Vehicle (LEV II ULEV) and Supplemental Federal Test Procedure (SFTP)
    standards. The exhaust emission measurements from the 2008 model year Corvette are
    as follows:

    Federal Test Procedure:

                                                      NMOG        CO       NOX
    Standards* (g/mi)                                 0.070      2.1       0.04
    Device (g/mi) with df‘s applied                   0.051      1.5       0.03

    SFTP (USO6 Cycle):

                                                      NMHC+NOX            CO
    Standards (g/mi)                                     0.14             8.0
  — Device (g/mi)                                        0.06             1.5


    SFTP (SC03 Alternative AC2 Cycle):

                                                      NMHC+NOX           CO
   Standards (g/mi)                                      0.20            2.7
   Device (g/mi)                                         0.04            1.8

   *USEPA Bin 4, Counted as LEV II ULEV, CVS—75 FTP emissions standards, useful Iife.v

   The test results show that the Magnuson Products 1.F.D./F.1.F.D. Supercharger Kit when
   installed on a representative vehicle will not likely cause exhaust emissions to exceed
   the applicable emission standards during the Cold—Start Federal Test Procedure or SFTP
   cycles. This Executive Order is also based on specific On—Board Diagnostic II (OBD I1)
   testing conducted on the modified test vehicle. The Magnuson Products |.F.D./F.IL.F.D.
   Supercharger Kit when installed on the test vehicle did not affect the vehicle‘s ability to
   perform its OBD II monitoring.

   In addition, the Air Resources Board reserves the right in the future to review this
   Executive Order and the exemption provided herein to assure that the exempted add—on
   or modified part continues to meet the standards and procedures of Title 13, California
   Code of Regulations, Section 2222, et seq.

MAGNUSON PRODUCTS INC. — MAGNUSON PRODUCTS I.F.D/F.1.F.D. SUPERCHARGER KIT — D—488—27


   THIS EXECUTIVE ORDER DOES NOT CONSTITUTE A CERTIFICATION,
   ACCREDITATION, APPROVAL, OR ANY OTHER TYPE OF ENDORSEMENT BY THE
   AIR RESOURCES BOARD OF ANY CLAIMS OF THE APPLICANT CONCERNING
   ANTI—POLLUTION BENEFITS OR ANY ALLEGED BENEFITS OF THE MAGNUSON
   PRODUCTS |.F.D. SUPERCHARGER KIT.

   No claims of any kind, such as "Approved by the Air Resources Board" may be made
   with respect to the action taken herein in any advertising or other oral or written
   communication.

   Violation of any of the above conditions shall be grounds for revocation of this order.
   The order may be revoked only after a ten day written notice of intention to revoke the
   order, in which period the holder of the order may request in writing a hearing to contest
   the proposed revocation. If a hearing is requested, it shall be held within ten days of
   receipt of the request and the order may not be revoked until a determmatlonis made
   after the hearing that grounds for revocation exist.

                                              . sF             ‘          |
   Executed at El Monte, California, this 2/      day of November 2013.




                                           rik White, Chief
                                         Mobile Source Operations Division




MAGNUSON PRODUCTS INC. — MAGNUSON PRODUCTS |.F.D/F.1.F.D. SUPERCHARGER KIT — D—488—27




                                                      EXHIBIT A
                                                    E.O # D—488—27

   Year         Make       Model                Current Kit Part Number          Heartbeat Kit Part Number
                                                         IFD                              FIFD      '
 .2008—2013   Chevrolet    Corvette       6.2      01—10—58—065—BL.                  01—23—62—265—BL
LEV2 / ULEV                                        01—10—58—065—CH        3.3        01—23—62—265—CH           3.8
                                                   01—10—58—065—PO                   01—23—62—265—PO              *
 2008—2011    Chevrolet    Corvette       6.2      01—10—58—061—SL                   01—23—62—265—BL
LEV2 / ULEV _     ‘                                01—10—58—061—PO        3.4        01—23—62—265—CH           3.8
                                                   01—10—58—063—SL         *         01—23—62—265—PO            *
                                                   01—10—58—063—PO
 2008—2011    Chevrolet    Corvette       6.2      01—10—58—067—BL                   01—23—62—265—BL
LEV2 / ULEV                                        01—10—58—067—CH        3.3        01—23—62—265—CH           3.8
                                                   01—10—58—067—PO                   01—23—62—265—PO


2006—2013     Chevrolet    Corvette       7.0      01—10—58—083—BL                   01—23—62—283—BL                      L
LEV2/LEV                                           01—10—58—083—CH        3.2        01—23—62—283—CH          .3.7
     ,                                             01—10—58—083—PO                  —01—23—62—283—PO
2006—2011     Chevrolet    Corvette       7.0      01—10—58—085—BL                   01—23—62—283—BL
LEV2 / LEV                            '            01—10—58—085—CH        3.2        01—23—62—283—CH           3.7
                                                   01—10—58—085—P0O                  01—23—62—283—PO

 2010—2014    Chevrolet    Camaro         6.2     ©01—19—60—171—BL        2.¢               n/a                n/a
LEV2 / ULEV                                        01—19—60—171—CH         "               nia
 LEV2 / LEV                                        01—19—60—173—BL        3.¢              nia                 n/a
                                                   01—19—60—173—CH         °               na
                                                   01—23—60—171—BL        3.¢        01—23—62—371—BL          ‘4.8
                                                   01—23—60—111—CH         *         01—23—62—371—CH            °
 2010—2014    Chevrolet    Camaro         6.2      01—23—60—173—BL        3.¢        01—23—62—371—BL           3.8
                                                   01—23—60—173—CH         ‘         01—23—62—371—CH _          *
  2014        Chevrolet    Camaro         7.0      01—10—58—083—BL                   01—23—62—283—BL
LEV2 / LEV                                         01—10—58—083—CH        3.2      . 01—23—62—283—CH           3.7.
                                                   01—10—58—083—PO                   01—23—62—283—PO

   2007        Cadillac     CTS           6.0      01—12—60—121—BL        2.8              n/a                 n/a
                       —                           01—12—60—121—CH         "               n/a
                                                   01—22—60—121—BL         3               n/a                 n/a
                                                   01—22—60—121—CH                         n/a
                                                   01—19—60—121—BL        3.3              n/a               ~ n/ia
                                                   01—19—60—121—CH         "               n/a
                                                   01—23—60—121—BL        3.3              n/a                 n/a
                                                   01—23—60—121—CH         °               n/a
2012—2013      Cadillac     CTS           6.2            n/a                         01—23—62—323—BL
LEV2 / LEV                                               n/a              n/ia     _ 01—23—62—323—CH           3.8
                                                         n/a                         01—23—62—323—PO

 2009—2010     Pontiac     GSCGXP         6.2      01—19—60—155—BL        3.3              n/a                 nia
                                                   01—19—60—155—CH         "               nia
                                                   01—23—60—155—BL        33               n/a                 n/a
                                                   01—23—60—155—CH         °               nia

 2009—2010     Pontiac       GS8          6.0       01—19—60—151—BL       3.3              n/a                 nia
                                                   ‘01—19—80—151—CH        ‘               na
                                                    01—19—60—153—BL       3.3              n/a                 n/a
                                                   01—19—60—153—CH         "               n/ia                       j
                                                    01—23—60—151—BL.      3.3              nia                 nia
                                                   01—23—60—151—CH         °               nia
                                                    01—23—60—173—BL       3.3              nia                 nia
                                                   01—23—60—173—CH         *               nia
