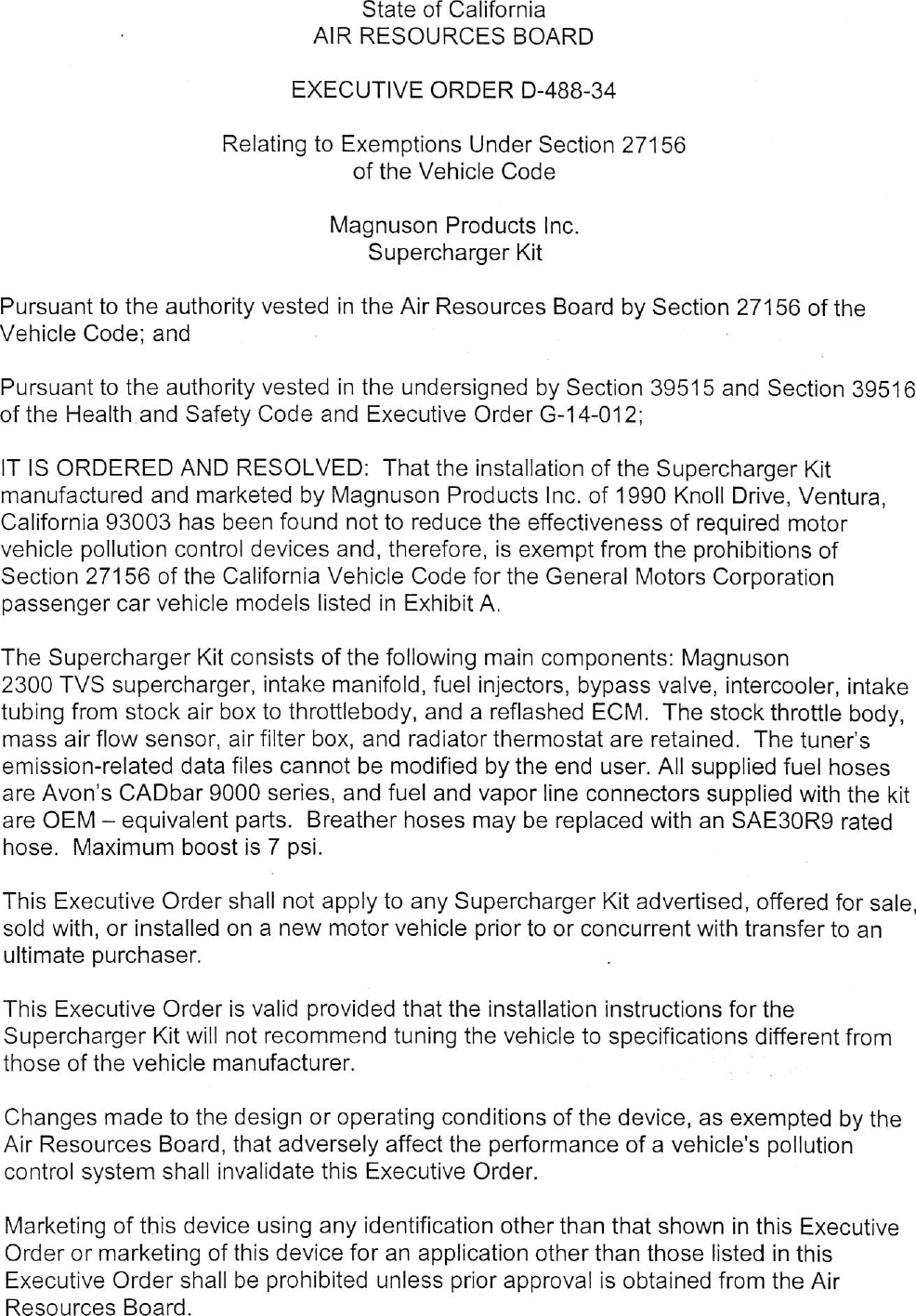

                                   State of California
                               AIR RESOURCES BOARD

                             EXECUTIVE ORDER D—488—34

                      Relating to Exemptions Under Section 27156
                                   of the Vehicle Code

                                 Magnuson Products Inc.
                                     Supercharger Kit

Pursuant to the authority vested in the Air Resources Board by Section 27156 of the
Vehicle Code; and

Pursuant to the authority vested in the undersigned by Section 39515 and Section 39516
of the Health and Safety Code and Executive Order G—14—012;

IT IS ORDERED AND RESOLVED: That the installation of the Supercharger Kit
manufactured and marketed by Magnuson Products Inc. of 1990 Knoll Drive, Ventura,
California 93003 has been found not to reduce the effectiveness of required motor
vehicle pollution control devices and, therefore, is exempt from the prohibitions of
Section 27156 of the California Vehicle Code for the General Motors Corporation
passenger car vehicle models listed in Exhibit A.

The Supercharger Kit consists of the following main components: Magnuson
2300 TVS supercharger, intake manifold, fuel injectors, bypass valve, intercooler, intake
tubing from stock air box to throttlebody, and a reflashed ECM. The stock throttle body,
mass air flow sensor, air filter box, and radiator thermostat are retained. The tuner‘s
emission—related data files cannot be modified by the end user. All supplied fuel hoses
are Avon‘s CADbar 9000 series, and fuel and vapor line connectors supplied with the kit
are OEM — equivalent parts. Breather hoses may be replaced with an SAE30R9 rated
hose. Maximum boost is 7 psi.

This Executive Order shall not apply to any Supercharger Kit advertised, offered for sale,
sold with, or installed on a new motor vehicle prior to or concurrent with transfer to an
ultimate purchaser.

This Executive Order is valid provided that the installation instructions for the
Supercharger Kit will not recommend tuning the vehicle to specifications different from
those of the vehicle manufacturer.

Changes made to the design or operating conditions of the device, as exempted by the
Air Resources Board, that adversely affect the performance of a vehicle‘s pollution
control system shall invalidate this Executive Order.

Marketing of this device using any identification other than that shown in this Executive
Order or marketing of this device for an application other than those listed in this
Executive Order shall be prohibited unless prior approval is obtained from the Air
Resources Board.


                                                 .


    This Executive Order does not constitute any opinion as to the effect that the use of this
    device may have on any warranty either expressed or implied by the vehicle
    manufacturer.

    This exemption is issued based on previously submitted emissions test data from an
    independent laboratory on a 2008 model year General Motors Corporation Corvette
    vehicle (Test Group 8GMXVO6.2086) certified to the Low Emission Vehicle II Ultra Low
    Emission Vehicle (LEV II ULEV) and the Supplemental Federal Test Procedure (SFTP)
    standards. Magnuson also submitted new SFTP emissions test data on a 2015 model
    year Corvette (Test Group FGMXV06.2090) certified to the Low Emission Vehicle III Low
    Emission Vehicle (LEV III LEV 160). The exhaust emission measurements from the
    2015 model year Corvette are as follows:

    SFTP (USO6 Cycle):

                                                     NMHC+NOX             co
   Standards (g/mi)                                     0.14              9.6
   Device (g/mi) with Df                                0.07              0.7


   SFTP (SC03 Alternative AC2 Cycle):

                                                     NMHC+NOX             Co
   Standards (g/mi)                                      0.10             $.2
   Device (g/mi) with Df and 20%                         0.10             2.2

   The test results show that the Supercharger Kit when installed on a representative
   vehicle will not likely cause exhaust emissions to exceed the applicable emission
   standards. This Executive Order is also based on specific On—Board Diagnostic II (OBD
   II) testing conducted on the modified test vehicle. The Supercharger Kit when installed
   on the test vehicle did not affect the vehicle‘s ability to perform its OBD II monitoring.

   In addition, the Air Resources Board reserves the right in the future to review this
   Executive Order and the exemption provided herein to assure that the exempted add—on
   or modified part continues to meet the standards and procedures of Title 13, California
   Code of Regulations, Section 2222, et seq.

   THIS EXECUTIVE ORDER DOES NOT CONSTITUTE A CERTIFICATION,
   ACCREDITATION, APPROVAL, OR ANY.OTHER TYPE OF ENDORSEMENT BY THE
   AIR RESOURCES BOARD OF ANY CLAIMS OF THE APPLICANT CONCERNING
   ANTI—POLLUTION BENEFITS OR ANY ALLEGED BENEFITS OF THE MAGNUSON
   PRODUCTS 1.F.D. SUPERCHARGER KIT.

   No claims of any kind, such as "Approved by the Air Resources Board" may be made
   with respect to the action taken herein in any advertising or other oral or written
   communication.


MAGNUSON PRODUCTS INC. — MAGNUSON PRODUCTS I.F.D/F.1.F.D. SUPERCHARGER KIT — D—488—34


                                              .4.


  Violation of any of the above conditions shall be grounds for revocation of this order.
  The order may be revoked only after a ten day written notice of intention to revoke the
  order, in which period the holder of the order may request in writing a hearing to contest
  the proposed revocation. If a hearing is requested, it shall be held within ten days of
  receipt of the request and the order may not be revoked until a determination is made
  after the hearing that grounds for revocation exist.


   Executed at El Monte, California, this   5 %Lday of June 2016.



                  %/ ‘fi{,é/\-é’/l/r/&/
                     nnette Hebert, Chief
                 %fimissions Compliance, Automotive Regulations and Science Division




MAGNUSON PRODUCTS INC. — MAGNUSON PRODUCTS I.F.D/F.1.F.D. SUPERCHARGER KIT — D—488—34




                                                              Exhibit A

                                                         Heartbeat Kit Part Number
              Year       Make        Model                         FIFD              Crank Dia   SC Dia   Max Boost

            2014—2017   Ghevrolet   Corveile   6.2L Di       01—25—62—171—BL
          Levs/Leviso                                        01—28—62—171—T1          186mm       87mm       7
                                                             01—23—62—171—P0
            2015—2017   Ghevrolet     706      62L D1        01—25—02—T72—BL
          Leva/Leviso                                        01—23—62—174—T1          186mm       87mm        7
                                                             01—23—62—174—P0
           2016—2017    Chevrolet   Camaro     6.2L DI       01—23—62—382—BL
          Leva/Leviso                                         01—23—62—382—T1         204mm      98mm         7
                                                             01—23—62—382—P0
            Tote2017    Cadiac       CTSV      62L D         01—25—02—198—BL
          Levs/Leviso                                         ot—23—62—198—T1         204mm      98mm         7
                                                             01—23—62—193—P0
           2016—2017    Ghevrolet   Ghevy SS    62L          01—25—57—055—BL
           Leva/ Lev                                         01—23—62—055—T1          187mm      20mm         7
                                                             01—23—62—055—P0
              Year        Make       Model               Jackshaft Kit Part Number   Crank Dia   SC Dia   Max Boost
                                                                    ifD
           2010—2015    Chevrolet   Camaro       6.2          01—19—60—171—BL.         Stock       18         7
           Lev2, Lev                Chevy SS    Ls3          01—19—60—171—CH             00         —
                                                             01—19—50—173—BL
                                                             01—19—80—173—CH           Slosk       48         2
                                                             01—25—50—171—BL
                                                             01—23—60—171—CH           Sive®       38         7
            20102015    Ghevolet    Gamaro      62           0—25—00—173—BC            Stock       as         7
           Lev2/ uLEV                           Loo          01—23—60—173—CH             Z~
            2014—2015   Chevrolet   Camaro       7.0          01—23—70—102—BL
           Leva/Lev                                          01—23—70—102—CH           Stock       a.s        7
                                                             01—23—70—102—P0
            2008—2013   Chevrolet   Gorvelle     62          01—10—55—065—BL
           Lev2/ utev                                        01—10—58—065—CH           Stock       a3         7
                                                             01—10—58—065—P0
            2008—2011   Chevrolet   Gomvelle     62          01—10—55—061—5L
           Leva/ utev                                        01—10—58—081—P0
                                                             01—10—55—063—5L           Slusk       24         7
                                                             01—10—58—063—P0
            2008—2011   Ghevrolet   Gomvelle     62          01—10—55—067—BL
           Leva/ utev                                        01—10—58—087—CH           Stock       a6         7
                                                             01—10—58—067—PO
           2006—2073    Chevrolet   Govelle      70          0T—10—55—083—BC
           Leva/Lev                                          01—10—58—083—CH           Stock       16         7
                                                             01—10—58—083—P0
            2006—2011   Chevrolet   Corveite     7.0          01—10—58—085—BL
           Leva/Lev                                          01—10—58—085—CH           Stock       a.2        7
                                                             01—10—58—085—P0
              7007      Cadilac       ofs        60           01—12—50—1271—BL
           Leva/Lev                                          01—12—60—121—CH           Siock       22         7
                                                              0T—22—00—1271—BL
                                                              01—22—60—121—CH          Siost       *0         7
                                                              01—19—50—1271—BL
                                                              01—19—60—121—CH          fiack       £2         *
                                                              01—25—00—121—B1
                                                              01—23—60—121—CH          Stock       *          i
            2006—2008    Pontiac       Gs        62           01—19—50—155—BL.
                                      cxp                     01—19—60—155—CH          Block       42         *
                                                              01—25—60—155—BL
                                                              01—23—60—155—CH          ioh         **         7
            2068—2008    Pontiac       Gs        60           01—19—60—157—BL
                                                              01—19—60—151—CH          Stock       33         7
                                                              01—19—50—153—BL
                                                              01—19—60—153—CH          Stos:       4*         *
                                                              01—25—60—157—BL
                                                              01—23—60—151—CH          Sioc®       =2         7
                                                              01—25—60—153—BL
                                                              01—23—60—153—CH          iss         82         7


MAGNUSON PRODUCTS INC. — MAGNUSON PRODUCTS I.F.D/F.1.F.D. SUPERCHARGER KIT — D—488—34


                                                             Exhibit A


              Year        Make         Model            Heartbeat Kit Part Number   Crank Dia   SC Dia   Max Boost
                                                                   FIFD
            2010—2015    Chevrolet    Camaro      6.2        01—23—62—370—BL         gaes        38          7
            LEV2 / LEV               Chevy SS     LS3        01—28—62—371—BL                      "
            2010—2015    Chevrolet    Camaro      6.2        01—23—62—370—BL         Stock       38          7
           LEV2 / ULEV                            L99        01—23—62—371—BL
            2014—2015    Chevrolet    Camaro      7.0        01—23—70—103—BL
            LEV2 / LEV                                        01—23—70—103—T1        Stock       3.7         7
                                                             01—23—70—103—PO

            2008—2013    Chevrolet    Corvette    6.2
           LEV2 / ULEV

            2008—2011    Chevrolet     Corveite   6.2
           LEV2 / ULEV                                      01—23—62—205—BL
                                                            01—23—62—265—CH          Stock       3.8         7
                                                            01—23—62—265—PO

            2008—2011    Chevrolet    Corveite    6.2
           LEV2 / ULEV


            2006—2013    Chevrolet    Corveite    7.0
            LEV2 / LEV                                      01—23—62—283—BL
                                                            01—23—62—283—CH          Stock       3.8         7
            2006—2011    Chevrolet     Corveite   7.0
                                                            01—23—62—283—PO
            LEV2/ LEV


            2012—2013    Cadillac       CTS       6.2       01—23—62—158—BL          Stock       3.0         7
           LEV2 / ULEV                                      01—28—62—158—CH                       —
            2014—2015    Cadillac      CTSV       6,2
                                                   "         01—23—62—158—BL
            LEV2 / LEV               CTS Wagon                                       Stock       30          7
                                        CTs                 01—23—62—158—CH




MAGNUSON PRODUCTS INC. — MAGNUSON PRODUCTS I.F.D/F.1.F.D. SUPERCHARGER KIT — D—488—34
