Approval Details

Valid E.O.

Validity

This Executive Order approved the specified parts on on September 30, 2016.
As of Thursday, December 26th, 2024 this Executive Order has not been overturned or superceeded.

Approved Parts

Part Number
See PDF

This Executive Order may be listed as:
  • C.A.R.B.E.O. D-488-40
  • Executive Order 488-40 / D488-40
  • ARB # D-488-40
  • Executive Order No: D-488-40
  • C.A.R.B. No. D-488-40
  • Resolution D-488-40
For Free CARB Executive Order Status verification, email an image of the device Executive Order label as well as the Year/Make/Model and Test Group # of the vehicle to [email protected]

Download: Executive Order D-488-40 PDF

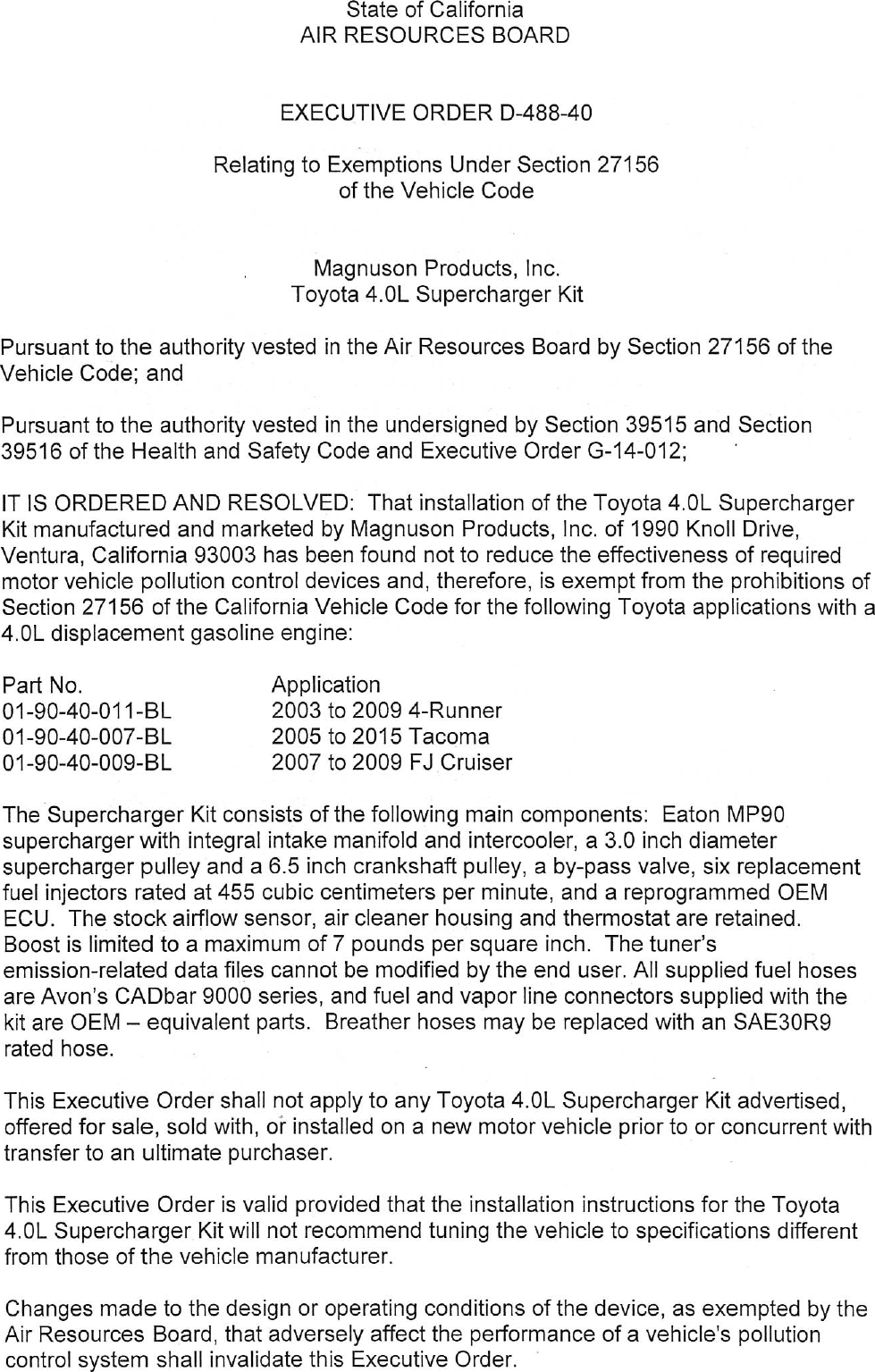

D-488-40 Document:

CARB_D-488-40

State of California AIR RESOURCES BOARD EXECUTIVE ORDER D—488—40 Relating to Exemptions Under Section 27156 of the Vehicle Code Magnuson Products, Inc. Toyota 4.0L Supercharger Kit Pursuant to the authority vested in the Air Resources Board by Section 27156 of the Vehicle Code; and Pursuant to the authority vested in the undersigned by Section 39515 and Section 39516 of the Health and Safety Code and Executive Order G—14—012; IT IS ORDERED AND RESOLVED: That installation of the Toyota 4.0L Supercharger Kit manufactured and marketed by Magnuson Products, Inc. of 1990 Knoll Drive, Ventura, California 93003 has been found not to reduce the effectiveness of required motor vehicle pollution control devices and, therefore, is exempt from the prohibitions of Section 27156 of the California Vehicle Code for the following Toyota applications with a 4.0L displacement gasoline engine: Part No. Application 01—90—40—011—BL 2003 to 2009 4—Runner 01—90—40—007—BL 2005 to 2015 Tacoma 01—90—40—009—BL 2007 to 2009 FJ Cruiser The Supercharger Kit consists of the following main components: Eaton MP9O0 supercharger with integral intake manifold and intercooler, a 3.0 inch diameter supercharger pulley and a 6.5 inch crankshaft pulley, a by—pass valve, six replacement fuel injectors rated at 455 cubic centimeters per minute, and a reprogrammed OEM ECU. The stock airflow sensor, air cleaner housing and thermostat are retained. Boost is limited to a maximum of 7 pounds per square inch. The tuner‘s emission—related data files cannot be modified by the end user. All supplied fuel hoses are Avon‘s CADbar 9000 series, and fuel and vapor line connectors supplied with the kit are OEM — equivalent parts. Breather hoses may be replaced with an SAE30RY rated hose. This Executive Order shall not apply to any Toyota 4.0L Supercharger Kit advertised, offered for sale, sold with, or installed on a new motor vehicle prior to or concurrent with transfer to an ultimate purchaser. This Executive Order is valid provided that the installation instructions for the Toyota 4.0L Supercharger Kit will not recommend tuning the vehicle to specifications different from those of the vehicle manufacturer. Changes made to the design or operating conditions of the device, as exempted by the Air Resources Board, that adversely affect the performance of a vehicle‘s pollution control system shall invalidate this Executive Order.

2s Marketing of this device using any identification other than that shown in this Executive Order or marketing of this device for an application other than those listed in this Executive Order shall be prohibited unless prior approval is obtained from the Air Resources Board. This Executive Order does not constitute any opinion as to the effect that the use of this device may have on any warranty either expressed or implied by the vehicle manufacturer. This exemption is issued based on submitted emissions test data, from the SEMA Garage, Diamond Bar, California, on a 2015 model year 4.0L Toyota Tacoma, certified to the LEV II ULEV emission standards, and tested using the Cold—Start CVS—75 Federal Test Procedure (FTP) test cycle and the Supplemental Federal Test Procedure (SFTP USO6/SC03) test cycles. CVS—75 FTP NMOG CO NOx HCHO Standards, UL 0.055 2.1 0.070 0.011 Device Test w/df, 2 test avg. 0.024 0.5 0.010 0.001 US06/SC03 NMHC+NOx Cco Standards 4k 0.25/0.27 10.5/3.5 Device 0.05/0.01 1.110.1 Test results showed that the Toyota 4.0L Supercharger Kit, when installed on the vehicle did not cause exhaust emissions to exceed the applicable emission standards during the FTP and SFTP. This Executive Order is also based on the On—Board Diagnostic II (OBD II) testing conducted on the same test vehicle. Toyota 4.0L Supercharger Kit when installed on the test vehicle did not affect the vehicle‘s ability to perform its OBD II monitoring. In addition, the Air Resources Board reserves the right in the future to review this Executive Order and the exemption provided herein to assure that the exempted add—on or modified part continues to meet the standards and procedures of Title 13, California Code of Regulations, Section 2222, et seq. THIS EXECUTIVE ORDER DOES NOT CONSTITUTE A CERTIFICATION, ACCREDITATION, APPROVAL, OR ANY OTHER TYPE OF ENDORSEMENT BY THE AIR RESOURCES BOARD OF ANY CLAIMS OF THE APPLICANT CONCERNING ANTI—POLLUTION BENEFITS OR ANY ALLEGED BENEFITS OF THE TOYOTA 4.0L SUPERCHARGER KIT. No claims of any kind, such as "Approved by the Air Resources Board" may be made with respect to the action taken herein in any advertising or other oral or written communication. MAGNUSON PRODUCTS, INC. — SUPERCHARGER KIT — D—488—40

3. Violation of any of the above conditions shall be grounds for revocation of this order. The order may be revoked only after a ten day written notice of intention to revoke the order, in which period the holder of the order may request in writing a hearing to contest the proposed revocation. If a hearing is requested, it shall be held within ten days of receipt of the request and the order may not be revoked until a determination is made after the hearing that grounds for revocation exist. Executed at El Monte, California, this 3) day of September 2016. )1 .7@]\—Annette Hebert, Chief Emissions Compliance, Automotive Regulations and Science Division MAGNUSON PRODUCTS, INC. — SUPERCHARGER KIT — D—488—40



Document Created: 2017-01-20 18:04:06
Document Modified: 2017-01-20 18:04:06

Previous E.O. D-488-39 | Previous E.O. D-487 | Next E.O. D-488-41 | Next E.O. D-489
