Approval Details

Valid E.O.

Validity

This Executive Order approved the specified parts on on June 21, 2004.
As of Monday, December 17th, 2018 this Executive Order has not been overturned or superceeded.

Approved Parts

Part NumberModelsModificationRemarks
01-10-58-001, -0021997-1998 Corvette (non-Z06)Replace air filter and duct; replace stock fuel pump6 psi max boost

This Executive Order may be listed as:
  • C.A.R.B.E.O. D-488-6
  • Executive Order 488-6 / D488-6
  • ARB # D-488-6
  • Executive Order No: D-488-6
  • C.A.R.B. No. D-488-6
  • Resolution D-488-6
For Free CARB Executive Order Status verification, email an image of the device Executive Order label as well as the Year/Make/Model and Test Group # of the vehicle to [email protected]

Download: Executive Order D-488-6 PDF

D-488-6 Document:

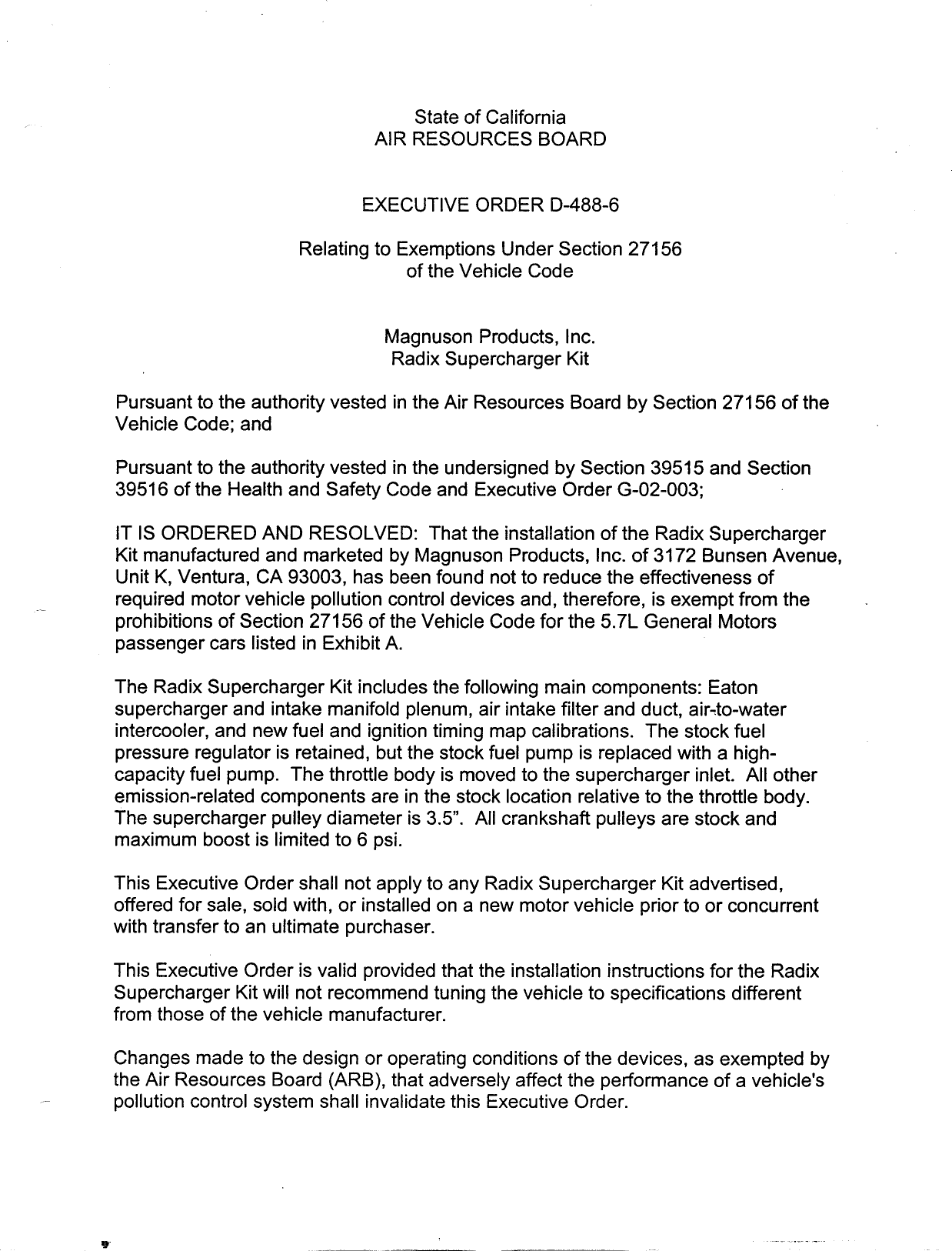

                                      State of California
                                AIR RESOURCES BOARD


                              EXECUTIVE ORDER D—488—6

                      Relating to Exemptions Under Section 27156
                                      of the Vehicle Code


                                 Magnuson Products, Inc.
                                  Radix Supercharger Kit

Pursuant to the authority vested in the Air Resources Board by Section 27156 of the
Vehicle Code; and

Pursuant to the authority vested in the undersigned by Section 39515 and Section
39516 of the Health and Safety Code and Executive Order G—02—003;

IT IS ORDERED AND RESOLVED: That the installation of the Radix Supercharger
Kit manufactured and marketed by Magnuson Products, Inc. of 3172 Bunsen Avenue,
Unit K, Ventura, CA 93003, has been found not to reduce the effectiveness of
required motor vehicle pollution control devices and, therefore, is exempt from the
prohibitions of Section 27156 of the Vehicle Code for the 5.7L General Motors
passenger cars listed in Exhibit A.

The Radix Supercharger Kit includes the following main components: Eaton
supercharger and intake manifold plenum, air intake filter and duct, air—to—water
intercooler, and new fuel and ignition timing map calibrations. The stock fuel
pressure regulator is retained, but the stock fuel pump is replaced with a high—
capacity fuel pump. The throttle body is moved to the supercharger inlet. All other
emission—related components are in the stock location relative to the throttle body.
The supercharger pulley diameter is 3.5". All crankshaft pulleys are stock and
maximum boost is limited to 6 psi.

This Executive Order shall not apply to any Radix Supercharger Kit advertised,
offered for sale, sold with, or installed on a new motor vehicle prior to or concurrent
with transfer to an ultimate purchaser.

This Executive Order is valid provided that the installation instructions for the Radix
Supercharger Kit will not recommend tuning the vehicle to specifications different
from those of the vehicle manufacturer.

Changes made to the design or operating conditions of the devices, as exempted by
the Air Resources Board (ARB), that adversely affect the performance of a vehicle‘s
pollution control system shall invalidate this Executive Order.


Marketing of these devices using any identification other than that shown in this
Executive Order or marketing of this device for an application other than those listed
in this Executive Order shall be prohibited unless prior approval is obtained from the
ARB.

This Executive Order does not constitute any opinion as to the effect that the use of
these devices may have on any warranty either expressed or implied by the vehicle
manufacturer.

This exemption is issued based on submitted emissions test data from an
independent laboratory on a 2004 model year General Motors Corvette 206 vehicle
(Test Group 4GMXVO5.7082) certified to the Low Emission Vehicle (LEV) and
Supplemental Federal Test Procedure (SFTP) standards:

Federal Test Procedure:

                                               NMOG         CO        NOx
Standards (g/mi)                               0.075        3.4       0.20
Device (g/mi) with df‘s applied                0.046        0.6       0.05
Additive df‘s (50k)                            0.000        0.0      0.00
SFTP (USO6 Cycle):

                                               NMHC+NOX            CO
Standards (g/mi)                                  0.14             8.0
Device (g/mi)                                     0.08             6.4

SFTP (SCO3 Alternative AC2 Cycle):

                                               NMHC+NOX            CO
Standards (g/mi)                                    0.20            2.7
Device (g/mi)                                       0.03            0.1

Test results showed that the Radix Supercharger Kit when installed on the vehicle did
not cause exhaust emissions to exceed the applicable emission standards during the
Cold Start CVS—75 Federal Test Procedure or SFTP cycles. This Executive Order is
also based on the On—Board Diagnostic !I (OBD !I) testing conducted on the same
test vehicle. The Radix Supercharger Kit when installed on the test vehicle did not
affect the vehicle‘s ability to perform its OBD !I monitoring.

In addition, the ARB reserves the right in the future to review this Executive Order
and the exemption provided herein to assure that the exempted add—on or modified
part continues to meet the standards and procedures of Title 13, California Code of
Regulations, Section 2222, et seq.



           MAGNUSON PRODUCTS, INC. — RADIX_SUPERCHARGER KIT — D—488—6


THIS EXECUTIVE ORDER DOES NOT CONSTITUTE A CERTIFICATION,
ACCREDITATION, APPROVAL, OR ANY OTHER TYPE OF ENDORSEMENT BY
THE AIR RESOURCES BOARD OF ANY CLAIMS OF THE APPLICANT
CONCERNING ANTI—POLLUTION BENEFITS OR ANY ALLEGED BENEFITS OF
THE RADIX SUPERCHARGER KIT.

No claims of any kind, such as "Approved by the Air Resources Board" may be made
with respect to the action taken herein in any advertising or other oral or written
communication.

Violation of any of the above conditions shall be grounds for revocation of this order.
The order may be revoked only after a ten day written notice of intention to revoke
the order, in which period the holder of the order may request in writing a hearing to
contest the proposed revocation. If a hearing is requested, it shall be held within ten
days of receipt of the request and the order may not be revoked until a determmatlon
is made after the hearing that grounds for revocation exist.


Executed at El Monte, California, this _Z/*" day of June 2004.



                                       Alle%yons, Chief
                                       Mobile Source Operations Division




           MAGNUSON PRODUCTS, INC. — RADIX SUPERCHARGER KIT — D—488—6


                                       Exhibit A
                                    (E.0.# D—488—6)

Model—Year        Model             Eng. Disp. Kit Part Number   Pulley Size (in.)

 1997—1998        Corvette (non—Z06)    5.7L   01—10—58—001,—002      3.5
©1998—2002        GM F—Body             5.7L   01—12—60—140—SL,—PO    3.5
 1999—2004        Corvette (non—Z206)   5.7L   01—10—58—005,—006      3.5
2001—2004         206 Corvette          5.7L   01—10—58—007, —008     3.5
2004              Pontiac GTO           5.7L   01—12—60—130, —131     3.5
2004              Cadillac CTS—V        5.7L   01—12—60—150—SL,—PO    3.5




             MAGNUSON PRODUCTS, INC. — RADIX SUPERCHARGER KIT — D—488—6



Document Created: 2005-09-01 12:43:03
Document Modified: 2005-09-01 12:43:03
