Approval Details

Valid E.O.

Validity

This Executive Order approved the specified parts on on August 9, 2004.
As of Sunday, June 16th, 2019 this Executive Order has not been overturned or superceeded.

Approved Parts

Part NumberModelsModificationRemarks
01-12-60-003-SL2004-2005 Joe Gibbs Performance Spec Flex Fuel SUVs (GM)Fuel injectors; air intake filter; air-to-air intercooler; fuel and ignition map calibrations; secondary fuel pumpMax Boost: 7 psi

This Executive Order may be listed as:
  • C.A.R.B.E.O. D-488-7
  • Executive Order 488-7 / D488-7
  • ARB # D-488-7
  • Executive Order No: D-488-7
  • C.A.R.B. No. D-488-7
  • Resolution D-488-7
For Free CARB Executive Order Status verification, email an image of the device Executive Order label as well as the Year/Make/Model and Test Group # of the vehicle to [email protected]

Download: Executive Order D-488-7 PDF

D-488-7 Document:

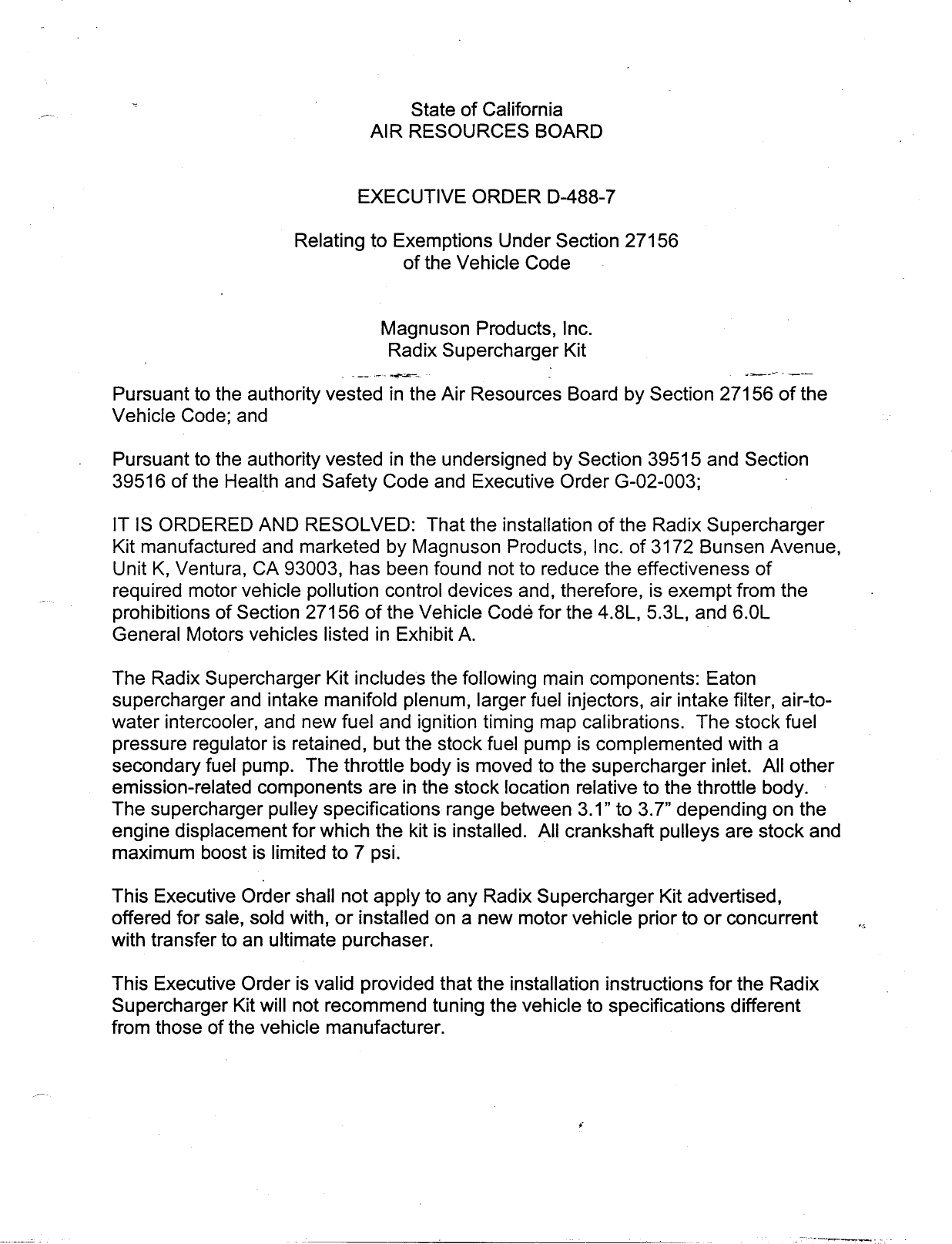

  ~                      '              State of California
                                AIR RESOURCES BOARD


                              EXECUTIVE ORDER D—488—7

                      Relating to Exemptions Under Section 27156
                                       of the Vehicle Code


                                  Magnuson Products, Inc.
                                   Radix Supercharger Kit
                             1 22en <amaes s                                   enc n en

Pursuant to the authority vésted in the Air Resourcés Board by Section 27156 of the
Vehicle Code; and

Pursuant to the authority vested in the undersigned by Section 39515 and Section
39516 of the Health and Safety Code and Executive Order G—02—003;

IT IS ORDERED AND RESOLVED: That the installation of the Radix Supercharger
Kit manufactured and marketed by Magnuson Products, Inc. of 3172 Bunsen Avenue,
Unit K, Ventura, CA 93003, has been found not to reduce the effectiveness of
required motor vehicle pollution control devices and, therefore, is exempt from the
prohibitions of Section 27156 of the Vehicle Codeé for the 4.8L, 5.3L, and 6.OL
General Motors vehicles listed in Exhibit A.                            '

The Radix Supercharger Kit includes the following main components: Eaton
supercharger and intake manifold plenum, larger fuel injectors, air intake filter, air—to—
water intercooler, and new fuel and ignition timing map calibrations. The stock fuel
pressure regulator is retained, but the stock fuel pump is complemented with a
secondary fuel pump. The throttle body is moved to the supercharger inlet. All other
emission—related components are in the stock location relative to the throttle body. >
The supercharger pulley specifications range between 3.1" to 3.7" depending on the
engine displacement for which the kit is installed. All crankshaft pulleys are stock and
maximum boost is limited to 7 psi.

This Executive Order shall not apply to any Radix Supercharger Kit advertised,
offered for sale, sold with, or installed on a new motor vehicle prior to or concurrent
with transfer to an ultimate purchaser.

This Executive Order is valid provided that the installation instructions for the Radix
Supercharger Kit will not recommend tuning the vehicle to specifications different
from those of the vehicle manufacturer.


Changes made to the design or operating conditions of the devices, as exempted by
the Air Resources Board (ARB), that adversely affect the performance of a vehicle‘s
pollution control system shall invalidate this Executive Order.

Marketing of these devices using any identification other than that shown in this
Executive Order or marketing of this device for an application other than those listed
in this Executive Order shall be prohibited unless prior approval is obtained from the
ARB.

This Executive Order does not constitute any opinion as to the effect that the use of
these devices may have on any warranty either expressed or implied by the vehicle
manufacturer.              1e ann wen memiasl —                              umces

This exemption is issued based on previously submitted emissions test data from an
independent laboratory on a 2004 model year General Motors Silverado 1500 2WD
vehicle (Test Group 4GMXT06.0187) certified to the Super Ultra Low Emission
Vehicle (SULEV) and Supplemental Federal Test Procedure (SFTP) standards:

Federal Test Procedure:

                                                  NMOG       CO       NOX
Standards (g/mi)                                  0.125      3.4      0.14
Device (g/mi) with df‘s applied                   0.101      2.5      0.06
Additive dfs (5Ok)                                0.007      0.2     0.02

SFTP (USO6 Cycle):

                                                  NMHC+NOX         _CO
Standards (g/mi)                                     0.40          10.5
Device (g/mi)                                        0.05           7.2

SFTP (SCO3 Alternative AC2 Cycle):

                                                  NMHC+NOX         CO
Standards (g/mi)                                     0.31          3.5
Device (g/mi)                                        0.03          0.2

Test results showed that the Radix Supercharger Kit when installed on the vehicle did
not cause exhaust emissions to exceed the applicable emission standards during the
Cold Start CVS—75 Federal Test Procedure or SFTP cycles. This Executive Order is
also based on the On—Board Diagnostic II (OBD I1) testing conducted on the same
test vehicle. The Radix Supercharger Kit when installed on the test vehicle did not
affect the vehicle‘s ability to perform its OBD I! monitoring.




           MAGNUSON PRODUCTS, INC. — RADIX SUPERCHARGER KIT — D—488—7


                                            s cceen e mion       Cuzee>   «o0 9202 mb20000000000.eveeeis   2l.l ..




                                          —3.


In addition, the ARB reserves the right in the future to review this Executive Order
and the exemption provided herein to assure that the exempted add—on or modified
part continues to meet the standards and procedures of Title 13, California Code of
Regulations, Section 2222, et seq.

THIS EXECUTIVE ORDER DOES NOT CONSTITUTE A CERTIFICATION,
ACCREDITATION, APPROVAL, OR ANY OTHER TYPE OF ENDORSEMENT BY
THE AIR RESOURCES BOARD OF ANY CLAIMS OF THE APPLICANT
CONCERNING ANTI—POLLUTION BENEFITS OR ANY ALLEGED BENEFITS OF
THE RADIX SUPERCHARGER KIT.

No claims of any kind, suchas—"Approved by the Air Resources Board" may—be—made
with respect to the action taken herein in any advertising or other oral or written
communication.

Violation of any of the above conditions shall be grounds for revocation of this order.
The order may be revoked only after a ten day written notice of intention to revoke
the order, in which period the holder of the order may request in writing a hearing to
contest the proposed revocation. If a hearing is requested, it shall be held within ten
days of receipt of the request and the order may not be revoked until a determination
is made after the hearing that grounds for revocation exist.


Executed at El Monte, California, this    fifi day of August 2004.




                                          lien Lyons, Chief
                                         Mobile Source Operations Division




           MAGNUSON PRODUCTS, INC. — RADIX SUPERCHARGER KIT — D—488—7


                                                        Exhibit A
                                                                                                     ;        MAGNA
            ETNE
       ‘    PRopucts inc
              E:M
                                                    (E.0.# D—488—7)                                &.""_9’“;;:7
           S/C sYSTEM PN                                      S/C SYSTEM APPLICATION®**

             01—12—60—003—SL         2004—2005 JOE GIBBS PERFORMANCE SPEC RADIX FLEX FUEL SUV*                                  o es
             01—12—80—004            2004—2005 JOE GIBBS PERFORMANCESPEC RADIX TRUCK

             01—12—860—001           1999—2003 RADIX TRUCK & SUV SILVER
             01—12—60—002            1999—2003 RADIX TRUCK & SUV POLISH
             01—12—60—006            2004—2005 RADIX TRUCK. SILVER
             01—12—60—007.           2004—2005 RADIX TRUCK POLISH
             01—12—60—008            2004—2005 RADIX SUV SILVER
             01—12—60—009            2004—2005 RADIX SUV POLISH


             01—12—60—011            2003 ONLYBADIX H, SILVER            >;c                              1 a muimamnat oL en
             01—12—60—012            2003 ONLY RADIX H, POLISH
             01—12—60—013 .          2004—2005 RADIX H, SILVER       _
             01—12—60—014            2004—2005 RADIX H, POLISH


             01—12—60—016            02—05 FLEX FUEL RADIX SILVER (NO INUECTORS, wITH FUEL MANIFOLD &REgutaTory*
             01—12—60—017            02—05 FLEX FUEL RADIX POLISH (no iNuECTORS, wITH FUEL MANIFOLD & AEguraTor)*


                                                                               ADD EARLY MODEL KIT??
YEAR                  ENGINE           PULLEY DIA        PULLEY P/N                31—12—00—007 **                    TUNER P/N


           4.8L                                         58—                                                                         —
           5.3L—LM7        (VIN#8=                      58—90—06—039                                                 88—85—53—001
           6.0L—LQS                                     58—90—06—033                                 69              88—85—53—001
           6.0L                                         58—      131                                                            1

 01—02 |4.8L—LR4(VIN#8=V)                   3.7         58—90—06—037                       YES                       88—85—53—004
           5.3L—LM7 (VIN#8=T)               3.4         58—90—06—039                       YES                       88—85—53—004
mexruea 5.3L—LS9 (VIN#8=Z)                  3.4         58—90—06—039                       YES                       88—85—53—004
comsesson 6.0L—LQQ (VIN#8=N)                3.3         58—90—06—033                       YES                       88—85—53—004
          |6.0L—LQ4 (VIN#8=U)               3.1         58—90—06—131                       YES                       88—85—53—004

 03—05 |4.8L—LR4 (VIN#8=V)                  3.7         58—90—06—037                       NO                        88—85—53—004
           5.3L—LM7 (VIN#8=T)               3.4         58—90—06—039                       NO                        88—85—53—004
mexruee 5.3L—LS59 (VIN#8=Z)                 3.4         58—90—06—039                       NO                        88—85—53—004
comntsson 8.OL—LQI (VIN#8=N)                3.3         58—90—06—033                       NO                        88—85—53—004
          [6.0L—LQ4 (VIN#8=U)               3.1         58—90—06—131                       NO                        88—85—53—004

       4.8L                                             57—90—06—039
       5.3L—LM7            (VIN#8=                      57—90—06—036                                                 88—85—53—004
nexrue 5.3L—LS59                                        57—90—06—036                                                 88—85—53—004
       6.

*FLEX FUEL VEHICLES HAVE VIN#8 =Z (5.3L—LS9)                                   ***RADIX APPLICATIONS
                                                                                   ***RADIX TRUCK:
**EARLY MODEL KIT INCLUDES:                                    CHEVROLET SILVERADOG, SUBURBAN 2500, AVALANCHE 2500
                                                                                GMC SIERRA, YUKON XL 2500
EGR ADAPTER & HAROWARE                                                               ***RADIX SUVv:
TPS & IDLE AIR WIRE EXTENSION HARDWARE                           CADILLAC ESCALAODE, ESCALADE ESV, ESCaLADE EXT
BRACKET FOR CABLE ACTUATED THROTTLE                              CHEVROLET AVALANCHE 1500, TAKOE, SUBURBAN 1500
PAIR OF STEAM COVER "BLOCKS®"                                                   . GMC YUKON, YUKON XL 1500
                                                                                      ***RADIX H2:
                                                                                       HUMMER H2

   7:27 AM                                               7/23/2004
