Approval Details

Valid E.O.

Validity

This Executive Order approved the specified parts on on October 20, 2005.
As of Monday, July 22nd, 2019 this Executive Order has not been overturned or superceeded.

Approved Parts

Part NumberModelsModificationRemarks
01-12-60-003, -003-SL2004-2006 Joe Gibbs Performance Spec Flex Fuel SUVs (GM)Fuel injectors; air intake filter; air-to-water intercooler; fuel and ignition map calibrations; fuel pumpKit includes fuel manifold and regulator, but no fuel injectors; Max Boost: 7 psi

This Executive Order may be listed as:
  • C.A.R.B.E.O. D-488-9
  • Executive Order 488-9 / D488-9
  • ARB # D-488-9
  • Executive Order No: D-488-9
  • C.A.R.B. No. D-488-9
  • Resolution D-488-9
For Free CARB Executive Order Status verification, email an image of the device Executive Order label as well as the Year/Make/Model and Test Group # of the vehicle to [email protected]

Download: Executive Order D-488-9 PDF

D-488-9 Document:

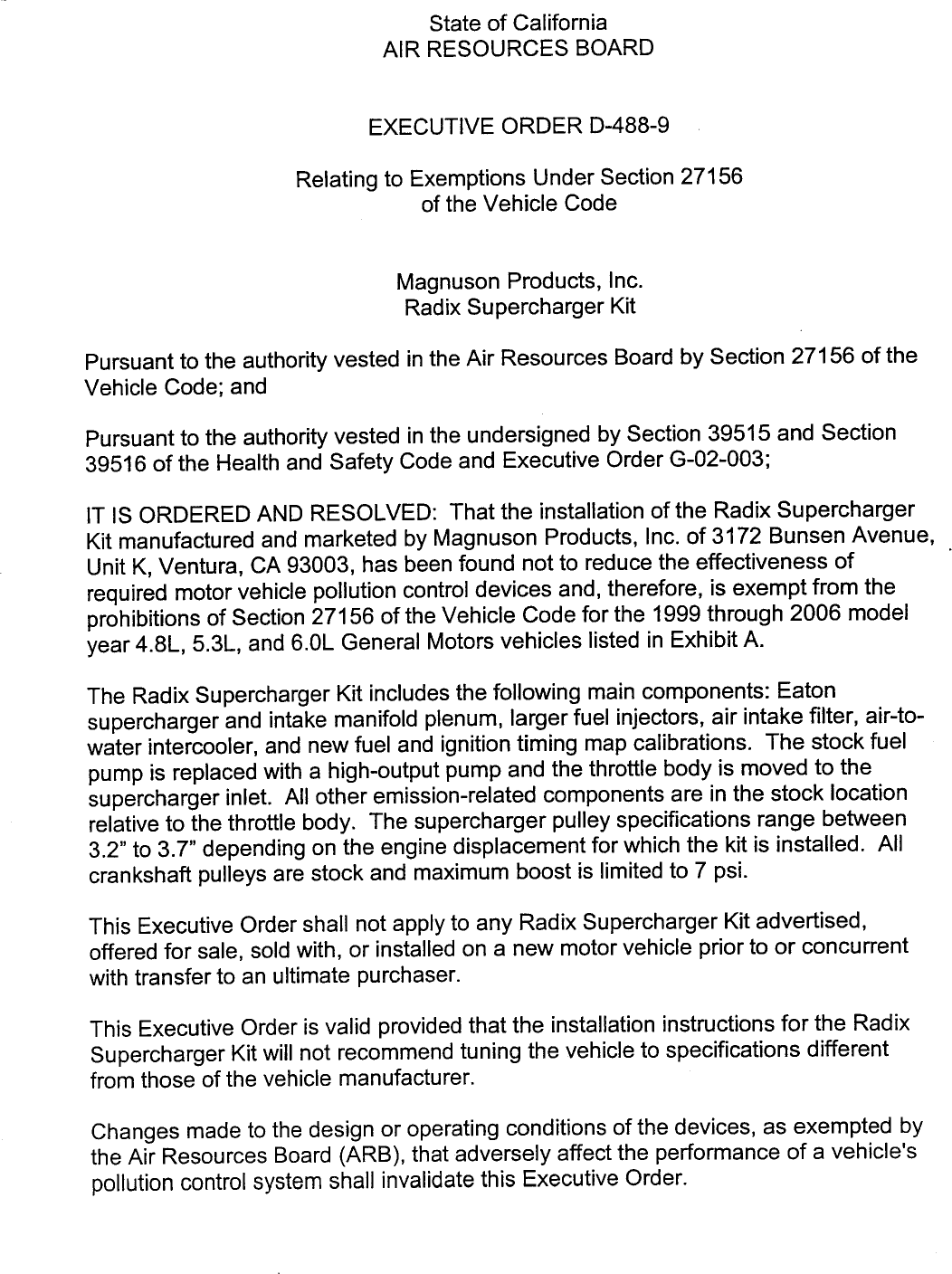

                                    State of California
                                AIR RESOURCES BOARD



                              EXECUTIVE ORDER D—488—9

                       Relating to Exemptions Under Section 27156
                                    of the Vehicle Code


                                 Magnuson Products, Inc.
                                  Radix Supercharger Kit

Pursuant to the authority vested in the Air Resources Board by Section 27156 of the
Vehicle Code; and

Pursuant to the authority vested in the undersigned by Section 39515 and Section
39516 of the Health and Safety Code and Executive Order G—02—003;

IT IS ORDERED AND RESOLVED: That the installation of the Radix Supercharger
Kit manufactured and marketed by Magnuson Products, Inc. of 3172 Bunsen Avenue,
Unit K, Ventura, CA 93003, has been found not to reduce the effectiveness of    |
required motor vehicle pollution control devices and, therefore, is exempt from the
prohibitions of Section 27156 of the Vehicle Code for the 1999 through 2006 model
year 4.8L, 5.3L, and 6.0L General Motors vehicles listed in Exhibit A.

The Radix Supercharger Kit includes the following main components: Eaton
supercharger and intake manifold plenum, larger fuel injectors, air intake filter, air—to—
water intercooler, and new fuel and ignition timing map calibrations. The stock fuel
pump is replaced with a high—output pump and the throttle body is moved to the
supercharger inlet. All other emission—related components are in the stock location
relative to the throttle body. The supercharger pulley specifications range between
3.2" to 3.7" depending on the engine displacement for which the kit is installed. All
crankshaft pulleys are stock and maximum boost is limited to 7 psi.

This Executive Order shall not apply to any Radix Supercharger Kit advertised,
offered for sale, sold with, or installed on a new motor vehicle prior to or concurrent
with transfer to an ultimate purchaser.

This Executive Order is valid provided that the installation instructions for the Radix
Supercharger Kit will not recommend tuning the vehicle to specifications different
from those of the vehicle manufacturer.

Changes made to the design or operating conditions of the devices, as exempted by
the Air Resources Board (ARB), that adversely affect the performance of a vehicle‘s
pollution control system shall invalidate this Executive Order.


Marketing of these devices using any identification other than that shown in this
Executive Order or marketing of this device for an application other than those listed
in this Executive Order shall be prohibited unless prior approval is obtained from the
ARB.

This Executive Order does not constitute any opinion as to the effect that the use of
these devices may have on any warranty either expressed or implied by the vehicle
manufacturer.

This exemption is issued based on previously submitted emissions test data from an
independent laboratory on a 2004 model year General Motors Silverado 1500 2WD
vehicle (Test Group 4GMXT06.0187) certified to the Super Ultra Low Emission
Vehicle (SULEV) and Supplemental Federal Test Procedure (SFTP) standards:

Federal Test Procedure:

                                               NMOG         CO      | NOX
Standards (g/mi)                               0.125        3.4       0.14
Device (g/mi) with df‘s applied            _   0101         2.5       0.06
Additive df‘s (50k)                            0.007        0.2       0.02

SFTP (USO6 Cycle):

                                               NMHC+NOX            _CO
Standards (g/mi)                                     0.40          10.5
Device (g/mi)                                        0.05   .       7.2

SEFTP (SCQ3 Alternative AC2 Cycle):

                                               NMHC+NOX            CO
Standards (g/mi)                                     0.31          3.5
Device (g/mi)                                        0.03          0.2

Test results showed that the Radix Supercharger Kit when installed on the vehicle did
not cause exhaust emissions to exceed the applicable emission standards during the
Cold Start CVS—75 Federal Test Procedure or SFTP cycles. This Executive Order is
also based on the On—Board Diagnostic I! (OBD II) testing conducted on the same
test vehicle. The Radix Supercharger Kit when installed on the test vehicle did not
affect the vehicle‘s ability to perform its OBD If monitoring.

In addition, the ARB reserves the right in the future to review this Executive Order
and the exemption provided herein to assure that the exempted add—on or modified
part continues to meet the standards and procedures of Title 13, California Code of
Regulations, Section 2222, et seq.               '



           MAGNUSON PRODUCTS, INC. — RADIX SUPERCHARGER KIT — D—488—9


THIS EXECUTIVE ORDER DOES NOT CONSTITUTE A CERTIFICATION,
ACCREDITATION, APPROVAL, OR ANY OTHER TYPE OF ENDORSEMENT BY
THE AIR RESOURCES BOARD OF ANY CLAIMS OF THE APPLICANT
CONCERNING ANTI—POLLUTION BENEFITS OR ANY ALLEGED BENEFITS OF
THE RADIX SUPERCHARGER KIT.

No claims of any kind, such as "Approved by the Air Resources Board" may be made
with respect to the action taken herein in any advertising or other oral or written
communication.

Violation of any of the above conditions shall be grounds for revocation of this order.
The order may be revoked only after a ten day written notice of intention to revoke
the order, in which period the holder of the order may request in writing a hearing to
contest the proposed revocation. If a hearing is requested, it shall be held within ten
days of receipt of the request and the order may not be revoked until a determination
is made after the hearing that grounds for revocation exist.


Executed at El Monte, California, this 727 A day of October 2005.




                                       AllenJ¥ons, Chief
                                       Mobile Source Operations Division




           MAGNUSON PRODUCTS, INC. — RADIX SUPERCHARGER KIT — D—488—9


                                                                 Exhibit A

                                                            (E.0.# D—488—9)
                                                                    S/C SYSTEM APPLICATION




         01—12—60—001             1999—2003 RADIX TRUCK & SUVSILVER
         01—12—60—002             1999—2003 RADIX TRUCK & SUVPOLISH



         01—12—60—008             2004—2006 RADIX SUV SILVER (Tahoe Yukon, Escalade, Suburban 1500, Avalanche 1500, Yukon XL 1500)
         01—12—60—009             2004—2006 RADIX SUV POLISH (Tahoe, Yukon, Escalade, Suburban 1500, Avalanche 1500, Yukon XL 1500)

         01—12—60—011             2003 ONLY RADIX i SILVER
         01—12—60—012             2003 ONLY RADIX H, POLISH




         01—12—60—016             2002—2004 FLEX FUEL RADIXSILVER (mo injectors, NO FUEL PUMP.WITH REGULATED FUEL MANIFOLD & RESuULATOR)
         01—12—60—017             2002—2004 FLEX FUEL RADIXPOLISH (wo inuectors, No FUEL PUMP.WITH REGULATED FUEL MaNIFOLD & regutato®)


                                                                                                                           FUELMANIFOEL)

  YEAR           ENGINE                PULLEY DIA             PULLEY PN             ADD EARLY MODE!;KITT?                  TUNER P/N




          5.3L—LM7      (VIN#8=




*FLEX FUEL VEHICLES HAVE VIN#8=Z (5.3L — L59)                                   **EARLY MODEL KIT INCLUDES:
                                                                                EGR ADAPTER & HARDWARE
                                                                                TPS & IDLE AIR WIRE EXTENSION HARDWARE
                                                                                BRACKET FOR CABLE ACTUATED THROTTLE
                                                                                PAIR OF STEAM COVER "BLOCKS®"
   97712005 1:16 PM



Document Created: 2006-09-06 11:50:52
Document Modified: 2006-09-06 11:50:52
