Approval Details

Valid E.O.

Validity

This Executive Order approved the specified parts on on October 2, 2000.
As of Monday, December 17th, 2018 this Executive Order has not been overturned or superceeded.

Approved Parts

Part NumberModels
7.3 Liter Engine Upgrade1992-1999 Mercedes Benz S600

This Executive Order may be listed as:
  • C.A.R.B.E.O. D-502-1
  • Executive Order 502-1 / D502-1
  • ARB # D-502-1
  • Executive Order No: D-502-1
  • C.A.R.B. No. D-502-1
  • Resolution D-502-1
For Free CARB Executive Order Status verification, email an image of the device Executive Order label as well as the Year/Make/Model and Test Group # of the vehicle to [email protected]

Download: Executive Order D-502-1 PDF

D-502-1 Document:

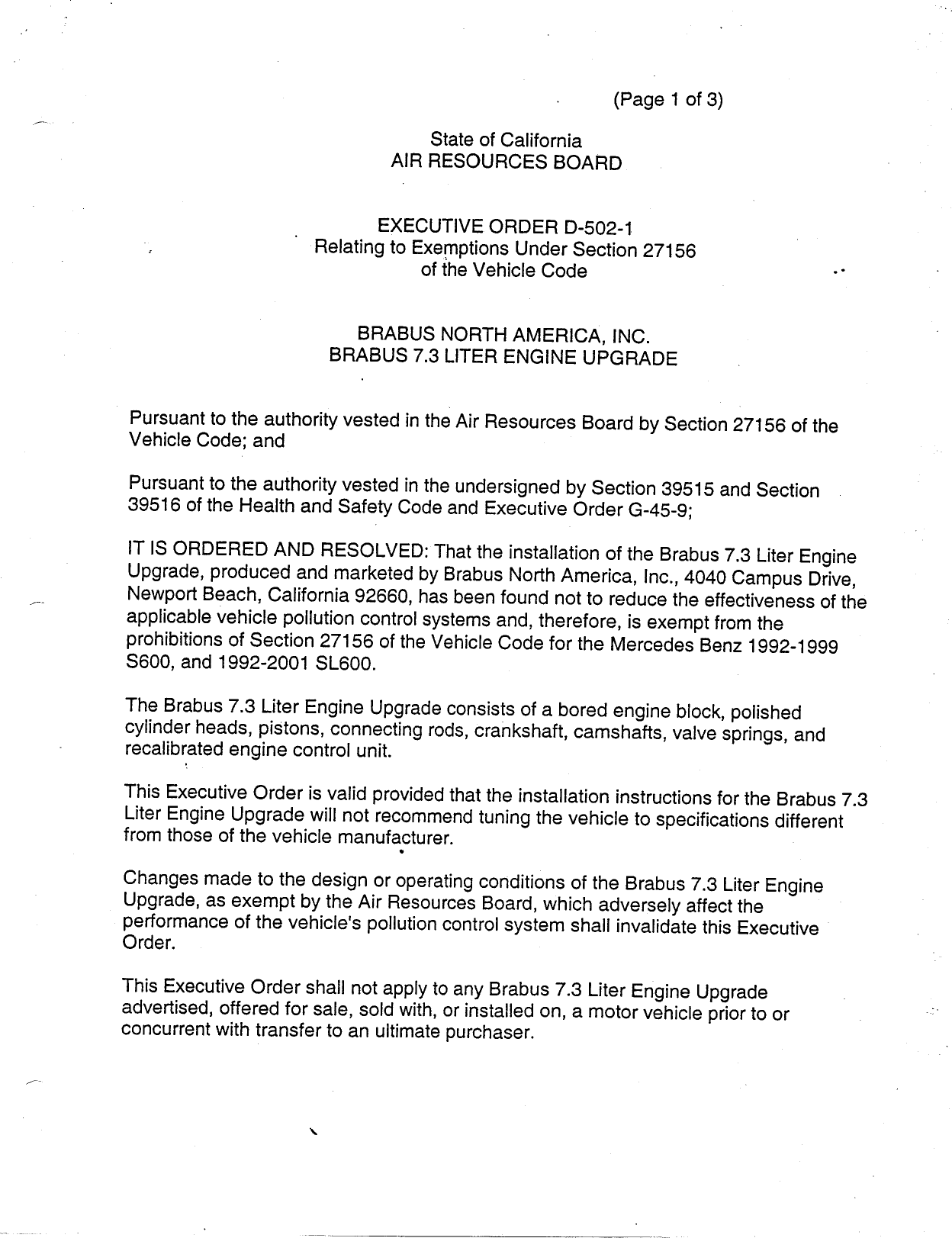

                                                             (Page 1 of 3)

                                    State of California
                                AIR RESOURCES BOARD


                    .           EXECUTIVE ORDER D—502—1
                        ‘Relating to Exemptions Under Section 27156
                                      of the Vehicle Code


                            BRABUS NORTH AMERICA, INC.
                          BRABUS 7.3 LITER ENGINE UPGRADE


Pursuant to the authority vested in the Air Resources Board by Section 27156 of the
Vehicle Code; and

Pursuant to the authority vested in the undersigned by Section 39515 and Section
39516 of the Health and Safety Code and Executive Order G—45—9;

IT IS ORDERED AND RESOLVED: That the installation of the Brabus 7.3 Liter Engine
Upgrade, produced and marketed by Brabus North America, Inc., 4040 Campus Drive,
Newport Beach, California 92660, has been found not to reduce the effectiveness of the
applicable vehicle pollution control systems and, therefore, is exempt from the
prohibitions of Section 27156 of the Vehicle Code for the Mercedes Benz 1992—1999
S$600, and 1992—2001 SL600.

The Brabus 7.3 Liter Engine Upgrade consists of a bored engine block, polished
cylinder heads, pistons, connecting rods, crankshaft, camshafts, vaive springs, and
recalibrated engine control unit.

This Executive Order is valid provided that the installation instructions for the Brabus 7.3
Liter Engine Upgrade will not recommend tuning the vehicle to specifications different
from those of the vehicle manufacturer.

Changes made to the design or operating conditions of the Brabus 7.3 Liter Engine
Upgrade, as exempt by the Air Resources Board, which adversely affect the
performance of the vehiclie‘s pollution control system shall invalidate this Executive
Order.

This Executive Order shall not apply to any Brabus 7.3 Liter Engine Upgrade
advertised, offered for sale, sold with, or installed on, a motor vehicle prior to or
concurrent with transfer to an ultimate purchaser.


BRABUS NORTH AMERICA, INC.                          .     EXECUTIVE ORDERD—502—1
BRABUS 7.3 LITER ENGINE UPGRADE                           (Page 2 of 3)


Marketing of the Brabus 7.3 Liter Engine Upgrade using any identification other than
‘that shown in this Executive Order or marketing of the Brabus 7.3 Liter Engine Upgrade
for an application other than those listed in this Executive Order shall be prohibited
unless prior approval is obtained from the Air Resources Board.

This Executive Order does not constitute any opinion as to the effect the use of the
Brabus 7.3 Liter Engine Upgrade may have on any warranty either expressed or implied
by the vehicle manufacturer.

This Executive Order is granted based on emission test results in the modified
configuration using the Cold—Start CVS—75 Federal Test Procedure and examination of
the On—Board Diagnostic II (OBD II) system. A 1999 model—year Mercedes Benz SL600
with a 6.0L fuel injected engine (XMBXVO6.0GNU, Tier—1, PC) was used for the
evaluation of the Brabus 7.3 Liter Engine Upgrade. Results from emissions testing
conducted at California Environmental Engineering are shown below (in grams per
mile):


                      50k      NMHC          CO         NOx
                Emission Level 0.096        11232       0.067
                (w. DF applied)
                       STD        0.25      3.4         0.4

                      100k        NMHC       CO         NOx
                Emission Level 0.096        1.267       0.067
                (w. DF applied)
                      STD       0.31        4,.2        n/a


The emission test results in the modified configuration were below the applicable
certification standards with the deterioration factors applied. Examination of the OBD !I
system showed the Brabus 7.3 Liter Engine Upgrade does not affect OBD II operation.
Therefore, based on the test results, the staff concludes that the Brabus 7.3 Liter
Engine Upgrade meets the criteria for exempting general criteria parts. However, the
ARB finds that reasonable grounds exist to believe that use of the Brabus 7.3 Liter
Engine Upgrade may adversely affect emissions of motor vehicles when operating
under conditions outside the parameters of the CVS—75 Federal Test Procedure.
Accordingly, the ARB reserves the right to conduct additional emission tests, in the
future, as such tests are developed, that will more adequately measure emissions from
all cycle phases. If such test results demonstrate that the Brabus 7.3 Liter Engine
Upgrade adversely affects emissions during off—cycle conditions (defined as those
conditions which are beyond the parameters of the Cold—Start CVS—75 Federal Test
Procedure), this Executive Order shall be effectively rescinded as of the date the test

                       N


BRABUS NORTH AMERICA, INC.                           ._   EXECUTIVE ORDER D—502—1
BRABUS 7.3 LITER ENGINE UPGRADE                           (Page 3 of 3)


results are validated. Further, if such test results or other evidence provides the ARB
with reason to suspect that the Brabus 7.3 Liter Engine Upgrade will affect the durability
of the emission control system, Brabus North America shall be required to submit
durability data to show that the durability of the vehicle emission control system is not, in
fact, affected and/or that the add—on or modified part demonstrates adequate durability.

In addition to the foregoing, the ARB reserves the right in the future to review this
Executive Order and the exemption provided herein to assure that the exempted add—on
or modified part continues to meet the standards and procedures of Title 13, California
Code of Regulations, Section 2222, et seq.

THIS EXECUTIVE ORDER DOES NOT CONSTITUTE A CERTIFICATION,
ACCREDITATION, APPROVAL, OR ANY OTHER TYPE OF ENDORSEMENT BY THE
AIR RESOURCES BOARD OF ANY CLAIMS OF THE APPLICANT CONCERNING
ANTI—POLLUTION BENEFITS OR ANY ALLEGED BENEFITS OF BRABUS NORTH
AMERICA, INC.‘S BRABUS 7.3 LITER ENGINE UPGRADE.

No claim of any kind, such as "Approved by the Air Resources Board", may be made
with respect to the action taken herein in any advertising or other oral or written
communication.                                                              -

Violation of any of the above conditions shall be grounds for revocation of this order.
The order may be revoked only after a ten—day written notice of intention to revoke the
order, in which period the holder of the order may request in writing a hearing to contest
the proposed revocation. If a hearing is requested, it shall be held within ten days of
receipt of the request and the order may not be revoked until a determination after
hearing that grounds for revocation exist.

Executed at Ei Monte, California, this _7z      day of October 2000.



                                 R. B. SUM
                                 Mobile Source Operations Division



Document Created: 2005-09-01 12:44:36
Document Modified: 2005-09-01 12:44:36
