Approval Details

Valid E.O.

Validity

This Executive Order approved the specified parts on on March 1, 2001.
As of Monday, May 27th, 2019 this Executive Order has not been overturned or superceeded.

Approved Parts

Part NumberModels
IVEIPO2.11990-93, Acura, Integra RS/LS/GS, 1.8L

This Executive Order may be listed as:
  • C.A.R.B.E.O. D-513-1
  • Executive Order 513-1 / D513-1
  • ARB # D-513-1
  • Executive Order No: D-513-1
  • C.A.R.B. No. D-513-1
  • Resolution D-513-1
For Free CARB Executive Order Status verification, email an image of the device Executive Order label as well as the Year/Make/Model and Test Group # of the vehicle to [email protected]

Download: Executive Order D-513-1 PDF

D-513-1 Document:

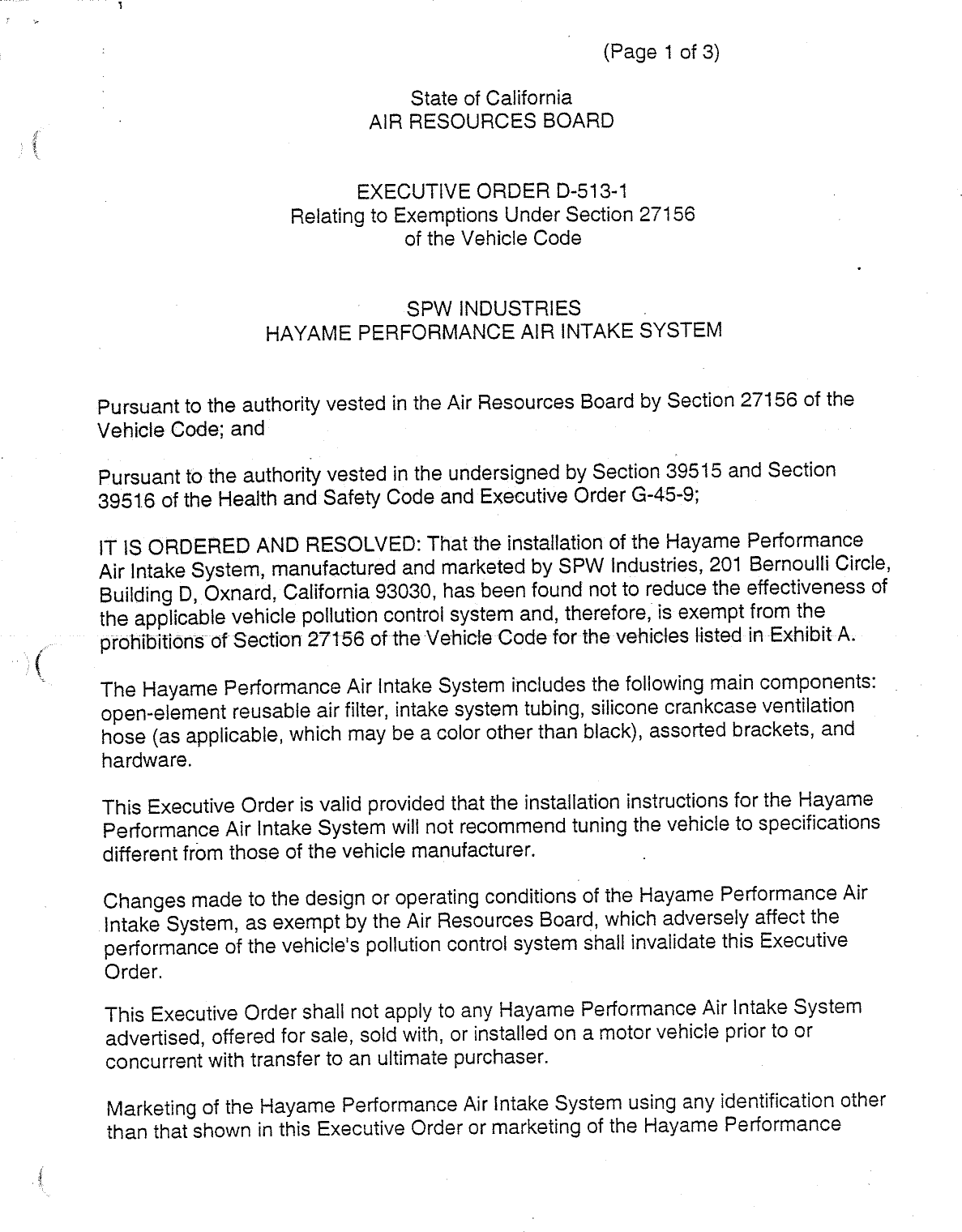

                                                          (Page 1 of 3)

                                   State of California
                               AIR RESOURCES BOARD


                             EXECUTIVE ORDER D—513—1
                      Relating to Exemptions Under Section 27156
                                   of the Vehicle Code


                             SPW INDUSTRIES      .
                   HAYAME PERFORMANCE AIR INTAKE SYSTEM


Pursuant to the authority vested in the Air Resources Board by Section 27156 of the
Vehicle Code; and

Pursuant to the authorify vested in the undersigned by Section 39515 and Section
39516 of the Health and Safety Code and Executive Order G—45—9;

IT IS ORDERED AND RESOLVED: That the installation of the Hayame Performance
Air Intake System, manufactured and marketed by SPW Industries, 201 Bernoulli Circle,
Building D, Oxnard, California 93030, has been found not to reduce the effectiveness of
the applicable vehicle pollution control system and, therefore,is exempt from the
prohibitionsof Section 27156 of the Vehicle Code for the vehicles listed in Exhibit A.

The Hayame Performance Air Intake System includes the following main components:
open—element reusable air filter, intake system tubing, silicone crankease ventilation
hose (as applicable, which may be a color other than black), assorted brackets, and
hardware.

This Executive Order is valid provided that the installation instructions for the Hayame
Performance Air Intake System will not recommend tuning the vehicle to specifications
different from those of the vehicle manufacturer.

Changes made to the design or operating conditions of the Hayame Performance Air
Intake System, as exempt by the Air Resources Board, which adversely affect the
performance of the vehicle‘s pollution control system shall invalidate this Executive
Order.

This Executive Order shall not apply to any Hayame Performance Air Intake System
advertised, offered for sale, sold with, or installed on a motor vehicle prior to or
concurrent with transfer to an ultimate purchaser.

Marketing of the Hayame Performance Air Intake System using any identification other
than that shown in this Executive Order or marketing of the Hayame Performance


              SPW INDUSTRIES                                           EXECUTIVE ORDER D—513—1
              HAYAME PERFORMANCE AIR INTAKE SYSTEM                            (Page 2 of 3)

              Air Intake System for an application other than those listed in this Executive Order shall
              be prohibited unless prior approval is obtained from the Air Resources Board.

              This Executive Order does not constitute any opinion as to the effect the use of the
              Hayame Performance Air Intake System may have on any warranty either expressed or
              implied by the vehicle manufacturer.

              This Executive Order is granted based on an examination of the On—Board Diagnostic II
               (OBD—I1) system of the vehicle in the modified configuration, and an engineering
              ‘evaluation of the emissions impact of the device if measured using the Cold—Start CVS—
              75 Federal Test Procedure. However, the ARB finds that reasonable grounds exist to
              believe that use of the SPW Industries Hayame Performance Air Intake Systems may
              adversely affect emissions of motor vehicles when operating under conditions outside
              the parameters of the CVS—75 Federal Test Procedure. Accordingly, the ARB reserves
              the right to conduct additional emission tests, in the future, as such tests are developed,
              ~ that will more adequately measure emissions from all cycle phases. If such test results
                demonstrate that the SPW Industries Hayame Performance Air Intake System
                adversely affect emissions during off—cycle conditions (defined as those conditions
                which are beyond the parameters of the Cold—Start CVS—75 Federal Test Procedure),
             . this Executive Order shall be effectively rescinded as of the date the test results are
                validated. Further, if such test results or other evidence provides the ARB with reason
                to suspect that the Hayame Performance Air Intake System will affect the durability of
                emission control systems, SPW Industries shall be required to submit durability data to
                show that the durability of vehicle emission control systems are not, in fact, affected
                and/or that the add—on or modified part demonstrates adequate durability.

              In addition to the foregoing, the ARB reserves the right in the future to review this
              Executive Order and the exemption provided herein to assure that the exempted add—on
              or modified part continues to meet the standards and procedures of Title 13, California
              Code of Regulations, Section 2222, et seq.

              THIS EXECUTIVE ORDER DOES NOT CONSTITUTE A CERTIFICATION,
              ACCREDITATION, APPROVAL, OR ANY OTHER TYPE OF ENDORSEMENT BY THE
              AIR RESOURCES BOARD OF ANY OTHER CLAIMS OF THE APPLICANT
              CONCERNING ANTI—POLLUTION BENEFITS OR ANY ALLEGED BENEFITS OF SPW
              INDUSTRIES®‘ HAYAME PERFORMANCE AIR INTAKE SYSTEM.

              No claim of any kind, such as "Approved by the Air Resources Board", may be made
              with respect to the action taken herein in any advertising or other oral or written
              communication.            |                            .
aLcasise,>


SpPW INDUSTRIES                |      EXECUTIVE ORDER D—513—1
HAYAME PERFORMANCE AIR INTAKE SYSTEM— _ (Page 3 of 3)
Violation of any of the above conditions shall be grounds for revocation of this order.
The order may be revoked only after a ten—day written notice of intention to revoke the
order, in which period the holder of the order may request in writing a hearing to contest
the proposed revocation. If a hearing is requested, it shall be held within ten days of
receipt of the request and the order may not be revoked until a determination is made
after the hearing that grounds for revocatio:jz?t.

Executed at El Monte, California, this    __Z   day of March 2001.




                                R. B. Summerfield, Chief
                                Mobile Source Operations Division


                                 Exhibit A


 Make              Model             Model—Year   DISP. (L.)      P/N
 Acura       Integra RS/ALS/GS         1990—93       1.8       IVEIPO2.1
 Acura         Integra RS/LS          1994—2000      1.8       IVEIPO2.3
 Acura         Integra GS—R          1994—2000       1.3       IVEIPO2.2

 Dodge             Neon              1995—1999       2.0       IPEIPO2.7

 Honda         Civic Si, DX           1988—91        1.6        IVEIPO1.1
 Honda       Civic EX, VX, CX         1992—95        1.6        IVEIPO1.2
 Honda       Civic EX, VX, CX         1996—98        1.6        IVEIPO1.3
 Honda         Civic DX, LX          1996—2000       1.6        IVEIPO1.4
 Honda            Accord              1990—93        2.2        IVEIPO1.5
 Honda       Accord non—VTEC          1994—95        2.3       IVEIPO1.5A
 Honda         Accord VTEC            1996—97        2.3        IVEIPO1.6
 Honda         Accord VTEC           1998—2000       2.3        IVEIPO1.7

Mitsubishi   Eclipse non—turbo         1995—99       2.0       IVEIPO2.4
