Approval Details

Valid E.O.

Validity

This Executive Order approved the specified parts on on July 9, 2003.
As of Wednesday, October 23rd, 2019 this Executive Order has not been overturned or superceeded.

Approved Parts

ModelsModification
1994-2002 Cummins 5.9 to 15.0 liter 4-stroke, turbocharged, electronic fuel injection heavy-duty on-road diesel engines. The engine application is limited to engines originally certified to oxides of nitrogen emission standard of 4.0 or 5.0 g/bhp-hr and not otherwise equipped with an aftertreatment emission control system such as a catalytic converter or a diesel particulate filter.This Executive Order is only valid provided the engines meet the following operating conditions: (1) the engine exhaust temperature is greater than 260 degrees Celsius for at least 25 percent of the typical duty cycle and (2) the engine is operated using either standard California diesel with a maximum sulfur content of 500 ppmw or ultra low sulfur diesel with a maximum sulfur content of 15 ppmw.

This Executive Order may be listed as:
  • C.A.R.B.E.O. D-535-5
  • Executive Order 535-5 / D535-5
  • ARB # D-535-5
  • Executive Order No: D-535-5
  • C.A.R.B. No. D-535-5
  • Resolution D-535-5
For Free CARB Executive Order Status verification, email an image of the device Executive Order label as well as the Year/Make/Model and Test Group # of the vehicle to [email protected]

Download: Executive Order D-535-5 PDF

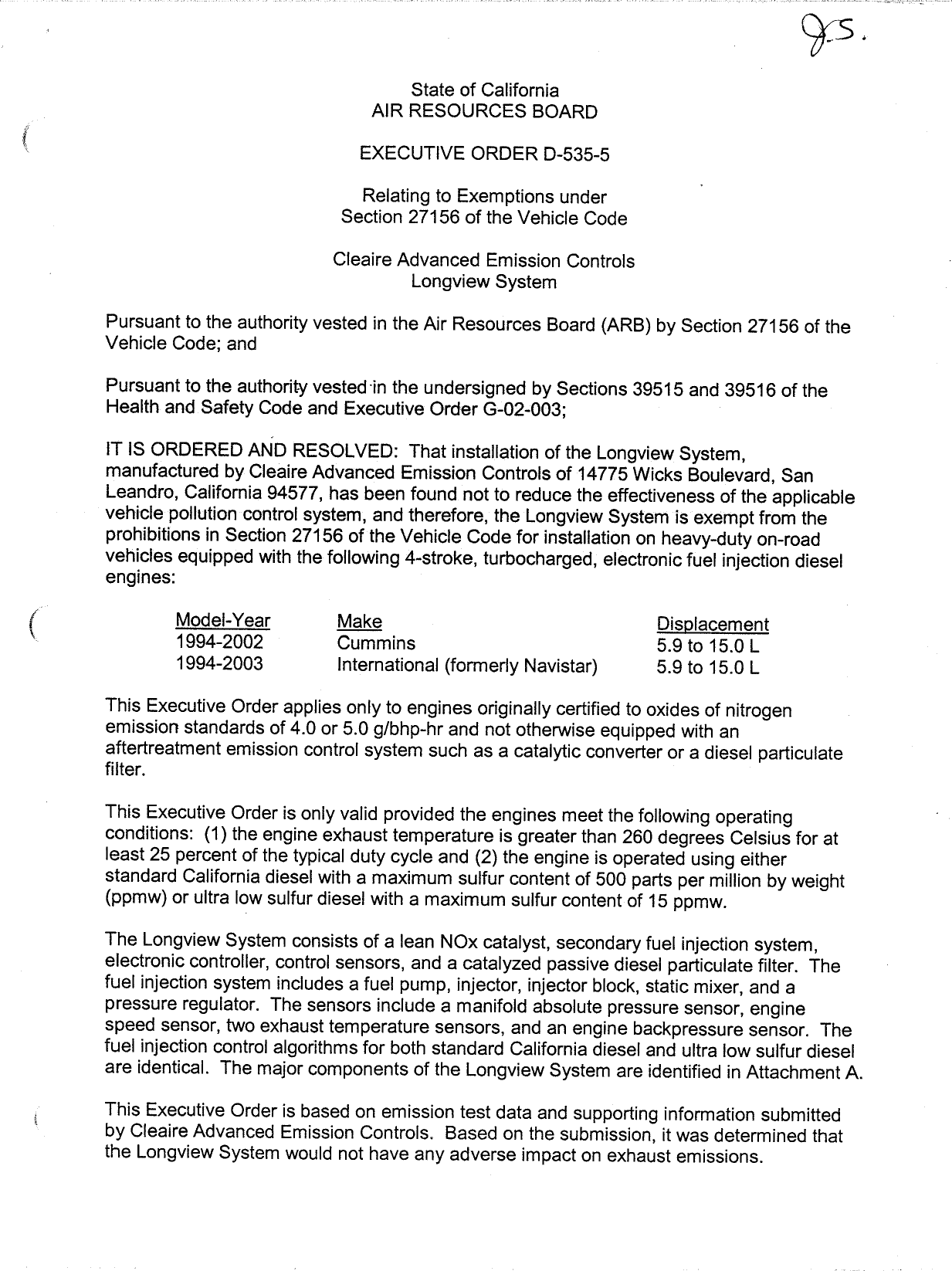

D-535-5 Document:



                                                  State of California
                                              AIR RESOURCES BOARD
,,ces




                                            EXECUTIVE ORDER D—535—5

                                             Relating to Exemptions under
                                          Section 27156 of the Vehicle Code

                                         Cleaire Advanced Emission Controls
                                                   Longview System

             Pursuant to the authority vested in the Air Resources Board (ARB) by Section 27156 of the
             Vehicle Code; and

             Pursuant to the authority vested in the undersigned by Sections 39515 and 39516 of the
             Health and Safety Code and Executive Order G—02—003;

             IT I1S ORDERED AND RESOLVED: That installation of the Longview System,
             manufactured by Cleaire Advanced Emission Controls of 14775 Wicks Boulevard, San
             Leandro, California 94577, has been found not to reduce the effectiveness of the applicable
             vehicle pollution control system, and therefore, the Longview System is exempt from the
             prohibitions in Section 27156 of the Vehicle Code for installation on heavy—duty on—road
             vehicles equipped with the following 4—stroke, turbocharged, electronic fuel injection diesel
             engines:

                        Model—Year        Make                                     Displacement
        mm




                        1994—2002         Cummins                                  5.9 to 15.0 L
                        1994—2003         International (formerly Navistar)        5.9 to 15.0 L

             This Executive Order applies only to engines originally certified to oxides of nitrogen
             emission standards of 4.0 or 5.0 g/bhp—hr and not otherwise equipped with an
             aftertreatment emission control system such as a catalytic converter or a diesel particulate
             filter.

             This Executive Order is only valid provided the engines meet the following operating
             conditions: (1) the engine exhaust temperature is greater than 260 degrees Celsius for at
             least 25 percent of the typical duty cycle and (2) the engine is operated using either
             standard California diesel with a maximum sulfur content of 500 parts per million by weight
             (ppmw) or ultra low sulfur diesel with a maximum sulfur content of 15 ppmw.

             The Longview System consists of a lean NOx catalyst, secondary fuel injection system,
             electronic controller, control sensors, and a catalyzed passive diesel particulate filter. The
             fuel injection system includes a fuel pump, injector, injector block, static mixer, and a
             pressure regulator. The sensors include a manifold absolute pressure sensor, engine
             speed sensor, two exhaust temperature sensors, and an engine backpressure sensor. The
             fuel injection control algorithms for both standard California diesel and ultra low sulfur diesel
             are identical. The major components of the Longview System are identified in Attachment A.

             This Executive Order is based on emission test data and supporting information submitted
             by Cleaire Advanced Emission Controls. Based on the submission, it was determined that
             the Longview System would not have any adverse impact on exhaust emissions.


                                                        2.

        This Executive Order is valid provided that installation instructions for the Longview System
        do not recommend tuning the vehicle to specifications different from those of the vehicle
        manufacturer.

        Changes made to the design or operating conditions of the Longview System, as exempt by
        the ARB, which adversely affect the performance of the vehicle‘s pollution control system,
        shall invalidate this Executive Order.

        Marketing of the Longview System using identification other than that shown in this
        Executive Order or for an application other than that listed in this Executive Order shall be
        prohibited unless prior approval is obtained from the ARB.

        This Executive Order shall not apply to any Longview System advertised, offered for sale,
        sold with, or installed on a motor vehicle prior to or concurrent with transfer to an ultimate
        purchaser.

        This Executive Order does not constitute any opinion as to the effect the use of the
        Longview System may have on any warranty either expressed or implied by the vehicle
        manufacturer.

        No claim of any kind, such as "Approved by the Air Resources Board," may be made with
        respect to the action taken herein in any advertising or other oral or written communication.

        In addition to the foregoing, the ARB reserves the right in the future to review this Executive
        Order and the exemption provided herein to assure that the exempted add—on or modified
ue"%.




        part continues to meet the standards and procedures of California Code of Regulations,
        Title 13, Section 2222, et seq.

        THIS EXECUTIVE ORDER DOES NOT CONSTITUTE A CERTIFICATION,
        ACCREDITATION, APPROVAL, OR ANY OTHER TYPE OF ENDORSEMENT BY THE
        AIR RESOURCES BOARD OF ANY CLAIMS OF THE APPLICANT CONCERNING ANTT—
        POLLUTION BENEFITS OR ANY ALLEGED BENEFITS OF CLEAIRE ADVANCED
        EMISSION CONTROLS®‘ LONGVIEW SYSTEM.

        Violation of any of the above conditions shall be grounds for revocation of this Executive
        Order. The Executive Order may be revoked only after a ten—day written notice of intention
        to revoke the Executive Order, in which period the holder of the Executive Order may
        request in writing a hearing to contest the proposed revocation. If a hearing is requested, it
        shall be held within ten days of receipt of the request, and the Executive Order may not be
        revoked until a determination is made after a hearing that grounds for revocation exist.

        Executed at El Monte, California, this     §7        day of July 2003.




                                                 AI:&K Lyons, Chief
                                                 Mobile Source Operations Division




           CLEAIRE ADVANCED EMISSION CONTROLS — LONGVIEW SYSTEM — D—535—5


                              Attachment A




   MK—502, MK—503,
                                             Controller and Sensor Kit
  MK—504, or MK—505
    7004A, 7004B,
   MK—3.1, MK—3.1A,
                                             Monitor Logger Controller
   MK—4.1, MK—41A,
      or MK—4.1B

 P604—9491 or 4088588                          Pressure Transducer

        194—6724                                   MAP Sensor

2T-125K32:?:-1R1-6-T|S-30-          Thermocouple — braided sheath, solid wire

        71255—00                          Magnetic Pickup (tachometer)

   FK—501 or FK—502                              Fuel System Kit

     RAC5S58500—10                            Diesel Fuel Pump/Filter

          FP—1                         Injector Assembly (inj., adp., o—ring)

       B4CPA2—50                 4Amnpt x 4mnpt Check Valve (pressure regulator)

    UAM—S or USM—S                 Static Mixer Assembly (4" or 5" exhaust pipe)

        JC—02 or                       NOx Reduction Catalyst (10.5" x 6")
         KC—O02                        NOx Reduction Catalyst (11.25" x 6")

    JF—10 or JF—12 or                  Diesel Particulate Filter (10.5" x 12")
     KF—10 or KF—12                   Diesel Particulate Filter (11.25" x 12")




     CLEAIRE ADVANCED EMISSION CONTROLS — LONGVIEW SYSTEM — D—535—5



Document Created: 2005-09-01 12:43:22
Document Modified: 2005-09-01 12:43:22
