Approval Details

Valid E.O.

Validity

This Executive Order approved the specified parts on on March 9, 2009.
As of Thursday, August 22nd, 2019 this Executive Order has not been overturned or superceeded.

Approved Parts

ModelsModification
On-road heavy-duty vehicles equipped with 1994 through 2006 model-year diesel engines with displacements from 5 to 15 liters and power ratings up to 400 horsepower for all duty cycles and up to 500 horsepower provided the engine exhaust temperature is less than 260 degrees Celsius for greater than 40 percent of the typical duty cycleThis exemption does not apply to any engines originally equipped with an aftertreatment emission control system such as a catalytic converter or a diesel particulate filter.

This Executive Order may be listed as:
  • C.A.R.B.E.O. D-535-8
  • Executive Order 535-8 / D535-8
  • ARB # D-535-8
  • Executive Order No: D-535-8
  • C.A.R.B. No. D-535-8
  • Resolution D-535-8
For Free CARB Executive Order Status verification, email an image of the device Executive Order label as well as the Year/Make/Model and Test Group # of the vehicle to [email protected]

Download: Executive Order D-535-8 PDF

D-535-8 Document:

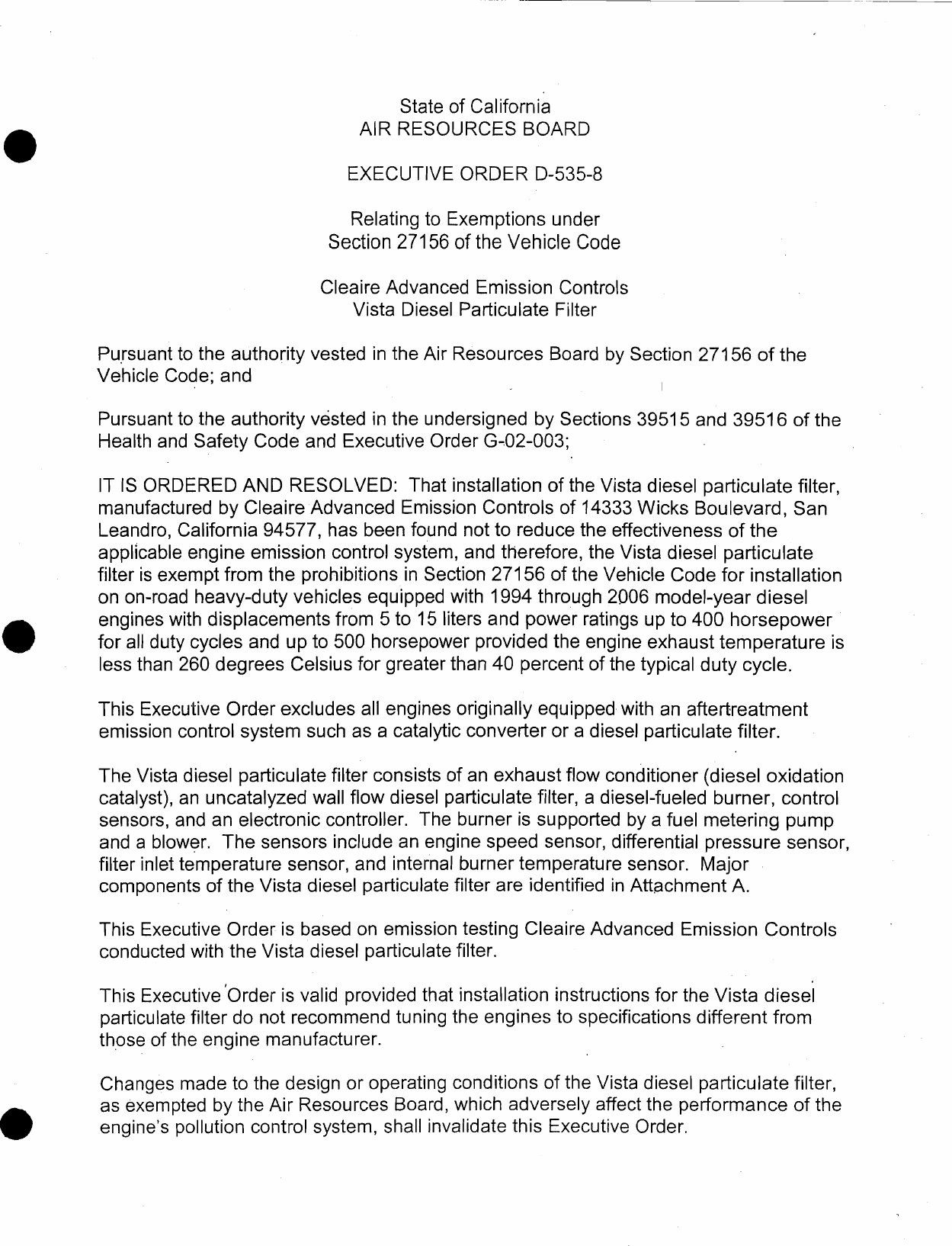

                                         State of Califorr~ia
                                     AIR RESOURCES BOARD

                                   EXECUTIVE ORDER D-535-8

                                    Relating to Exemptions under
                                 Section 271 56 of the Vehicle Code

                                Cleaire Advanced Emission Controls
                                   Vista Diesel Particulate Filter

    Pursuant to the authority vested in the Air Resources Board by Section 271 56 of the
    Vehicle Code; and                                                 I

    Pursuant to the authority vested in the undersigned by Sections 39515 and 39516 of the
    Health and Safety Code and Executive Order G-02-003;

    IT IS ORDERED AND RESOLVED: That installation of the Vista diesel particulate filter,
    manufactured by Cleaire Advanced Emission Controls of 14333 Wicks Boulevard, San
    Leandro, California 94577, has been found not to reduce the effectiveness of the
    applicable engine emission control system, and therefore, the Vista diesel particulate
    filter is exempt from the prohibitions in Section 271 56 of the Vehicle Code for installation
    on on-road heavy-duty vehicles equipped with 1994 through 2906 model-year diesel

a   engines with displacements from 5 to 15 liters and power ratings up to 400 horsepower
    for all duty cycles and up to 500 horsepower provided the engine exhaust temperature is
    less than 260 degrees Celsius for greater than 40 percent of the typical duty cycle.

    This Executive Order excludes all engines originally equipped with an aftertreatment
    emission control system such as a catalytic converter or a diesel particulate filter.

    The Vista diesel particulate filter consists of an exhaust flow conditioner (diesel oxidation
    catalyst), an uncatalyzed wall flow diesel particulate filter, a diesel-fueled burner, control
    sensors, and an electronic controller. The burner is supported by a fuel metering pump
    and a blower. The sensors include an engine speed sensor, differential pressure sensor,
    filter inlet temperature sensor, and internal burner temperature sensor. Major
    components of the Vista diesel particulate filter are identified in Attachment A.

    This Executive Order is based on emission testing Cleaire Advanced Emission Controls
    conducted with the Vista diesel particulate filter.

    This Executive 'order is valid provided that installation instructions for the Vista diesel
    particulate filter do not recommend tuning the engines to specifications different from
    those of the engine manufacturer.

    Changes made to the design or operating conditions of the Vista diesel particulate filter,

e   as exempted by the Air Resources Board, which adversely affect the performance of the
    engine's pollution control system, shall invalidate this Executive Order.


    Marketing of the Vista diesel particulate filter using identification other than that shown
    in this Executive Order or for an application other than that listed in this Executive Order
    shall be prohibited unless prior approval is obtained from the Air Resources Board.

    This Executive Order shall not apply to any Vista diesel particulate filter advertised,
    offered for sale, sold with, or installed on a motor vehicle or an engine prior to or
    concurrent with transfer to an ultimate purchaser.

    This Executive Order does not constitute any opinion as to the effect the use of the
    Vista diesel particulate filter may have on any warranty either expressed or implied by
    the engine manufacturer.

    No claim of any kind, such as "Approved by the Air Resources Board," may be made
    with respect to the action taken herein in any advertising or other oral or written
    communication.

    In addition to the foregoing, the Air Resources Board reserves the right in the future to
    review this Executive Order and the exemption provided herein to assure that the
    exempted add-on or modified part continues to meet the standards and procedures of
    California Code of Regulations, Title 13, Section 2222, et seq.

    THIS EXECUTIVE ORDER DOES NOT CONSTITUTE A CERTIFICATION,
    ACCREDITATION, APPROVAL, OR ANY OTHER TYPE OF ENDORSEMENT BY THE
a   AIR RESOURCES BOARD OF ANY CLAIMS OF THE APPLICANT CONCERNING
    ANTI-POLLUTION BENEFITS OR ANY ALLEGED BENEFITS OF CLEAIRE
    ADVANCED EMISSION CONTROL'S VISTA DIESEL PARTICULATE FILTER.

    Violation of any of the above conditions shall be grounds for revocation of this Executive
    Order. The Executive Order may be revoked only after a ten-day written notice of
    intention to revoke the Executive Order, in which period the holder of the Executive
    Order may request in writing a hearing to contest the proposed revocation. If a hearing
    is requested, it shall be held within ten days of receipt of the request, and the Executive
    Order may not be revoked until a determination is made after a hearing that grounds for
    revocation exist.

    Executed at El Monte, California, this     q      day of March 2009.




                                        -~nnette Hebert, Chief
                                          Mobile Source Operations Division




                        CLEAIRE ADVANCED EMISSION CONTROLS
                       VISTA DIESEL PARTICULATE FILTER - D-535-8


                                             Attachment A

                                      Vista Diesel Particulate Filter

                    Part                    Q~Y                          Part Number

 I        Diesel Particulate Filter          1                   .      CJF-<filter>-EPF

                                                            CPXB-Jcexhaust pipe size><inlet
         lnlet Cone with lntegrated
2                                            1      configuration>E-<exhaust pipe connection type>-
               Burner and EFC
                                                                     CAP location>
                   MLC
                                             1                            CMKP-6.OA
        (Monitor Logger Controller)

4                  Blower                    1               CUE-73-<equipment voltage>V

 5      Thermocouple (Filter Inlet)          1                CMA-4, CMA-4-VS, CMA-4-6

               Thermocouple                          CMA-<connection lead length>-<probe length>-
 6                                           I
              (Internal Burner)                                         SET

 7         Pressure Transducer               1                              C UE-4.5

 8               Fuel Pump                   1               CUE-72-<equipment voltage>\/

 9              RPM Sensor                   1                       CMA-3, CMA-3-DUAL

Definitions:
1.     Diesel Particulate Filter:
      J: filter size 10.5" x 12.0"
       <.Filter>: 101 or 103 (different mounting configuration) = l biden
                  201 or 203 (different mounting configuration) = Liqtech
2.     lnlet Cone with lntegrated Burner and Exhaust Flow Conditioner:
       J: filter size 10.5" x 12.0"
    . <exhaust pipe size>: 4" or 5"
       <inlet configuration? 0 = straight in
                                90 = side in
       <exhaust pipe configuration type>: S = swaged
                                             F = stack breaker
       CAP location? access port location is degrees from weld seam
4.     Blower:
       <equipment voltage? 12 V or 24 V
5.     Thermocouple (Filter Inlet):
       CMA-4 = straight probe
       CMA-4-VS = angled probe
       CMA-4-6 = straight probe, 6"
6.     Thermocouple (Internal Burner):
       <connection lead length>: wire lead length from sensor to wire harness
       <probe length>: 4", 5", or 6"
8.     Fuel Pump:
       <equipment voltage>: 12 V or 24 V



                       CLEAIRE ADVANCED EMISSION CONTROLS
                      VISTA DIESEL PARTICULATE FILTER - D-535-8
