Approval Details

Valid E.O.

Validity

This Executive Order approved the specified parts on on September 15, 2009.
As of Friday, October 11th, 2024 this Executive Order has not been overturned or superceeded.

Approved Parts

ModelsModification
2010 and older Tier 2 and Tier 3 off-road compression-ignition engines rated from 100 to 350 kW with displacements of 5 to 18.2 liters. This exemption does not apply to engines certified to Tier 1 emission standards or those engines originally equipped with an exhaust gas recirculation system.The Allmetal diesel particulate filter consists of a diesel oxidation catalyst, an uncatalyzed metal filter, a pressure sensor, a temperature sensor, and an electronic controller. This exemption is valid provided the engines meet the following operating conditions: (1) the engine exhaust temperature is greater than 260 degrees Celsius for at least 25 percent of the typical duty cycle and (2) the engine is operated using ultra low sulfur diesel with a maximum sulfur content of 15 parts per million by weight.

This Executive Order may be listed as:
  • C.A.R.B.E.O. D-535U-11
  • Executive Order 535U-11 / D535U-11
  • ARB # D-535U-11
  • Executive Order No: D-535U-11
  • C.A.R.B. No. D-535U-11
  • Resolution D-535U-11
For Free CARB Executive Order Status verification, email an image of the device Executive Order label as well as the Year/Make/Model and Test Group # of the vehicle to [email protected]

Download: Executive Order D-535U-11 PDF

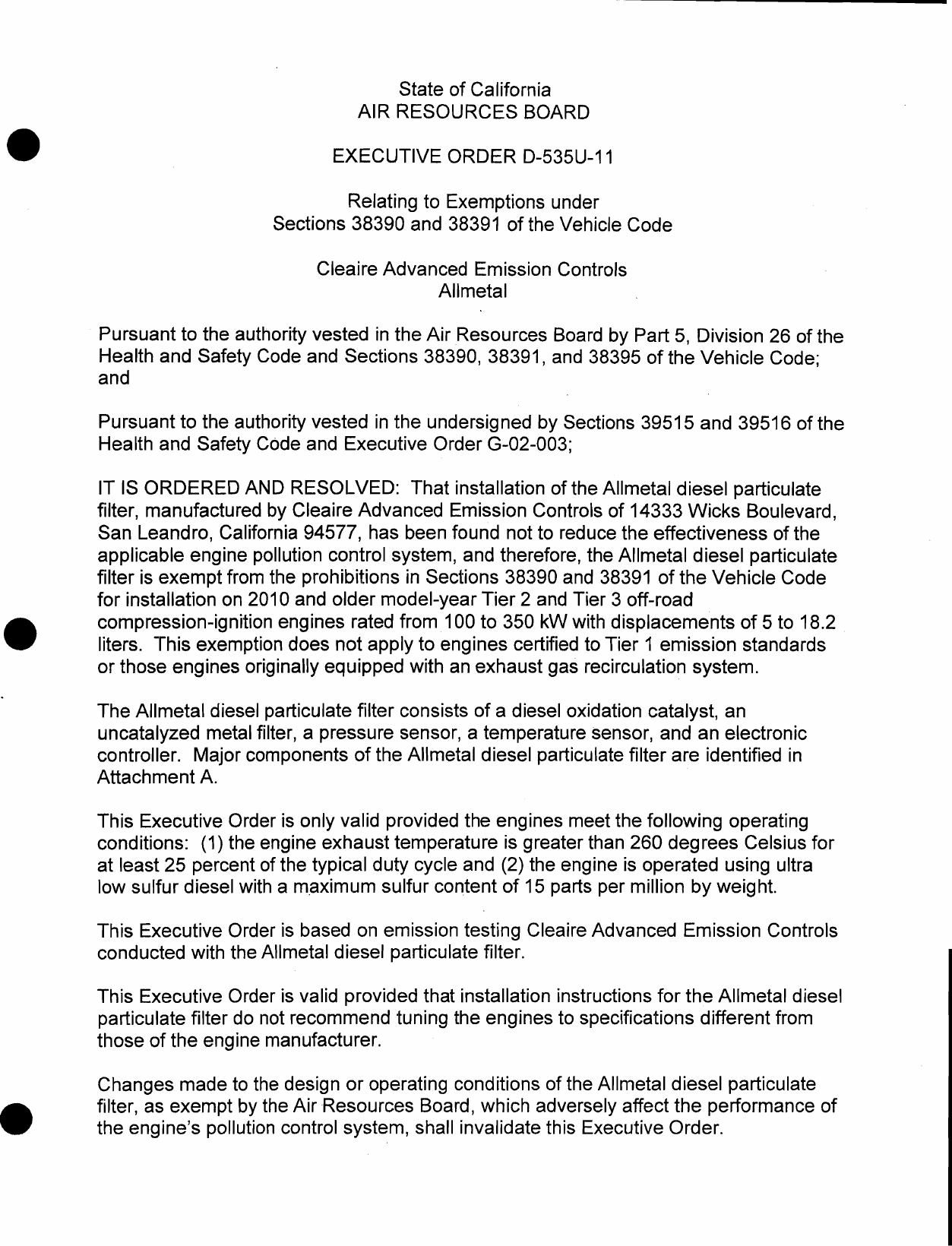

D-535U-11 Document:


CARB_D-535U-11

                                    State of California
                                AIR RESOURCES BOARD

                             EXECUTIVE ORDER D-535U-11

                             Relating to Exemptions under
                     Sections 38390 and 38391 of the Vehicle Code

                           Cleaire Advanced Emission Controls
                                        Allmetal

Pursuant to the authority vested in the Air Resources Board by Part 5, Division 26 of the
Health and Safety Code and Sections 38390, 38391, and 38395 of the Vehicle Code;
and

Pursuant to the authority vested in the undersigned by Sections 39515 and 39516 of the
Health and Safety Code and Executive Order G-02-003;

IT IS ORDERED AND RESOLVED: That installation of the Allmetal diesel particulate
filter, manufactured by Cleaire Advanced Emission Controls of 14333 Wicks Boulevard,
San Leandro, California 94577, has been found not to reduce the effectiveness of the
applicable engine pollution control system, and therefore, the Allmetal diesel particulate
filter is exempt from the prohibitions in Sections 38390 and 38391 of the Vehicle Code
for installation on 2010 and older model-year Tier 2 and Tier 3 off-road
compression-ignition engines rated from 100 to 350 kW with displacements of 5 to 18.2
liters. This exemption does not apply to engines certified to Tier 1 emission standards
or those engines originally equipped with an exhaust gas recirculation system.

The Allmetal diesel particulate filter consists of a diesel oxidation catalyst, an
uncatalyzed metal filter, a pressure sensor, a temperature sensor, and an electronic
controller. Major components of the Allmetal diesel particulate filter are identified in
Attachment A.

This Executive Order is only valid provided the engines meet the following operating
conditions: (1) the engine exhaust temperature is greater than 260 degrees Celsius for
at least 25 percent of the typical duty cycle and (2) the engine is operated using ultra
low sulfur diesel with a maximum sulfur content of 15 parts per million by weight.

This Executive Order is based on emission testing Cleaire Advanced Emission Controls
conducted with the Allmetal diesel particulate filter.

This Executive Order is valid provided that installation instructions for the Allmetal diesel
particulate filter do not recommend tuning the engines to specifications different from
those of the engine manufacturer.

Changes made to the design or operating conditions of the Allmetal diesel particulate
filter, as exempt by the Air Resources Board, which adversely affect the performance of
the engine's pollution control system, shall invalidate this Executive Order.




                                       Attachment A




                                                                   CMKA-5.OB

   4          Pressure Transducer               1                    CUE-45

   5             Thermocouple                   1                     CMA-4

Definition:
    Metal Diesel Particulate Filter: CJF-301X-Y
    X and Y are optional parameters used to define the inlet and outlet configurations of the filter.




              CLEAIRE ADVANCED EMISSION CONTROLS
          ALLMETAL DIESEL PARTICULATE FILTER - D-535U-1I



Document Created: 2009-10-05 13:04:12
Document Modified: 2009-10-05 13:04:12
