Approval Details

Valid E.O.

Validity

This Executive Order approved the specified parts on on May 21, 2003.
As of Monday, October 21st, 2024 this Executive Order has not been overturned or superceeded.

Approved Parts

ModelsModification
1999 through 2003 Ford Mustangs equipped with a 4.6L engineThe ST-460 Supercharger Kit includes a Paxton Novi 2000 supercharger with a 6.5 inch diameter pulley (8 psi. max. boost), an open element air filter to replace the stock closed element filter, a new set of fuel injectors rated at 30 lbs. to replace the stock fuel injectors, a new high volume fuel pump, a 3.55:1 or 3.73:1 rear axle gear set, and a new calibration chip which is installed into the service port of the electronic control module. The stock crankshaft pulley is utilized.

This Executive Order may be listed as:
  • C.A.R.B.E.O. D-536-2
  • Executive Order 536-2 / D536-2
  • ARB # D-536-2
  • Executive Order No: D-536-2
  • C.A.R.B. No. D-536-2
  • Resolution D-536-2
For Free CARB Executive Order Status verification, email an image of the device Executive Order label as well as the Year/Make/Model and Test Group # of the vehicle to [email protected]

Download: Executive Order D-536-2 PDF

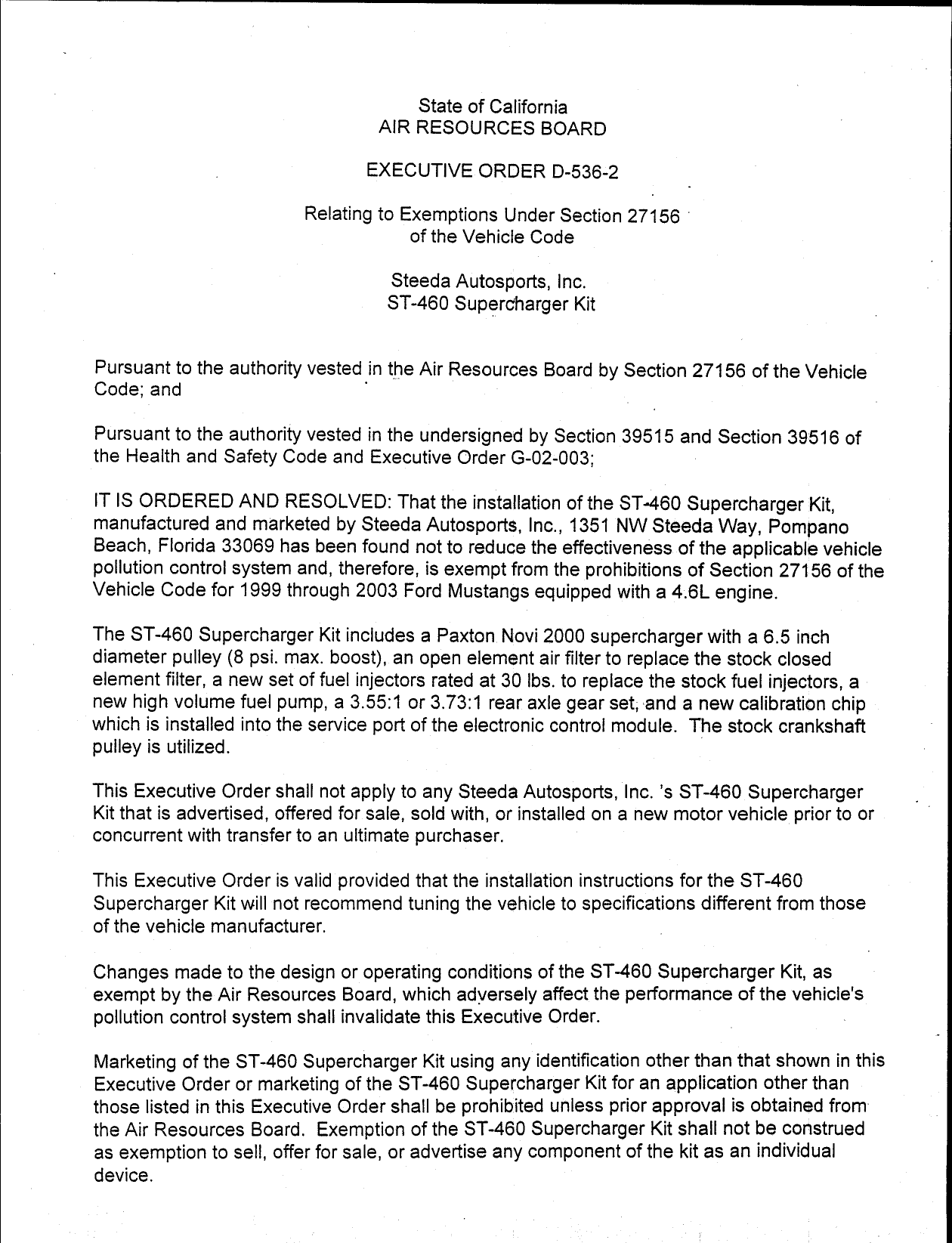

D-536-2 Document:

CARB_D-536-2

State of California AIR RESOURCES BOARD EXECUTIVE ORDER D—536—2 Relating to Exemptions Under Section 27156 ° of the Vehicle Code Steeda Autosports, Inc. S$T—460 Supercharger Kit Pursuant to the authority vested in the Air Resources Board by Section 27156 of the Vehicle Code; and ~ Pursuant to the authority vested in the undersigned by Section 39515 and Section 39516 of the Health and Safety Code and Executive Order G—02—003; | IT IS ORDERED AND RESOLVED: That the installation of the ST—460 Supercharger Kit, manufactured and marketed by Steeda Autosports, Inc., 1351 NW Steeda Way, Pompano Beach, Florida 33069 has been found not to reduce the effectiveness of the applicable vehicle pollution control system and, therefore, is exempt from the prohibitions of Section 27156 of the Vehicle Code for 1999 through 2003 Ford Mustangs equipped with a 4.6L engine. The ST—460 Supercharger Kit includes a Paxton Novi 2000 supercharger with a 6.5 inch diameter pulley (8 psi. max. boost), an open element air filter to replace the stock closed element filter, a new set of fuel injectors rated at 30 Ibs. to replace the stock fuel injectors, a new high volume fuel pump, a 3.55:1 or 3.73:1 rear axle gear set; and a new calibration chip which is installed into the service port of the electronic control module. The stock crankshaft pulley is utilized. This Executive Order shall not apply to any Steeda Autosports, Inc. ‘s ST—460 Supercharger Kit that is advertised, offered for sale, sold with, or installed on a new motor vehicle prior to or concurrent with transfer to an ultimate purchaser. This Executive Order is valid provided that the installation instructions for the ST—460 Supercharger Kit will not recommend tuning the vehicle to specifications different from those of the vehicle manufacturer. Changes made to the design or operating conditions of the ST—460 Supercharger Kit, as exempt by the Air Resources Board, which adversely affect the performance of the vehicle‘s pollution control system shall invalidate this Executive Order. Marketing of the ST—460 Supercharger Kit using any identification other than that shown in this Executive Order or marketing of the ST—460 Supercharger Kit for an application other than those listed in this Executive Order shall be prohibited unless prior approval is obtained from the Air Resources Board. Exemption of the ST—460 Supercharger Kit shall not be construed as exemption to sell, offer for sale, or advertise any component of the kit as an individual device.

This Executive Order does not constitute any opinion as to the effect the use of the ST—460 Supercharger Kit may have on any warranty either expressed or implied by the vehicle manufacturer. This Executive Order is granted based on submitted emissions test data which showed that the S$T—460 Supercharger Kit did not adversely affect tailpipe emissions during a Cold—Start CVS—75 Federal Test Procedure. A 2001 model—year California—certified Ford Mustang certified to the Transitional Low—Emission Vehicle (TLEV) emission standards was used as the test vehicle. NMOG CO NOx HCHO Standards 0.125 3.4 0.4 0.015 Device w/df 0.096 12 0.1 0.002 > Results showed modified emission levels with deterioration factors (df) applied were below the vehicle‘s applicable emission standards. This Executive Order is also based on an On—Board Diagnostic l1 (OBD II) test conducted on the same vehicle: Test data showed that the ST—460 Supercharger Kit when installed on the vehicle did not affect the vehicle‘s ability to perform its OBD II monitoring. The ARB finds that reasonable grounds exist to believe that use of the ST—460 Supercharger Kit may adversely affect emissions of motor vehicles when operating under conditions outside the parameters of the Cold—Start CVS—75 Federal Test Procedure. Accordingly, the ARB reserves the right to conduct additional emission tests, in the future; as such tests are developed, that will more adequately measure emissions from all cycle phases. If such test results demonstrate that the ST—460 Supercharger Kit adversely affect emissions during off—cycle conditions (defined as those conditions which are beyond the parameters of the Cold Start CVS—75 Federal Test Procedure), this Executive Order shall be effectively rescinded as of the date the test results are validated. Further, if such test results or other evidence provides the ARB with reason to suspect that the ST—460 Supercharger Kit will affect the durability of the emission control system, Steeda Autosports, Inc. shall be required to submit durability data to show that the durability of the vehicle emission control system is not, in fact, affected and/or that the add—on or modified part demonstrates adequate durability. In addition to the foregoing, the ARB reserves the right in the future to review this Executive — Order and the exemption provided herein to assure that the exempted add—on or modified part continues to meet the standards and procedures of Title 13, California Code of Regulations, Section 2222, et seq. STEEDA AUTOSPORTS, INC.—ST—460 SUPERCHARGER KIT—D—536—2

—3. THIS EXECUTIVE ORDER DOES NOT CONSTITUTE A CERTIFICATION, ACCREDITATION, APPROVAL, OR ANY OTHER TYPE OF ENDORSEMENT BY THE AIR RESOURCES BOARD OF ANY CLAIMS OF THE APPLICANT CONCERNING ANTI—POLLUTION BENEFITS OR ANY ALLEGED BENEFITS OF STEEDA AUTOSPORTS, INC. ‘S $T—460 SUPERCHARGER KIT. No claim of any kind, such as "Approved by the Air Resources Board", may be made with respect to the action taken herein in any advertising or other oral or written communication. Violation of any of the above conditions shall be glfounds for revocation of this order. The order may be revoked only after a ten—day written notice of intention to revoke the order, in which period the holder of the order may request in writing a hearing to contest the proposed revocation. If a hearing is requested, it shall be held within ten days of receipt of the request and the order may not be revoked until a determination is made after the hearing that grounds for revocation exist. Executive Orders D—536, dated May 2002 and D—536—1, dated October 2002, are superseded and of no further force and effect. Executed at El Monte, California, this gg’f day of May 2003. Allf?(f)yons, Chief Mobile Source Operations Division t we on STEEDA AUTOSPORTS, INC.—ST—460 SUPERCHARGER KIT—D—536—2


Document Created: 2005-09-01 12:44:54
Document Modified: 2005-09-01 12:44:54

Previous E.O. D-536-1 | Previous E.O. D-535 | Next E.O. D-536-3 | Next E.O. D-537
