Approval Details

Valid E.O.

Validity

This Executive Order approved the specified parts on on July 29, 2002.
As of Friday, October 11th, 2024 this Executive Order has not been overturned or superceeded.

Approved Parts

ModelsModification
1998 through 1999 Dodge Ram 2500 and 3500 trucks equipped with the Cummins 5.9L engine. Excluded from this Executive Order are vehicles equipped with 1999 model-year Cummins engine families, XCEXH0359BAI, XCEXH0359BAJ, and XCEXH0359BAK, which have been certified to the EURO III and Not to Exceed emission standards under the Settlement Agreement.The Power Edge EZ device consists of an electronic module which enhances fuel flow at medium and high load engine conditions, and a brass elbow which is designed to delay the wastegate opening during boost conditions. The electronic module is plugged into the CAN-BUS data port and the MAP sensor's wiring harness, which are both located in the vehicle's engine compartment. The Power Edge EZ comes with three user adjustment jumpers that vary the settings from slightly modified to very responsive.

This Executive Order may be listed as:
  • C.A.R.B.E.O. D-541
  • Executive Order 541 / D541
  • ARB # D-541
  • Executive Order No: D-541
  • C.A.R.B. No. D-541
  • Resolution D-541
For Free CARB Executive Order Status verification, email an image of the device Executive Order label as well as the Year/Make/Model and Test Group # of the vehicle to [email protected]

Download: Executive Order D-541 PDF

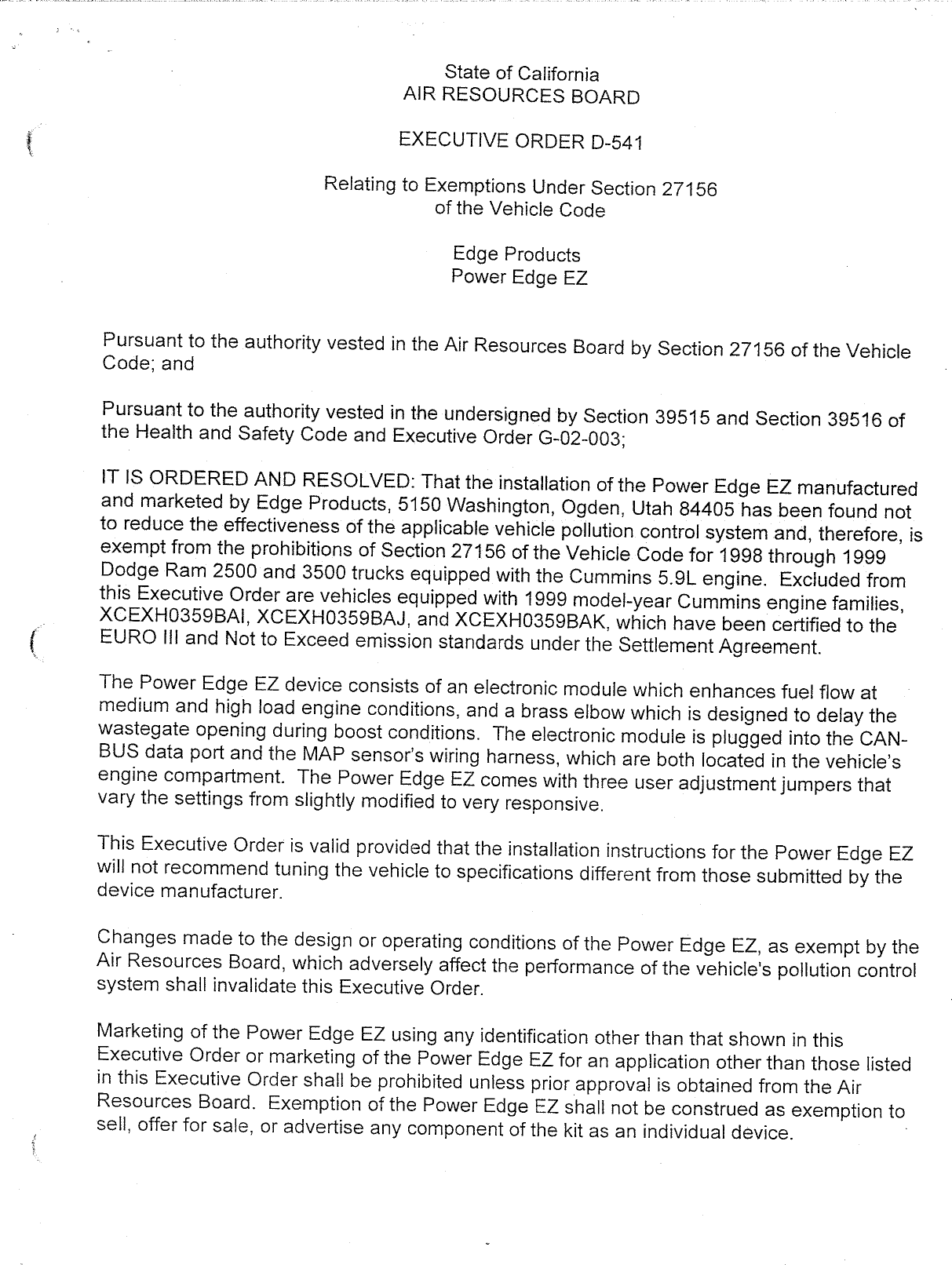

D-541 Document:


CARB_D-541

                                       State of California
                                   AIR RESOURCES BOARD

                                  EXECUTIVE ORDER D—541

                         Relating to Exemptions Under Section 27156
                                      of the Vehicle Code

                                         Edge Products
                                         Power Edge EZ


Pursuant to the authority vested in the Air Resources Board by Section 27156 of the Vehicle
Code; and

Pursuant to the authority vested in the undersigned by Section 39515 and Section 39516 of
the Health and Safety Code and Executive Order G—02—003;

T 16 ORDERED AND RESOLVED: That the installation of the Power Edge EZ manufactured
and marketed by Edge Products, 5150 Washington, Ogden, Utah 84405 has been found not
to reduce the effectiveness of the applicable vehicle pollution control system and, therefore, is
exempt from the prohibitions of Section 27156 of the Vehicle Code for 1998 through 1999
Dodge Ram 2500 and 3500 trucks equipped with the Cummins 5.9L engine. Excluded from
this Executive Order are vehicles equipped with 1999 model—year Cummins engine families,
XCEXHO359BAl, XCEXHO359BAJ, and XCEXHO359BAK, which have been certified to the
EURO III and Not to Exceed emission standards under the Settlement Agreement.

The Power Edge EZ device consists of an electronic module which enhances fuel flow at
medium and high load engine conditions, and a brass elbow which is designed to delay the
wastegate opening during boost conditions. The electronic module is plugged into the CAN—
BUS data port and the MAP sensor‘s wiring harness, which are both located in the vehicle‘s
engine compartment. The Power Edge EZ comes with three user adjustment jumpers that
vary the settings from slightly modified to very responsive.

This Executive Order is valid provided that the installation instructions for the Power Edge EZ
will not recommend tuning the vehicle to specifications different from those submitted by the
device manufacturer.

Changes made to the design or operating conditions of the Power Edge EZ, as exempt by the
Air Resources Board, which adversely affect the performance of the vehicle‘s pollution control
system shall invalidate this Executive Order.

Marketing of the Power Edge EZ using any identification other than that shown in this
Executive Order or marketing of the Power Edge EZ for an application other than those listed
in this Executive Order shall be prohibited unless prior approval is obtained from the Air
Resources Board. Exemption of the Power Edge EZ shall not be construed as exemption to
sell, offer for sale, or advertise any component of the kit as an individual device.


This Executive Order does not constitute any opinion as to the effect the use of the Power
Edge EZ may have on any warranty either expressed or implied by the vehicle manufacturer.

This Executive Order is granted based on submitted emissions test data using the Power
Edge EZ, Version 3, which showed that at the most responsive setting, the device did not
adversely affect tailpipe emissions during a Cold—Start 505 Federal Test Procedure. A 1999
model—year Dodge Ram 2500 was used as the test vehicle.

                  HC       CO     NOx         PM               Opacity
Stock             0.35     1.7     8.9       0.108              7.9%
Device            0.17     1.4     9.0       0.111             10.8%
Difference       —0.18    —0.3     0.1       0.003
% Change         —50%     —15%    1.3%        2.8%

This Executive Order is also based on an On—Board Diagnostic II (OBD I!) testing conducted.
on the same vehicle.. Test data showed that the Power Edge EZ when installed on the vehicle
did not affect the vehicle‘s ability to perform its OBD II monitoring.

The ARB finds that reasonable grounds exist to believe that use of the Power Edge EZ may
adversely affect emissions of motor vehicles when operating under conditions outside the
parameters of the Cold—Start 505 Federal Test Procedure. Accordingly, the ARB reserves the
right to conduct additional emission tests, in the future, as such tests are developed, that will
more adequately measure emissions from all cycle phases. If such test results demonstrate
that the Power Edge EZ adversely affect emissions during off—cycle conditions (defined as
those conditions which are beyond the parameters of the Cold Start 505 Federal Test
Procedure), this Executive Order shall be effectively rescinded as of the date the test results
are validated. Further, if such test results or other evidence provides the ARB with reason to
suspect that the Power Edge EZ will affect the durability of the emission control system, Edge
Products shall be required to submit durability data to show that the durability of the vehicle
emission control system is not, in fact, affected and/or that the add—on or modified part
demonstrates adequate durability.

In addition to the foregoing, the ARB reserves the right in the future to review this Executive
Order and the exemption provided herein to assure that the exempted add—on or modified part
continues to meet the standards and procedures of Title 13, California Code of Regulations,
Section 2222, et seq.

THIS EXECUTIVE ORDER DOES NOT CONSTITUTE A CERTIFICATION,
ACCREDITATION, APPROVAL, OR ANY OTHER TYPE OF ENDORSEMENT BY THE AIR
RESOURCES BOARD OF ANY CLAIMS OF THE APPLICANT CONCERNING
ANTI—POLLUTION BENEFITS OR ANY ALLEGED BENEFITS OF EDGE PRODUCTS
POWER EDGE EZ.



                          EDGE PRODUCTS—POWER EDGE EZ—D—541


No claim of any kind, such as "Approved by the Air Resources Board", may be made with
respect to the action taken herein in any advertising or other oral or written communication.

Violation of any of the above conditions shall be grounds for revocation of this order. The
order may be revoked only after a ten—day written notice of intention to revoke the order, in
which period the hoider of the order may request in writing a hearing to contest the proposed
revocation. If a hearing is requested, it shall be held within ten days of receipt of the request
and the order may not be revoked until a determination is made after the hearing that grounds
for revocation exist.

Executed at El Monte, California, this Zqfl" day of July 2002.




                                       Allef%ons, Chief
                                       Mobile Source Operations Division




                       EDGE PRODUCTS—POWER EDGE EZ—D—541


                                             EVALUATION SUMMARY

     Manufacturer Name: Edge Products

{ _     me of Device: Power Edge EZ

     Background:
           Edge Products, 5150 Washington, Ogden, Utah 84405, has applied for an exemption from the
     prohibitions in Section 27156 of the California Vehicle Code (VC) for the Power Edge EZ designed for
     1998 through 1999 Dodge Ram 2500 and 3500 trucks equipped with the Cummins 5.9L engine.
     Excluded from the application are vehicles equipped with 1999 model—year Cummins engine families,
     XCEXHO359BAl, XCEXHO359BAJ, and XCEXHO359BAK, which have been certified to the EURO IIt
     and Not to Exceed emission standards under the Settiement Agreement.

     Recommendation:
           Grant exemption to Edge Products as requested and issue Executive Order D—541.

     Device Description:

          The Power Edge EZ device consists of an electronic module which enhances fuel flow at
     medium and high load engine conditions, and a brass elbow which is designed to delay the wastegate
     opening during boost conditions. The electronic module is plugged into the CAN—BUS data port and
       the MAP sensor‘s wiring harness. The engine‘s MAP sensor values, engine RPMs, and fuel delivery
       information are monitored and modified by the Power Edge EZ‘s electronic module. The Power Edge
       EZ comes with three user adjustment jumpers that vary the settings from slightly modified to very
    { ponsive. The manufacturer claims that at the very responsive settings, the injector pulse is
    \__ _reased by 0.5 ms, advance fuel timing by 5 degrees, and boost is increased from 18—22 psi. to 24—
       28 psi.

      Discussion/Basis for the Recommendation:
       .     Edge Products submitted emissions test data using the Power Edge EZ, Version 3 (the most
      responsive setting) following a Cold—Start 505 Federal Test Procedure. A 1999 model—year Dodge
      Ram 2500 was used as the test vehicle.

                        HC       CO      NOx       PM             Opacity
      Stock             0.35     1.7 _    8.9     0.108            7.9%
      Device            0.17     1.4      9.0     0.111           10.8%
      Difference       —0.18    —0.3      0.1     0.003
      % Change         —50%     —15%       1.3%    2.8%

      The above test results showed that the exhaust emissions did not exceed the baseline emissions by
      more than the allowed limits of 10 percent or 0.1 grams per mile on hydrocarbon (HC) and oxides of
      nitrogen (NOx), 15 percent or 1.0 grams per mile carbon monoxide (CO), and 15 percent or 0.03
      grams per mile on Particulate Matter (PM) as specified in the "Procedures for Exemption of Add—On
      and Modified Parts." On—Board Diagnostic II (OBD I1) testing was conducted on the same vehicle.
      Test data showed that the Power Edge EZ when installed on the vehicle did not affect the vehicle‘s
      ability to perform its OBD II monitoring.

    ~ased on the submitted emissions and OBD 11 test data, the staff concludes that Edge Products‘
_     Power Edge EZ meets the requirements for a VC 27156 exemption.



Document Created: 2005-09-01 12:44:14
Document Modified: 2005-09-01 12:44:14
