Approval Details

Valid E.O.

Validity

This Executive Order approved the specified parts on on March 19, 2003.
As of Tuesday, October 15th, 2019 this Executive Order has not been overturned or superceeded.

Approved Parts

Part NumberModelsModification
4GD218-0501999-2003 Mini/mid-size truck/SUV 4.3L V6Kit includes supercharger, fuel injectors, powertrain control module, air intake assemble and the necessary brackets and ducting for installation. Crank pulley=7.5" S/C pulley=3.125"

This Executive Order may be listed as:
  • C.A.R.B.E.O. D-555-1
  • Executive Order 555-1 / D555-1
  • ARB # D-555-1
  • Executive Order No: D-555-1
  • C.A.R.B. No. D-555-1
  • Resolution D-555-1
For Free CARB Executive Order Status verification, email an image of the device Executive Order label as well as the Year/Make/Model and Test Group # of the vehicle to [email protected]

Download: Executive Order D-555-1 PDF

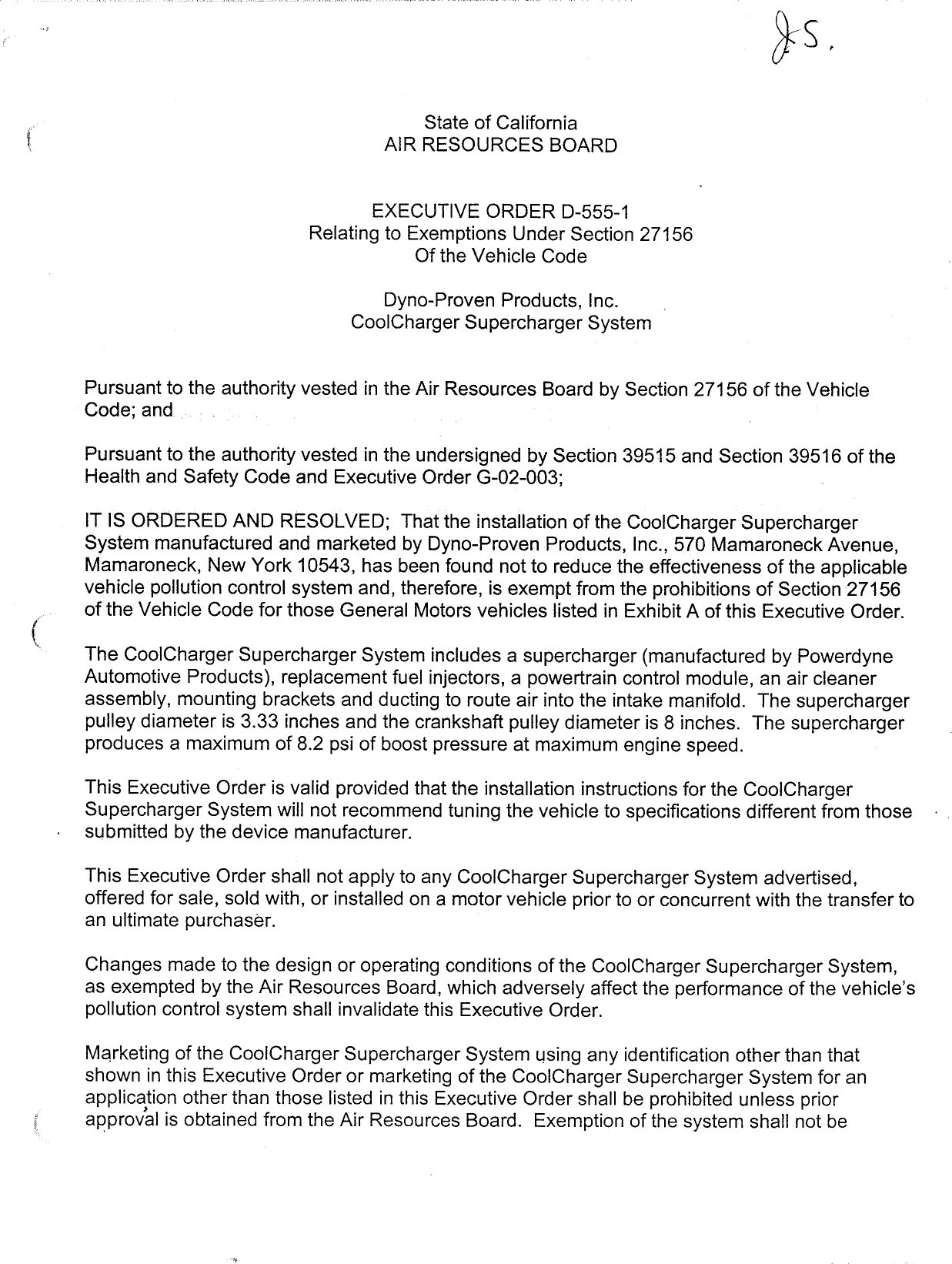

D-555-1 Document:



                                          State of California
                                     AIR RESOURCES BOARD


                                  EXECUTIVE ORDER D—555—1
                           Relating to Exemptions Under Section 27156
                                        Of the Vehicle Code

                                     Dyno—Proven Products, Inc.         .
                                 CoolCharger Supercharger System


Pursuant to the authority vested in the Air Resources Board by Section 27156 of the Vehicle
Code; and .

Pursuant to the authority vested in the undersigned by Section 39515 and Section 39516 of the
Health and Safety Code and Executive Order G—02—003;

IT IS ORDERED AND RESOLVED; That the installation of the CoolCharger Supercharger
System manufactured and marketed by Dyno—Proven Products, Inc., 570 Mamaroneck Avenue,
Mamaroneck, New York 10543, has been found not to reduce the effectiveness of the applicable
vehicle pollution control system and, therefore, is exempt from the prohibitions of Section 27156
of the Vehicle Code for those General Motors vehicles listed in Exhibit A of this Executive Order.

The CoolCharger Supercharger System includes a supercharger (manufactured by Powerdyne
Automotive Products), replacement fuel injectors, a powertrain control module, an air cleaner
assembly, mounting brackets and ducting to route air into the intake manifold. The supercharger
pulley diameter is 3.33 inches and the crankshaft pulley diameter is 8 inches. The supercharger
produces a maximum of 8.2 psi of boost pressure at maximum engine speed.

This Executive Order is valid provided that the installation instructions for the CoolCharger
Supercharger System will not recommend tuning the vehicle to specifications different from those
submitted by the device manufacturer.

This Executive Order shall not apply to any CoolCharger Supercharger System advertised,
offered for sale, sold with, or installed on a motor vehicle prior to or concurrent with the transfer to
an ultimate purchaser.

Changes made to the design or operating conditions of the CoolCharger Supercharger System,
as exempted by the Air Resources Board, which adversely affect the performance of the vehicle‘s
pollution control system shall invalidate this Executive Order.

Marketing of the CoolCharger Supercharger System using any identification other than that
shown in this Executive Order or marketing of the CoolCharger Supercharger System for an
application other than those listed in this Executive Order shall be prohibited unless prior
approval is obtained from the Air Resources Board. Exemption of the system shall not be


construed as exemption to sell, offer for sale, or advertise any component of the kit as an
individual device.

This Executive Order does not constitute any opinion as to the effect the use of the Dyno—Proven
Products, Inc. CoolCharger Supercharger System may have on any warranty either expressed or
implied by the vehicle manufacturer.

This Executive Order is granted based on emission test data generated on a 2002 Cadillac
Escalade light—duty truck certified to the Low—Emission Vehicle (LEV) emission standards.
Emission levels of the vehicle with the CoolCharger Supercharger System installed met the
applicable emission standards during the Cold Start CVS—75 Federal Test Procedure. Results
are in grams per mile with deterioration factors added to CVS—75 test results:


                                           _ FTP (grams/mile)
                                       NMOG*       CO.|    NOx‘ HCHO*
                            Standard    0.195      5.0     0.6     0.022
                              Test
                                        0.135      3.2     0.2     0.002
                             Results


Dyno—Proven Products, Inc. also demonstrated that the CoolCharger Supercharger System did
not affect the ability of the vehicle‘s OBDII system to monitor various emissions related functions.
Boost pressure measured during a wide—open—throttle acceleration conducted by the independent
emissions test laboratory was no greater than 8.2 psi.

If test results or other evidence provides the ARB with reason to suspect that the CoolCharger
Supercharger System will affect the durability of the emission control system, Dyno—Proven
Products, Inc. shall be required to submit durability data to show that the durability of the vehicle
emissions control system is not, in fact, affected and/or that the add—on or modified part
demonstrates adequate durability.

in addition to the foregoing, the ARB reserves the right in the future to review this Executive
Order and the exemption provided herein to assure that the exempted add—on or modified part
continues to meet the standards and procedures of Title 13, California Code of Regulations,
Section 2222, et seq.

THIS EXECUTIVE ORDER DOES NOT CONSTITUTE A CERTIFICATION, ACCREDITATION,
APPROVAL, OR ANY OTHER TYPE OF ENDORSEMENT BY THE AIR RESOURCES BOARD
OF ANY CLAIMS OF THE APPLICANT CONCERNING ANTI—POLLUTION BENEFITS OR ANY
ALLEGED BENEFITS OF DYNO—PROVEN PRODUCTS, INC»S COOLCHARGER
SUPERCHARGER SYSTEM.

No claim of any kind, such as "Approved by the Air Resources Board", may be made with respect
to the action taken herein in any advertising of other oral or written communication.



  DYNO—PROVEN PRODUCTS, INC.— COOLCHARGER SUPERCHARGER SYSTEM — D—555—1


Violation of any of the above conditions shall be grounds for revocation of this order. The order
may be revoked only after a ten—day written notice of intention to revoke the order, in which
period the holder of the order may request in writing a hearing to contest the proposed
revocation. If a hearing is requested, it shall be held within ten days of receipt of the request and
the order may not be revoked until a determination is made, after the hearing, that grounds for
revocation exist.


Executed at El Monte, California, this   [7”/ day of March 2003.




                                   Allen gons, Chief
                                   Mobile Source Operations Division




  DYNO—PROVEN PRODUCTS, INC.— COOLCHARGER SUPERCHARGER SYSTEM — D—555—1



Document Created: 2005-09-01 12:45:08
Document Modified: 2005-09-01 12:45:08
