Approval Details

Valid E.O.

Validity

This Executive Order approved the specified parts on on March 19, 2009.
As of Saturday, August 24th, 2019 this Executive Order has not been overturned or superceeded.

Approved Parts

Part NumberModelsModificationRemarks
Series 12700 & 121001996 to 2003 selected Isuzu/Honda LDT2NoneContact manufacturer or distributor for specific vehicle application

This Executive Order may be listed as:
  • C.A.R.B.E.O. D-562-27
  • Executive Order 562-27 / D562-27
  • ARB # D-562-27
  • Executive Order No: D-562-27
  • C.A.R.B. No. D-562-27
  • Resolution D-562-27
For Free CARB Executive Order Status verification, email an image of the device Executive Order label as well as the Year/Make/Model and Test Group # of the vehicle to [email protected]

Download: Executive Order D-562-27 PDF

D-562-27 Document:

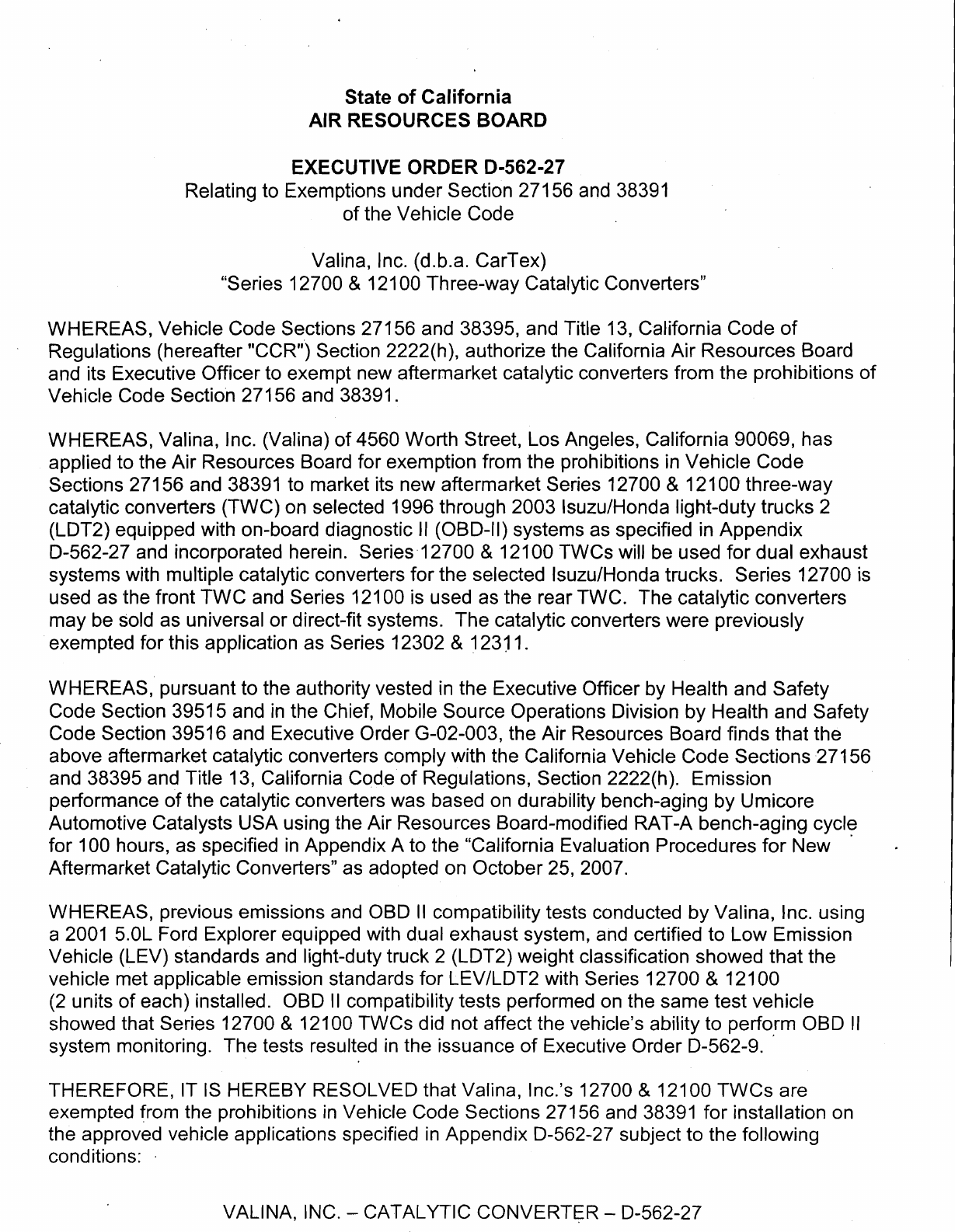

                                  State of California
                              AIR RESOURCES BOARD

                             EXECUTIVE ORDER 0-562-27
                Relating to Exemptions under Section 27156 and 38391
                                 of the Vehicle Code

                              Valina, Inc. (d.b.a. CarTex)
                    "Series 12700 & 12100 Three-way Catalytic Converters"

WHEREAS, Vehicle Code Sections 27156 and 38395, and Title 13, California Code of
Regulations (hereafter "CCR") Section 2222(h), authorize the California Air Resources Board
and its Executive Officer to exempt new aftermarket catalytic converters from the prohibitions of
Vehicle Code Section 27156 and 38391.

WHEREAS, Valina, Inc. (Valina) of 4560 Worth Street, Los Angeles, California 90069, has
applied to the Air Resources Board for exemption from the prohibitions in Vehicle Code
Sections 27156 and 38391 to market its new aftermarket Series 12700 & 12100 three-way
catalytic converters (TWC) on selected 1996 through 2003 lsuzulHonda light-duty trucks 2
(LDT2) equipped with on-board diagnostic II (OBD-II) systems as specified in Appendix
D-562-27 and incorporated herein. Series 12700 & 12100 TWCs will be used for dual exhaust
systems with multiple catalytic converters for the selected lsuzulHonda trucks. Series 12700 is
used as the front TWC and Series 12100 is used as the rear TWC. The catalytic converters
may be sold as universal or direct-fit systems. The catalytic converters were previously
exempted for this application as Series 12302 & 12311.

WHEREAS, pursuant to the authority vested in the Executive Officer by Health and Safety
Code Section 39515 and in the Chief, Mobile Source Operations Division by Health and Safety
Code Section 39516 and Executive Order G-02-003, the Air Resources Board finds that the
above aftermarket catalytic converters comply with the California Vehicle Code Sections 27156
and 38395 and Title 13, California Code of Regulations, Section 2222(h). Emission
performance of the catalytic converters was based on durability bench-aging by Umicore
Automotive Catalysts USA using the Air Resources Board-modified RAT-A bench-aging cycle
for 100 hours, as specified in Appendix A to the "California Evaluation Procedures for New
Aftermarket Catalytic Converters" as adopted on October 25, 2007.

WHEREAS, previous emissions and OBD II compatibility tests conducted by Valina, Inc. using
a 2001 5.OL Ford Explorer equipped with dual exhaust system, and certified to Low Emission
Vehicle (LEV) standards and light-duty truck 2 (LDT2) weight classification showed that the
vehicle met applicable emission standards for LEVlLDT2 with Series 12700 & 12100
(2 units of each) installed. OBD II compatibility tests performed on the same test vehicle
showed that Series 12700 & 12100 TWCs did not affect the vehicle's ability to perform OBD II
system monitoring. The tests resulted in the issuance of Executive Order D-562-9.

THEREFORE, IT IS HEREBY RESOLVED that Valina, I n c h 12700 & 12100 TWCs are
exempted from the prohibitions in Vehicle Code Sections 27156 and 38391 for installation on
the approved vehicle applications specified in Appendix D-562-27 subject to the following
conditions: .

                    VALINA, INC. - CATALYTIC CONVERTER - D-562-27


1. No changes are permitted to the catalytic converters as described in the application
   for exemption. Any changes to the catalytic converters or any of their components,
   and other factors addressed in this order must be evaluated and approved by the Air
   Resources Board prior to marketing in California.

2. Marketing of the catalytic converters using identifications other than those shown in
   the exemption application, and in this Executive Order, or marketing of the catalytic
   converters for application other than the ones shown in this Executive Order shall be
   prohibited unless prior approval is obtained from the Air Resources Board.
   Exemption of these products shall not be construed as an exemption to sell, offer for
   sale, or advertise any components of the catalytic converters as individual devices.

3. Any oral or written references to this Executive Order or its content by Valina, Inc.,
   its principals, agents, employees, distributors, dealers, or other representatives must
   include the disclaimer that the Executive Order or the exemption it provides is not an
   endorsement or approval of any emission reduction claims for the catalytic
   converters and is only a finding that the catalytic converters are exempt from the
   prohibitions of Vehicle Code Sections 27156 and 38391.

4. Valina, I n c h installation instructions for the new catalytic converters must conform
   to requirements in Section (h) of the "California Evaluation Procedures for New
   Aftermarket Catalytic Converters," as adopted October 25, 2007.

5. Installation of the catalytic converters shall not cause the relocation of an oxygen
   sensor. Oxygen sensors must be installed in the same location, position and
   orientation as prescribed in the original equipment manufacturer's configurations.

6. Upon installation, the catalytic converters must carry a manufacturer's warranty for
   five (5) years or 50,000 miles as prescribed in Section (f)(2) of the "California
   Evaluation Procedures for New Aftermarket Catalytic Converters," as adopted
   October 25, 2007.

7. Valina, Inc. and its vendors may not advertise the new aftermarket catalytic
   converters as "high flow or easy flow" catalylic converter or use any phrase that
   could make them appear to perform better than the original equipment manufacturer
   (OEM) catalytic converters.

8. Any marketing arrangement of the new aftermarket catalytic converters by a third
   party, which involves the use of packaging identification different from the ones
   described in this Executive Order, must be approved by the Air Resources Board
   prior to shipment.

9. Valina, Inc. its associates, vendors, other businesses, and individuals associated
   with Valina, Inc. may not sell or supply new aftermarket catalytic converter
   substrates to a third party to be assembled in a different facility and marketed under
   this Executive Order without approval from the Air Resources Board.


                VALINA, INC. - CATALYTIC CONVERTER - D-562-27


lO.Valina, lnc. shall comply with the quality control procedures and reporting
   requirements in Section (f)(5) of the "California Evaluation Procedures for New
   Aftermarket Catalytic Converters," as adopted October 25, 2007.

11.Quality control reports must be submitted on a quarterly basis and warranty
   information reports on a semi-annual basis, starting with periods covering January 1
   through March 31,2009 and January 1 through June 30,2009, respectively.

12.Valina, lnc. must provide a permanent label or stamp as specified under Section (f)(l)
   of the "California Evaluation Procedures for New Aftermarket Catalytic Converters,"
   as adopted on October 25, 2007.

1B.Valina, I n c h vehicle application catalog must conform with the requirements
   specified under Section (f)(4) of the "California Evaluation Procedures for New
   Aftermarket Catalytic Converters," as adopted on October 25, 2007.

Violation of any of the above conditions shall be grounds for revocation of this order.
The order may be revoked only after a 30-day written notice of intention to revoke it,
during which period the holder of the order may request in writing a hearing to contest
the proposed revocation. If a hearing is requested, it shall be held within 30 days of
receipt of the request, and the order may not be revoked until a determination is made,
after the hearing, that grounds for revocation exist.

Executed at El Monte, California, this   I?   day of March 2009.




                                   Annette Hebert, Chief
                                   Mobile Source Operations Division




                 VALINA, INC. - CATALYTIC CONVERTER - D-562-27


                                                                        Appendix # D-562-27

                                                     VALINA INC'S SERIES 12700 FOR ISUZU/HONDA LDT2 VEHICLES
      Model           Vehicle                       Engine      Engine      Certification   Weight   Exhaust     Total      Converter
No.                                                                                                                                     Monitored   UNIV.   Direct Fit
      Year             Model                         Size       Family         Level        Class     Type     Converters     Type
 1    1996         RODEO 2&4WD                       3 2L    TSZ3.22JGKGK      TLEV         LDT2        D          2         2TWC           2       12720      NIA
               HONDA PASSPORT 2&4WD
 2    1996          RODEO 2&4WD                      3 2L    TSZ3.22JGKEK      TIER1        LDT2       D           2         2TWC           2       12720      NIA
               HONDA PASSPORT 2&4WD
                  TROOPER 4WD LWB

                 ACURA SLX 4WD LWB
 3    1997        TROOPER 4WD LWB                    3.2L    VSZ3.22JGKEK      TIER1        LTD2       D           2         2WC            2       12720      NIA

                 ACURA SLX 4WD LWB
-
4                   RODEO 2&4WD                      3.2L    VSZ3.221GKGK      TLEV         LTD2       D           2         2TWC           2       12720      NIA

               HONDA PASSPORT 2 8 4 ~ ~

                   AMlGO 4WD SWB
 5    1998                                           3.5L    WSZXT03.52GK      TLEV         LTD2       D           2         2TWC           2       12720      NIA
                  RODEO 2&4WD LWB
                  -   -   -   -   -   - -   -   -



              HONDA PASSPORT 2&4WD LWB
                    TROOPER LWB

                   ACURA SLX LWB
 6    1999         TROOPER LWB                       3.5L    XSZXT03.52GK      TLEV         LTD2       D           2         2WC            2       12720      NIA
                   ACURA S U LWB
                   AMlGO 4WD SWB                     3.2L
                    RODEO 2&4WD

-              HONDA PASSPORT 2&4WD
                      AMlGO 2&4WD
 7                                                   3.2L    XSZXT03.221K       LEV         LTD2       D           2         27WC           2       12730      NIA

                  RODEO 2&4WD LWB

              HONDA PASSPORT 2&4WD LWB
 8    2000                                           3.2L    YSZXT03.52GK      TLEV         LTDZ       D           2         2TWC           2       12730      NIA
                  RODEO 2&4WD LWB
              HONDA PASSPORT 2&4WD LWB
                   AMlGO 4WD SWB




                                                                             Page 1 of 2


                                                                    Appendix # D-562-27

                                            VALINA INC'S SERIES 12700 FOR ISUZU/HONDA LDT2 VEHICLES
      Model           Vehicle              Engine        Engine       Certification   Weight   Exhaust     Total      Converter
No.                                                                                                                               Monitored   UNIV. Direct Fit
      Year             Model                Size         Family          Level        Class     Type     Converters     Type
                  RODEO 2&4WD LWB
9     2000                                   3.2L     YSZXT03.52JK        LEV         LTD2       D           2         2WC           2        12730    NIA

              HONDA PASSPORT 2&4WD LWB

                   AMlGO 4WD SWB
-
10               TROOPER 2&4WD LWB
                                         3.5L YSZXT03.52JK LEV  LTD2                             D           2         2WC           2        12730    NIA
-                                        -    -     -      -   -
                   AMlGO 2WD SWB
11                                           2.2L     YSZXT02.22HK       TLEV         LTD2       D           2         2TWC          2        12720    NIA
                  RODEO 2WD LWB
               TROOPER 2WD AUTOMATIC
12    2001                                   3.5L      SUCT03.5S1         LEV         LTD2       D           2         2TWC          2        12730    NIA
-
13                  RODEO 2&4WD              3.2L     1SZXT03.22KK        LEV         LTD2       D           2         2wC           2        12730    NIA
                 RODEO SPORT 284WD
              HONDA PASSPORT 2&4WD LWB
X                                    ~       3.5L     2SZXT03.521K          C
                                                                          LEV         LTD2       D           2         2TWC          2        12730    NIA
                    TROOPER 4WD
-
15                  AXIOM 2&4WD          3.5L 2SZXT03.52KK LEV LTD2                                          2                                12720    NIA
                                                                    D                                                  2TWC          2
-                                        -    -   -      - -   -   -                                         -


16                  RODEO 2&4WD              3.5L     2SZXT03.52KK        LEV         LTD2       D           2         2TWC          2        12730    NIA
              ~
-                RODEO SPORT 2&4WD
                    AXIOM 2&4WD
17                                           3.5L     2SZXT03.52MK        LEV         LTD2       D           2         2TWC          2        12730     NIA
-
18                  RODEO 2&4WD              3.5L     2SZXT03.52MK        LEV         LTD2       D           2         2TWC          2        12730     NIA
                HONDA PASSPORT 2&4WD
                 RODEO SPORT 2&4WD.
19    2003             AXIOM               3.2U3.5L   3SZXT03.52MK        LEV         LTD2       D           2         2TWC          2        12730     NIA
-
                       RODEO
20                                         3.2U3.5L 3SZXT03.52MK          LEV         LTD2       D           2         2TWC          2        12730     NIA
                                       -


                    RODEO SPORT




                                                                        Page 2 of 2



Document Created: 2009-03-26 13:30:51
Document Modified: 2009-03-26 13:30:51
