Approval Details

Valid E.O.

Validity

This Executive Order approved the specified parts on on June 24, 2005.
As of Wednesday, December 12th, 2018 this Executive Order has not been overturned or superceeded.

Approved Parts

Part NumberModels
75-1530-02002-2003 Dodge Ram 5.9L

This Executive Order may be listed as:
  • C.A.R.B.E.O. D-590
  • Executive Order 590 / D590
  • ARB # D-590
  • Executive Order No: D-590
  • C.A.R.B. No. D-590
  • Resolution D-590
For Free CARB Executive Order Status verification, email an image of the device Executive Order label as well as the Year/Make/Model and Test Group # of the vehicle to [email protected]

Download: Executive Order D-590 PDF

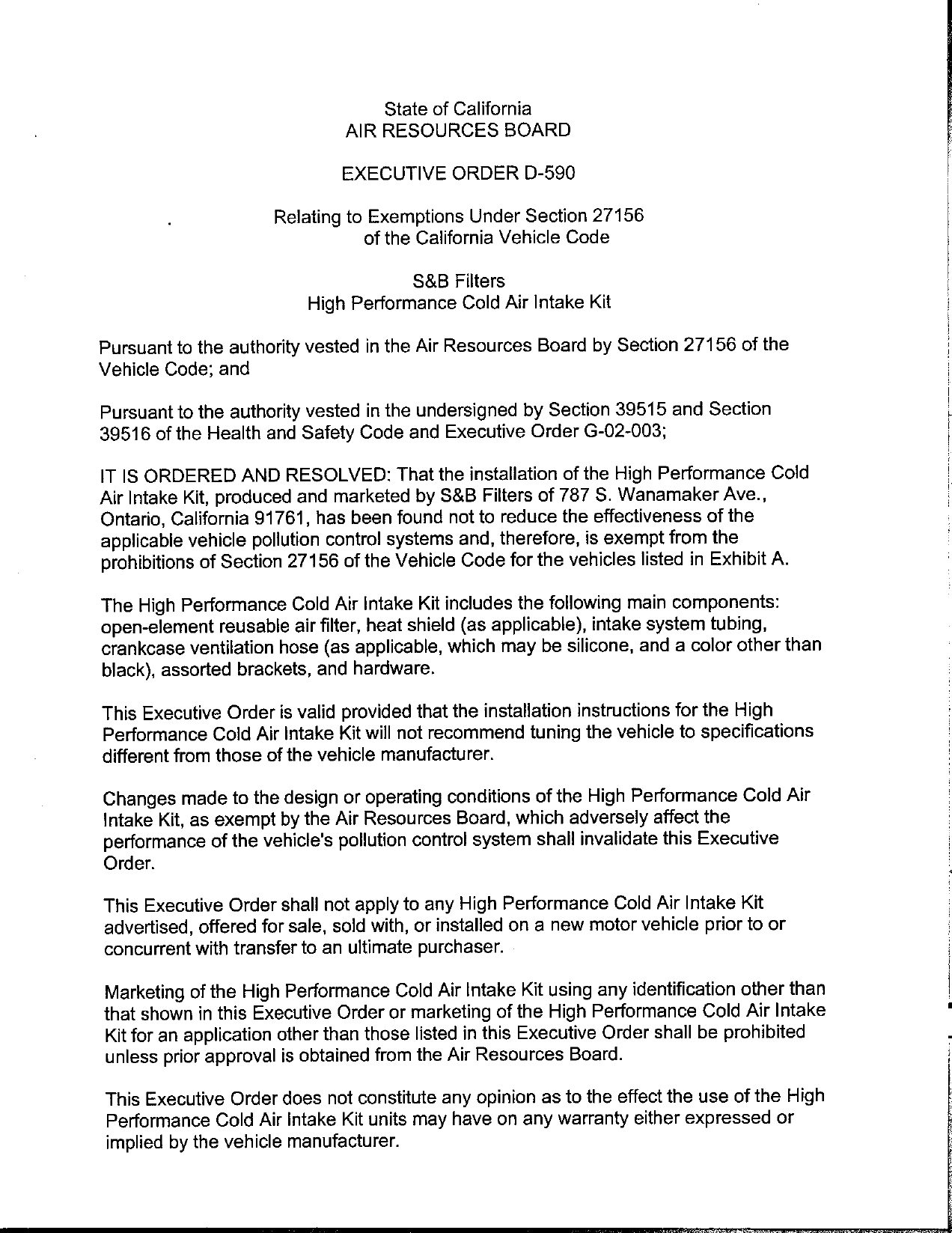

D-590 Document:



                                    State of California
                               AIR RESOURCES BOARD

                               EXECUTIVE ORDER D—590

                      Relating to Exemptions Under Section 27156
                                  of the California Vehicle Code

                                     S&B Filters
                          High Performance Cold Air Intake Kit

Pursuant to the authority vested in the Air Resources Board by Section 27156 of the
Vehicle Code; and

Pursuant to the authority vested in the undersigned by Section 39515 and Section
39516 of the Health and Safety Code and Executive Order G—02—003;

IT IS ORDERED AND RESOLVED: That the installation of the High Performance Cold
Air Intake Kit, produced and marketed by S&B Filters of 787 S. Wanamaker Ave.,
Ontario, California 91761, has been found not to reduce the effectiveness of the
applicable vehicle pollution control systems and, therefore, is exempt from the
prohibitions of Section 27156 of the Vehicle Code for the vehicles listed in Exhibit A.

The High Performance Cold Air Intake Kit includes the following main components:
open—element reusable air filter, heat shield (as applicable), intake system tubing,
crankcase ventilation hose (as applicable, which may be silicone, and a color other than
black), assorted brackets, and hardware.

This Executive Orderis valid provided that the installation instructions for the High
Performance Cold Air Intake Kit will not recommend tuning the vehicle to specifications
different from those of the vehicle manufacturer.

Changes made to the design or operating conditions of the High Performance Cold Air
Intake Kit, as exempt by the Air Resources Board, which adversely affect the
performance of the vehicle‘s pollution control system shall invalidate this Executive
Order.

This Executive Order shall not apply to any High Performance Cold Air Intake Kit
advertised, offered for sale, sold with, or installed on a new motor vehicle prior to or
concurrent with transfer to an ultimate purchaser.

Marketing of the High Performance Cold Air Intake Kit using any identification other than
that shown in this Executive Order or marketing of the High Performance Cold Air Intake
Kit for an application other than those listed in this Executive Order shall be prohibited
unless prior approval is obtained from the Air Resources Board.

This Executive Order does not constitute any opinion as to the effect the use of the High
Performance Cold Air intake Kit units may have on any warranty either expressed or
implied by the vehicle manufacturer.


This Executive Order is granted based on an examination of the On—Board Diagnostic II
(OBD—II) system in the modified configuration, and an engineering evaluation of the
emissions impact of the device if measured using the Cold—Start CVS—75 Federal Test
Procedure. Furthermore, this Executive Order is granted based on emission test results
in the modified configuration using the Supplemental Federal Test Procedure (SFTP
USO6). Test data and engineering evaluation showed that the High Performance Cold
Air Intake Kit will have no adverse impact on the vehicle‘s emissions or the OBD—II
system monitoring. A 2003 Chrysler PT Cruiser with a 2.4 liter engine
(3CRXVO2.4VD0, LEV PC) was used for the evaluation of the High Performance Cold
Air Intake Kit. Results from emissions testing conducted at Automotive Testing and
Development Services, are shown below (in grams per mile):

                                 NMHC + NOx         CO
                Emission Level     0.01             5.8
                      STD          0.14             8.0

The emission test results in the modified configuration were below the applicable
certification standards. Examination of the OBD II system showed the High
Performance Cold Air Intake Kit does not affect OBD II operation.

if evidence provides the ARB with reason to suspect that the High Performance Cold Air
Intake Kit will affect the durability of emission control systems, S&B Filters shall be
required to submit durability data to show that the durability of vehicle emission control
systems are not, in fact, affected and/or that the add—on or modified part demonstrates
adequate durability.

The ARB reserves the right in the future to review this Executive Order and the
exemption provided herein to assure that the exempted add—on or modified part
continues to meet the standards and procedures of Title 13, California Code of
Regulations, Section 2222, et seq.

THIS EXECUTIVE ORDER DOES NOT CONSTITUTE A CERTIFICATION,
ACCREDITATION, APPROVAL, OR ANY OTHER TYPE OF ENDORSEMENT BY THE
AIR RESOURCES BOARD OF ANY CLAIMS OF THE APPLICANT CONCERNING
ANTI—POLLUTION BENEFITS OR ANY ALLEGED BENEFITS OF S&B FILTERS‘ HIGH
PERFORMANCE COLD AIR INTAKE KIT.

No claim of any kind, such as "Approved by the Air Resources Board", may be made
with respect to the action taken herein in any advertising or other oral or written
communication.




             S&B FILTERS — HIGH PERFORMANCE COLD AIR INTAKE KIT — D—590


Violation of any of the above conditions shall be grounds for revocation of this order.
The order may be revoked only after a ten—day written notice of intention to revoke the
order, in which period the holder of the order may request in writing a hearing to contest
the proposed revocation. If a hearing is requested, it shall be held within ten days of
receipt of the request and the order may not be revoked until a determination is made
after the hearing that grounds for revocation exist.

Executed at El Monte, California, this   ,ZVfl“      day of June 2005.



                                     Faturez
                                  len Lyons, Chief
                              / Mobile Source Operations Division                            i




             S&B FILTERS — HIGH PERFORMANCE COLD AIR INTAKE KIT — D—590


                                               Exhibit A                                       D—590


   PIN         MFR                                     Vehicle
75—1530—0    Chrysler   2002—2003 Dodge Ram 5.9L
75—1511—1    Chrysier   1994—2001 Dodge Ram 5.2L and 1994—2002 5.9L
75—1515—1    Chrysler   2001—2003 Chrysler PT—Cruiser L4—2.4L Non Turbo
 75—1525     Chrysler   1994—2002 Dodge Cummins L6 5.9L.
                        1997—1999 Dodge Dakota V8—5.2L; 1998—1999 V8—5.9L.; 1998—1999
 75—1509     Chrysler   Dodge Durango V8—5.2L, 5.9L
 751518      Chrysler   1996—2001 Jeep Cherokee 4L 6CYL
75—1513—1    Chrysler   1999—2003 Jeep Grand Cherokee v8 4.7L
75—1§514—1   Chrysler   1997—2003 Jeep Wrangler L6—4.0L
 75—0500     Chrysler   2003 DODGE Ram Hemi 5.7L
 75—C501     Chrysler   2004 PT Cruiser Turbo GT
                        1997—2002 Ford F—Series V8—4.6L., 5.4L Except Super Duty; 1997—2002
                        Expedition V8—4.6L, 5.4L; 1998—1999 Lincoln Navigator V8—5.4L SOHC
75—2514—4     FORD      2V
 75—2503      FORD      1995 Ford P/UP w/o mass air sensor/Bronco 1995 5.0L
 75—2530      FORD      1999—2003 Ford Power Stroke Diesel 7.3L
75—2519—3     FORD      1996—2003 Ford Mustang GT (except Bullet); V8—4.6L SOHC
                        2001—2002 Ford Explorer, Ranger; *2001—2002 Explorer Sport Trac; V6—
75—2529—1     FORD      4.0L SOHC (*Models with production date from 7/24/00)
75—2524—2     FORD      1999—2003 Ford F—Series Super Duty; 2000—2003 Excursion V10—6.8L.
75—3013—2      GM       1996—1999 Chevrolet / GMC C/K Pickup VB—5.0L
75—3013—2      GM       1996—2000 Chevrolet / GMC C/K Pickup V8—5.7L
75—3013—2      GM       1996—2000 Chevrolet / GMC Suburban/Tahoe/Yukon V8—5.7L

                        1999—2003 Chevrolet /GMC/Cadillac — Silverado/Sierra V8—5.3L & V8—
                        6.0L {exc. 1500 models); 2001 Sitverado HD/ Sierra HD V8—6.0L
                        (1500HD Models only), 2000—2002 Tahoe/Yukon V8—4.8L., 5.3L; 2000—
                        2002 Suburban/Yukon XL V8—5.3L, 6.0L; 2001—2002 Yukon Denali
75—3023—1      GM       6.0L; 2002 Escalade V8—5.3L, 6.0L; 2002 Escalade Ext. V8—6.0L
 75—3033       GM       2002—2003 Chevrolet Avalanche V8 5.3L.




 75—3026       GM       1988—1995 Chevrolet C/K Pickup V8—5.7L
75—3031—1      GM       2001—2003 Chevrolet Silverado 2500 & 3500 HD V8 6.0L
                        1996—2003 Chevrolet/GMC $10 Pickup & Blazer; $15 Sonoma & Jimmy
75—3017—2      GM       S—15; V6—4.3L


 75—3011       GM       1994—1996 Chevrolet Impala, Caprice; V8—5.7L


 75—3035       GM       1997—2001 Chevy Corvette V8

75—3025—1      GM       1998—2003   Chevy S—10 2.2L L4
75—3030—1      GM       2001—2003   Chevy/GMC P/U HD V8—8.1L
 75—9006     TOYOTA     1988—1995   Toyota P/Up & 4Runner V6
75—9014—1    TOYOTA     2000—2002   Toyota Tundra V8 4.7L



                                              Page 1 of 1



Document Created: 2005-08-11 11:14:17
Document Modified: 2005-08-11 11:14:17
