Approval Details

Valid E.O.

Validity

This Executive Order approved the specified parts on on August 3, 2005.
As of Saturday, December 15th, 2018 this Executive Order has not been overturned or superceeded.

Approved Parts

ModelsModification
1999 through 2005 model year General Motors trucks equipped with V8 engines, 2004 and 2005 model year Pontiac GTO vehicles equipped with a V8 engine, and 1998 through 2002 model year Camaro/Firebird vehicles equipped with a V8 engineThe Turbocharger Kit includes the following main parts: Garrett turbocharger, model number T04E 60-1 (Trim P, 0.81 A/R turbine, 0.6 A/R compressor), piping from the throttle body to the turbocharger, piping after the muffler to the turbocharger, open element air filter, wastegate, and PCV switch valve. Control module is reprogrammed using a hand held programmer with no user adjustments. Installation requires the air filter to be located near the rear wheel fender. Passenger cars will have an open element filter and trucks may have either an open element filter or a closed element snorkel kit. Boost is limited to 6 pounds per square inch.

This Executive Order may be listed as:
  • C.A.R.B.E.O. D-593
  • Executive Order 593 / D593
  • ARB # D-593
  • Executive Order No: D-593
  • C.A.R.B. No. D-593
  • Resolution D-593
For Free CARB Executive Order Status verification, email an image of the device Executive Order label as well as the Year/Make/Model and Test Group # of the vehicle to [email protected]

Download: Executive Order D-593 PDF

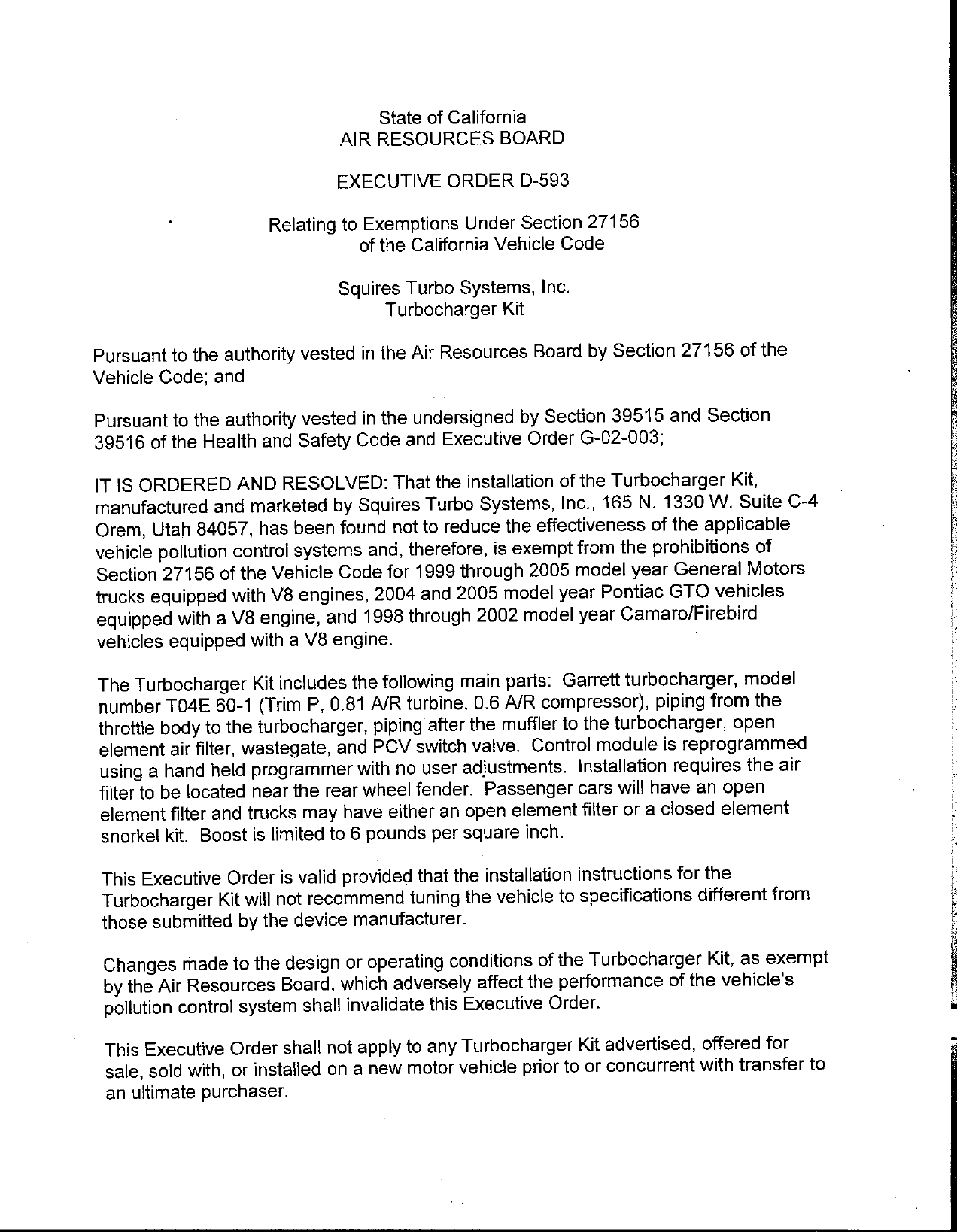

D-593 Document:



                                   State of California
                               AIR RESOURCES BOARD

                               EXECUTIVE ORDER D—593

                      Relating to Exemptions Under Section 27156
                                 of the California Vehicle Code

                               Squires Turbo Systems, Inc.
                                    Turbocharger Kit

Pursuant to the authority vested in the Air Resources Board by Section 27156 of the
Vehicle Code; and

Pursuant to the authority vested in the undersigned by Section 39515 and Section
39516 of the Health and Safety Code and Executive Order G—02—003;

IT IS ORDERED AND RESOLVED: That the installation of the Turbocharger Kit,
manufactured and marketed by Squires Turbo Systems, Inc., 165 N. 1330 W. Suite C—4
Orem, Utah 84057, has been found not to reduce the effectiveness of the applicable
vehicle pollution control systems and, therefore, is exempt from the prohibitions of
Section 27156 of the Vehicle Code for 1999 through 2005 model year General Motors
trucks equipped with V8 engines, 2004 and 2005 model year Pontiac GTO vehicles
equipped with a V8 engine, and 1998 through 2002 model year Camaro/Firebird
vehicles equipped with a V8 engine.

The Turbocharger Kit includes the following main parts: Garrett turbocharger, model
number TO4E 60—1 (Trim P, 0.81 A/R turbine, 0.6 A/R compressor), piping from the
throttle body to the turbocharger, piping after the muffler to the turbocharger, open
element air filter, wastegate, and PCV switch valve. Control module is reprogrammed
using a hand held programmer with no user adjustments. Installation requires the air
filter to be located near the rear wheel fender. Passenger cars will have an open
elementfilter and trucks may have either an open element filter or a closed element
snorke! kit. Boost is limited to 6 pounds per square inch.

This Executive Order is valid proVided that the installation instructions for the
Turbocharger Kit will not recommend tuning the vehicle to specifications different from
those submitted by the device manufacturer.

Changes made to the design or operating conditions of the Turbocharger Kit, as exempt
by the Air Resources Board, which adversely affect the performance of the vehicle‘s
pollution control system shall invalidate this Executive Order.

This Executive Order shall not apply to any Turbocharger Kit advertised, offered for
sale, sold with, or installed on a new motor vehicle prior to or concurrent with transfer to
an ultimate purchaser.


Marketing of the Turbocharger Kit using any identification other than that shown in this
Executive Order or marketing of the Turbocharger Kit for an application other than those
listed in this Executive Order shall be prohibited unless prior approval is obtained from
the Air Resources Board.

This Executive Order does not constitute any opinion as to the effect the use of the
Turbocharger Kit may have on any warranty either expressed or implied by the vehicle
manufacturer.

This Executive Order is granted based on emission test results in the modified
configuration using the Cold—Start CVS—75 Federal Test Procedure, Supplemental
Federal Test Procedure (SFTP USO6/SC03), and an examination of the On—Board
Diagnostic It (OBD 11) system. A 2004 Pontiac GTO with a 5.7 liter engine
(4GMXVO5.7083, ULEV, PC) was used for the evaluation of the Turbocharger Kit.
Results from emissions testing conducted at University of California Riverside are
shown below (in grams per mile with deterioration factors applied):

                         CVS—75                            USO6/SCO3
                  NMOG CO     NOx        HCHO           NMHC+NOx     CO
Standards 50k     0.100 3.4   0.14       0.015          0.14/0.20    8.0/2.7
With Device       0.039 0.9   0.05       0.001          0.05/0.09    0.30/0.4

The emission test results in the modified configuration were below the applicable
certification standards. Examination of the OBD II system showed the Turbocharger Kit
does not affect OBD II system operation.

The Air Resources Board reserves the right in the future to review this Executive Order
and the exemption provided herein to assure that the exempted add—on or modified part
continues to meet the standards and procedures of Title 13, California Code of
Regulations, Section 2222, et seq.

THIS EXECUTIVE ORDER DOES NOT CONSTITUTE A CERTIFICATION,
ACCREDITATION, APPROVAL, OR ANY OTHER TYPE OF ENDORSEMENT BY THE
AIR RESOURCES BOARD OF ANY CLAIMS OF THE APPLICANT CONCERNING
ANTI—POLLUTION BENEFITS OR ANY ALLEGED BENEFITS OF THE
TURBOCHARGER KIT.

No claim of any kind, such as "Approved by the Air Resources Board", may be made
with respect to the action taken herein in any advertising or other ora!l or written
communication.

Violation of any of the above conditions shall be grounds for revocation of this order.
The order may be revoked only after a ten—day written notice of intention to revoke the
order, in which period the holder of the order may request in writing a hearing to contest




                 SQUIRES TURBO SYSTEMS, INC. — TURBOCHARGER KIT — D—593


the proposed revocation. If a hearing is requested, it shall be held within ten days of
receipt of the request and the order may not be revoked until a determination is made
after the hearing that grounds for revocation exist.

Executed at El Monte, California, this    3 «t—     day of August 2005



                              D. Fpree
                           Man Lyons, Chief
                             Mobile Source Operations Division




                 SQUIRES TURBO SYSTEMS, INC. — TURBOCHARGER KIT — D—593



Document Created: 2005-11-18 09:41:34
Document Modified: 2005-11-18 09:41:34
