Approval Details

Valid E.O.

Validity

This Executive Order approved the specified parts on on January 24, 2014.
As of Wednesday, October 16th, 2019 this Executive Order has not been overturned or superceeded.

Approved Parts

Part Number
see pdf

This Executive Order may be listed as:
  • C.A.R.B.E.O. D-598-15
  • Executive Order 598-15 / D598-15
  • ARB # D-598-15
  • Executive Order No: D-598-15
  • C.A.R.B. No. D-598-15
  • Resolution D-598-15
For Free CARB Executive Order Status verification, email an image of the device Executive Order label as well as the Year/Make/Model and Test Group # of the vehicle to [email protected]

Download: Executive Order D-598-15 PDF

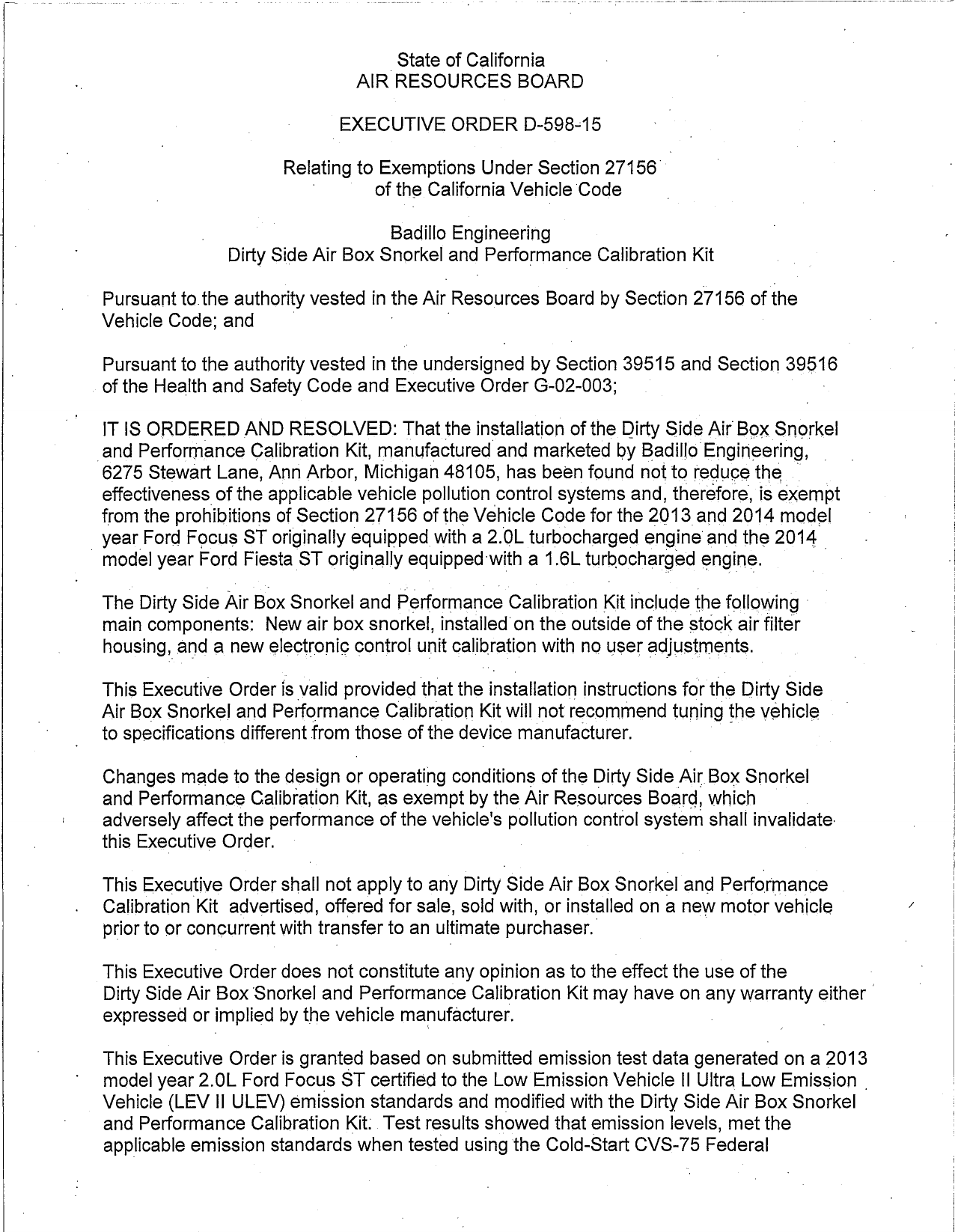

D-598-15 Document:



                                    _ State of California
                                 AIR RESOURCES BOARD

                              _EXECUTIVE ORDER D—598—15

                        Relating to Exemptions Under Section 27156 |
                                   of the California Vehicle Code

                                     Badillo Engineering
                 Dirty Side Air Box Snorkel and Performance Calibration Kit

 Pursuant to the authority vested in the A|r Resources Board by Section 27156 of the
 Vehicle Code; and       |

  Pursuant to the authority vested in the underS|gned by Sec’uon 39515 and Section 39516
. of the Health and Safety Code and Executive Order G—02—003;

 IT IS ORDERED AND RESOLVED: That the installation of the Dirty Side Air Box Snorkel
and Performance Calibration Kit, manufactured and marketed by Badillo Engineering, _
 6275 Stewart Lane, Ann Arbor, Michigan 48105, has been found not to reduce the          _
  effectiveness of the applicable vehicle pollution control systems and, therefore, is exempt
  from the prohibitions of Section 27156 of the Vehicle Code for the 2013 and 2014 model
  yearFord Focus ST originally equippedwith a 2.0L turbocharged engineand the 2014 .
_ model year Ford Fiesta ST originally equipped with a 1.6L turbocharged engine.

 The Dirty Side Alr Box Snorkel and Performance Calibration Kit include the following
 main components: New air box snorkel, installed on the outside of the stock air filter
 housing, and a new electronic control umt calibration with no user adjustments.

 This Executive Order is valid provided that the lnsfallatlon instructions for the Dirty Side
 Air Box Snorkel and Performance Calibration Kit will not recommend tuning the vehicle
 to specifications different from those of the device manufacturer.

 Changes made to the design oroperatlng conditions of the Dirty Side Air Box Snorkel
 and Performance Calibration Kit, as exempt by the Air Resources Board, which
 adversely affect the performance of the vehicle‘s pollution control system shall invalidate
 this Executive Order.

 This Executive Order shall not apply to any Dirty Slde Air Box Snorkel and Performance
 Calibration Kit advertised, offered for sale, sold with, or installed on a new motor vehicle   /
 prior to or concurrent with transfer to an ultimate purchaser.

 This Executive Order does not constitute any opinion as to the effect the use of the
 Dirty Side Air Box Snorkel and Performance Calibration Kit may have on any warranty either
 expressed or implied by the vehicle manufacturer.                          .

 This Executive Order is granted based on submitted emission test data generated on a 2013
 model year 2.0L Ford Focus ST certified to the Low Emission Vehicle II Uitra Low Emission .
 Vehicle (LEV II ULEV) emission standards and modified with the Dirty Side Air Box Snorkel
 and Performance Calibration Kit: Test results showed that emission levels, met the
 applicable emission standards when tested using the Cold—Start CVS—75 Federal


                                                 2.

Test Procedure (FTP) and the Supplemental Federal Test Procedure (SFTP USO6) test
cycles. Examination of the OBD II system showed the modification did not affect OBD II
system operation. Results from emission testing conducted at Ford‘s Emissions Laboratory
are listed below with deterioration factors applied.

   2013 model year Ford Focus ST              CVS—75 FTP
                                    NMOG        CO        NOx       HCHO
   Standards, 50k               _   0.040      1.7        0.05      0.008
   Device Test 1                    0.014      0.6    —   0.02      0.000
   Device Test 2                    0.021      0.8        0.01      0.000

                                               USO6
                                NMHC+NOx                  CO
   Standards 4k                   0.14                    8.0
   Device                         0.03                    0.6

The Air Resources Board reserves the right in the future to review this Executive Order and
the exemption provided herein to assure that the exempted add—on or modified part
continues to meet the standards and procedures of Title 13, California Code of Regulations,
Section 2222, et seq.

THIS EXECUTIVE ORDER DOES NOT CONSTITUTE A CERTIFICATION,
ACCREDITATION, APPROVAL, OR ANY OTHER TYPE OF ENDORSEMENT BY THE AIR
RESOURCES BOARD OF ANY CLAIMS OF THE APPLICANT CONCERNING          »
ANTI—POLLUTION BENEFITS OR ANY ALLEGED BENEFITS OF THE DIRTY SIDE AIR
BOX SNORKEL AND PERFORMANCE CALIBRATION KIT.

Marketing of the Dirty Side Air Box Snorkel and Performance Calibration Kit using any
identification other than that shown in this Executive Order or marketing of the Dirty Side Air
Box Snorkel and Performance Calibration Kit for an application other than those listed in this
Executive Order shall be prohibited unless prior approval is obtained from the Air Resources
Board.

No claim of any kind, such as "Approved by the Air Resources Board", may be made with
respect to the action taken herein in any advertising or other oral or written communication.

Violation of any of the above conditions shall be grounds for revocation of this order. The
order may be revoked only after a ten—day written notice of intention to revoke the order, in
which period the holder of the order may request in writing a hearing to contéest the proposed
revocation. If a hearing is requested, it shall be held within ten days of receipt of the request
and the order may not be revoked until a determination is made after the hearing that
grounds for revocation exist.


Executed at El Monte, California, this      AZS ‘day of January 2014.



                                         rik White, Chief
                                         obile Source Operations Division
 BADILLO—DIRTY SIDE AIR BOX SNORKEL AND PERFORMANCE CALIBRATION KIT—D—598—15



Document Created: 2014-01-28 14:28:01
Document Modified: 2014-01-28 14:28:01
