Approval Details

Valid E.O.

Validity

This Executive Order approved the specified parts on on May 20, 2016.
As of Monday, October 14th, 2019 this Executive Order has not been overturned or superceeded.

Approved Parts

Part Number
See PDF

This Executive Order may be listed as:
  • C.A.R.B.E.O. D-598-17
  • Executive Order 598-17 / D598-17
  • ARB # D-598-17
  • Executive Order No: D-598-17
  • C.A.R.B. No. D-598-17
  • Resolution D-598-17
For Free CARB Executive Order Status verification, email an image of the device Executive Order label as well as the Year/Make/Model and Test Group # of the vehicle to [email protected]

Download: Executive Order D-598-17 PDF

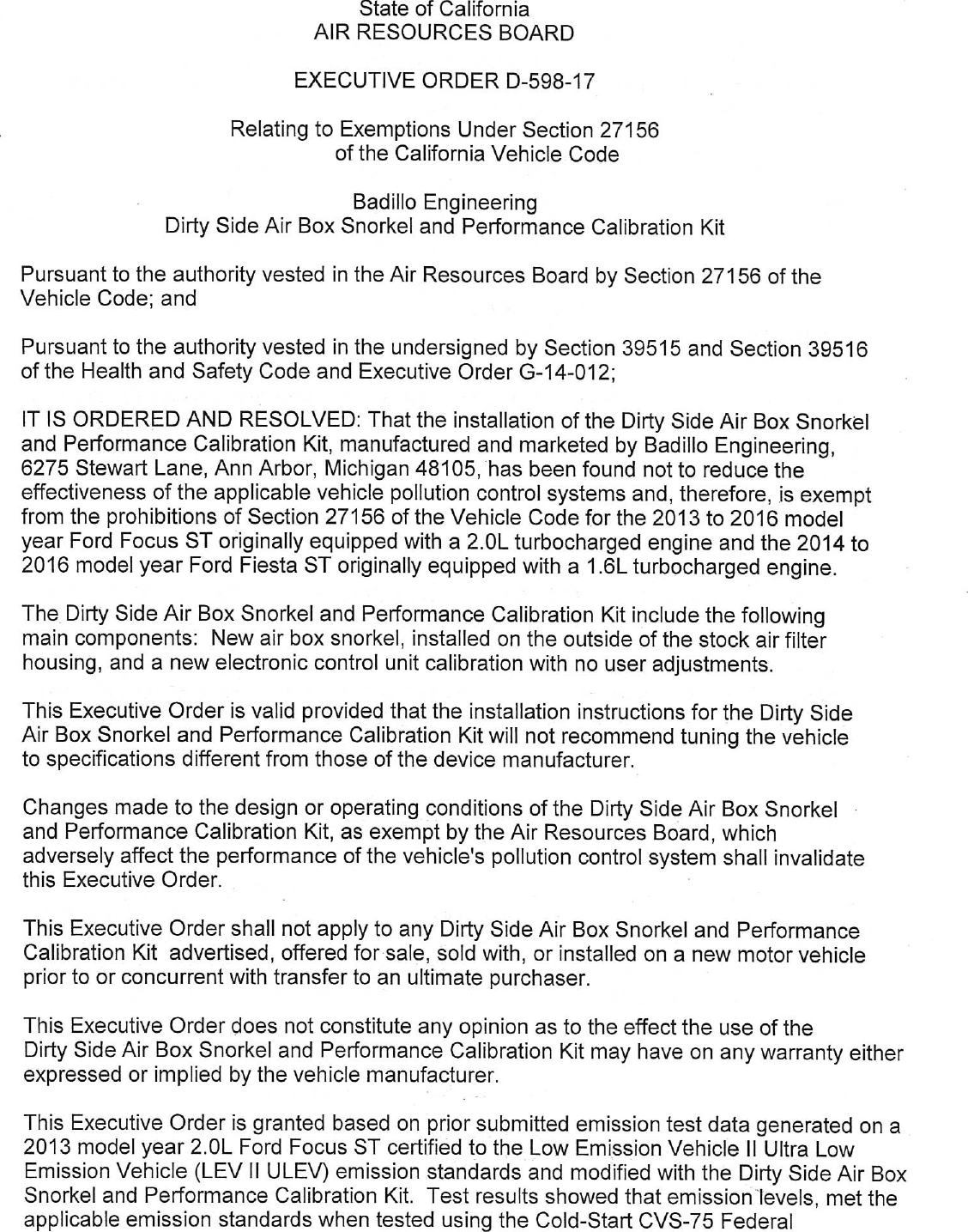

D-598-17 Document:



                                    State of California
                                AIR RESOURCES BOARD

                             EXECUTIVE ORDER D—598—17

                      Relating to Exemptions Under Section 27156
                                 of the California Vehicle Code

                                   Badillo Engineering
               Dirty Side Air Box Snorkel and Performance Calibration Kit

Pursuant to the authority vested in the Air Resources Board by Section 27156 of the
Vehicle Code; and

Pursuant to the authority vested in the undersigned by Section 39515 and Section 39516
of the Health and Safety Code and Executive Order G—14—012;

IT IS ORDERED AND RESOLVED: That the installation of the Dirty Side Air Box Snorkel
and Performance Calibration Kit, manufactured and marketed by Badillo Engineering,
6275 Stewart Lane, Ann Arbor, Michigan 48105, has been found not to reduce the
effectiveness of the applicable vehicle pollution control systems and, therefore, is exempt
from the prohibitions of Section 27156 of the Vehicle Code for the 2013 to 2016 model
year Ford Focus ST originally equipped with a 2.0L turbocharged engine and the 2014 to
2016 model year Ford Fiesta ST originally equipped with a 1.6L turbocharged engine.

The Dirty Side Air Box Snorkel and Performance Calibration Kit include the following
main components: New air box snorkel, installed on the outside of the stock air filter
housing, and a new electronic control unit calibration with no user adjustments.

This Executive Order is valid provided that the installation instructions for the Dirty Side
Air Box Snorkel and Performance Calibration Kit will not recommend tuning the vehicle
to specifications different from those of the device manufacturer.

Changes made to the design or operating conditions of the Dirty Side Air Box Snorkel
and Performance Calibration Kit, as exempt by the Air Resources Board, which
adversely affect the performance of the vehicle‘s pollution control system shall invalidate
this Executive Order.

This Executive Order shall not apply to any Dirty Side Air Box Snorkel and Performance
Calibration Kit advertised, offered for sale, sold with, or installed on a new motor vehicle
prior to or concurrent with transfer to an ultimate purchaser.

This Executive Order does not constitute any opinion as to the effect the use of the
Dirty Side Air Box Snorkel and Performance Calibration Kit may have on any warranty either
expressed or implied by the vehicle manufacturer.

This Executive Order is granted based on prior submitted emission test data generated on a
2013 model year 2.0L Ford Focus ST certified to the Low Emission Vehicle II Ultra Low
Emission Vehicle (LEV II ULEV) emission standards and modified with the Dirty Side Air Box
Snorkel and Performance Calibration Kit. Test results showed that emission levels, met the
applicable emission standards when tested using the Cold—Start CVS—75 Federal


                                               4.

Test Procedure (FTP) and the Supplemental Federal Test Procedure (SFTP USO6) test
cycles. Examination of the OBD II system showed the modification did not affect OBD II
system operation. Results from emission testing conducted at Ford‘s Emissions Laboratory
are listed below with deterioration factors applied.

   2013 model year Ford Focus ST           CVS—75 FTP
                                   NMOG       CO      NOx           HCHO
   Standards, 50k                  0.040      1.7     0.05          0.008
   Device Test 1                   0.014      0.6     0.02          0.000
   Device Test 2                   0.021      0.8     0.01          0.000

                                              USO6
                                NMHC+NOx              O
   Standards 4k                   0.14                8.0
   Device                         0.03                0.6

The Air Resources Board reserves the right in the future to review this Executive Order and
the exemption provided herein to assure that the exempted add—on or modified part
continues to meet the standards and procedures of Title 13, California Code of Regulations,
Section 2222, et seq.

THIS EXECUTIVE ORDER DOES NOT CONSTITUTE A CERTIFICATION,
ACCREDITATION, APPROVAL, OR ANY OTHER TYPE OF ENDORSEMENT BY THE AIR
RESOURCES BOARD OF ANY CLAIMS OF THE APPLICANT CONCERNING
ANTI—POLLUTION BENEFITS OR ANY ALLEGED BENEFITS OF THE DIRTY SIDE AIR
BOX SNORKEL AND PERFORMANCE CALIBRATION KIT.

Marketing of the Dirty Side Air Box Snorkel and Performance Calibration Kit using any
identification other than that shown in this Executive Order or marketing of the Dirty Side Air
Box Snorkel and Performance Calibration Kit for an application other than those listed in this
Executive Order shall be prohibited unless prior approval is obtained from the Air Resources
Board.

No claim of any kind, such as "Approved by the Air Resources Board", may be made with
respect to the action taken herein in any advertising or other oral or written communication.

Violation of any of the above conditions shall be grounds for revocation of this order. The
order may be revoked only after a ten—day written notice of intention to revoke the order, in
which period the holder of the order may request in writing a hearing to contest the proposed
revocation. If a hearing is requested, it shall be held within ten days of receipt of the request
and the order may not be revoked until a determination is made after the hearing that
grounds for revocation exist.


Executed at El Monte, California, this     ZO        day of May 2016.




                Annette Hebert, Chief
                 Emissions Compliance, Automotive Regulations and Science Division

 BADILLO—DIRTY SIDE AIR BOX SNORKEL AND PERFORMANCE CALIBRATION KIT—D—598—17



Document Created: 2016-08-01 16:33:06
Document Modified: 2016-08-01 16:33:06
