Approval Details

Valid E.O.

Validity

This Executive Order approved the specified parts on on April 14, 2012.
As of Thursday, December 13th, 2018 this Executive Order has not been overturned or superceeded.

Approved Parts

Part NumberModels
201-2471999-2006 GM full-size trucks and SUVs with mechanical cooling fan and low profile hood 4.8/5.3/6.0L

This Executive Order may be listed as:
  • C.A.R.B.E.O. D-609-7
  • Executive Order 609-7 / D609-7
  • ARB # D-609-7
  • Executive Order No: D-609-7
  • C.A.R.B. No. D-609-7
  • Resolution D-609-7
For Free CARB Executive Order Status verification, email an image of the device Executive Order label as well as the Year/Make/Model and Test Group # of the vehicle to [email protected]

Download: Executive Order D-609-7 PDF

D-609-7 Document:

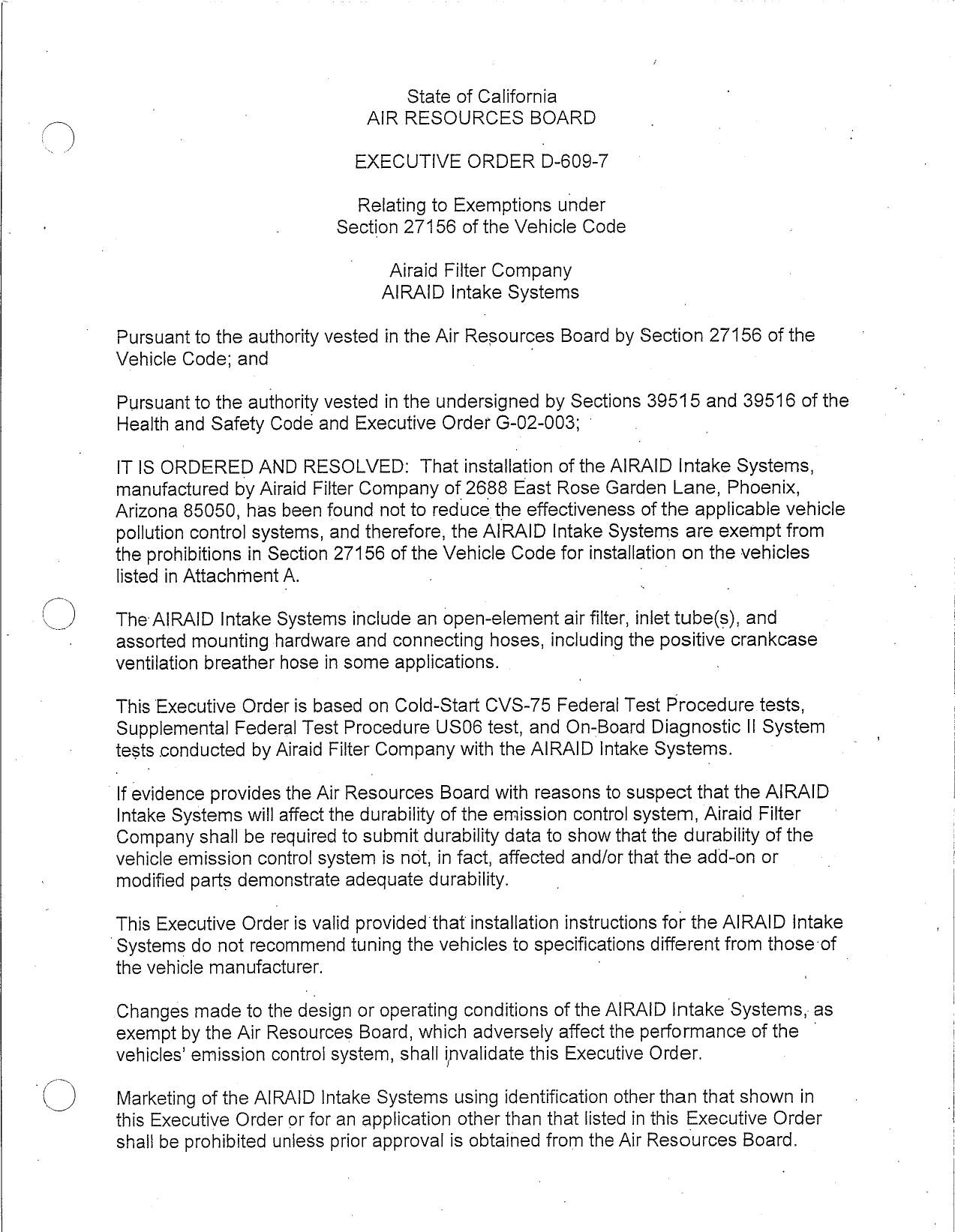

                                          State of California
                                     AlIR RESOURCES BOARD

                                   EXECUTIVE ORDER D—6098—7
                                   Relating to Exemptions under
                                 Section 27156 of the Vehicle Code

                                       Airaid Filter Company
                                      AIRAID Intake Systems

      Pursuant to the authority vested in the Air Resources Board by Section 27156 of the
      Vehicle Code; and                                  '

      Pursuant to the aufhority vested in the undersigned by Sections 39515 and 39516 of the
      Health and Safety Code and Executive Order G—02—003; —

      IT IS ORDERED AND RESOLVED: That installation of the AIRAID Intake Systems,
      manufactured by Airaid Filter Company of 2688 East Rose Garden Lane, Phoenix,
     Arizona 85050, has been found not to reducethe effectiveness of the applicable vehicle
     pollution control systems, and therefore, the AIRAID Intake Systems are exempt from
     the prohibitions in Section 27156 of the Vehicle Code for rnstaHat:on on the vehicles
     listed in Attachment A.
()   TheAIRAID Intake Systems include an open—element air filter, inlet tube(s), and
     assorted mounting hardware and connecting hoses, mcludmg the positive crankcase
     ventilation breather hose in some applications.

     This Executive Order is based on Cold—Start CVS—75 Federal Test Procedure tests,
     Supplemental Federal Test Procedure USO6 test, and On—Board Diagnostic I! System
     tests conducted by Airaid Filter Company with the AIRAID Intake Systems.

     ~If evidence provides the Air Resources Board with reasons to suspect that the AIRAID
      Intake Systems will affect the durability of the emission control system, Airaid Filter
      Company shall be required to submit durability data to show that the durability of the
      vehicle emission control system is not, in fact, affected and/or that the add—on or
      modified parts demonstrate adequate durability.

      This Executive Order is valid provided thatinstallation instructions for the AIRAID Intake
     Systems do not recommend tuning the vehicles to spemflcatlons different from those: of
     the vehicle manufacturer.

     Changes made to the désign or operating conditions of the AIRAID Intake Systems, as
     exempt by the Air Resources Board, which adversely affect the performance of the _
     vehicles‘ emission control system, shall i}nvalidate this Executive Order.

O    Marketing of the AIRAID Intake Systems using identification other than that shown in
     this Executive Order or for an application other than that listed in this Executive Order
     shall be prohibited unless prior approval is obtained from the Air Resources Board.


                                               2.

Exemption of the AIRAID Intake Systems shall not be construed as exemption to sell,
offer for sale, or advertise any component of the system as an individual device.

This Executive Order shall not apply to any AIRAID Intake Systems advertised, offered
for sale, sold with, or installed on a motor vehicle prior to or concurrent with transfer to
an ultimate purchaser.

This Executive Order does not constitute ahy opinion as to the effect the use of the
AIRAID Intake Systems may have on any warranty either expressed or implied by the
vehicle manufacturer.

No claim of any kind, such as "Approved by the Air Resources Board," may be made
with respect to the action taken herein in any advertising or other oral or written
communication.

In addition to the foregoing, the Air Resources Board reserves the right in the future to
review this Executive Order and the exemption provided herein to assure that the
exempted add—on or modified part continues to meet the standards and procedures of
California Code of Regulations, Title 13, Section 2222, et seq. .

THIS EXECUTIVE ORDER DOES NOT CONSTITUTE A CERTIFICATION,
ACCREDITATION, APPROVAL, OR ANY OTHER TYPE OF ENDORSEMENT BY THE
AIR RESOURCES BOARD OF ANY CLAIMS OF THE APPLICANT CONCERNING
ANTI—POLLUTION BENEFITS OR ANY ALLEGED BENEFITS OF AIRAID FILTER
COMPANY‘S AIRAID INTAKE SYSTEMS.

Violation of any of the above conditions shall be grounds for revocation of this Executive
Order. The Executive Order may be revoked only after a ten—day written notice of
intention to revoke the Executive Order, in which period the holder of the Executive
Order may request in writing a hearing to contest the proposed revocation. If a hearing
is requested, it shall be held within ten days of receipt of the request, and the Executive:
Order may not be revoked until a determination is made after the hearing that grounds
for revocation exist.

Executed at El Monte, California, this     __/ %é   day of April 2012.




                                      "Annette Hebert, Chief
                                         Mobile Source Operations Division




          AIRAID FILTER COMPANY — AIRAID INTAKE SYSTEMS — D—609—7


                                                      Attachment A
                                                                                                          (Page 1 of 9)


/\/                                             AIRAID INTAKE SYSTEMS

      Sy”;‘;fei"’w    Yen*         —Model Year                     Model                                  Engine
          ~—           201—102     1996—2000           GM full—size trucks and SUVs                     4.3/5.0/5.7L
          ——           201—103     1996—2000                  GM O/K trucks                                 7 AL
       200—104         201—104     1988—1995              GM trucks and SUVs                            4.3/5.0/5.7L
       200—108         201—108     1996—2005 °           Chevrolet S—10/Blazer                              4.3L
       200—108         201—108     1996—2005                   GMC Jimmy                                    4.3L
       200—108         201—108     1996—2004                  Chevrolet S—10                                4.3L
       200—108         201—108.    1996—2004                  GMC Sonoma                                    4.3L
       200—108         201—108     1997—2000                   Isuzu Hombre                                 4,.3L.
       200—108         201—108     1991—2001               ‘Oldsmobile Bravada                              4.3L
                                                     Chevrolet/GMC trucks and SUVs
           _           201—112     1999—2005               with low profile hood                    4.3/4.8/5.3/6.0/8.1L
                                         ;              GMC Sierra and GM SUVs
           ~—          201—112           2006              with low profile hood     _             4.3/4.,8/5.3/6.0/8.1L
                                     f                  GMC Sierra Classic trucks
           ——          201—112           2007              with low profile hood                   4.3/4.8/5.3/6.0/8.1L
                  |                                        GM trucks and SUVs
      200—112—1       201—112—1    1999—2005               with low profile hood                   4.3/4.8/5.3/5.0/8.1L
                               ;                        GMC Sierra and GM SUVs
      200—112—1       201—112—1          2006             with low profile hood                    4.3/4.8/5.3/6.0/8.1L
                                                        GMC Sierra Classic trucks
      200—1 121       201—112—1      , 2007                with low profile hood                   4.3/4.8/5.3/6.0/8.1L
       200—126        201—126      2002—2005               Chevrolet Trailblazer                           4.2L _
((     200126         201—126      2002—2005                   GMCG Envoy                                  4.2L
/      200—126        201—126      2002—2005               Oldsmobile Bravada                              4.21.
       200—126        201—126            2004                  Buick Rainier              .                4.2L
           ——         201—129      2001—2004                 Chevrolet trucks                 ho Hiamerdiestl éngirze
                                                                                               6.6L Duramax diesel (LB7);

                                       ;                          ;                              6.6L Duramax diesel (LB7);
           _~         201—129      2001—2004                   GMC trucks                     . does not fit 2004 LLY engirze
           ~—         201—133      1996—2005                  Chevrolet S—10                                4.3L
           ——         201—133      1996—2005                   GMC Jimmy                                    4.3L
           _          201—133      1996—2004                  Chevrolet S—10 _                              4. 3L
           _—         201—133      1996—2004                  GMC Sonoma                                    4.3L
           a~         201—133      1997—2000                  Isuzu Hombre                                ~ 4.3L
           ——         201—133      1991—2001               Oldsmobile Bravada                              4.3L
           _~         201—142      2004—2007               Chevrolet Colorado                        2.8/2.9/3.5/3.7L
           ——         201—142      2004—2007                  GMC Canyon                             2.8/2.9/3.5/3.7L
           —_~        201—142      2006—2007                   Isuzu 1—280                                 2.8L
           ——         201—142 _    2006—2007                   Isuzu 1—290                                 2.9L
           _          201—142      2006—2007                   Isuzu 1—350                                 3.5L
           ——         201—142      2006—2007                   Isuzu 1—370                                 3.7L
                            .                   '     GM full—size trucks and SUVs                                      >
           ——         201—145      1999—2006           with mechanical cooling fan                     4.8/5.3/6.0L.,
                                                           and low profile hood
                                                        GMC Sierra Classic trucks
           ~—         201—145         2007             with mechanical cooling fan                    4.8/5.3/6.0L,
                        .                                  and low profile hood                                    |
m      200—146        201—146      2003—2007                  HUMMER K2                                   6.0L
<J     200—146        201—146      2005—2007               HUMMEER H2 SUT                                 6.0L
 .        ——          201—154        2004 _                Chevrolet HD trucks                 6.6L Duramax diesel (LLY)
          ~~          201—154      2004—2005                 GMC HD trucks                     6.6L Duramax diesel (LLY)
           __         201167          2005          Chevrolet HD trucks with tall hood;           6.6L Duramax diesel
                                                         does not fit GMC trucks

                          AlIRAID FILTER COMPANY —— AIRAID INTAKE SYSTEMS — D—609—7 °


                                         Attachment A
                                                                                     (Page 2 of 9)

                                     AIRAID INTAKE SYSTEMS
SynthaFlow   SynthaMax                                   .                                h
  Filter       Filter    Model-Ygar                    Model                         Engine
                                       Chevrolet Sitverado HD trucks; does
    ——        201—168        2005               not fit GMC frucks                   6.0/8. 1L
                                            Chevrolet Silverado trucks;
    ~—        201—168        2006            does not fit GMC frucks          4.3/4.8/5.3/6.0/8.1L
                                        Chevrolet Silverado Classic trucks;
    ——        201—168        2007            does not fit GMC frucks          4,3/4.8/5.3/6.0/8 . 1L
                                               Chevrolet HD trucks;
    ——        201—1869   2005—2006           does not fit GMC trucks                   6.OL
                                         Chevrolet Sitverado Classic HD
    C         201—189       2007         trucks; does not fit GMC trucks               6.0L
    ——        201—180    2006—2007                HUMMER K3                          3.5/3.7L
    ——        201—183    2003—2007                HUMMER K2                            6.OL
    ~—        201—183    2005—2007              HUMMER H2 SUT                          6.OL
    ——        201—183    2008—2009            HUMMER H2/H2 SUT                         6.2L
                                              Chevrolet 1500 trucks
    ——        201—185        2005          with electric cooling fan and          4.8/5.3/6.OL
                                              low hood profile hood
                                               GMC Classic trucks
    ——        201—185    2005—2007           with electric cooling fan            4.8/5.3/6.OL
                                            and low hood profile hood
                                                GM full—size SUVs
    ~—        201—185    2005—2006         with electric cooling fan and          4.8/5.3/6.0L
                                               low hood profile hood
                                             Chevrolet full—size trucks
    ——        201—186        2006            with electric cooling fan            4.8/5.3/6.0L
                                               and high profile hood
                         f               Chevrolet Classic full—size trucks
    _—        201—186        2007          with electric cooling fan and          4.8/5.3/6.0L
                                                 high profile hood
                                          Chevrolet Sitverado HD trucks :     6.6L Duramax diesel
    —         201—187        2006             with high profile hood               (LLY/LB2)
                                         Chevrolet Silverado Classic HD       6.6L Duramax diesel
    =—        201—187        2007          trucks with high profile hood           (LLY/LBZ)
                                              GMC Sierra HD trucks            6.6L Duramax diesel
    ~~        201—169        2006              with low profile hood               (LLY/LB2)
                                         GMC Sierra Classic HD trucks         6.6L Duramax diesel
    ~—        201—189        2007              with low profile hood _             (LLY/LB2)
                                               Chevrolet HHR with
    a_=—     201—195     2006—2010         automatic transmission only        2.2/2 .4L non—turbo.
                                               Chevrolet Silverado
    ——       201—196     2007—2008           1500/2500/3500 trucks;           4.3/4.8/5.3/6.0/6 .2L.
                                            GMT—900 body style only
                                                   GMC Tahoe;
    =_—      201—196     2007—2008          GMT—900 body style only           4.3/4.8/5.3/6.0/6.2L
                                              Chevrolet Suburban;
    ——       201—196     2007—2008          GMT—900 body style only           4.3/4.8/5.3/6.0/6 .2L.
                                                GMC Avalanche;
    ——       201—196     2007—2008          GMT—900 body style only           4.3/4.8/5.3/6.0/6.2L.
                                       GMC Sierra 1500/2500/3500 trucks;
    ——       201—196     2007—2008          GMT—900 body style only           4.3/4.8/5.3/6.0/6.21L.
                                                  GMC Yukon;
    _        201—196     2007—2008          GMT—200 body style only           4.3/4.8/5.3/6.0/6.2L

    —        201—196     2007—2008               EME [A Ab
                                            GMT—900 body style only
                                                                              4.314.815.316.0/6.21
                AIRAID FILTER COMPANY — AIRAID INTAKE SYSTEMS — D—609—7


                                                                                        Attachment A
                                                                                                                                         (Page 3 of 9)


m                .                                                              AIRAID INTAKE SYSTEMS
        _       SynthaFlow      SynthaMax                |—                    aar                                                             .
                     Filter        Filter                     Model—Year                            Model                                 Engine

                            '                                                                GMC Yukon Denali;                                     .
                       ——        201—196                      2007—2008                    GMT—900 body style only              4.3/4.8/5.3/6.0/6.2L
                                                                                            GMC Yukon Denali XL;
                       ——        201—196                      2007—2008                    GMT—900 body style only              4.3/4.8/5.3/6.0/6.2L
                                                                                             Cadillac Escalade;
                       ——        201—196                      2007—2008                    GMT—900 body style only              4.3/4.8/5.3/6.0/6.2L.
                                                                                            Cadillac Escalade ESV;
                      ——         201—196                      2007—2008                    GMT—900 body style only              4.3/4.8/5.3/6.0/6.2L.
                                                                                            Cadillac Escalade EXT;
                      ——         201—196                 . 2007—2008                       GMT—200 body style only              4.314.8/5.3/6.0/6.2L
                                                                                            Chevrolet Silverado
                      ——         201—197                                2007         1500/2500/3500 trucks with electric          4.8/5.3/6.0/6.2L.
                                     t       _                                       cooling fan and GMT—900 body style
                                         —       '                                   GMC Tahoe with electric cooling fan
                      ——         201—197                            2007                   and GMT—900 body style _              4,8/5.3/6.0/6.2L
                                                                                       Chevrolet Suburban with electric
                      ——         201—197                            2007             cooling fan and GMT—900 body style           4.8/5.3/6.0/6.2L.
                                                     -                                   GMC Avalanche with electric
                      ——         201—197                            2007             cooling fan and GMT—900 body style           4.8/5.3/6.0/6.2L. .

                                                                                        GMC Sierra 1500 trucks with
                      ——         201—197                            2007              electric cooling fan and GMT—900            4.8/5.3/6.0/6.2L
                                                                                                   body style
00y                                                             san                  GMC Yukon with electric cooling fan
\__/                  ——         201—197                            2007                   and GMT—900 body style                 4.8/5.3/6.0/6.2L
                                                                                     GMC Yukon XL with electric cooling
                      ——         201—197                            2007                 fan and GMT—900 body style             . 4.8/5.3/6.0/6.2L
                                                                                       GMC Yukon Denalf with electric
                      ——         201—197 _                          2007             cooling fan and GMT—200 body style         — 4.8/5.376.0/6.2L
                                       .                                              GMC Yukon Denali XL with electric
                      ——         201—197                            2007             cooling fan and GMT—900 body style          4.8/5.3/6.0/6.2L.
                                                                                        Cadillac Escalade with electric
                      ——         201—197                       | 2007                cooling fan and GMT—900 body style          4,8/5.3/6.0/6.2L
                                                                                     Cadillac Escalade ESV with electric
                      ——         201—197                            2007             cooling fan and GMT—900 body style          4.8/5.3/6.0/6.2L
                                                                                      Cadillac Escalade EXT with electric
                      _          201—197                            2007             cooling fan and GMT—200 body style          4.8/5.3/6.0/6.2L.
                                                                                     GMC Sierra 1500/2500/3500 trucks             .
                      _«         201—197                       2007                    with electric cooling fan and             4.8/5.3/6.0/6.2L.
                                                                ©                            GMT—900 body style                      —
                      ——         201—206                 2007—2008                           Chevrolet Trailblazer    .                    5.3L.
                      ——         201—206                 2007—2008                         Chevrolet SS Trailblazer .                      8.O0L
                      _«         201—206                 2007—2008                               GMC Envoy                                 5.3L
                      ——        201—206—1                2005—2008                        _ Chevrolet Trailblazer                          5.3L
                      ——        201—206—1                2005—20098                        Chevrolet SS Trailblazer                        6.OL
                      ——        201—206—1                 2005—2009                              GMC Envoy                                 5.3L
                      ——         201—207                      1996—2000                 GM full—size trucks and SUVs               4.3/5.0/5.7L
                                                                                      Chevrolet/GMC HD trucks; GMT—                        .
    _                 ——         201—215                 2007—2010 .                            900 platform                6.6L Duramax diesel (LMM)
f           ‘                                a                      ;                  Chevrolet Silverado 2500/3500
(y)              200—225        7 201—225                2007—2008                       trucks; new body style only                       6.OL
    '                                                                                GMC, Sierra 2500/3500 trucks; new
                 200—225         201—225                 2007—2008                            body style only                              6.0L.

                      —~—        201—228                 2005—2006                          Chevrolet Trailblazer                        5.3/76.0L.
                      ~<         201—228                   2006                           Chevrolet SS Traifblazer                       5.3/6.0L
                                    AIRAID FILTER COMPANY —— AIRAID INTAKE SYSTEMS — D—609—7


                                           Attachment A
                                                                                           (Page 4 of 9)


                                     ‘AIRAID INTAKE SYSTEMS
SynthaFlow   SynthaMéx
  Filter       Filter    ‘Model—Year —                 Model                            _ Engine
    ——        201—228    2005—2006                  GMC Envoy                               5.376.0L.
 200—229      201—229    2004—2005             (doeenotit 2008Giic)             6.6L Duramax diesel (LLY)


 200288       201233     2009—2012          in electiccootingfan only             doesnotft20116.0L


 209_233      201—233    2009—2012       GMC Yukon wifl;sllfctric cooling fan      do:.ssr/jso.t?;f/i?.zt)é?.flé;‘m




 200—235     201—235     2009—2010 Che;}’{gfi;fi';’:{igg]%gofgfi%?yw‘th                         6.0L
 200—235     201—235     2009—2010 Che‘g‘;fi;‘fg’;rsg;‘”fiffig/r?ig?yw‘th                        6.0L
 200—235     201—235     20092010           piofyanmancoolingfen only                         6.0L
 200—235     2o123s      20092010          CMCcfiifi?clf%oifigggiognwth                          6.0L
200—240*     201240«     agos—2000       2 PMtsccoio                                    4.3/5.0/5.7L.
 200—244     201—244     20092012               ‘Chevrolet Silverado           ‘doesnorm201420r25.0L
 200—244     201—244     2009—2012                  GMC Tahoe                   doe:gfi‘gggfigg%é.oL
 200—244     201—244     2009—2012              Chevroiet Suburban             doeg-filo‘i'fit’%gfigg%&oL.
 200—244     201—244     2009—2012                GMC Avalanche                oe‘g"fififi{%é’fi%%&oL
 200—244     201—244     2009—2012                  GMC Sierra                 doeg'gé‘t'f?g-gfiggfz'-é oL
 200—244     201—244     2009—2012                  GMC Yukon                  doe‘;gg‘ifi{%gfigfi%& oL
 200—244     201—244     2009—2012                GMC Yukon XL                 doe;"gé‘}fi{%gfigg%éoL
 200—244     201—244     2009—2012              GMC Yukon Denali                  4.3/4,8/5.3/6.0/6.2L.;
                                                                               does not fit 2011—2012 6.0L

                AIRAID FILTER COMPANY — AIRAID INTAKE SYSTEMS — D—609—7


                                                                        Attachment A
                                                                                                                              (Page S.of 9)

                                                      . AIRAID INTAKE—SYSTEMS
     SynthaFlow       SynthaMax
        Filter          Filter     MédeI-Year .
                                                                                      Model                                   Engine
                                       .                                                     .                       4.3/4.8/5.3/6.0/6 .2L;
     | 200—244       _ 201—244     2009—2012                                 GMC Yukon Denali XL                  does not fit 201 1—2012 8.0L
                                                                                    .                                4.3/4.8/5.3/6.0/6.2L.;
      200—244          201—244     2009—2012                                   Cadilliac Escalade                 does not fit 201 1—2012 68.0L
                 .                                                               .                                    4.3/4.8/5.3/6.0/6.2L.;
      200—244          201—244     2009—2012                                 Cadillac Escalade ESV                does not fit 2011—2012 8.0L
                                                       .                         .                                   4.3/4.8/5.3/6.0/6.2L;
      200—244          201—244     2009—2012                                 Cad{llac Escalade EXT                does not fit 201 1—2012 6.0L.
                                                                       GM full—size trucks and SUVs with     |>
         ——            201—247     1999—2006°                           mechanical cooling fan and low                    4.8/5.3/6.OL
                                                                                 profile hood
                                                                        GMC Sierra Classic trucks with
         ——            201—247           2007                           mechanical cooling fan and low                    4.8/5.3/6.0L
                                                                                 profile hood
                                                                       Chevrolet HD trucks (does not fit
         _             201—248     2005—2006                                     GMC trucks)                                   6.0L
                                                                        Chevrolet Silverado Classic HD
         C             201—248           2007 >                         trucks (does not fit GMC trucks)                       6.0L
                                                                       Chevrolet 1500 trucks with electric                      —
         ~             201—250           2005                           cooling fan and low profile hood                  4.8/5.3/6.0L
                                                                        GMC Classic trucks with electric
         TT            201—250     ,2005'2007                           cooling fan and low profile hood                  4'8/5'3/6'0L

fC       —=—           201—250     2005—2006
                                                                         GM full—size SUVs with electric
                                                                        cooling fan and low profile hood
                                                                      Chevrolet full—size trucks with
                                                                                                                               :
                                                                                                                          4.8/5.3/6.0L

         ——            201—251           2006                      electric cooling fan and high profile                  4.8/5.3/6.0L
                                         .                                            hood
                           |                      —                    Chevrolet Classic full—size trucks                      o
         ~—            201—251           2007                          with electric cooling fan and high                 4.8/5.3/6.O0L
                                     |                                             profile hood
                                                           >                                                      6.6L Duramax diesel (LB7);
      200—266          201—266     2001—2004                              Chevrolet and GMC trucks                will notfit 2004 LLY engine
                                                                        Chevrolet Silverado 2500/3500                     |        To   C
                                                                                    trucks    .
      200—268          201—268     2007—2008                       ney body style and mechanical fan                           6.0L
                                                                   }               only
                                                                     GMC Sierra 2500/3500 trucks
      200—268          201—268     2007—2008                       new body style and mechanical fan                           6.0L
                                                                                 _ only
        ‘                                                            Chevrolet Silverado 1500 with                     4.8/5.3/6.0/6.2L; .
      200—270        ~ 201'270     2009—2012                            electric cooling fan only                 does not fit 2011—2012 6.0L
                                                                   GMC Tahoe with electric cooling fan                 4.8/5.31/6.0/6.2L.;
      200—270          201—270     2008—2012                                          only _            |         does not fit 2011—2012 6.0L
                                                                        Chevrolet Suburban 1500 with                   4.8/5.31/6.0/6.2L.;
      2_00"270         201—270     2009—2012                                electric cooling fan only             does notfit 2011—2012 6.0L
                                                               ‘               GMC Avalanche                           4.8/5.3/6.0/6.2L.;
      200—270         201—270      2009—2012                             with electric cooling fan only           does not fit 201 1—2012 6.0L.
                               _                                        GMC Sierra 1500 with electric                  4.8/5.3/6.0/6.2L.;
      200—270          201—270     2009—2012                                    cooling fan only                  does not fit 2011—2012 6.0L
      200“270‘ |       201—270     2009—2012                       GMC Yukon with electric cooling fan                 4.8/5.3/6.0/6.2L;
                                                                                only                              does not fit 2011—2012 6.0L


                         AlRAID FILTER COMPANY — AIRAID INTAKE SYSTEMS — D—609—7


                                           Attachment A
                                                                                          (Page 6 of 9)

                                      AIRAID INTAKE sYsTEMS
SynthaFlow |. SynthaMax                                 _                                      ;
   Fiter         Filter | Model—Year                        Model                          Engine
                                         GMC Yukon XL with electric cooling           4.8/5.3/6.0/6.2L.;
 200—270       201—270    2009—2012                    fan only                  does not fit 201 1—2012 6.0L
                                           GMC Yukon Denali with electric             4.8/5.3/6.0/6.2L.;
 200—270      201—270     2009—2012                cooling fan only              does not fit 201 1—2012 6.0L.
                                               GMC Yukon Denali XL                    4.8/5.3/6.0/6.2L.;
 200—270      201—270     2009—2012         with electric cooling fan only       does not fit 2011—2012 6.0L
                                                      .                               4.8/5.3/6.0/6.2L;
 200—270      201—270     2009—2012               Cadillac Escalade              does not fit 2041 1—2012 6.0L

                                                   .                 .                4.8/5.3/6.0/6.2L.;
 200—270      201—270     2009—2012            Cadillac Escalade ESV             does not fit 201 1—2012 8.0L.

                  .                                .      :                           4.8/5.3/6.0/6.2L;
 200—270      201—270     2009—2012            Cadillac Escalade EXT             does not fit 2011—2012 6.0L
                                         Chevrolet Silverado 2500/3500 with
 200—271      201—271     2009—2010            mechanical cooling fan                        6.OL
                                               GMC Sierra 2500/3500
 200—271      201—271     20098—2010        with mechanical cooling fan                     6.OL
 200—281      201—281     2011—2012                   GM trucks                     6.6L Duramax (LML)
                                                    —    —                          §.6L Duramax diesel
    «~—       201—287     2006—2007             Cheévrolet HD trucks                     (LLY/LB2Z)
                                                                                    6.6L Duramax diesel
    ——        201—289     2Q06-2007                GMC HD trucks                         (LLY/LB2)
    ~—         301—106    1994—2001               Dodge trucks                          3.9/5.2/5.9L
    —          301—107    1997—2003               Dodge Dakota                        2.5/3.9/5.2/5.9L
    ——         301—107    1997—2003              Dodge Durango                        2.5/3.9/5.2/5.9L
    =_—        301—117    2000—2003               Dodge Dakota                              4.7L
    _=         301—117    2000—2003              Dodge Durango                              4.7L
    ——         301—120    2001—2005            Chrysler PT Cruiser                    2.AL non—turbo.
    —         301—125—1   2002—2005      Dodge Ram trucks, new body style             3.7/4.7/5.7/5.9L.
    —         so1—12s     2003—2004      P°49g® ””Cksh‘g’gg‘%gpptional 4uiEt_|   5.91 Cummins diesel turbo.
    _          301—138    2003—2005              Chrysler PT Cruiser                 2 AL turbocharged
    ——         301—139    1994—2002                 Dodge trucks                 5.9L Cummins diesel turbo.
    ——         301—143    2004—2006                Dodge Durango                            4.7L
    ——         301—143    2004—2008                 Dodge trucks                            5.7L
    ~_—       ‘301—143    2007—2008                Chrysler Aspen                           5.7L
    —         so1147      2003—2004      Dodge Ramquiet
                                                     irucks without optional
                                                        hood pad
                                                                                    5g1
                                                                                     *
                                                                                        Gummins diesel
    ——        301—149     2002—2005            Dodge Ram trucks                           4.71L.
    _         301—150     2003—2005            Dodge Ram trucks                           5.7L
    _         301—151     2000—2004              Dodge Dakota                             4,.7L
    ——        301—151     2000—2003             Dodge Durango                             4.7L
                                          Dodge Ram trucks with optional                       .  &
    _—        301—155     2004—2007              quiet hood pad                    5.9L Cummins diesel!

    _—        301—156     2004—2008               Dodge Durango                             5.7L
    _         301—156     2007—2008              Chrysler Aspen                           5.7L
    ——        301—157     2004—2006             Dodge Durango                             4.7L
                                          Dodge Ram trucks with optional                     .   .
    ——        301—159     2004—2007              quiet hood pad                    5.9L Cummins diesel
    ——        301—165     2005—2010                 Dodge Dakota                          3.7/4.7L
    _~        301—165     2006—2009               Mitsubishi Raider                       3.7/4.7L
    ——        301—175     2005—2007                Dodge Dakota                             4.7L
                 AIRAID FILTER COMPANY — AIRAID INTAKE SYSTEMS — D—609—7


                                                   Attachment A
                                                                                              (Page 7 of 9)


                                              AIRAID INTAKE sYSTEMS
    SynthaFlow      SynthaMax
     "—Fiter          ‘Filter     Model—Year                   Model                           Engine
         ——           301—175     2006—2007              Mitsubishi Raider                  4.7L
         ——           301—190     2006—2008             Dodge Ram trucks                    5.7L
         ~—           301—191     2006—2007       Dodge Ram trucks with hood mat            4.7L
         ——          301—192      2006—2008             Dodge Ram trucks                3.7/4.7/5.7L
         ~—           301—198     2006—2010            Chryster PT Cruiser            2.4L non—turbo.
         ——          301—209      2007—2009        Dodge Ram 2500/3500 trucks            6.7L diesel
         ——          301—220      2003—2008      Dodge Ram 1500/2500/3500 trucks            5.7L _
         ——        301—221 MXP    2007—2008             Dodge Ram trucks                 6.7L diesel :
         ——          301—224      2002—2007          Dodge Ram 1500 trucks                  4.7L
      300—232        301—232      2002—2012          Dodge Ram 1500 trucks                  4.7L
    ~ 300—236        301—236      2009—2012      Dodge Ram 1500/2500/3500 trucks            5.7L
      300—236        301—236      20032008       Dodge Ram 1500/2500/3500 trucks        3.7/4.7/5.7L
      300—236        301—236 _    2009—2012          Dodge Ram 1500 trucks                  4.7L
      300—237        301—237      2009—2012      Dodge Ram 1500/2500/3500 trucks            5.7L
    300—254 MXP    301—254 MXP    2010—2012             Dodge Ram trucks                6.7L diesel
         ——        301—259 MXP    2003—2007             Dodge Ram trucks                5.9L diesel
        ——        | 301—269 MXP   1994—2002              Dodge Ram trucks                    5.9L diesel
        ——           311—110 .    1997—2004             Jeep Wrangler (TJ)                      4.0L
        ——           311—110   |, 1997—2002             Jeep Wrangler (TJ)                      2.6L
        ——           311+127      1999—2004           Jeep Grand Cherokee                     4.0/4.7L
        _            311—136      1991—2001               Jeep Cherokee                         4.0L
        ——           311—137—     2003—2006               Jeep Wrangler                         2. AL
                                                 Jeep Wrangler; does not fit models
        ~~           311—144      1991—1995        with optional anti—lock brakes               4.0L
        ——           311—148      1999—2004            Jeep Grand Cherokee                      4.7L
        ——           311—158      1997—2006               Jeep Wrangler                         4.0L
        ——           311—184 .    1997—2002             Jeep Wrangler (TJ)                      2.5L
        ——           311—176      1991—1995 .             Jeep Wrangler                         2.5L
        ~—           311—200 _|   2006—2010              Jeep Commander                         5.7L
        ~—           311—205      2005—2007            Jeep Grand Cherokee                      3.7L
      310—208        311—208      2007—2011            Jeep Wrangler (JK)                       3.81L.
      310—212        311—212      2011—2012              Dodge Durango                        3.6/5.7L
      310—212        311—212      2011—2012           Jeep Grand Cherokee                     3.6/5.7L
      310—132        311—132      2011—2012               Jeep Wrangler                         3.6L.
         ——          351—160      2005—2008            Dodge Magnum R/T                         5.7L
         ——          351—160      2005—2008               Chrysler 300C                         5.7L
         ——          351—160      2006—2008          _Dodge Charger R/T                        5.7L
                                                 Dodge Charger SRT—8/Super Bee                         .
        ——           351—193      2006—2010              with hood scoop                        6AL
                             ;                        Dodge Magnum SRT—8
        ——          . 351—193       2008                 with hood scoop                —_      6AL
        ——           351—199—     2006—2010               Dodge Charger                       5.7/6.1L
         ——          351—199.     2005—2008               Dodge Magnum                    5.7/6.1L
         ——          351—199      2005—2010                Chrysler 300                   5.7/6.1L
         ~—          351—199      2008—2010              Dodge Challenger                 5.7/6.1L
      350—210           ——        2011—2012                Chrysler 300                 3.6/5.7/6 .4L
      350—210           —— >      2011—2012              Dodge Challenger               3.6/5.7/6.A4L
C     350—210
         ——
                        ——
                     351—210
                                  2011—2012
                                  2011—2012
                                                          Dodge Charger
                                                           Chrysler 300
                                                                                        3.6/5.7/6.41.
                                                                                      « 3.6/5.7/6.4L
         ——        _ 351—210      2011—2012              Dodge Challenger               3.6/5.7/6.4L .
         ——          351—210      2011—2012               Dodge Charger                 3.6/5.7/6.4L.
         ~—          353—210      2011—2012                Chrysler 300                 3.6/5.7/6.AL

                        AIRAID FILTER COMPANY —— AIRAID INTAKE SYSTEMS — D—609—7


                                                   Attachment A
                                                                                            (Page 8 of 9)

                                              ‘AIRAID INTAKE SYSTEMS
SynthaFlow   SynthaMax
   Filter       Filter           Model—Year             ‘         Model                     Engine
    ——        353—210            2011—2012                Dodge Challenger                3.6/5.7/16.4L
    ——        353—210            2011—2012                 Dodge Charger                  3.6/5.7/6 .4L
    ——        401—109            1997—2003                Ford F—150 trucks                 4.6/5.AL
    ——        401—109              2004            Ford F—150 trucks, Heritage body         4.6/5.4L
    =—        401—109            1997—2004                 Ford Expedition                  4.6/5.4L
                                     ;           Ford Super—Duty trucks, 2004 model
    ~         401—114            1999—2004              built before July 2004               5AL
    ~—       401—115             1997—2003                Ford F—150 trucks                   4.2L
    ~—       401—118             1997—2003                Ford F—150 trucks                 4.6/5.4L
    ——       401—118               2004    _|     Ford F—150 trucks, Heritage body         4.6/5.4L
    ~—       401—118             1997—2004              __Ford Expedition                  4.6/5.4L
    ——       401—121             2001—2003                  Ford Ranger                       4.O0L
    —«       401—121             2001—2003            Ford Explorer Sport Trac                4.O0L
    ——       401—122             1999—2003        Ford trucks, built after 12/8/1998      7.3L. diesel
    —=—      401—124             2001—2003              Ford Lightning trucks _            4.6/5.AL
    ——       401—131—1           2003—2007                  Ford trucks                   6.0L diesel
                                                    Ford F—150 trucks, built after
    ——       401—140—2           2007—2008                      112007                        5.AL
    ——       401—140—2             2007            Lincoin LT, built after 1/1/2007          5.AL
                                                    Ford F—150 trucks, built after
    ——       401—141—1             2007                         11112007                    4.2/4.6L
                                                   Ford F—150 trucks; does not fit
    ——       401—162             2004—2006                    Heritage body                  4.6L
    _        401—166               2005.                     Ford Expedition                 5.AL
 400—194     401—194             2004—2011                     Ford Ranger                   4.O0L
    ——       401—203             2005—2007            Ford Super—Duty trucks                 6.8L
                                                   Ford F—250/F—350/F—450/F—550                 .
    _        401—214—1           2008—2010               Super—Duty trucks                6.4L diesel
    ——       401—217     _       2007—2008                  Ford F—150 trucks                4.6L
    ——       401—226         _     2008         Ford F—250/F—350 Super—Duty trucks          5.4/6.8L
 400—231     401—231             2009—2010                  Ford F—150 trucks                5AL
 400—231     401—231             2007—2012                   Ford Expedition                 5.AL
 400—231     401—231             2007—2012                  Lincoln Navigator                 5AL
 400—239     401—239             2011—2012                  Ford F—150 trucks               3.7/5.0L
 400—239     401—239             2011—2012                  Ford F—150 trucks                 3.5L
 400—246     401—246             1999—2003            Ford Super—Duty trucks              7.3L diesel
 400—249     401—249             1997—2004               Ford F—150 trucks                 4.6/5.4L.
 400—249     401—249             1997—2004                Ford Expedition                  4.6/5.AL.
 400—256     401—256             2008—2010            Ford F—250/F—350 trucks                5.AL
 400—257     401—257               2010                  Ford Raptor trucks                  5.AL
 400—258     401—258             1997—2004               Ford F—150 trucks                 4.6/5 .4L
 400—258     401—258             1997—2004                  Ford Expedition                4.6/5.4L .
 400—272     401—272             2010—2012                  Ford Raptor SVT                  6.2L
 400—272     401—272             2011—2012                  Ford F—150 trucks                6.2L
 400—299     401—299             2011—2012                  Ford F—150 trucks                5.0L.
                                                 Ford Mustang GT, 2005 model built
 450—172 |   451—172             2005—2006                   after 4/30/2005                 4.6L.
    ——       451—177             2005—20098                  Ford Mustang                    4.OL
    _        451—204             1999—2004                  Ford Mustang GT                  4.6L
    ——       451—211             2007—2008           Ford Mustang Shelby GT            5.41 supercharged




                AIRAID FILTER COMPANY — AIRAID INTAKE SYSTEMS — D—609-7


                                                           Attachment A
                                                                                                               (Page 9 of 9)

                                                       AIRAID INTAKE SYSTEMS

    Syn;l;}?;low         Syr;:tir?;flflax   Modelt—Year                   Model!                     .           Engine
                                                                                                         2.0L, excludes LEV II
                                                                                                        SULEV engine families:
                                                                                                          SFMXVO2.OVZP,
          ——              451—234          2008—2010        Ford Focus, non—PZEVs only                    gFMXVO2.OVZP,
                                                                                                           9FMXVO2.OVZX,
                                                                                                           AEFEMXVO2.O0VZX
        ——                 451—245            2010                  Ford Mustang                                 4.0L
     450—260—              451—260         2010—2012              Ford Taurus SHO                                3.5L
     450—260               451—260         2010—2012                   Ford Flex                                 3.5L
     450—260               451—260         2010—2012                 Lincoln MKS                                 3.5L
     450—260              ©451—260         2010—2012                 Lincoiln MKT                                3.5L _
     510—134               511—134         2001—2004               Toyota Tacoma                                 3.4L
     510—153               511—153         1999—2000               Toyota Tacoma                                 3.4L
        ——                 511—153         1995—2002              Toyota 4—Runner                                3.4L
          ——              511—163          2000—2002                Toyota Tundra                                4.7L
         m— _             511—163          2001—2004               Toyota Sequoia                               4.71.
     510—1794           ‘<511—179"         2005—2011              Toyota Tacoma"                                4.0L
     510—1794~           511—1794          2007—2009             Toyota FJ Cruiser®                             4,0L >
         _               511—201"          2007—2009             Toyota FJ Cruiser®                             4.0L.
         ——               521—152          2004—2011                 Nissan Titan                               5.6L
         h—               521—152          20042011                Nissan Armada                                5.6L
         —=~              521—152          2004—2010                 Infiniti QXS56                             5.6GL
C




         ——               521—188          2005—2011               Nissan Frontier                              4.0L
         ——               521—188          2005—2011              Nissan Pathfinder                             4.0L
         ——               521—188          2005—2011                Nissan Xterra                               4.0L
          ——       .      521—188          2009—2011               Suzuki Equator :                             4.0L
    . 520—284             521—284          2004—2011                 ‘Nissan Titan                              5.6L
      520—284             521—284—         2004—2011                Nissan Armada                               5.6GL
      520—284            ©521—284          2004—2010                  Infiniti QXS56                            5.6L
         ——               531—202          2006—2008               Honda Ridgeline                              3.5L.


      *        200—240 is a retrofit kit to be used only with 200—102. 201 —240 is a retroflt kit to be used only with
               201—102.

      A        This vehicle model comes equipped with a hydrocarbon adsorber in the orlgmal equipment
               manufacturer air induction system. The hydrocarbon adsorber is an emission control dewce and
               must be retained in the modlflcatlon




                              AIRAID FILTER COMPANY — AIRAID INTAKE SYSTEMS — D—609—7



Document Created: 2012-06-18 13:53:47
Document Modified: 2012-06-18 13:53:47

Previous E.O. D-609-6 | Previous E.O. D-608 | Next E.O. D-609-8 | Next E.O. D-610
