Approval Details

Valid E.O.

Validity

This Executive Order approved the specified parts on on December 20, 2006.
As of Monday, June 17th, 2019 this Executive Order has not been overturned or superceeded.

Approved Parts

Part NumberModelsModification
FFS-9497-CS-CA1994-1997 Mazda MX-5 Miata vehicles equipped with a 1.8L engineThe Fast Forward Supercharger Kit consists of the following main components: Magnuson MP62 supercharger with a 65 mm diameter pulley, 105 mm diameter crankshaft pulley, intake manifold with an additional fuel injector, BBK throttle body, open element style air filter, and Jackson Racing PowerCard Pro (no user adjustments). Maximum boost is 10 psi. Supplied fuel hose is manufactured and labeled to SAE J30R9 standards.

This Executive Order may be listed as:
  • C.A.R.B.E.O. D-617
  • Executive Order 617 / D617
  • ARB # D-617
  • Executive Order No: D-617
  • C.A.R.B. No. D-617
  • Resolution D-617
For Free CARB Executive Order Status verification, email an image of the device Executive Order label as well as the Year/Make/Model and Test Group # of the vehicle to [email protected]

Download: Executive Order D-617 PDF

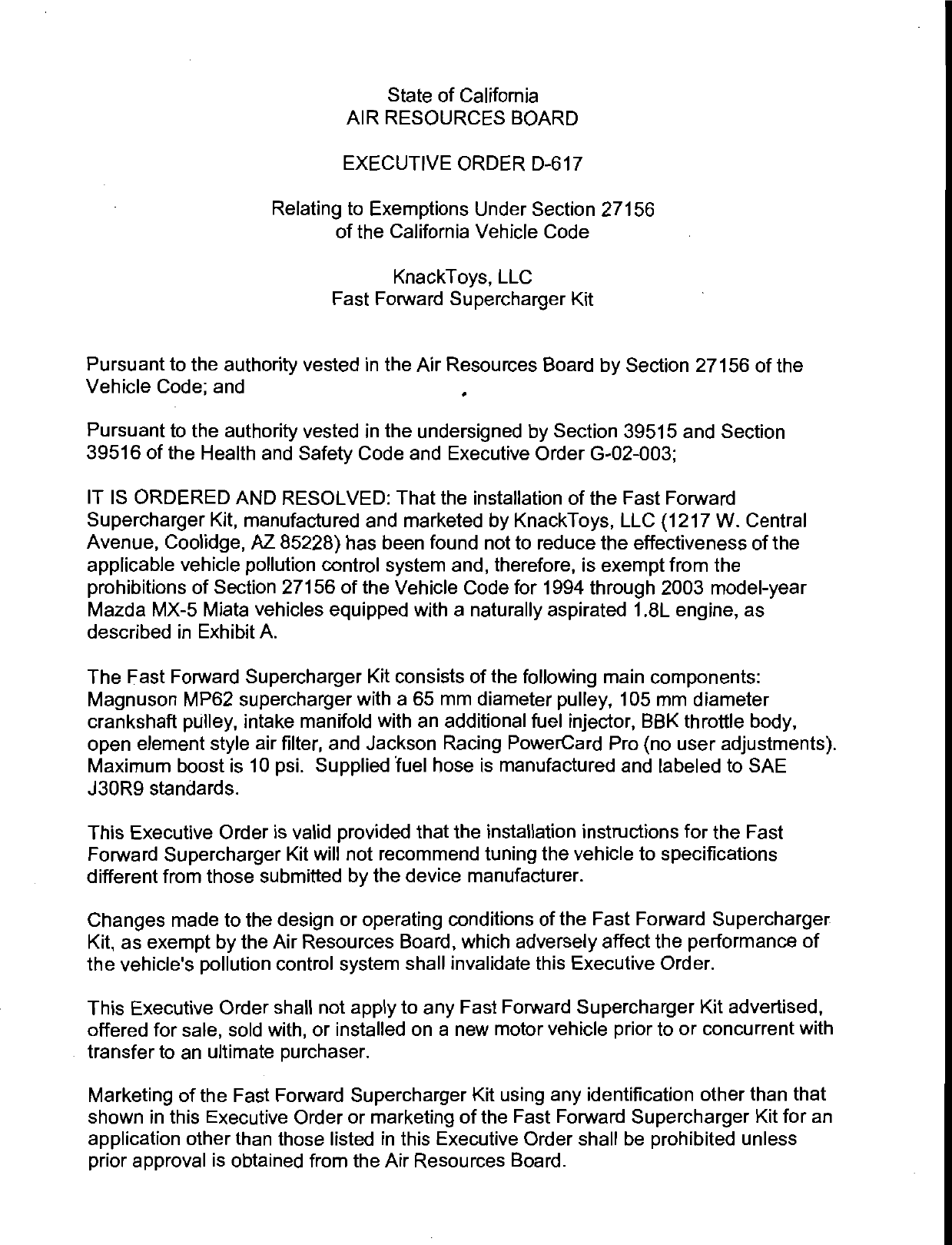

D-617 Document:



                                     State of California
                               AIR RESOURCES BOARD

                               EXECUTIVE ORDER D—617

                      Relating to Exemptions Under Section 27156
                              of the California Vehicle Code

                                     KnackToys, LLC
                              Fast Forward Supercharger Kit


Pursuant to the authority vested in the Air Resources Board by Section 27156 of the
Vehicle Code; and                            &

Pursuant to the authority vested in the undersigned by Section 39515 and Section
39516 of the Health and Safety Code and Executive Order G—02—003;

IT IS ORDERED AND RESOLVED: That the installation of the Fast Forward
Supercharger Kit, manufactured and marketed by KnackToys, LLC {1217 W. Central
Avenue, Coolidge, AZ 85228) has been found not to reduce the effectiveness of the
applicable vehicle pollution control system and, therefore, is exempt from the
prohibitions of Section 27156 of the Vehicle Code for 1994 through 2003 model—year
Mazda MX—5 Miata vehicles equipped with a naturally aspirated 1.8L engine, as
described in Exhibit A.

The Fast Forward Supercharger Kit consists of the following main components:
Magnuson MP62 supercharger with a 65 mm diameter pulley, 105 mm diameter
crankshaft pulley, intake manifold with an additional fuel injector, BBK throttle body,
open element style air filter, and Jackson Racing PowerCard Pro (no user adjustments).
Maximum boost is 10 psi. Supplied fuel hose is manufactured and labeled to SAE
J3ORQ standards.

This Executive Order is valid provided that the installation instructions for the Fast
Forward Supercharger Kit will not recommend tuning the vehicle to specifications
different from those submitted by the device manufacturer.

Changes made to the design or operating conditions of the Fast Forward Supercharger
Kit, as exempt by the Air Resources Board, which adversely affect the performance of
the vehicle‘s pollution control system shall invalidate this Executive Order.

This Executive Order shall not apply to any Fast Forward Supercharger Kit advertised,
offered for sale, sold with, or installed on a new motor vehicle prior to or concurrent with
transfer to an ultimate purchaser.

Marketing of the Fast Forward Supercharger Kit using any identification other than that
shown in this Executive Order or marketing of the Fast Forward Supercharger Kit for an
application other than those listed in this Executive Order shall be prohibited unless
prior approval is obtained from the Air Resources Board.


                                            —2 .L


This Executive Order does not constitute any opinion as to the effect the use of the Fast
Forward Supercharger Kit may have on any warranty either expressed or implied by the
vehicle manufacturer.

This Executive Order is granted based on submitted emissions test data generated on a
2005 model—year Mazda MX—5 Miata 1.8L (test group STKXVO1.8NA1), certified to the
Low Emission Vehicle (LEV) emission standards with the Fast Forward Supercharger
Kit (part number FFSO1—05—CS) installed. Testing consisted of a Cold—Start CVS—75
Federal Test Procedure (FTP) test cycle and an On—Board Diagnostic II (OBD !I) test.
Test data showed that the Fast Forward Supercharger Kit did not affect the vehicle‘s
ability to perform OBD II monitoring. CVS—75 FTP results are in grams per mile with
deterioration factors added to the results. Emission levels of the modified vehicle met
the applicable emission standards.

                        NMOG              cCO                NOx          HCHO
       Standard         0.075             3.4        :        0.2          0.015
       w/ Device |      0.063             1.3                0.06         0.0005

The Air Resources Board reserves the right in the future to review this Executive Order
and the exemption provided herein to assure that the exempted add—on or modified part
continues to meet the standards and procedures of Title 13, California Code of
Regulations, Section 2222, et seq.

THIS EXECUTIVE ORDER DOES NOT CONSTITUTE A CERTIFICATION,
ACCREDITATION, APPROVAL, OR ANY OTHER TYPE OF ENDORSEMENT BY THE
AIR RESOURCES BOARD OF ANY CLAIMS OF THE APPLICANT CONCERNING
ANTI—POLLUTION BENEFITS OR ANY ALLEGED BENEFITS OF THE FAST
FORWARD SUPERCHARGER KIT.

No claim of any kind, such as "Approved by the Air Resources Board", may be made
with respect to the action taken herein in any advertising or other oral or written
communication.

Violation of any of the above conditions shall be grounds for revocation of this order.
The order may be revoked only after a ten—day written notice of intention to revoke the
order, in which period the holder of the order may request in writing a hearing to contest
the proposed revocation. If a hearing is requested, it shall be held within ten days of
receipt of the request and the order may not be revoked until a determination is made
after the hearing that grounds for revocation exist.

Executed at El Monte, California, this    2&-            day of December 2006




                                  2¥‘
                                 Annette Hebert, Chief
                                 Mobile Source Operations Division


        KNACKTOYS, LLC — FAST FORWARD SUPERCHARGER KIT — D—617


                             Exhibit A



 Part Number       Year          Make      Model      Engine
FFS—9497—CS—CA   1994—1997       Mazda   MX—5 Miata    1.8L
FFS—9900—CS—CA   1999—2000       Mazda   MX—5 Miata    1.8L
FFS—0103—CS—CA   2001—2003       Mazda   MX—5 Miata    1.8L



Document Created: 2006-12-21 14:47:17
Document Modified: 2006-12-21 14:47:17
