Approval Details

Valid E.O.

Validity

This Executive Order approved the specified parts on on December 1, 2009.
As of Monday, December 10th, 2018 this Executive Order has not been overturned or superceeded.

Approved Parts

Part NumberModelsModification
FFS-9093-CS-CA1990-1993 Mazda MX-5 Miata vehicles equipped with a 1.8L engineThe Fast Forward Supercharger Kit includes the following main components: Magnuson MP62 supercharger with a 65 mm diameter pulley, 105 mm diameter crankshaft pulley, intake manifold with an additional fuel injector, Power Inc. throttle body, open element style air filter, and Jackson Racing PowerCard Pro (no user adjustments). Maximum boost is 10 psi. Supplied fuel hose is manufactured and labeled to SAE J30R9 standards. All other emission related components are in the stock location relative to the throttle body.

This Executive Order may be listed as:
  • C.A.R.B.E.O. D-617-1
  • Executive Order 617-1 / D617-1
  • ARB # D-617-1
  • Executive Order No: D-617-1
  • C.A.R.B. No. D-617-1
  • Resolution D-617-1
For Free CARB Executive Order Status verification, email an image of the device Executive Order label as well as the Year/Make/Model and Test Group # of the vehicle to [email protected]

Download: Executive Order D-617-1 PDF

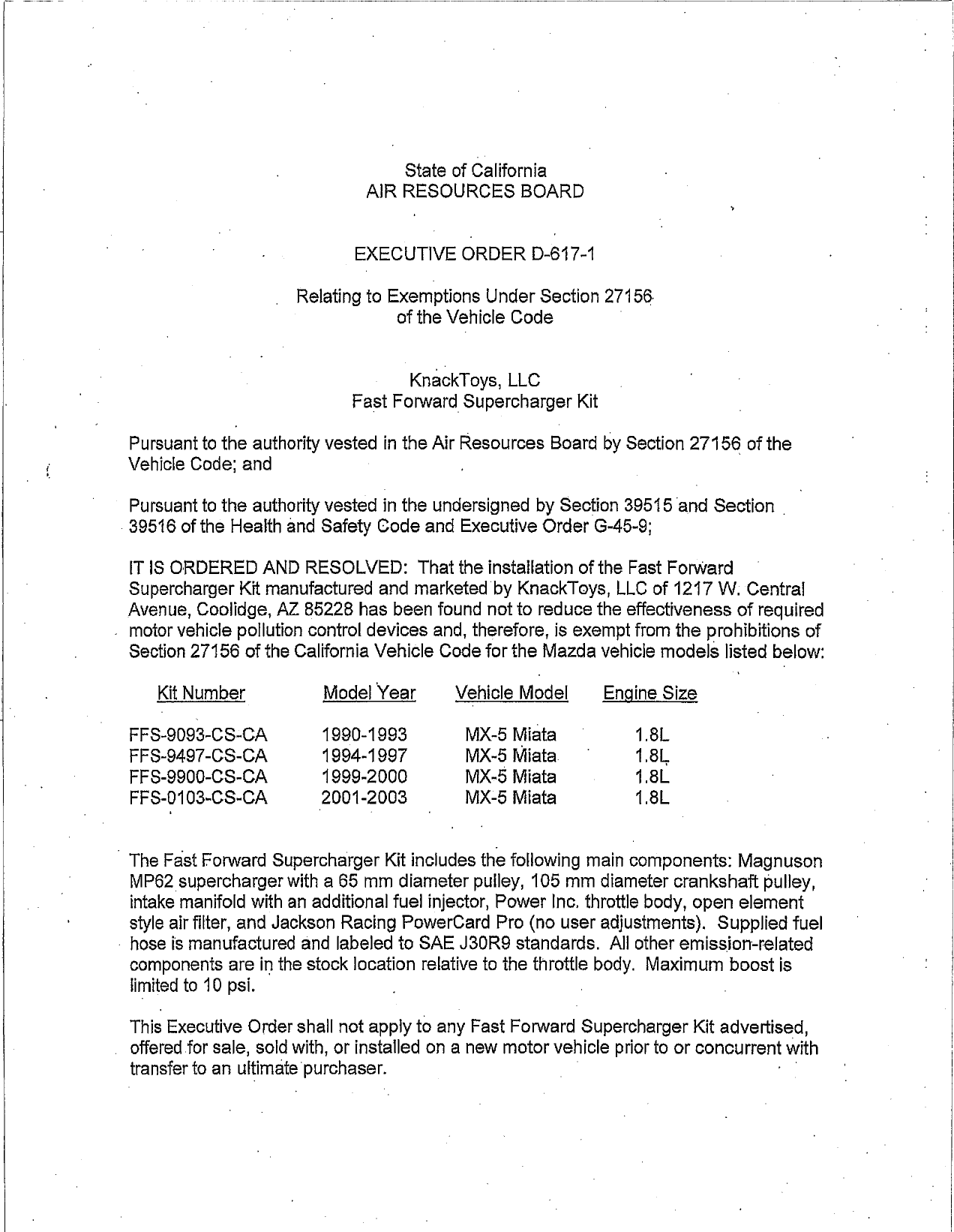

D-617-1 Document:



                                    State of California
                                AIR RESOURCES BOARD


                               EXECUTIVE ORDER D-617-1

                       Relating to Exemptions Under Section 27156·
                                    of the Vehicle Code


                                     KnackToys, LLC
                              Fast Forward Supercharger Kit

 Pursuant to the authority vested in the Air Resources Board by Section 27156 of the
 Vehicle Code; and                                                           ·

 Pursuant to the authority vested in the undersigned by Section 39515 and Section .
 39516 of the Health and Safety Code and Executive Order G-45-9;

 IT IS ORDERED AND RESOLVED: That the installation of the Fast Forward
 Supercharger Kit manufactured and marketed by KnackToys, LLC of 1217 W. Central
 Avenue, Coolidge, AZ 85228 has been found not to reduce the effectiveness of required
 motor vehicle pollution control devices and, therefore, is exempt from the prohibitions of
 Section 27156 of the California Vehicle Code for the Mazda vehicle models listed below:

     Kit Number           Model 'vear       Vehicle Model       Engine Size

 FFS-9093-CS-CA           1990-1993          MX-5   Miata           1.8L
 FFS-9497 -CS-CA          1994-1997          MX-5   Miata           1.8~
 FF S-9900-CS-CA          1999-2000          MX-5   Miata           1.8L
 FFS-01 03~CS-CA          2001-2003          MX-5   Miata           1.8L


· The Fast Forward Supercharger Kit includes the following main components: Magnuson
  MP62 supercharger with a 65 mm diameter pulley, 105 mm diameter crankshaft pulley,
  intake manifold with an additional fuel injector, Power Inc. throttle body, open element
  style air filter, and Jackson Racing PowerCard Pro (no user adjustments). Supplied fuel
· hose is manufactured and labeled to SAE J30R9 standards. All other emission-related
  components are i'! the stock location relative to the throttle body. Maximum boost is
  limited to 10 psi.

 This Executive Order shall not apply to any Fast Forward Supercharger Kit advertised,
 offered for sale, sold with, or installed on a new motor vehicle prior to or concurrent with
 transfer to an ultimate purchaser.


                                                                                                  •   1        .


                                               -2-


  This Executive Order is valid provided that the installation instructions for the Fast
  Forward Supercharger Kit will not recomm~nd ·tuning the vehicle to specifications
  different from those of the vehicle manufacturer.

 Changes made to the design or operating conditions of the device, as exempted by the
 Air Resources Board, that adversely affect the performance of a vehicle's pollution
 control system shall invalidate this Executive Order.

 Marketing of this device using any identification other than that shown in this Executive
 Order or marketing of this device for an application other than those listed in this
 Executive Order shall be prohibited unless prior approval is obtained from the Air
 Resources Board.

 This Executive Order does not constitute any opinion as to the effect that the use of this
 device may have on any warranty either expressed or implied by the vehicle
 manufacturer.                                                                                (
 This exemption is issued based on previously submitted emissions test data from an
 independent laboratory on a 2005 model year Mazda MX-5 Miata vehicle (Test Group
 5TKXV01.8NA1) certified to the Low Emission Vehicle (LEV) emission standards, and
 equipped with the Fast Forward.Super-charger Kit (part number FFS01-05-CS) installed.
 The exhaust emission measurements from the test vehicle are as follows:

 Federal Test Procedure:

                                                 NMOG          co       NOX       HCHO
 Standards (g/mi)                                0.075        3.4       0.2       0.015
 Device (g/mi) with df's applied                 0.063        1.3       0.1       0.0005

  The test results show that the Fast Forward Supercharger Kit when installed on a
  representative vehicle will not likely cause exhaust emissions to exceed the applicable     c·.
  emission standards during the Cold-Start Federal Test Procedure. This Executive
  Order is also based on specific On-Board Diagnostic II (OBD II) testing conducted on
  the modified test vehicle. The Fast Forward Supercharger Kit when installed on the test
· vehicle did not affect the vehicle's ability to perform its OBD II monitoring.

 In addition, the Air Resources Board reserves the right in the future to review this
 Executive Order and the exemption provided herein to assure that the exempted add-on
<or modified part continues to meet the standards and procedures of Title 13, California
 Code of Regulations, Section 2222, et seq ..

  THIS EXECUTIVE ORDER DOES NOT CONSTITUTE A CERTIFICATION,
  ACCREDITATION, APPROVAL, OR ANY OTHER TYPE OF ENDORSE.MENT BY THE
  AIR RESOURCES BOARD OF ANY CLAIMS OF THE APPLICANT CONCERNING
  ANTI-POLLUTION BENEFITS OR ANY ALLEGED BENEFITS OF THE FAST                                              I
                                                                                                           ~
                                                                                                           t
· FORWARD SUPERCHARGER KIT.

             KNACKTOYS, LLC- FAST FORWARD SUPERCHARGER KIT- D-617-1
                                                                                                          l
                                                                                                          j
                                                                                                          j
                                                                                                          ·1
                                                                                                          l


                                               -3-

                                               .                .
· No claims of any kind, such as "Approved by the Air Resources Board" may be made
  with respect to the action taken herein in any advertising or other oral or written
  communication.

 Viqlation of any of the above conditions shall be grounds for revocation of this order.
 The order may be revoked only after a ten day written notice of intention to revoke the
 order, in which period the holder of the order may request in writ.ing a hearing to contest
 the proposed revocation. If a hearing is requested, it shall be held within ten days of
 receipt of the requesta·nd the order may not be revoked until a determination is made
 after the hearing that grounds for revocation exist.


 Executed at El Monte, California, this    / :J::--day of D~cember 2009.
                                           '



                                   Q-~~
                                    ~~nette
                                     Hebert, Chief
                                    '[../'i\lrohile Source Operations Division




              KNACKTOYS, LLC- FAST FORWARD SUPERCHARGER KIT- D-617-1



Document Created: 2014-05-16 15:32:17
Document Modified: 2014-05-16 15:32:17
