Approval Details

Valid E.O.

Validity

This Executive Order approved the specified parts on on October 7, 2008.
As of Tuesday, December 18th, 2018 this Executive Order has not been overturned or superceeded.

Approved Parts

Part NumberModelsRemarks
See PDF1986 through 2004 model year Ford vehiclesThe Professional ProductsÔÇÖ Throttle Body is a replacement throttle body designed with a larger diameter throttle bore and throttle plate. The EGR Plate is a larger diameter EGR plate that is installed in the stock location between the throttle body and intake manifold. Installation requires the transfer of the stock throttle position sensor to the new throttle body. There are no user adjustments other than engine idle speed, which is the same as stock.

This Executive Order may be listed as:
  • C.A.R.B.E.O. D-624
  • Executive Order 624 / D624
  • ARB # D-624
  • Executive Order No: D-624
  • C.A.R.B. No. D-624
  • Resolution D-624
For Free CARB Executive Order Status verification, email an image of the device Executive Order label as well as the Year/Make/Model and Test Group # of the vehicle to [email protected]

Download: Executive Order D-624 PDF

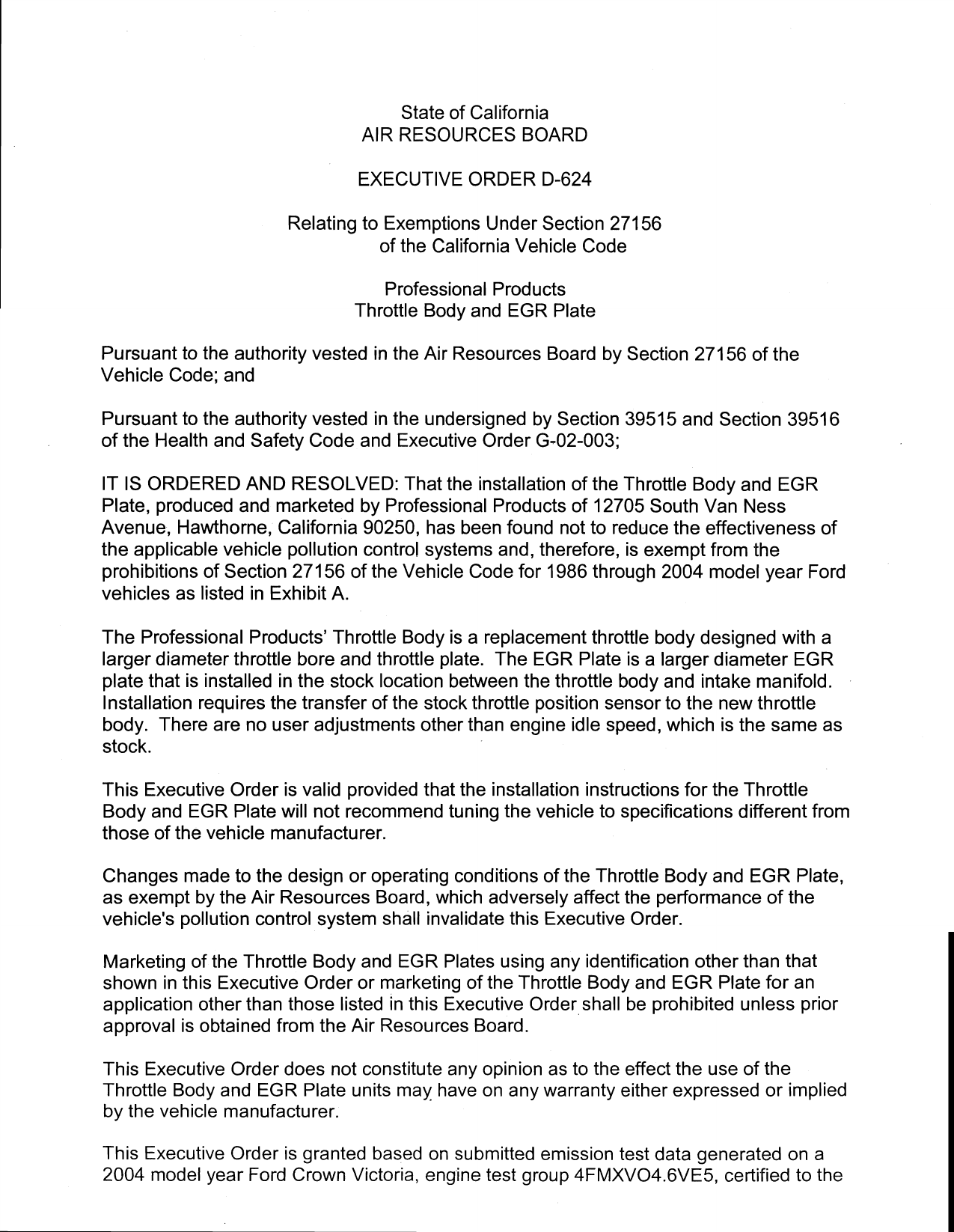

D-624 Document:



                                     State of California
                                 AIR RESOURCES BOARD

                                 EXECUTIVE ORDER D—624

                       Relating to Exemptions Under Section 27156
                                  of the California Vehicle Code

                                    Professional Products
                                Throttle Body and EGR Plate

Pursuant to the authority vested in the Air Resources Board by Section 27156 of the
Vehicle Code; and

Pursuant to the authority vested in the undersigned by Section 39515 and Sectibn 39516
of the Health and Safety Code and Executive Order G—02—003;

T IS ORDERED AND RESOLVED: That the installation of the Throttle Body and EGR
Plate, produced and marketed by Professional Products of 12705 South Van Ness
Avenue, Hawthorne, California 90250, has been found not to reduce the effectiveness of
the applicable vehicle pollution control systems and, therefore, is exempt from the
prohibitions of Section 27156 of the Vehicle Code for 1986 through 2004 model year Ford
vehicles as listed in Exhibit A.

The Professional Products‘ Throttle Body is a replacement throttle body designed with a
larger diameter throttle bore and throttle plate. The EGR Plate is a larger diameter EGR
plate that is installed in the stock location between the throttle body and intake manifold.
Installation requires the transfer of the stock throttle position sensor to the new throttle
body. There are no user adjustments other than engine idle speed, which is the same as
stock.                                          |

This Executivé Order is valid provided that the installation instructions for the Throttle
Body and EGR Plate will not recommend tuning the vehicle to specifications different from
those of the vehicle manufacturer.                         -

Changes made to the design or operating conditions of the Throttle Body and EGR Plate,
as exempt by the Air Resources Board, which adversely affect the performance of the
vehicle‘s pollution control system shall invalidate this Executive Order.

Marketing of the Throttle Body and EGR Plates using any identification other than that
shown in this Executive Order or marketing of the Throttle Body and EGR Plate for an
application other than those listed in this Executive Ordershall be prohibited unless prior
approval is obtained from the Air Resources Board.

This Executive Order does not constitute any opinion as to the effect the use of the
Throttle Body and EGR Plate units may have on any warranty either expressed or implied
by the vehicle manufacturer.

This Executive Order is granted based on submitted emission test data generated on a
2004 model year Ford Crown Victoria, engine test group 4FMXVO4.6VE5, certified to the


                                                2.


Low Emission Vehicle II Low Emission Vehicle (LEVII LEV) emission standards. Test
results on the Ford Crown Victoria showed that emission levels, with Professional
Products‘ Throttle Body installed, met the applicable emission standards when tested
using the Cold—Start CVS—75 Federal Test Procedure (FTP) and the Supplemental
Federal Test Procedure (SFTP USO6) test cycles. Examination of the OBD II system
showed the Throttle Body and EGR Plate did not affect OBD II system operation. Results
from emission testing conducted at the Automobile Club of Southern California, located in
Diamond Bar, California are listed below with deterioration factors applied.

                                       CVS—75 FTP
                                     NMOG    CO            NOx          HCHO
Standards                            0.075   3.4           0.05         0.008
Device                               0.042       0.5       0.01 _       0.001

                                         SFTP USO6
                                   NMHC+NOx        CO
Standards4k                          0.14          8.0
Device                               0.04          2.3

Similar effect on vehicle emissions is expected with the installation of the Throttle Body
and/or EGR Plate on vehicles listed in Exhibit A of this Executive Order.

The Air Resources Board reserves the right in the future to reviewthis Executive Order
and the exemption provided herein to assure that the exempted add—on or modified part
continues to meet the standards and procedures of Title 13, California Code of
Regulations, Section 2222, et seq.

THIS EXECUTIVE ORDER DOES NOT CONSTITUTE A CERTIFICATION,
ACCREDITATION, APPROVAL, OR ANY OTHER TYPE OF ENDORSEMENT BY THE
AIR RESOURCES BOARD OF ANY CLAIMS OF THE APPLICANT CONCERNING
ANTI—POLLUTION BENEFITS OR ANY ALLEGED BENEFITS OF PROFESSIONAL
PRODUCT‘S THROTTLE BODY AND EGR PLATE.

No claim of any kind, such as "Approved by the Air Resources Board", may be made with
respect to the action taken herein in any advertising or other oral or written
communication.

Violation of any of the above conditions shall be grounds for revocation of this order. The
order may be revoked only after a ten—day written notice of intention to revoke the order,
in which period the holder of the order may request in writing a hearing to contest the
proposed revocation. If a hearing is requested, it shall be held within ten days of receipt
of the request and the order may not be revoked until a determination is made after the
hearing that grounds for revocation exist.

Executed at El Monte, California, this         73/’/‘/:"   day of October 2008 .

                         |                22
                                     _~



                             , %ļ¬pnette Hebert, Chief
                               _     Mobile Source Operations Division

     PROFESSIONAL PRODUCTS —THROTTLE BODY AND EGR PLATE — D—624


                                            Exhibit A

           Professional Pfoducts Throttle Bodies for Ford Applications

                       Vehicle Applications                            Part Numbers*
                  ‘86—93 Mustang 5.0L, 665mm                           69200, 69203
                  ‘86—93 Mustang 5.0L, 7O0mm                           69201, 69204
                  ‘86—93 Mustang 5.0L, 75mm                            69202, 69205
                  ‘94—‘95 Mustang 5.0L, 66mm                           69210, 69213
                  ‘94—95 Mustang 5.0L, 7O0mm                           69211, 69214
                  ‘94—95 Mustang 5.0L, 75mm                            69212, 69215
                  ‘96—04 Ford 4.6L, ALL, 7O0mm                         69220, 69222
                  ‘96—‘04 Ford 4.6L, ALL, 75mm                         69221, 69223
                   ‘90—95 Ford 4.6L 2V, 75mm                           69224, 69225
   ‘07—‘04 5.4L L Ford Truck (F Series & Expedition) 75mm              69224, 69225
        ‘89—93 3.8L Thunderbird Super Coupe, 75mm                      69232, 69233
         ‘89—‘93 3.8L Supercharged Cougar XR7, 75mm                    69232, 69233
Notes:
*—First part no. is for polished finish, second is for satin finish


             Professional Products EGR Plates for Ford Applications

                       Vehicle Applications                            Part Numbers*
                  ‘86—‘93 Mustang 5.0L, 665mm                          69500, 69503
                  ‘86—93 Mustang 5.0L, 7O0mm                           69501, 69504
                  ‘86—93 Mustang 5.0L, 75mm                            69502, 69505

Notes:

*—First part no. is for polished finish,’ second is for satin finish



Document Created: 2008-10-31 14:49:58
Document Modified: 2008-10-31 14:49:58
