Approval Details

Valid E.O.

Validity

This Executive Order approved the specified parts on on September 9, 2016.
As of Friday, August 23rd, 2019 this Executive Order has not been overturned or superceeded.

Approved Parts

Part NumberModels
350-010?á1991-1996 3.0L Acura: NSX

This Executive Order may be listed as:
  • C.A.R.B.E.O. D-637-5
  • Executive Order 637-5 / D637-5
  • ARB # D-637-5
  • Executive Order No: D-637-5
  • C.A.R.B. No. D-637-5
  • Resolution D-637-5
For Free CARB Executive Order Status verification, email an image of the device Executive Order label as well as the Year/Make/Model and Test Group # of the vehicle to [email protected]

Download: Executive Order D-637-5 PDF

D-637-5 Document:

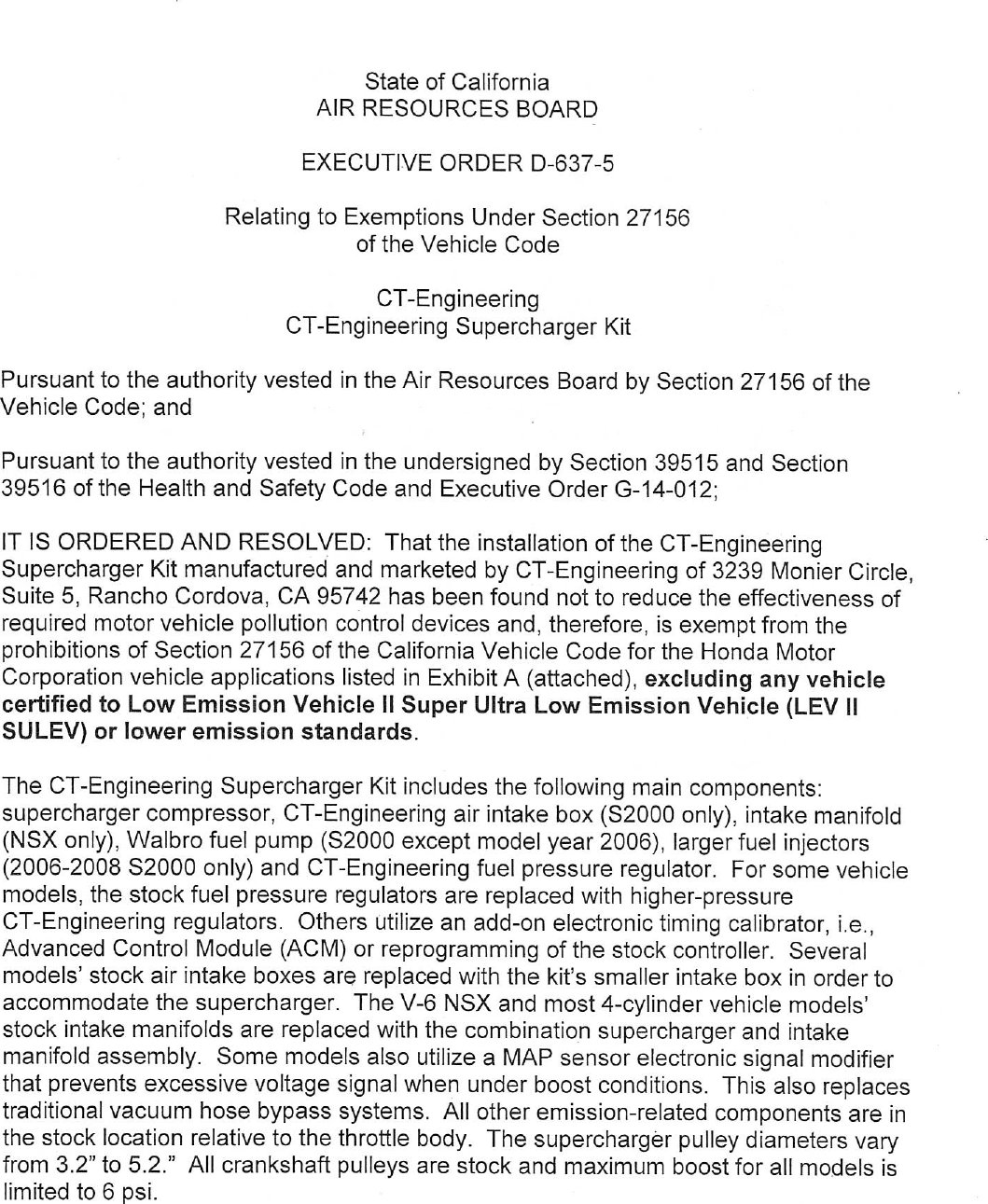

                                   State of California
                               AIR RESOURCES BOARD

                             EXECUTIVE ORDER D—637—5

                     Relating to Exemptions Under Section 27156
                                   of the Vehicle Code

                                    CT—Engineering
                            CT—Engineering Supercharger Kit

Pursuant to the authority vested in the Air Resources Board by Section 27156 of the
Vehicle Code; and

Pursuant to the authority vested in the undersigned by Section 39515 and Section
39516 of the Health and Safety Code and Executive Order G—14—012;

IT IS ORDERED AND RESOLVED: That the installation of the CT—Engineering
Supercharger Kit manufactured and marketed by CT—Engineering of 3239 Monier Circle,
Suite 5, Rancho Cordova, CA 95742 has been found not to reduce the effectiveness of
required motor vehicle pollution control devices and, therefore, is exempt from the
prohibitions of Section 27156 of the California Vehicle Code for the Honda Motor
Corporation vehicle applications listed in Exhibit A (attached), excluding any vehicle
certified to Low Emission Vehicle II Super Ultra Low Emission Vehicle (LEV II
SULEV) or lower emission standards.

The CT—Engineering Supercharger Kit includes the following main components:
supercharger compressor, CT—Engineering air intake box ($2000 only), intake manifold
(NSX only), Walbro fuel pump ($2000 except model year 2006), larger fuel injectors
(2006—2008 $2000 only) and CT—Engineering fuel pressure regulator. For some vehicle
models, the stock fuel pressure regulators are replaced with higher—pressure
CT—Engineering regulators. Others utilize an add—on electronic timing calibrator, i.e.,
Advanced Control Module (ACM) or reprogramming of the stock controller.         Several
models‘ stock air intake boxes are replaced with the kit‘s smaller intake box   in order to
accommodate the supercharger. The V—6 NSX and most 4—cylinder vehicle           models‘
stock intake manifolds are replaced with the combination supercharger and       intake
manifold assembly. Some models also utilize a MAP sensor electronic signal modifier
that prevents excessive voltage signal when under boost conditions. This also replaces
traditional vacuum hose bypass systems. All other emission—related components are in
the stock location relative to the throttle body. The supercharger pulley diameters vary
from 3.2" to 5.2." All crankshaft pulleys are stock and maximum boost for all models is
limited to 6 psi.


                                                   3.


This Executive Order shall not apply to any CT—Engineering Supercharger Kit advertised,
offered for sale, sold with, or installed on a new motor vehicle prior to or concurrent with
transfer to an ultimate purchaser.

This Executive Order is valid provided that the installation instructions for the supercharger will
not recommend tuning the vehicle to specifications different from those of the vehicle
manufacturer.

Changes made to the design or operating conditions of the device, as exempted by the Air
Resources Board, that adversely affect the performance of a vehicle‘s pollution control system
shall invalidate this Executive Order.

Marketing of this device using any identification other than that shown in this Executive Order
or marketing of this device for an application other than those listed in this Executive Order
shall be prohibited unless prior approval is obtained from the Air Resources Board.
This Executive Order does not constitute any opinion as to the effect that the use of this device
may have on any warranty either expressed or implied by the vehicle manufacturer.

This exemption is issued based on the carryover of submitted emissions test data from an
independent laboratory on a 2005 model year Honda Motor Company Acura TL vehicle (Test
Group 5HNXVO03.24B4) certified to the Low Emission Vehicle II Ultra Low Emission Vehicle
(LEV II ULEV) and Supplemental Federal Test Procedure (SFTP) standards:

Federal Test Procedure:

                                  c             NMOG       Co           NOx
Standards (g/mi)                            _   0.040      1.7          0.05
Device (g/mi) with df‘s applied                 0.018      0.3          0.01

SFTP (USO6 Cycle):

                                                NMHC+NOx          Co
Standards (g/mi)                                   0.14           8.0
Device (g/mi)                                      0.08           0.5

SFTP (SC03 Alternative AC2 Cycle):

                                                NMHC+NOx          Co
Standards (g/mi)                                   0.20           2.7
Device (g/mi)                                      0.02           0.3

Test results showed that the CT—Engineering Supercharger Kit when installed on the vehicle
did not cause exhaust emissions to exceed the applicable emission standards during the Cold
Start CVS—75 Federal Test Procedure or SFTP cycles. This Executive Order is also based on
the On—Board Diagnostic II (OBD !I) testing conducted on the same test vehicle. The
CT—Engineering Supercharger Kit when installed on the test vehicle did not affect the vehicle‘s
ability to perform its OBD II monitoring.



         CT—ENGINEERING — CT—ENGINEERING SUPERCHARGER KIT — D—637—5


                                                8#


In addition, the Air Resources Board reserves the right in the future to review this Executive
Order and the exemption provided herein to assure that the exempted add—on or modified part
continues to meet the standards and procedures of Title 13, California Code of Regulations,
Section 2222, et seq.

THIS EXECUTIVE ORDER DOES NOT CONSTITUTE A CERTIFICATION,
ACCREDITATION, APPROVAL, OR ANY OTHER TYPE OF ENDORSEMENT BY THE AIR
RESOURCES BOARD OF ANY CLAIMS OF THE APPLICANT CONCERNING
ANTI—POLLUTION BENEFITS OR ANY ALLEGED BENEFITS OF THE CT—ENGINEERING
SUPERCHARGER KIT.

No claims of any kind, such as "Approved by the Air Resources Board" may be made with
respect to the action taken herein in any advertising or other oral or written communication.

Violation of any of the above conditions shall be grounds for revocation of this order. The
order may be revoked only after a ten day written notice of intention to revoke the order, in
which period the holder of the order may request in writing a hearing to contest the proposed
revocation. If a hearing is requested, it shall be held within ten days of receipt of the request
and the order may not be revoked until a determination is made after the hearing that grounds
for revocation exist.


Executed at El Monte, California, this day of September 2016.




                              /(fi@Annette Heber’( hlef
                                     Mobile Source Operations Division




          CT—ENGINEERING — CT—ENGINEERING SUPERCHARGER KIT — D—637—5


                                    EXHIBIT A                      (Page 1 of 1)



                        CT—ENGINEERING SUPERCHARGER KIT

Model Years     Make            oys             Disgg%:‘r:ent   N:rz:er       Pgilz-y
 1991—1996      Acura            NSX                3.0L        350—010        4.2"
 1997—2005      Acura            NSX                3.2L        350—012        3.9"
 2000—2001      Honda            $2000              2.O0L       350—040        5.2"
 2000—2001      Honda            $2000              2.OL        350—043        5.2"
 2002—2003      Honda            $2000              2.0L        350—044        5.2"
 2002—2003      Honda            $2000              2.0L        350—046        5.2"
 2004—2005      Honda            $2000              2.2L        350—042        4.5"
 2004—2005      Honda            $2000              22L         350—048        4.5"
 2006—2009      Honda            $2000              2.2L        350—041        4.5"
 1997—1999      Acura             CL                3.0L        350—065        3.9"
 2001—2003      Acura            CL—S               3.2L        350—062        3.8"
   2003         Acura      CL—S 6 Speed Trans       S.2L        350—064        3.8"
 1996—1998      Acura             TL                3.0L        350—067            3.9"
 2002—2003      Acura            TL—S               3.2L        350—062            $8"
 2004—2005      Acura             TL                3.2L        350—073            3.2"
 2006—2008      Acura              TL               3.2L        350—073            $.2"
 1998—1999      Honda           ‘Accord              3.0L       350—060            3.0"
 2000—2002      Honda           Accord               3.0L       350—063            3.8"
 2004—2005      Acura             TSX                2 AL       350—038            3.6"
 2006—2008      Acura             TSX                2 AL       350—051            5.0"
 2002—2004      Acura            RSX—S               2.OL       350—035            3.8"
 2005—2006      Acura            RSX—S               2.OL       350—029            3.¢0"
 2005—2006      Honda           Ridgeline            3.6L.      350—081            4.2"
 2002—2005      Honda           Civic Si             2.OL       350—030            3.8"
 2006—2011      Honda           Civic Si             2.OL       350—091            3.0"




          CT—ENGINEERING — CT—ENGINEERING SUPERCHARGER KIT — D—637—5



Document Created: 2016-09-12 13:47:03
Document Modified: 2016-09-12 13:47:03

Previous E.O. D-637-4 | Previous E.O. D-636 | Next E.O. D-637-6 | Next E.O. D-638
