Approval Details

Valid E.O.

Validity

This Executive Order approved the specified parts on on September 23, 2001.
As of Friday, September 20th, 2019 this Executive Order has not been overturned or superceeded.

Approved Parts

Part NumberModelsModification
26-21012010-2011 Hyundai Genesis Coupe 2.0 liter turbochargedThe system includes a replacement intercooler and an open-element air intake kit. No other changes, such as disconnection, relocation, or modification of original temperature or pressure sensor, are allowed with the use of this system.

This Executive Order may be listed as:
  • C.A.R.B.E.O. D-670-5
  • Executive Order 670-5 / D670-5
  • ARB # D-670-5
  • Executive Order No: D-670-5
  • C.A.R.B. No. D-670-5
  • Resolution D-670-5
For Free CARB Executive Order Status verification, email an image of the device Executive Order label as well as the Year/Make/Model and Test Group # of the vehicle to [email protected]

Download: Executive Order D-670-5 PDF

D-670-5 Document:

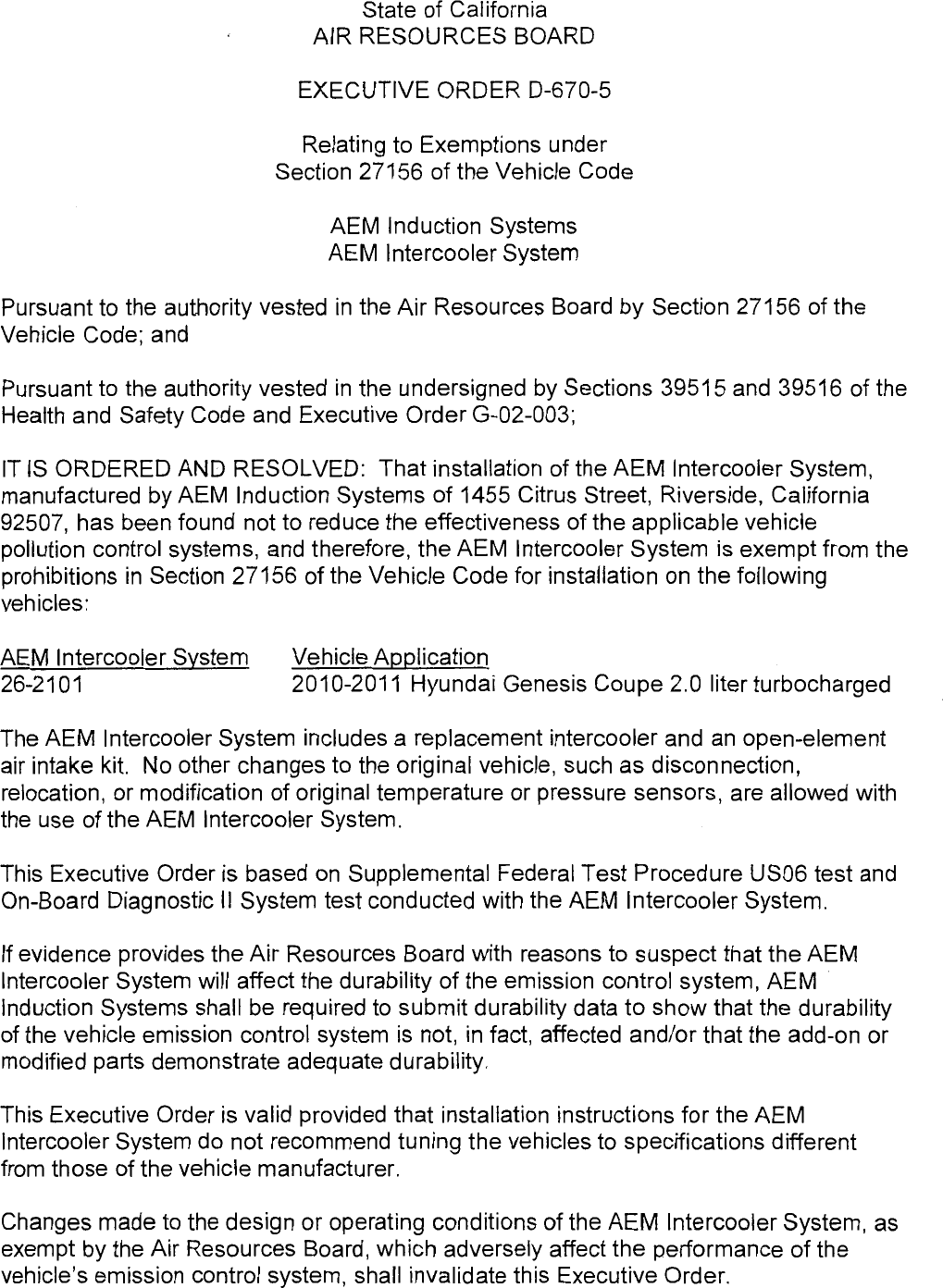

                                   State of California
                               AIR RESOURCES BOARD

                              EXECUTIVE ORDER D—670—5

                              Relating to Exemptions under
                           Section 27156 of the Vehicle Code

                                 AEM Induction Systems
                                 AEM Intercooler System

Pursuant to the authority vested in the Air Resources Board by Section 27156 of the
Vehicle Code; and

Pursuant to the authority vested in the undersigned by Sections 39515 and 39516 of the
Health and Safety Code and Executive Order G—02—003;

IT IS ORDERED AND RESOLVED: That installation of the AEM Intercooier System,
manufactured by AEM Induction Systems of 1455 Citrus Street, Riverside, California
92507, has been found not to reduce the effectiveness of the applicable vehicle
poliution control systems, and therefore, the AEM Intercooler System is exempt from the
prohibitions in Section 27156 of the Vehicle Code for installation on the following
vehicles:

AEM Intercooler System       Vehicle Application
26—2101                      2010—2011 Hyundai Genesis Coupe 2.0 liter turbocharged

The AEM Intercooler System includes a replacement intercooler and an open—element
air intake kit. No other changes to the original vehicle, such as disconnection,
relocation, or modification of original temperature or pressure sensors, are allowed with
the use of the AEM Intercooler System.

This Executive Order is based on Supplemental Federal Test Procedure USO6 test and
On—Board Diagnostic I! System test conducted with the AEM Intercooler System.

If evidence provides the Air Resources Board with reasons to suspect that the AEM
Intercooler System will affect the durability of the emission control system, AEM —
Induction Systems shall be required to submit durability data to show that the durability
of the vehicle emission control system is not, in fact, affected and/or that the add—on or
modified parts demonstrate adequate durability.

This Executive Order is valid provided that installation instructions for the AEM
Intercooler System do not recommend tuning the vehicles to specifications different
from those of the vehicle manufacturer.

Changes made to the design or operating conditions of the AEM Intercooler System, as
exempt by the Air Resources Board, which adversely affect the performance of the
vehicle‘s emission control system, shall invalidate this Executive Order.


                                             _2

Marketing of the AEM Intercooler System using identification other than that shown in
this Executive Order or for an application other than that listed in this Executive Order
shall be prohibited unless prior approval is obtained from the Air Resources Board.

Exemption of the AEM Intercooler System shall not be construed as exemption to sell,
offer for sale, or advertise any component of the system as an individual device.

This Executive Order shall not apply to any AEM Intercooler System advertised, offered
for sale, sold with, or installed on a motor vehicle prior to or concurrent with transfer to
an ultimate purchaser.

This Executive Order does not constitute any opinion as to the effect the use of the
AEM Intercooler System may have on any warranty either expressed or implied by the
vehicle manufacturer.

No claim of any kind, such as "Approved by the Air Resources Board," may be made
with respect to the action taken herein in any advertising or other oral or written
communication.

In addition to the foregoing, the Air Resources Board reserves the right in the future to
review this Executive Order and the exemption provided herein to assure that the
exempted add—on or modified part continues to meet the standards and procedures of
California Code of Regulations, Title 13, Section 2222, et seq.

THIS EXECUTIVE ORDER DOES NOT CONSTITUTE A CERTIFICATION,
ACCREDITATION, APPROVAL, OR ANY OTHER TYPE OF ENDORSEMENT BY THE
AIR RESOURCES BOARD OF ANY CLAIMS OF THE APPLICANT CONCERNING
ANTI—POLLUTION BENEFITS OR ANY ALLEGED BENEFITS OF AEM INDUCTION
SYSTEMS‘ AEM INTERCOOLER SYSTEM.

Violation of any of the above conditions shall be grounds for revocation of this Executive
Order. The Executive Order may be revoked only after a ten—day written notice of
intention to revoke the Executive Order, in which period the holder of the Executive
Order may request in writing a hearing to contest the proposed revocation. If a hearing
is requested, it shall be held within ten days of receipt of the request, and the Executive
Order may not be revoked until a determination is made after the hearing that grounds
for revocation exist.
                                              nol
Executed at El Monte, California, this Qé ~—__day of September 2011.



                                   DAuie
                                       Annette Hebert, Chief
                                         obile Source Operations Division




       AEM INDUCTION SYSTEMS — AEM INTERCOOLER SYSTEM — D—670—5


                                        EVALUATION SUMMARY

Manufacturer Name: AEM Induction Systems

Name of Device: AEM Intercooler System, part number 26—2101

Background:
      AEM Induction Systems of 1455 Citrus Street, Riverside, California 92507 has requested
exemption from the prohibitions in Section 27156 of the California Vehicle Code for its AEM
Intercooler System, part number 26—2101. The system consists of a replacement intercooler
and an open—element air intake kit. The system is designed for 2010 and 2011 model—year
2.0 liter turbocharged Hyundai Genesis Coupe. This vehicle is subject to the following
standards and regulations:
1.     LEV II LEV Federal Test Procedure exhaust emission standards
2      Supplemental Federal Test Procedure (SFTP) exhaust emission standards
3.   _ LEV II evaporative emission standards
4      On—Board Diagnostic II (OBD I1) System regulations

Recommendation:
         Grant exemption to AEM Induction Systems as requested and issue Executive Order.
D—670—5.

Device Description:
       The AEM Intercooler System is designed to increase the vehicle‘s power output by using
a higher capacity charge air cooling system and a less restrictive air filter. The system consists
of a reptlacement intercooler, charge pipes, open element air filter, air inlet tube, windshield
washer fluid bottle, and assorted connectors, hoses, and mounting hardware. The volume of
the heat exchanger is increased from 139 in3 (stock) to 167 in3 (AEM). No other changes, such
as disconnection, relocation, or modification of original temperature or pressure sensors, are
allowed with the use of the AEM Intercooler System.

Discussion/Basis for the Recommendation:
       AEM Induction Systems conducted testing with the AEM intercooler System on a 2011
model—year 2.0 liter Hyundai Genesis Coupe. The results are shown below:

                                     SFTP USO6 Emissions (grams/mile)
                             NMHC          NOx       NMHC+NOx            CO
         Test Results       0.0615        0.0245        0.0860          6.9805
            Final              —            ——           0.09            7.0
   4,000—Mile Standards        ——           ——           0.14            8.0
    4,000—Mile Hyundai         ——           ——           0.02            1.8

Notes:
Test vehicle — test group BHYXVO2.0JM5 (LEV II LEV); evaporative family BHYXRO140PDK (LEV II
evap.), odometer reading 13,610 miles
Testing laboratory — Automotive Testing and Development Services, Inc. in Ontario, California


                                               OBD I! System Results

                                        Readiness Indicator             Trouble Code

     At vehicle receipt                     All complete                   None

      After code clear                     All incomplete                  None
             emi     .         All complete except evaporative system
    After 50—mile drive              and oxygen sensor heater              None
 After preconditioning drive   All complete except evaporative system      None
     After no—bag FTP                                       .
       and USO6 test           All complete except evaporative system      None

     After no—bag FTP          All complete except evaporative system      None



The USO6 emission test results showed that the vehicle modified with the AEM Intercooler
System meets the applicable exhaust emission standards. The evaporative system OBD II
monitor did not set to complete at the completion of testing. OBD II certification staff indicated
that the evaporative system monitor on this vehictle model is known to have difficulty setting to
completion. Based on this, the laboratory was allowed to discontinue testing with the
evaporative system monitor incomplete. The AEM Intercooler System is not expected to have
any adverse impact on the vehicle‘s OBD I! System.



Document Created: 2011-10-31 13:22:19
Document Modified: 2011-10-31 13:22:19
