Approval Details

Valid E.O.

Validity

This Executive Order approved the specified parts on on March 25, 2011.
As of Friday, October 11th, 2024 this Executive Order has not been overturned or superceeded.

Approved Parts

Part NumberModelsModification
Axe-6-1182007-2009 Mazda Speed 3Replace air filter and intake tubing

This Executive Order may be listed as:
  • C.A.R.B.E.O. D-683-1
  • Executive Order 683-1 / D683-1
  • ARB # D-683-1
  • Executive Order No: D-683-1
  • C.A.R.B. No. D-683-1
  • Resolution D-683-1
For Free CARB Executive Order Status verification, email an image of the device Executive Order label as well as the Year/Make/Model and Test Group # of the vehicle to [email protected]

Download: Executive Order D-683-1 PDF

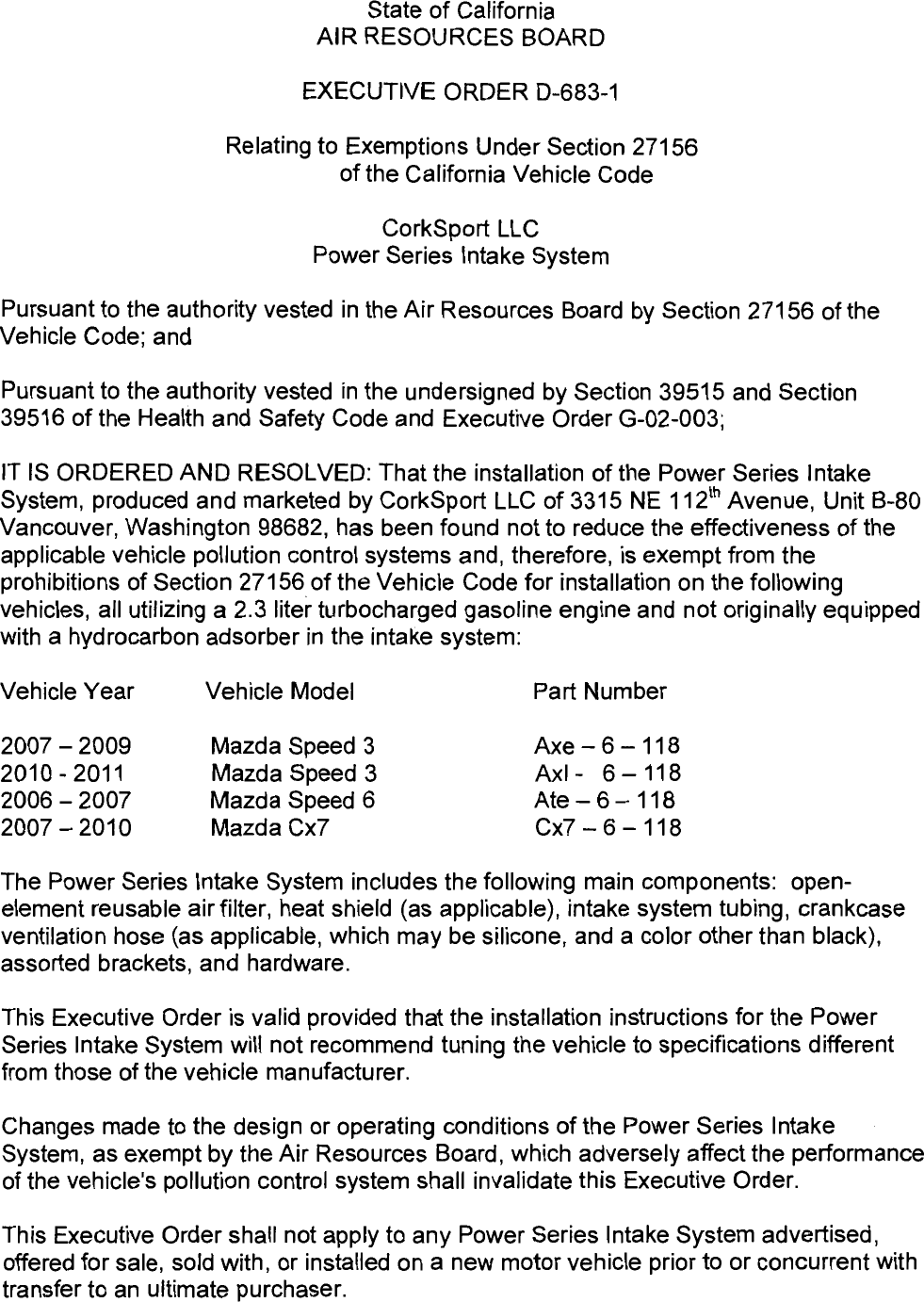

D-683-1 Document:


CARB_D-683-1

                                     State of California
                               AIR RESOURCES BOARD

                              EXECUTIVE ORDER D—683—1

                      Relating to Exemptions Under Section 27156
                                 of the California Vehicle Code

                                      CorkSport LLC
                               Power Series Intake System

Pursuant to the authority vested in the Air Resources Board by Section 27156 of the
Vehicle Code; and

Pursuant to the authority vested in the undersigned by Section 39515 and Section
39516 of the Healith and Safety Code and Executive Order G—02—003;

IT IS ORDERED AND RESOLVED: That the installation of the Power Series Intake
System, produced and marketed by CorkSport LLC of 3315 NE 112"" Avenue, Unit B—80
Vancouver, Washington 98682, has been found not to reduce the effectiveness of the
applicable vehicle pollution control systems and, therefore, is exempt from the
prohibitions of Section 27156of the Vehicle Code for installation on the following
vehicles, all utilizing a 2.3 liter turbocharged gasoline engine and not originally equipped
with a hydrocarbon adsorber in the intake system:

Vehicle Year        Vehicle Model                    Part Number

2007 — 2009          Mazda Speed 3                   Axe —6—118
2010 — 2011          Mazda Speed 3                   Axl— 6 —118
2006 — 2007          Mazda Speed 6                   Ate —6 —118
2007 — 2010          Mazda Cx7                       Cx7 —6 —118

The Power Series Intake System includes the following main components: open—
element reusable air filter, heat shield (as applicable), intake system tubing, crankcase
ventilation hose (as applicable, which may be silicone, and a color other than black),
assorted brackets, and hardware.

This Executive Order is valid provided that the installation instructions for the Power
Series Intake System will not recommend tuning the vehicle to specifications different
from those of the vehicle manufacturer.

Changes made to the design or operating conditions of the Power Series Intake
System, as exempt by the Air Resources Board, which adversely affect the performance
of the vehicle‘s pollution control system shall invalidate this Executive Order.

This Executive Order shall not apply to any Power Series Intake System advertised,
offered for sale, sold with, or installed on a new motor vehicle prior to or concurrent with
transfer to an ultimate purchaser.


Marketing of the Power Series Intake System using any identification other than that
shown in this Executive Order or marketing of the Power Series Intake System for an
application other than those listed in this Executive Order shall be prohibited unless
prior approval is obtained from the Air Resources Board.

This Executive Order does not constitute any opinion as to the effect the use of the
Power Series Intake System units may have on any warranty either expressed or
implied by the vehicle manufacturer.

This Executive Order is granted based on emission test results in the modified
configuration using the Cold—Start CVS—75 Federal Test Procedure, Supplemental
Federal Test Procedure (USO6), and an examination of the On—Board Diagnostic |I
(OBD I1) system. A 2010 Mazda Speed 3 with a turbocharged 2.3 liter engine
(ATKXVO2.35BA, LEV—I1 ULEV) was used for the evaluation of the Power Series Intake
System. Results from emissions testing conducted at Quantum Technologies SULEV
Emissions Laboratory, are shown below (in grams per mile):

                                  2010 Mazda Speed 3

FTP                    120k        NMOG        CO        NOx        HCHO

                Emission Level     0.034      1.029     0.052       0.000
                (w. DF applied)
                STD                 0.055     2.1        0.07        NA


USO6                                 NMHC + NOx         CO

                Emission Level        0.038           1.166
                STD                   0.140           8.00

The emission test results in the modified configuration were below the applicable
certification standards. Examination of the OBD II system showed the Power Series
Intake System does not affect OBD II operation.

If evidence provides the ARB with reason to suspect that the Power Series Intake
System will affect the durability of emission control systems, CorkSport LLC shall be
required to submit durability data to show that the durability of vehicle emission control
systems are not, in fact, affected and/or that the add—on or modified part demonstrates
adequate durability.

The ARB reserves the right in the future to review this Executive Order and the
exemption provided herein to assure that the exempted add—on or modified part
continues to meet the standards and procedures of Title 13, California Code of
Regulations, Section 2222, et seq.

                CORKSPORT LLC — POWER SERIES INTAKE SYSTEM — D—683—1


THIS EXECUTIVE ORDER DOES NOT CONSTITUTE A CERTIFICATION,
ACCREDITATION, APPROVAL, OR ANY OTHER TYPE OF ENDORSEMENT BY THE
AIR RESOURCES BOARD OF ANY CLAIMS OF THE APPLICANT CONCERNING
ANTI—POLLUTION BENEFITS OR ANY ALLEGED BENEFITS OF CORKSPORT LLC‘S
POWER SERIES INTAKE SYSTEM.

No claim of any kind, such as "Approved by the Air Resources Board", may be made
with respect to the action taken herein in any advertising or other oral or written
communication.

Violation of any of the above conditions shall be grounds for revocation of this order.
The order may be revoked only after a ten—day written notice of intention to revoke the
order, in which period the holder of the order may request in writing a hearing to contest
the proposed revocation. If a hearing is requested, it shall be held within ten days of
receipt of the request and the order may not be revoked until a determination is made
after the hearing that grounds for revocation exist.

Executed at El Monte, California, this   Zg         day of March 2011.




                                Annette Hebert, Chief
                                Mobile Source Operations Division




                CORKSPORT LLC — POWER SERIES INTAKE SYSTEM — D—683—1
