Approval Details

Valid E.O.

Validity

This Executive Order approved the specified parts on on April 16, 2013.
As of Friday, December 27th, 2024 this Executive Order has not been overturned or superceeded.

Approved Parts

Part NumberModels
Axe-6-1182007-2009 Mazda Speed 3

This Executive Order may be listed as:
  • C.A.R.B.E.O. D-683-2
  • Executive Order 683-2 / D683-2
  • ARB # D-683-2
  • Executive Order No: D-683-2
  • C.A.R.B. No. D-683-2
  • Resolution D-683-2
For Free CARB Executive Order Status verification, email an image of the device Executive Order label as well as the Year/Make/Model and Test Group # of the vehicle to [email protected]

Download: Executive Order D-683-2 PDF

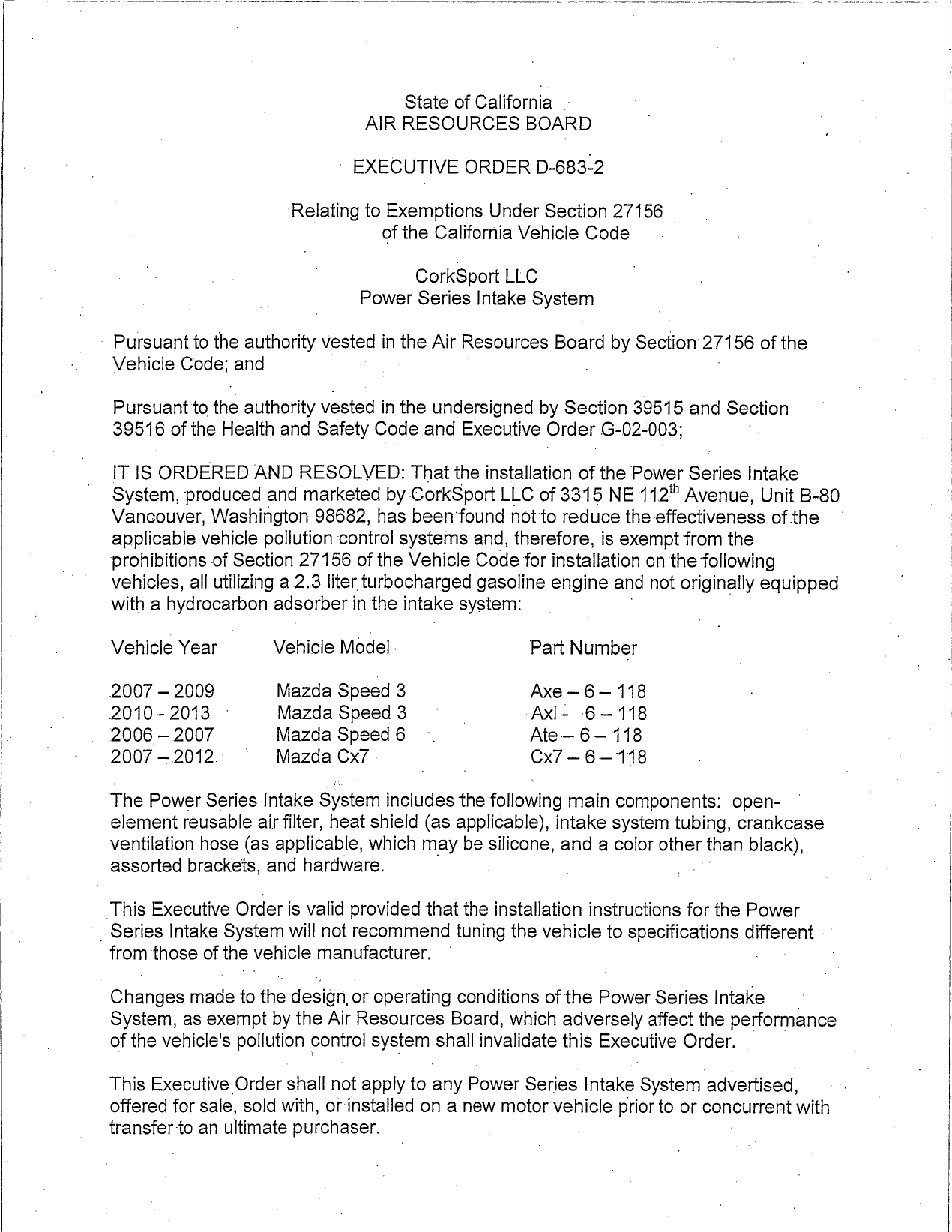

D-683-2 Document:


CARB_D-683-2

                                          State of Califomié 2
                                      AlR RESOURCES BOARD

                                   — EXECUTIVE ORDER D—683—2

                             ‘Relating to Exemptions Under Section 27156 _
                                         of the California Vehicle Code

                                             CorkSport LLC
                                     Power Series Intake System

   — Pursuant to the authority vested in the Air Resources Board by Section 27156 of the
    Vehicle Code; and

     Pursuant to thé authority vested in the undersigned by Section 39515 and Section
     39516 of the Health and Safety Code and Executive Order G—02—003;

     IT IS ORDERED AND RESOLYVED: Thatthe installation of the Power Series Intake
    System, produced and marketed by CorkSport LLC of 3315 NE 112" Avenue, Unit B—80
      Vancouver, Washington 98882, has beenfound not to reduce the effectiveness of the
      applicable vehicle pollution control systems and, therefore, is exempt from the
     prohibitions of Section 27156 of the Vehicle Code for installation on the following
\ _ vehicles, all utilizing a 2.3 literturbocharged gasoline engine and not originally equipped
      with a hydrocarbon adsorberin the mtake system:

   . Vehicle Year =_        Vehicle Model—                       Part Number

    2007 — 2009             Mazda Speed 3                    9   Axe—6—118
    2010 — 2013 —           Mazda Speed 3            _   _       Axl— —6—118
    2006 — 2007             Mazda Speed 6        >               Ate —6—118
    2007 —2012=        °_   Mazda Cx7        |           |       Cx7 —6—118

    The Power Series Intake System includes the followmg maincomponents open—
    element reusable air filter, heat shield (as applicable), intake system tubing, crankcease _
    ventilation hose (as applicable, which may be silicone, and a color other than black),
    assorted brackets, and hardware.                                        .

   This Executive Order is valid provided that the installation instructions for the Power
  . Series Intake System will not recommend tuning the vehicle to specifications dn"ferent '
    from those of the vehlcle manufacturer.                                           .

    Changes made to the de3|gn or operating conditions of the Power Series Intake
    System, as exempt by the Air Resources Board, which adversely affect the performance
    of the vehicle‘s pollution pontrol system shall lnvalldate this Executive Order.

    This Executive Order shall not apply to any Power Series Intake System‘ad\t/ertlsed
    offered for sale, sold with, or—installed on a new motorvehicle prior to or concurrent with
    transfer to an ultimate purchaser. _


    Marketing of the. Power Series Intake System using any identification other than that.
    shown in this Executive Order or marketing of the Power Series Intake System for an
    application other than those listed in this Executive Order shall be prohibited unless
    prior approval is obtained from the Air Resources Board.

    This Executive Order doeé not constitute any opinion as to theeffect the use of the
    Power . Series Intake System units may have on any warranty either expressed or
    implied by the vehicle manufacturer.

    This Executive Order is granted based on emission test results in the modified
    configuration using the Cold—Start CVS—75 Federal Test Procedure, Supplemental
    Federal Test Procedure (USO6), and an examination of the On—Board Diagnostic II
   (OBD I!) system. A 2010 Mazda Speed 3 with a turbocharged 2.3 liter engine
   (ATKXVO2.35BA, LEV—IJ ULEV) was used for the evaluation of the Power Series Intake
   System. Results from emissions testing conducted at Quantum Technologies SULEV
   Emissions Laboratory, are shown below (in grams per mlle)

                                      . _ 2010 Mazda Speed 3

  ~FTP                    120k              NMOG     CO        NOx          HCHO

                    Emission Level          0.034' . 1.029°     0.052       0.000
                  _ (w. DF applied)                      '              ’        |
                   STD                 0o   0.055    2250      ‘0.07        NA

  © USsO8                        0—         . NMHC+NOx        co
                   Emission Level __ 0.038                    11166
                   STD _             0.140           _        8.00
* The emission test resultsin the modified configuration were below the applicable
  certification standards. Examination of the OBD II system showed the Power Senes
  Intake System does not affect .OBD II operation.

   If evndenoe provides the ARB with reason to suspect that the Power Series Intake
   System will affect the durability of emission control systems, CorkSport LLC shall be
  ‘required to submit durability data to show that the durability of vehicle emission control
   systems are not; in fact, affected and/or that the add—on or modified part demonstrates
   adequate durability.

 _ The ARB reserves the rlghtin the future to review this Executlve Order and the
   exemption provided herein to assure that the exempted add—on or modified part
   continues to meet the standards and procedures of Title 13, California Code of
   Regulations, Section 2222, et seq..

                  CORKSPCRT LLC — POWER SERIES INTAKE SYSTEM — D—683—2


THIS EXECUTIVE ORDER DOES NOT CONSTITUTE A CERTIFICATION,
ACCREDITATION, APPROVAL, OR ANY OTHER TYPE OF ENDORSEMENT BY THE
AIR RESOURCES BOARD OF ANY CLAIMS OF THE APPLICANT CONCERNING _
ANTI—POLLUTION BENEFITS OR ANY ALLEGED BENEFITS OF CORKSPORT LLe‘s
POWER SERIES INTAKE SYSTEM.

No blaim of any kind, such as "Approved by the Air Resources Board", may be made
with respect to the action taken herein in any advertising or other oral or written
communication.                                              .

Violation of any of the above conditions shall be grounds for revocation of this order.
 The order may be revoked only after a ten—day written notige of intention to revoke the
 order, in which period the holder of the order may request in writing a hearing to contest
 the proposed revocation. If a hearing is requested, it shall be.held within ten days of
‘receiptof the request and the order may not be revoked until a determination is made
after the hearing that grounds for revooatlon exist.

Executed at El Monte, California, this       /_’&‘&’day of April 2013.




                                     ASPurorves
                                Annette Hebert, Chief
                                  Obile Source Operations Division




                CORKSPORT LLC — POWER SERIES INTAKE SYSTEM — D—683—2



Document Created: 2013-05-16 16:28:32
Document Modified: 2013-05-16 16:28:32
