Approval Details

Valid E.O.

Validity

This Executive Order approved the specified parts on on March 28, 2011.
As of Saturday, December 28th, 2024 this Executive Order has not been overturned or superceeded.

Approved Parts

ModelsRemarks
2005 to 2010 model year Chrysler/Dodge Challenger, Charger, 300C, and Magnum equipped with either a 5.7L or 6.1L V8 engine, excluding those with the following engine test groups: ACRXV05.7UP0, 9CRXV05.7UP0, 8CRXV05.7MD0, 7CRXV05.7MD1, 7CRXV05.7MD3, and 6CRXV05.7MD1.The SMS 296 Supercharger Kit consists of the following main components: A SMS 296 twin screw supercharger with a 90 mm diameter pulley, intake manifold, Chrysler MAP sensor with extended range, bypass valve, high flow injectors, intercooler, reflashed ECM, Intake Air Temperature Sensor (6.1L only), and a new air cleaner housing with an open element style filter. Boost is limited to 6 pounds per square inch. The crankshaft pulley is replaced with a new 165 mm diameter pulley. Installation would not require any modification to the stock coolant thermostat. Installation of the supercharger kit requires the rerouting and replacement of the positive crankcase ventilation hose; the new hose has a SAE30R7 rating. All supplied fuel hoses are AvonÔÇÖs CADbar 9000 series or metal, and fuel and vapor line connectors supplied with the kit are OEM ÔÇô equivalent parts.

This Executive Order may be listed as:
  • C.A.R.B.E.O. D-686
  • Executive Order 686 / D686
  • ARB # D-686
  • Executive Order No: D-686
  • C.A.R.B. No. D-686
  • Resolution D-686
For Free CARB Executive Order Status verification, email an image of the device Executive Order label as well as the Year/Make/Model and Test Group # of the vehicle to [email protected]

Download: Executive Order D-686 PDF

D-686 Document:


CARB_D-686

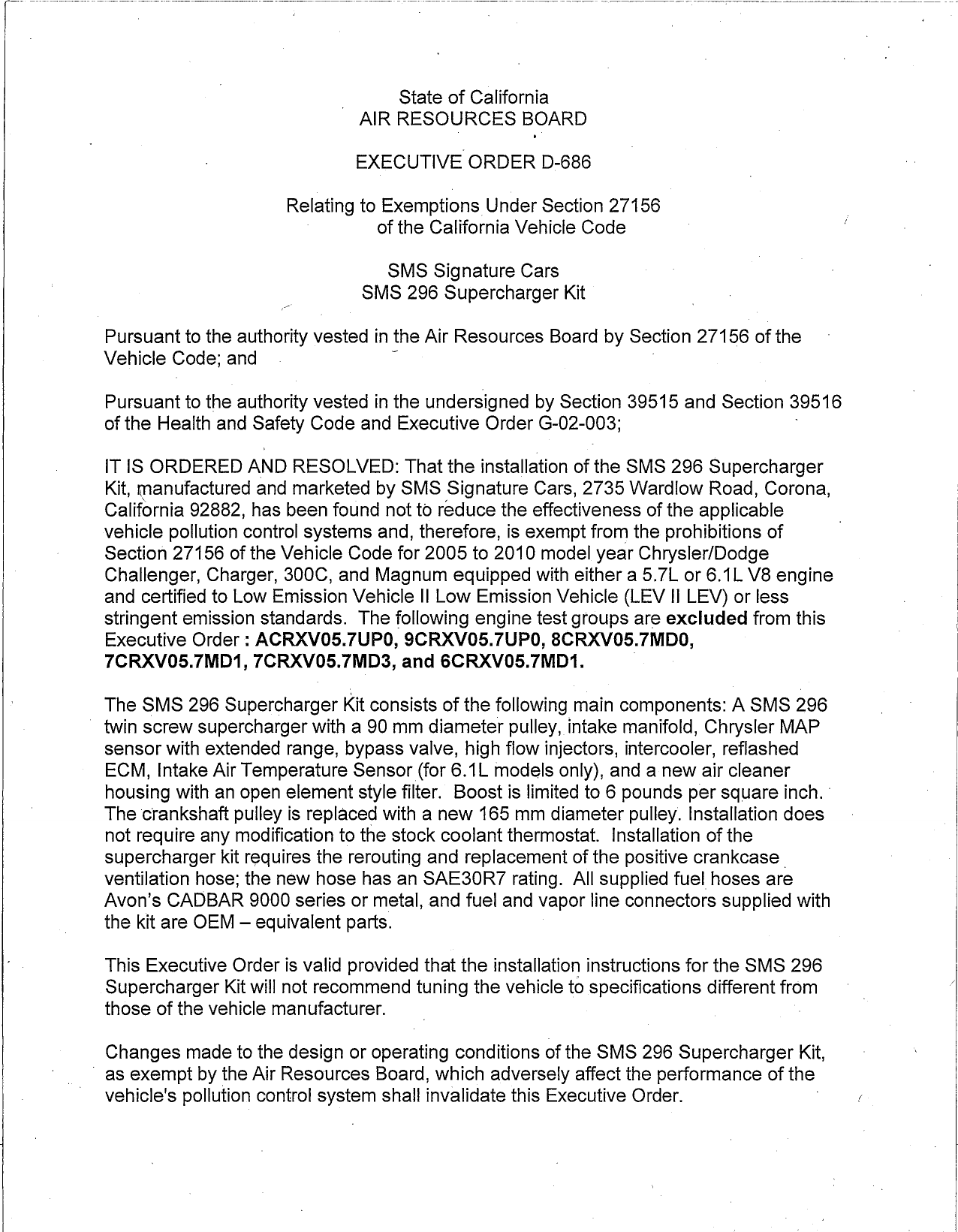

                              .       State of California
                                  AIR RESOURCES BOARD

                                  EXECUTIVE ORDER D—686

                       Relating to ExemptibnsUnder Section 27156
                                   of the California Vehicle Code

                                    SMS Signature Cars
                       _          SMS 296 Supercharger Kit

 Pursuant to the authority VestedIn the Air Resources Board by Sec:tlon 27156 of the
 Vehicle Code and

 Pursuant to the authority vested in the undersngned by Section 39515 and Section 39516
 of the Health and Safety Code and Executive Order G—02—003

 IT IS ORDERED AND RESOLVED: That the installation of the SMS 296 Supercharger
 Kit, manufactured and marketed by SMS Signature Cars, 2735 Wardlow Road, Corona,
 California 92882, has been found not to reduce the effectiveness of the apphcable
 vehicle pollution control systems and, therefore, is exempt from the prohibitions of
 Section 27156 of the Vehicle Code for 2005 to 2010 model year Chrysler/Dodge
 Challenger, Charger, 300C, and Magnum equipped with either a 5.7L or 6.1L V8 engine
 and certified to Low Emission Vehicle II Low Emission Vehicle (LEV II LEV) or less
 stringent emission standards. The following engine test groups are excluded from this
 Executive Order : ACRXVO5.7UPO, SCRXVO5.7UPO, 8CRXVO5.7MD0O,
 7CRXVO5.7MD1, 7CRXVO5.7MD3, and 6CRXVO5.7MD1.                      |

  The SMS 296 Supercharger Kit consists of the following main components: A SMS 296
_ twin screw supercharger with a 90 mm diameter pulley, intake manifold, Chrysler MAP
  sensor with extended range, bypass valve, high flow injectors, intercooler, reflashed
  ECM, Intake Air Temperature Sensor (for 6.1L models only), and a new air cleaner
  housing with an open element style filter. Boost is limited to 6 pounds per square inch.
  The crankshaft pulley is replaced with a new 165 mm diameter pulley. Installation does
  not require any modification to the stock coolant thermostat. Installation of the
  supercharger kit requires the rerouting and replacement of the positive crankcase
  ventilation hose; the new hose has an SAE30RT7 rating. All supplied fuel hoses are
  Avon‘s CADBAR 9000 series or metal, and fuel and vapor line connectors supplied with
  the kit are OEM — equivalent parts.

 This Executive Order is valid provided that the installation instructions for the SMS 296
 Supercharger Kit will not recommend tuning the vehicle to specifications different from
 those of the vehicle manufacturer.                                                     -

 Changes made to the design or operating conditions of the SMS 296 Supercharger Kit,
~\ as exempt by the Air Resources Board, which adversely affect the performance of the
   vehicle‘s pollutlon control system shall invalidate this Executive Order.


                                                —2.



This Executive Order shall not apply to any SMS 296 Supercharger Kit advertised, offered for
sale, sold with, or installed on a new motor vehicle prior to or concurrent with transfer to an
ultimate purchaser.

Marketing of the SMS 296 Supercharger Kit using any identification other than that shown in
this Executive Order or marketing of the SMS 296 Supercharger Kit for an application other
than those listed in this Executive Order shall be prohibited unless prior approval is obtained
from the Air Resources Board.

This Executive Order does not constitute any opinion as to the effect the use of the
SMS 296 Supercharger Kit may have on any warranty either expressed or implied by the
vehicle manufacturer.

This Executive Order is granted based on submitted emission and OBD II system test data
generated on a 2009 model year 5.7L Dodge Challenger (test group 9CRXVO5.71PO)
modified with the SMS 296 Supercharger Kit.

The Air Resources Board reserves the right in the future to review this Executive Order and the
exemption provided herein to assure that the exempted add—on or modified part continues to
meet the standards and procedures of Title 13, California Code of Regulations, Section 2222,
et seq.

THIS EXECUTIVE ORDER DOES NOT CONSTITUTE A CERTIFICATION,
ACCREDITATION, APPROVAL, OR ANY OTHER TYPE OF ENDORSEMENT BY THE AIR
RESOURCES BOARD OF ANY CLAIMS OF THE APPLICANT CONCERNING
ANTI—POLLUTION BENEFITS OR ANY ALLEGED BENEFITS OF THE SMS 296
SUPERCHARGER KIT.                                         |

No claim of any kind, such as "Approved by the Air Resources Board", may be made with
respect to the action taken herein in any advertising or other oral or written communication.

Violation of any of the above conditions shall be grounds for revocation of this order. The
order may be revoked only after a ten—day written notice of intention to revoke the order, in
which period the holder of the order may request in writing a hearing to contest the proposed
revocation. If a hearing is requested, it shall be held within ten days of receipt of the request
and the order may not be revoked until a determination is made after the hearing that grounds
for revocation exist.

Executed at El Monte, California, this     Z 8        day of March 2011.




                                     Mobile Source Operations Division



             SMS SIGNATURE CARS — SMS 296 SUPERCHARGER KIT — D—686


                                     EVALUATION SUMMARY

_ Manufacturer Name: SMS Signature Cars

   Nameof Device: SM}S 296 Supercharger Kit

   Background:
           SMS Signature Cars of 2735 Wardlow Road, Corona, California 92882, has applied for
   an exemption from the prohibitions in Section 27156 of the California Vehicle Code (VC) for
   the SMS 296 Supercharger Kit designed for 2005 to 2010 model year Chrysler/Dodge
   Chalienger, Charger, 300C, and Magnum equipped with either a 5.7L or 6.1L V8 engine, and
   certified to Low Emission Vehicle II Low Emission Vehicle (LEV II LEV) or less stringent
   emission standards. The following engine test groups are excluded from this application:
 . ACRXVO5.7UPO, SCRXVO5.7UPO, 8CRXVO5.7MD0, 7CRXVO5.7MD1, 7CRXV057TMD3, and
   6CRXVO5.7MD1.

   Recommendation:
          Grant exemptlon to SMS Signature Cars as requested, and issue Executive Order
   D—686.                                                       .

   Device Description:
          The SMS 296 Supercharger Kit consists of the following main components: A SMS 296
   twin screw supercharger with a 90 mm diameter pulley, intake manifold, Chrysler MAP sensor
   with extended range to 2 Bar, bypass valve, high flow injectors, intercooler, reflashed ECM,
   and a new air cleaner housing with an open element style filter. For the 6.1L models, the —
   Intake Air Charge Temperature (IAT) Sensor is replaced with the OEM sensor used in the 5.7L
   engineto allow the same casting to mount the IAT sensor for both 6.1L and 5.7L models.
   Boost is limited to 6 pounds per square inch. The crankshaft pulley is replaced with a new
   165 mm diameter pulley. Installation does not require any modification to the stock coolant
   thermostat. Installation of the supercharger kit requires the rerouting and replacement of the
   positive crankcase ventilation hose; the new hose has a SAE30RT rating. All supplied fuel
   hoses are Avon‘s CADBAR 9000 series or metal,; and fuel and vapor line connectors supplied
   with the kit are OEM — equivalent parts.

  — Discussion/Basis for the Recommendation:
           To demonstrate the emissions impact of the SMS 296 Supercharger Kit, SMS Signature
    Cars conducted emissions testing on a 2009 model year 5.7L Dodge Challenger (test group
    9CRXVO5.71PO) modified with the SMS 296 Supercharger Kit. Testing was conducted at
    California Environmental Engineering (CEE), located in Santa Ana, California; and consisted of
    two Cold—Start CVS—75 Federal Test Procedure (FTP), one Supplemental Federal Test
    Procedure (SFTP) test cycle and an examination of the OBD II system. Test results showed
    that the emission levels, with the supercharger kit installed, met the applicable emission
    standards and the supercharger kit did not affect OBD II system operation. . Results of testlng
   conducted at CEE are shown below (in grams per mile).

   California Environmental Engineering*'

                                     CVS—75 FTP                        SFTP USO6/SCO3
                             NMOG     CO NOx        HCHO.         NMHC+NOx        CO
       Standards, 5OK        0.075    3.4 ~0.05     0.015          ©0.14/0.20     8.0/2.7
       Device Test 1         0.066    1.8 0.01      0.001           0.09/0.13  _ 1.4/1.3
       Device Test 2         0.052    1.3 0.03      0.001                  v    .
       Average w/idf        —0.064    1.6 0.03      0.002


                                             2.

Confirmatory testing was done at ARB‘s Haagen—Smit Laboratory. Results are shown below
(in grams per mile).
                                   CVS—75 FTP
                          NMOG     CO NOx HCHO
    Standards, 50K        0.075    3.4 0.05 0.015
    Device Test 1         0.124    1.8    0.04    0.002
    Device Test 2         0.071    1.6    0.04    0.002
    Device Test 3         0.078    1.8    0.06    0.002
    Device Test 4         0.099    2.7    0.08    0.002
    Average               0.093    2.0    0.06    0.001

Emissions data generated during confirmatory testing showed wide deviations in NMOG, CO,
and NOx values. Staff cannot ascertain if the wide range of emissions data were due to
driving inconsistencies with the vehicle‘s six—speed manual transmission, unstable emission
characteristic of the modified vehicle or laboratory equipment calibration. To reduce testing
time, staff informed SMS Signature Cars that it may conduct testing at a different
independent emissions laboratory in lieu of confirmatory testing at ARB. Hence, additional
data was submitted by SMS Signature Cars from testing performed at Quantum
Technologies, located in Lake Forest, California. Results are shown below (in grams per
mile).

Quantum Technologies*
                                         FTP                    SFTP USO6
                          NMOG     CO     NOx     HCHO        NMHC+NOx         CO
    Standards, 5OK        0.075    3.4    0.05    0.015           0.14         8.0
    Device w/df           0.075    1.4    0.03    0.001           0.10         1.2

The emission test results in the modified configuration at Quantum were either at or
below the applicable certification standards. Examination of the OBD II system showed
the SMS 296 Supercharger Kit did not affect OBD II system operation. A similar effect on
vehicle emissions and OBD II monitoring is expected with the installation of the SMS 296
Supercharger Kit on the other vehicles listed in this Executive Order.

SMS Signature Cars‘s SMS 296 Supercharger Kit meets the criteria for exempting general
criteria parts for those vehicles listed in the Executive Order.

At CEE: NMOG and HCHO were calculated using the following conversion factors:
NMOG/NMHC=1.04 and HCHO/NMHC= 0.02.. Measured values were, NMHC 0.063, 0.050,
CO 1.746, 1.336, NOx 0.012, 0.027. 50K additive deterioration factors (dfs) used were
NMOG 0.0052, CO 0.10, NOx 0.007, and HCHO 0.0. Vehicle test weight and horsepower
target coefficients were, 4500 Ibs. and 44.35, 0.4781, 0.02005 respectively. Max Boost
measured at 5.41 psi.

At Quantum: NMOG and HCHO were calculated using the following conversion factors:
NMOG/NMHC=1.04 and HCHO/NMHC= 0.02.. Measured values were, NMHC 0.067, CO
1.33, NOx 0.022. 50K additive deterioration factors (dfs) used were NMOG 0.0052, CO 0.10,
NOx 0.007, and HCHO 0.0. Vehicle test weight and horsepower target coefficients were,
4500 lbs. and 44.35, 0.4781, 0.02005 respectively. Max Boost measured at 5.8 psi.

* California Environmental Engineering uses a CVS measurement system which requires two
CVS—75 FTP tests to show emissions consistency on very low emitting vehicles. Quantum
Technologies uses a Bag Mini Diluter (BMD) measurement system, designed to address the
testing of Low Emission Vehicle II (LEV I1) emissions by using a smaller dilution ratio
compared to a CVS system. The BMD bag concentrations are higher for a more precise
measurement on emissions on low emitting LEV II vehicles.
