Approval Details

Valid E.O.

Validity

This Executive Order approved the specified parts on on June 26, 2017.
As of Friday, October 4th, 2024 this Executive Order has not been overturned or superceeded.

Approved Parts

Part Number
see pdf

This Executive Order may be listed as:
  • C.A.R.B.E.O. D-691-2
  • Executive Order 691-2 / D691-2
  • ARB # D-691-2
  • Executive Order No: D-691-2
  • C.A.R.B. No. D-691-2
  • Resolution D-691-2
For Free CARB Executive Order Status verification, email an image of the device Executive Order label as well as the Year/Make/Model and Test Group # of the vehicle to [email protected]

Download: Executive Order D-691-2 PDF

D-691-2 Document:


CARB_D-691-2

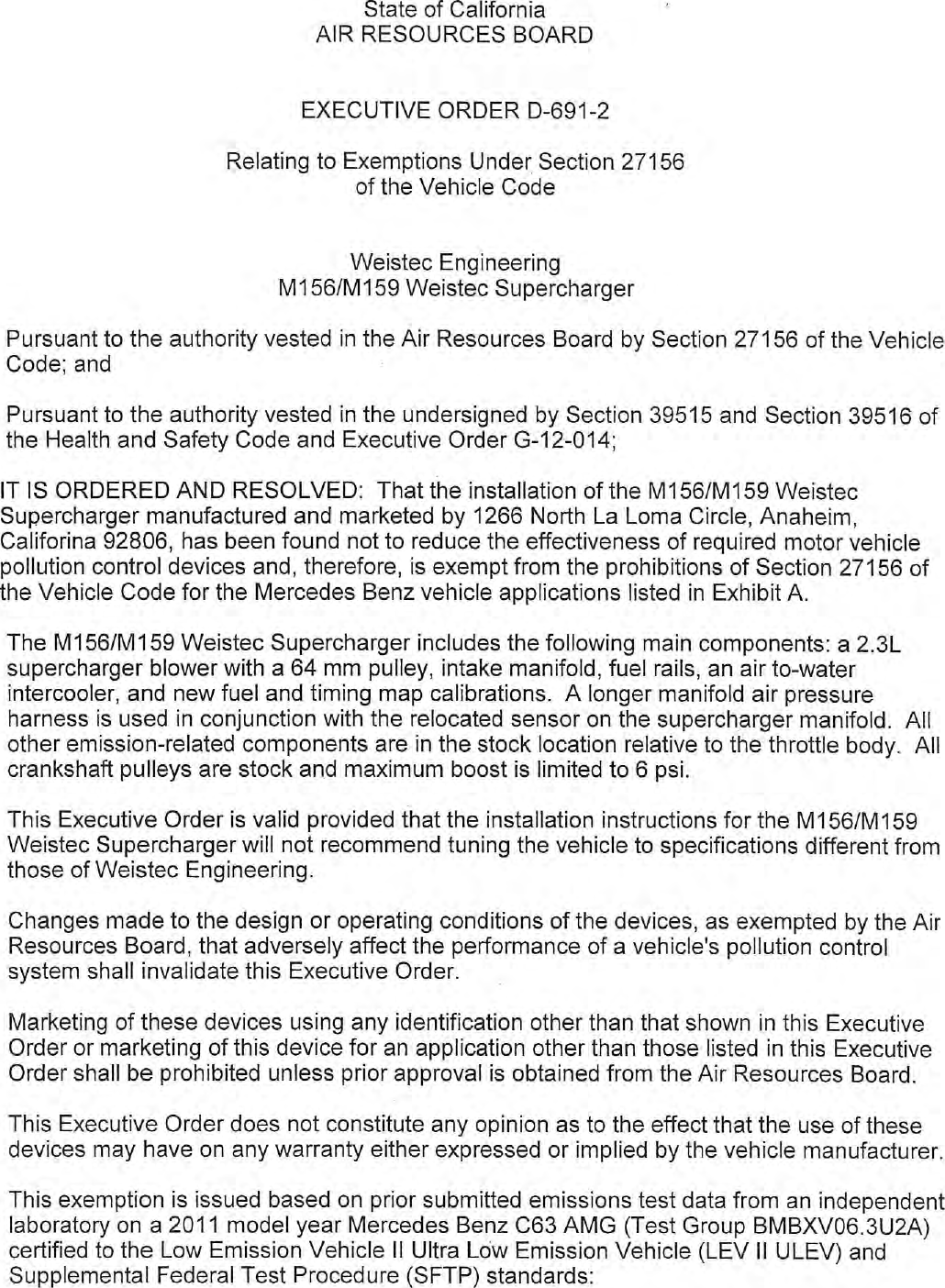

                                   State of California
                               AIR RESOURCES BOARD


                              EXECUTIVE ORDER D—691—2

                      Relating to Exemptions Under Section 27156
                                   of the Vehicle Code


                                Weistec Engineering
                           M156/M159 Weistec Supercharger

Pursuant to the authority vested in the Air Resources Board by Section 27156 of the Vehicle
Code; and

Pursuant to the authority vested in the undersigned by Section 39515 and Section 39516 of
the Health and Safety Code and Executive Order G—12—014;

IT IS ORDERED AND RESOLVED: That the installation of the M156/M159 Weistec
Supercharger manufactured and marketed by 1266 North La Loma Circle, Anaheim,
Califorina 92806, has been found not to reduce the effectiveness of required motor vehicle
pollution control devices and, therefore, is exempt from the prohibitions of Section 27156 of
the Vehicle Code for the Mercedes Benz vehicle applications listed in Exhibit A.

The M156/M159 Weistec Supercharger includes the following main components: a 2.3L
supercharger blower with a 64 mm pulley, intake manifold, fuel rails, an air to—water
intercooler, and new fuel and timing map calibrations. A longer manifold air pressure
harness is used in conjunction with the relocated sensor on the supercharger manifold. All
other emission—related components are in the stock location relative to the throttle body. All
crankshaft pulleys are stock and maximum boost is limited to 6 psi.

This Executive Orderis valid provided that the installation instructions for the M156/M159
Weistec Supercharger will not recommend tuning the vehicle to specifications different from
those of Weistec Engineering.

Changes made to the design or operating conditions of the devices, as exempted by the Air
Resources Board, that adversely affect the performance of a vehicle‘s pollution control
system shall invalidate this Executive Order.

Marketing of these devices using any identification other than that shown in this Executive
Order or marketing of this device for an application other than those listed in this Executive
Order shall be prohibited unless prior approval is obtained from the Air Resources Board.

This Executive Order does not constitute any opinion as to the effect that the use of these
devices may have on any warranty either expressed or implied by the vehicle manufacturer.

This exemption is issued based on prior submitted emissions test data from an independent
laboratory on a 2011 model year Mercedes Benz C63 AMG (Test Group BMBXVO6.3U2A)
certified to the Low Emission Vehicle II Ultra Low Emission Vehicle (LEV II ULEV) and
Supplemental Federal Test Procedure (SFTP) standards:


Federal Test Procedure:

                                                 NMOG         co        NOX      HCHO
Standards (g/mi)                                 0.055        2.1       0.07      11
Device (g/mi) with df‘s applied                  0.027        0.5       0.02       1

SFTP (USO6 Cycle):

                                                 NMHC+NOX             co
Standards (g/mi)                                    0.14              8.0
Device (g/mi)                                       0.02              1.8

SFTP (SC03 Alternative AC2 Cycle):

                                                 NMHC+NOX             Co
Standards (g/mi)                                    0.20              2.7
Device (g/mi)                                       0.04              0.4

Test results showed that the M156/M159 Weistec Supercharger when installed on the
vehicle did not cause exhaust emissions to exceed the applicable emission standards during
the Cold—Start Federal Test Procedure. This Executive Order is also based on On—Board
Diagnostic II (OBD II) testing conducted the same test vehicle. The M156/M159 Weistec
Supercharger when installed on this test vehicle did not affect the vehicle‘s ability to perform
its OBD II monitoring.

The Air Resources Board reserves the right in the future to review this Executive Order and
the exemption provided herein to assure that the exempted add—on or modified part
continues to meet the standards and procedures of Title 13, California Code of Regulations,
Section 2222, et seq.

THIS EXECUTIVE ORDER DOES NOT CONSTITUTE A CERTIFICATION,
ACCREDITATION, APPROVAL, OR ANY OTHER TYPE OF ENDORSEMENT BY THE AIR
RESOURCES BOARD OF ANY CLAIMS OF THE APPLICANT CONCERNING
ANTI—POLLUTION BENEFITS OR ANY ALLEGED BENEFITS OF THE M156/M159
WEISTEC SUPERCHARGER.

No claims of any kind, such as "Approved by the Air Resources Board" may be made with
respect to the action taken herein in any advertising or other oral or written communication.

Violation of any of the above conditions shall be grounds for revocation of this order. The
order may be revoked only after a ten day written notice of intention to revoke the order, in
which period the holder of the order may request in writing a hearing to contest the proposed
revocation. If a hearing is requested, it shall be held within ten days of receipt of the request
and the order may not be revoked until a determination is made after the hearing that
grounds for revocation exist.

Executed at El Monte, California, this Zé day of June 2017.




                     Emissions Compliance, Automotive Regulations and Science Division


                   WEISTEC ENGINEERING — WEISTEC SUPERCHARGER — D—691—2


                                         Exhibit A




     Part #            Make           Model      Engine Desc.      MY          Em. Cat.


| 01—000—00052—8   Mercedes— Benz   C 63 AMG     6.2 NA Gas     2015—2011    PC LEV2 ULEV
 01—000—00052—8    Mercedes— Benz    SLS AMG     6.2 NA Gas     2015—2011    PC LEV2 ULEV
 01—000—00052—8    Mercedes—Benz    SL63AMG      6.2 NA Gas     2012—2011    PC LEV2 ULEV
 01—000—00052—8    Mercedes— Benz    E63 AMG     6.2 NA Gas       2011       PC LEV2 ULEV
 01—000—00052—8    Mercedes—Benz    SL63AMG      6.2 NA Gas     2010—2009    PCLEV2LEV
 01—000—00052—8    Mercedes— Benz   C 63 AMG     6.2 NA Gas     2010—2008    PC LEV2 LEV
 01—000—00052—8    Mercedes—Benz    CL63 AMG     6.2 NA Gas     |2010—2008   PCLEV2 LEV
 01—000—00052—8    Mercedes— Benz   CLS 63 AMG   6.2 NA Gas     2010—2008    PCLEV2 LEV
 01—000—00052—8    Mercedes— Benz   5S 63 AMG    6.2 NAGas      2010—2008    PCLEV2 LEV
 01—000—00052—8    Mercedes— Benz    E63 AMG     6.2 NA Gas     2010—2007    PCLEV2 LEV
 01—000—00052—8    Mercedes— Benz   MLG3AMG      6.2 NAGas      2010—2007    PCLEV2 LEV
 01—000—00052—8    Mercedes— Benz   CLK 63 AMG   6.2 NA Gas     2009—2007    PC LEV2 LEV
 01—000—00052—8    Mercedes— Benz   R 63 AMG     6.2 NA Gas     2008—2007    PCLEV2 LEV




              WEISTEC ENGINEERING — WEISTEC SUPERCHARGER — D—691—2





Document Created: 2017-07-18 08:41:13
Document Modified: 2017-07-18 08:41:13
