Approval Details

Valid E.O.

Validity

This Executive Order approved the specified parts on on June 29, 2016.
As of Sunday, August 25th, 2019 this Executive Order has not been overturned or superceeded.

Approved Parts

Part Number
See PDF

This Executive Order may be listed as:
  • C.A.R.B.E.O. D-695-1
  • Executive Order 695-1 / D695-1
  • ARB # D-695-1
  • Executive Order No: D-695-1
  • C.A.R.B. No. D-695-1
  • Resolution D-695-1
For Free CARB Executive Order Status verification, email an image of the device Executive Order label as well as the Year/Make/Model and Test Group # of the vehicle to [email protected]

Download: Executive Order D-695-1 PDF

D-695-1 Document:

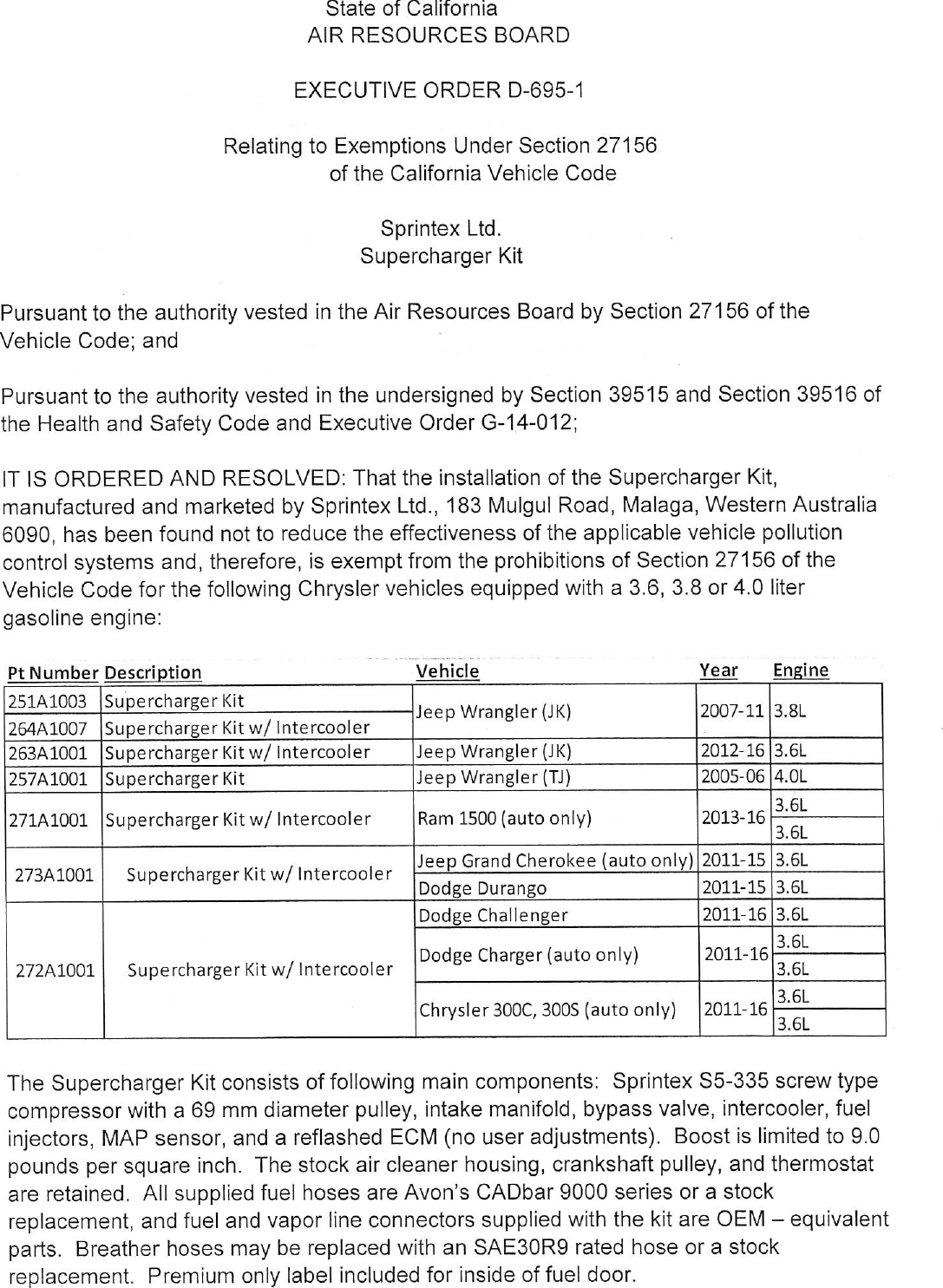

                                      State of California
                                    AIR RESOURCES BOARD

                                   EXECUTIVE ORDER D—695—1

                          Relating to Exemptions Under Section 27156
                                     of the California Vehicle Code

                                               Sprintex Ltd.
                                           Supercharger Kit

Pursuant to the authority vested in the Air Resources Board by Section 27156 of the
Vehicle Code; and

Pursuant to the authority vested in the undersigned by Section 39515 and Section 39516 of
the Health and Safety Code and Executive Order G—14—012;

IT IS ORDERED AND RESOLVED: That the installation of the Supercharger Kit,
manufactured and marketed by Sprintex Ltd., 183 Mulgul Road, Malaga, Western Australia
6090, has been found not to reduce the effectiveness of the applicable vehicle pollution
control systems and, therefore, is exempt from the prohibitions of Section 27156 of the
Vehicle Code for the following Chrysler vehicles equipped with a 3.6, 3.8 or 4.0 liter
gasoline engine:

PtNumber Description                              Vehicle                           Year      Engine

2BiAIDDs leupercharget EL                         Jeep Wrangler (JK)                2007—11|3.8L
264A1007    |Supercharger Kit w/ Intercooler
263A1001    |Supercharger Kit w/ Intercooler      Jeep Wrangler (JK)                2012—16 |3.6L
257A1001    |Supercharger Kit                     Jeep Wrangler (TJ)                2005—06 }4.0L
                                                                                              3.
2711001     |Supercharger Kit w/ Intercooler      Ram 1500 (auto only)              2013—16 § g::

                                                                                    2011—15|3.
 273A1001     Supercharger Kit w/ Intercooler     feap Rrand Charokes {suto.only] 20      29.
                                                  Dodge Durango                   2011—15|3.6L
                                                  Dodge Challenger                  2011—16 |3.6L
                                                                                              3.6L
                                                  Dodge  Ch            uto onl      2011—16
 272A1001     Supercharger Kit w/ Intercooler       adge    thaiger (s         v)             3.6L

                                                  Chrysler 300C, 3005 (auto only)   |2011—16 22t


The Supercharger Kit consists of following main components: Sprintex $5—335 screw type
compressor with a 69 mm diameter pulley, intake manifold, bypass valve, intercooler, fuel
injectors, MAP sensor, and a reflashed ECM (no user adjustments). Boost is limited to 9.0
pounds per square inch. The stock air cleaner housing, crankshaft pulley, and thermostat
are retained. All supplied fuel hoses are Avon‘s CADbar 9000 series or a stock
replacement, and fuel and vapor line connectors supplied with the kit are OEM — equivalent
parts. Breather hoses may be replaced with an SAE30RY rated hose or a stock
replacement. Premium only label included for inside of fuel door.


This Executive Order is valid provided that the installation instructions for the Supercharger
Kit will not recommend tuning the vehicle to specifications different from those of Sprintex
Ltd.

Changes made to the design or operating conditions of the Supercharger Kit, as exempt by
the Air Resources Board, which adversely affect the performance of the vehicle‘s pollution
control system shall invalidate this Executive Order.

This exemption is issued based on submitted emissions test data, from the SEMA Garage,
Diamond Bar, California, on a 2015 model year Jeep Wrangler, certified to the
LEV II ULEV emission standards and tested using the Cold—Start CVS—75 Federal Test
Procedure (FTP) test cycle and the Supplemental Federal Test Procedure
(SFTP USO6/SC03 (AC2 test + 20%)) test cycle.

                                        CVS—75 FTP
                                  NMOG     CO    NOx               HCHO
Standards, UL                     0.070    2.1   0.040             0.011
Device Test                       0.046    1.2   0.036             0.002
(w/ df applied,
2 test avg)
                                         USO6/SCO3
                               NMHC+NOx          CO
Standards 4k                     0.14/0.20       8.0/2.7
Device                           0.12/0.04       6.3/2.0

Test results showed that the Supercharger Kit when installed on the vehicle did not cause
exhaust emissions to exceed the applicable emission standards during the FTP and SFTP.
This Executive Order is also based on the On—Board Diagnostic II (OBD II) testing
conducted on the same test vehicle. The Supercharger Kit when installed on the test
vehicle did not affect the vehicle‘s ability to perform its OBD II monitoring.

The Air Resources Board reserves the right in the future to review this Executive Order and
the exemption provided herein to assure that the exempted add—on or modified part
continues to meet the standards and procedures of Title 13, California Code of
Regulations, Section 2222, et seq.

THIS EXECUTIVE ORDER DOES NOT CONSTITUTE A CERTIFICATION,
ACCREDITATION, APPROVAL, OR ANY OTHER TYPE OF ENDORSEMENT BY THE
AIR RESOURCES BOARD OF ANY CLAIMS OF THE APPLICANT CONCERNING
ANTI—POLLUTION BENEFITS OR ANY ALLEGED BENEFITS OF THE
SUPERCHARGER KIT.


              SPRINTEX LTD. — SUPERCHARGER KIT — D—695—1


No claim of any kind, such as "Approved by the Air Resources Board", may be made with
respect to the action taken herein in any advertising or other oral or written communication.

Violation of any of the above conditions shall be grounds for revocation of this order. The
order may be revoked only after a ten—day written notice of intention to revoke the order, in
which period the holder of the order may request in writing a hearing to contest the
proposed revocation. If a hearing is requested, it shall be held within ten days of receipt of
the request and the order may not be revoked until a determination is made after the
hearing that grounds for revocation exist.

Executed at El Monte, California, this !__"_
                                        297‘( day of June 2016.



              7%
               Annette Hebert, Chief
               m|ssuons Compliance, Automotive Regulations and Science Division




                    SPRINTEX LTD. — SUPERCHARGER KIT — D—695—1
