Approval Details

Valid E.O.

Validity

This Executive Order approved the specified parts on on November 21, 2013.
As of Monday, August 19th, 2019 this Executive Order has not been overturned or superceeded.

Approved Parts

Part Number
see pdf

This Executive Order may be listed as:
  • C.A.R.B.E.O. D-700-3
  • Executive Order 700-3 / D700-3
  • ARB # D-700-3
  • Executive Order No: D-700-3
  • C.A.R.B. No. D-700-3
  • Resolution D-700-3
For Free CARB Executive Order Status verification, email an image of the device Executive Order label as well as the Year/Make/Model and Test Group # of the vehicle to [email protected]

Download: Executive Order D-700-3 PDF

D-700-3 Document:

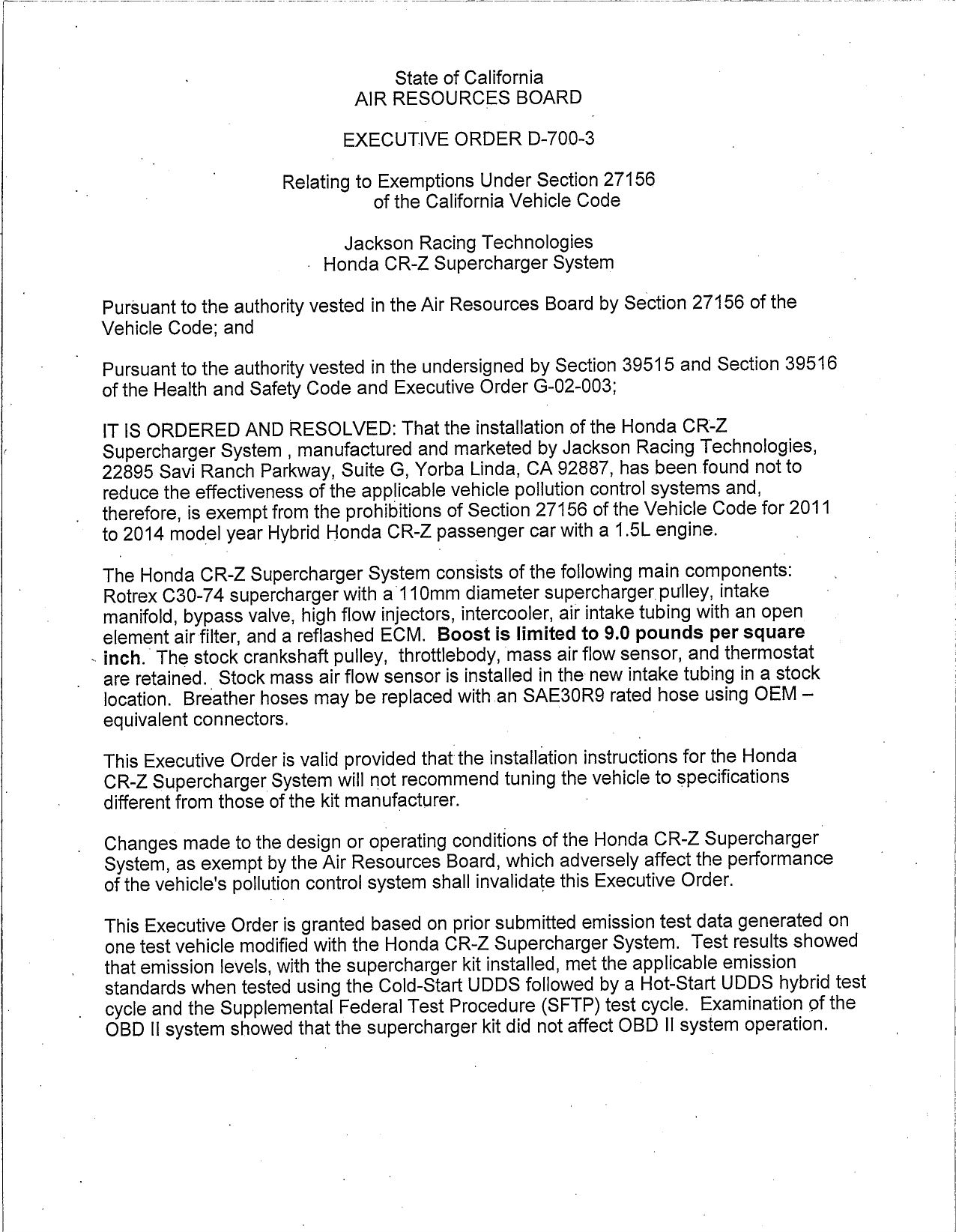

                                      State of California
                                  AIR RESOURCES BOARD

                                EXECUTIVE ORDER D—700—3
                          Relating to Exemptions Under Section 27156
                                     of the California Vehicle Code

                                Jackson Racing Technologies
                            — Honda CR—Z Supercharger System

 Pursuant to the authority vested in the Air Resources Board by Section 27156 of the
 Vehicle Code; and

 Pursuant to the authority vested in the undersigned by Section 39515 and Section 39516
 of the Health and Safety Code and Executive Order G—02—003;

 IT IS ORDERED AND RESOLVED: That the installation of the Honda CR—Z
 Supercharger System , manufactured and marketed by Jackson Racing Technologies,
 22895 Savi Ranch Parkway, Suite G, Yorba Linda, CA 92887, has been found not to
 reduce the effectiveness of the applicable vehicle pollution control systems and,
 therefore, is exempt from the prohibitions of Section 27156 of the Vehicle Code for 2011
 to 2014 model year Hybrid Honda CR—Z passenger car with a 1.5L engine.

  The Honda CR—Z Supercharger System consists of the following main components:
  Rotrex C€30—74 supercharger with a 110mm diameter superchargerpulley, intake
  manifold, bypass valve, high flow injectors, intercooler, air intake tubing with an open
  element air filter, and a reflashed ECM. Boost is limited to 9.0 pounds per square
~ Inch. The stock crankshaft pulley, throttlebody, mass air flow sensor, and thermostat
 are retained. Stock mass air flow sensor is installed in the new intake tubmg in a stock
 location. Breather hoses may be replaced with an SAE30R9 rated hose using OEM —
 equivalent connectors.

 This Executive Order is valid provided thatthe installation instructions for the Honda
 CR—Z Supercharger System will not recommend tuning the vehicle to specifications
 different from those of the kit manufacturer.

 Changes made to the design or operating conditions of the Honda CR—Z Supercharger'
 System, as exempt by the Air Resources Board, which adversely affect the performance
 of the vehicle‘s pollution control system shall invalidate this Executive Order.

 This Executive Order is granted based on prior submitted emission test data generated on
 one test vehicle modified with the Honda CR—Z Supercharger System. Test results showed
 that emission levels, with the supercharger kit installed, met the applicable emission
 standards when tested using the Cold—Start UDDS followed by a Hot—Start UDDS hybrid test
 cycle and the Supplemental Federal Test Procedure (SFTP) test cycle. Examination of the
 OBD II system showed that the supercharger kit did not affect OBD II system operation.


 Results from emissions testing conducted at Quantum Technologies, Lake Forest,
 California are listed below with deterioration factors applied.

2011 model year CRZ Hybrid                  CVS—75 FTP
                                   NMOG        CO    NOx             HCHO
 Standards, UL                     0.010       1.0   0.02            0.004
 Device Test w/df         .        0.008       0.2   0.01            0.000

                                           USO6/SCO03
                                 NMHC+NOx —       ‘_CO
 Standards 4k                      0.14/0.20        8.0/2.7
 Device     '                      0.0170.01        1.4/0.3

The Air Resources Board reserves the right in the future to review this Executive Order and
the exemption provided herein to assure that the exempted add—on or modified part
continues to meet the standards and procedures of Title 13, California Code of Regulations,"
Section 2222, ét seq.

THIS EXECUTIVE ORDER DOES NOT CONSTITUTE A CERTIFICATION,
ACCREDITATION, APPROVAL, OR ANY OTHER TYPE OF ENDORSEMENT BY THE AIR
RESOURCES BOARD OF ANY CLAIMS OF THE APPLICANT CONCERNING
ANTI—POLLUTION BENEFITS OR ANY ALLEGED BENEFITS OF THE HONDA CR—Z
SUPERCHARGER SYSTEM.

 This Executive Order shall not apply to any Honda CR—Z Supercharger System advertised,
 offered for sale, sold with, or installed on a new motor vehicle prior to or concurrent with
 transfer to an ultlmate purchaser.

 Marketing of the Honda CR—Z Supercharger System using any identification other than that
 shown in this Executive Order or marketing of the Honda CR—Z Supercharger System for an
 application other than those listed in this Executive Order shall be prohrbrtedunless prior
 approval is obtainedfrom the Air Resources Board.

 No claim of any kind, such as "Approved by the Air Resources Board", may be made with
 respect to the action taken hereinin any advertising or other oral or written communication.

  Violation of any of the above conditions shall be grounds for revocation of this order. The
. order may be revoked only aftera ten—day written notice of intention to revoke the order, in
  which period the holder of the order may request in writing a hearing to contest the proposed
  revocation. If a hearing is requested, it shall be held within ten days of receipt of the request
  and the order may not be revoked untll a determination is made after the hearlng that
  grounds for revocation exist.

 Executed at El Monte, California, this      QZ & day of November 2013.




                                          rik White, Chief
                                          obile Source Operations Drvrsron

 JACKSON RACING TECHNOLOGIES—HONDA CR-Z SUPERCHARGER SYSTEM—D—700—3
