Approval Details

Valid E.O.

Validity

This Executive Order approved the specified parts on on June 6, 2013.
As of Tuesday, September 17th, 2024 this Executive Order has not been overturned or superceeded.

Approved Parts

ModelsModification
1993-1998 Cummins M11 on-road diesel enginesThe system consists of Cummins low NOx rebuild calibration, Cummins ReCon PX replacement fuel injectors, and Cummins oxidation catalyst.

This Executive Order may be listed as:
  • C.A.R.B.E.O. D-710-11
  • Executive Order 710-11 / D710-11
  • ARB # D-710-11
  • Executive Order No: D-710-11
  • C.A.R.B. No. D-710-11
  • Resolution D-710-11
For Free CARB Executive Order Status verification, email an image of the device Executive Order label as well as the Year/Make/Model and Test Group # of the vehicle to [email protected]

Download: Executive Order D-710-11 PDF

D-710-11 Document:


CARB_D-710-11

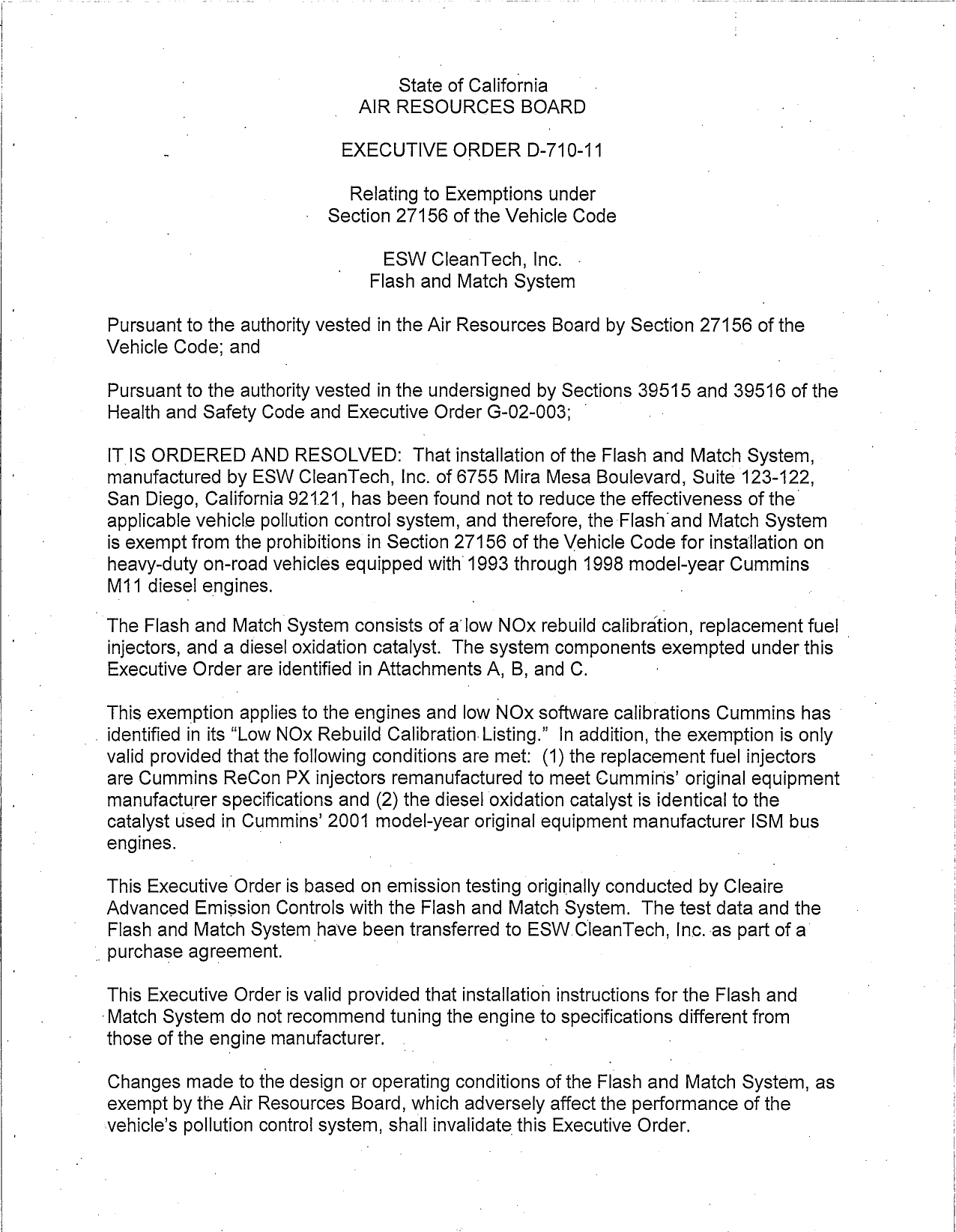

                                          State of California
                                 AlIR RESOURCES BOARD

        2o                     EXECUTIVE ORDER D—710—11

                                Relating to Exemptions under
                             Section 27156 of the Vehicle Code

                                    ESW CleanTech, Inc.
                                  Flash and Match System

 Pursuant to the authority vested in the Air Resources Board by Section 27156 of the
 Vehicle Code; and

 Pursuant to the authority vested in the undersigned by Sections 39515 and 39516 of the
 Health and Safety Code and Executive Order G—02—003; _                —

 ITIS ORDERED AND RESOLVED: That installation of the Flash and Match System,
 manufactured by ESW CleanTech, Inc. of 6755 Mira Mesa Boulevard, Suite 123—122,
 San Diego, California 92121, has been found not to reduce the effectiveness of the
 applicable vehicle pollution control system, and therefore, the Flash and Match System
 is exempt from the prohibitions in Section 27156 of the Vehicle Code for installation on
 heavy—duty on—road vehicles equipped with 1993 through 1998 model-year Cummins
 M11 dlesel engines.                                                                    .

_ The Flash and Match System consists of a‘low NOx rebuild calibra’fion replacement fuel |
  infectors, and a diesel oxidation catalyst. The system components exempted under this
  Executive Order are identified in Attachments A, B, and C.

  This exemption applies to the engines and low NOx software calibrations Cummins has —
. identified in its "Low NOx Rebuild Calibration. Listing." In addition, the exemption is only
  valid provided that the following conditions are met: (1) the replacement fuel injectors
  are Cummins ReCon PX injectors remanufactured to meet Cummins‘ original equipment
  manufacturer specifications and (2) the diesel oxidation catalyst is identical to the
  catalyst used in Cummins‘ 2001 model—year original equipment manufacturer ISM bus
  engines.

 This Executive Order is based on emission testing originally conducted by Cleaire
 Advanced Emission Controls with the Flash and Match System. The test data and the
 Flash and Match System have been transferred to ESW.CleanTech, Inc. as part of a
. purchase agreement.                 |

This Executive Order is valid provided that installation instructions for the Flash and
Match System do not recommend tuning the englneto specifications different from
 those of the englne manufacturer.                                         —

 Changes made to the design or operating conditions of the Flash and Match System, as
 exempt by the Air Resources Board, which adversely affect the performance of the
 vehicle‘s pollution control system, shall invalidate this Executive Order.


                                             2.

Marketing of the Flash and Match System using identification other than that shown in
this Executive Order or for an application other than that listed in this Executive Order
shall be prohibited unless prior approval is obtained from the Air Resources Board.

This Executive Order shall not apply to any Flash and Match System advertised, offered
for sale, sold with, or installed on an engine prior to or concurrent with transfer to an
ultimate purchaser.

This Executive Order does not constitute any opinion as to the effect the use of the
Flash and Match System may have on any warranty either expressed or implied by the
vehicle manufacturer.

No claim of any kind, such as "Approved by the Air Resources Board," may be made
with respect to the action taken herein in any advertising or other oral or written
communication.

In addition to the foregoing, the Air Resources Board reserves the right in the future to
review this Executive Order and the exemption provided herein to assure that the
exempted add—on or modified part continues to meet the standards and procedures of
California Code of Regulations, Title 13, Section 2222, et seq.

THIS EXECUTIVE ORDER DOES NOT CONSTITUTE A CERTIFICATION,
ACCREDITATION, APPROVAL, OR ANY OTHER TYPE OF ENDORSEMENT BY THE
AIR RESOURCES BOARD OF ANY CLAIMS OF THE APPLICANT CONCERNING
ANTI—POLLUTION BENEFITS OR ANY ALLEGED BENEFITS OF ESW CLEANTECH,
INC.‘S FLASH AND MATCH SYSTEM.

Violation of any of the above conditions shall be grounds for revocation of this Executive
Order. The Executive Order may be revoked only after a ten—day written notice of
intention to revoke the Executive Order, in which period the holder of the Executive
Order may request in writing a hearing to contest the proposed revocation. If a hearing
is requested, it shall be held within ten daysof receipt of the request, and the Executive
Order may not be revoked until a determination is made after a hearing that grounds for
revocation exist.

Executed at El Monte, California, this
                                            c day of June 2013.


                                    5 Erik White, Chief
                                  C%’M'obile Source Operations Division




         ESW CLEANTECH, INC. ~— FLASH AND MATCH SYSTEM — D—710—11


  ~Attachment A: Cummins Low NOx Rebuild Calibration Listing




ESW CLEANTECH, INC. — FLASH AND MATCH SYSTEM — D—710—11




                                  LOW NOx REBUILD CALIBRATION LISTING

Available From: March 1, 2000

CPL; 1855                         Engine Model: M11

ENGINE POWER INFORMATION                               ECM ELECTRONIC DATA PLATE INFORMATION
                         tb                                     Original Software Calibration {SC)                                  Low NOx
     HP          Torque (Ib—ft)     Governed Speed                     Options and Supercessions                                    SC option   Notes
    330              1250                2000                      (2798), 2818, 2834, 2009, 2050, 2124, 2205,2474, 2542              20234
    330              1250     _          1800                2787, 2797, 2817, 2833, 2888, 2095, 2049, 2125, 2286, 2475, 2543         20235
    310              1150 .              2000               2785, (2768), 2816, 2a32, oss7, 2023, 2054,2120, 2287, 2476, 2544         20236
    310              1150                1800            2785, (2795), 2815, 2831, 2886, 2922, 2086, 2053, 2130, 2288, 2477, 2545    «20237
    280              1050                2000                2784, 2794, 2814, 2830, 285, 2021, 2058, 2133, 2202, 2480, 2548          20238
    280              1050                1800 _                       2829, 2884, 2920, 2957, 2134, 2203, 2481, 2550                  202398
  280 ESP.           1050                1800                     (2792), 2883, 2028, 2061 2181, 22908, 2391, 2485, 2556              20241

CPL: 1856                         Engine Model: —M11

ENGINE POWER INFORMATION                               ECM ELECTRONIC DATA PLATE INFORMATION
                            L                                   Original Software Calibration (SC)                                  Low. NOx            .
     HP          Torque (Ib—f)      Governed Speed                   Options and Supercessions                                      SC option   Notes
    370              1350                  2000                2791, 2804, 2825, 2841, 2896, 29493, 2117, 2278, 2465, 2520            20228
    370 _            1350              .   1800             2790, 2803, 2824, 2840, 2895, 2032, 2042, 2118, 2279, 2466, 2532         20229
    350              1350                  2000                  (2802), 2823, 2830, 2804, 2045, 2119, 2280, 2469, 2535              20230
    350      :       1350                  1800             2789, 2801, 2822, 2838, 2893, 2033, 2o4d, 2120, 2281, 2470, 2537         20231
    330              1350                  2000 :                (2800), 2821, 2837, 2802, 2047, 2122, 2283, 2472, 2530              20232
    330              1350                  1800             2788, 2799, 2820, 2838, 2891, 29034, 2046, 2123, 2284, 2473, 2541        20233


CPL: 1857                         Engine Model: M1i1                    —

ENGINE POWER INFORMATION                               ECM ELECTRONIC DATA PLATE INFORMATION
                       L   —                                .Original Software Calibration (SC) Low NOx
    HP      Torque (Ib—ft)   Governed Speed                     Options and Supercessions       SCoption                                        Notes
  310 ESP            1150                  1800            2805, 2819, 2835, 2890, 2929, 2960, 2180, 2297, 2390, 2484, 2553          20240




   Cummins Engine Company, Inc.                        Page 1 Of 1                                                                  March 1, 2000 .


                                  LOW NOx REBUILD CALIBRATION LISTING

 Available From: December 1, 2000

 CPL: 2036                        Engine Model: M1i

 ENGINE POWER INFORMATION                                 ECM ELECTRONIC DATA PLATE INFORMATION
     —                                                           Original Software Calibration (SC        Low NOx
         HP      Torque {Ib—ft)         Governed Speed                 %ptions and Supercession(s    |   SC option    Notes
         330          1250                   1800                               SC 2264                   SC 20289
         330          1250                   1800                               SC 2261                  SC 20290 _
         310          1150                   2100                               SC 2266                  SC 20291
         280          1050                   2100                               SC 2268                  SC 20292
         330          1250                   2100                               SC 2262                  SC 20293
         310          1150                   1800                               SC 2265                  SC 20294
         280          1050                   1800                               SC 2267                  SC 20295

CPL: 2037                         Engine Model: M11

ENGINE POWER INFORMATION                                 ECM ELECTRONIC DATA PLATE INFORMATION
                                    .                         . Original Software Calibration (SC Low NO
         HP      Torque (Ib—ft)         Governed Speed                 gptions and Supercession(s   }    SC optiofi    Notes
         400          1450                   1800                               SC 2189                  SC 20296
         370          1350                   1800                               SC 2191                  SC 20297
         350 :        1350                   1800                               SC 2194                  SC 20298
         350          1350                   1800                               SC 2197                  SC 20299
         330 —        1350                   1800                               SC 2198                  SC 20300
         370          1450                   2100                               SC 2190                  $C 20301
         370          1350                   2100                               SC 2192                  SC 20302
         370          1350                   1800                               SC 2440                  SC 20303


CPL: 2370                         Engine Model: M1i1

ENGINE POWER INFORMATION                                 ECM ELECTRONIC DATA PLATE INFORMATION
                                                               Original Software Calibration (SC Low NOx
         HP      Torque (Ib—ft)     Governed Speed                     %ptions and Supercession(s   )    SC option    Notes
         330          1250                   1800                              SC 2601                   SC 20304
         330         1250                   1800                               SC 2598                   SC 20305
         310         1150                   2100                               SC 2603                   SC 20306
         280         1050                   1800                               SC 2605                   SC 20307
         330         1250                   2100                               SC 2599                   SC 20308
         310         1150                    1800                              SC 2602                   SC 20309
      280            1050                    1800                              SC 2604                   SC 20310
         305         1150 —                 2100                               SC 2698                   SsC 20311

CPL: 2371                         Engine Model: M11

ENGINE POWER INFORMATION                                 ECM ELECTRONIC DATA PLATE INFORMATION
                                                               Original Software Calibration (SC Low NOx
     HP          Torque (Ib—ft)    Governed Speed                 gptions and Supercession(s |   SC option            Notes
     370             1350               1800                                SC 2588              SC 20312
     350             1350               1800                                SC 2591              SC 20313
     350             1350                   1800                               SC 2594                   SC 20314
     330             1350                   1800                               SC 2595                   SC 20315
     370             1450                   1800                               SC 2587                   SC 20316
     330             1350                   2100                               SC 2589                   SC 20317
     330             1350                   2100                               SC 2596                   SC 20318
     420             1450                   2100                               SC 2620                   SC 20319
     370             1350                   1800 :                             SC 2621                   SC 20320
     370             1350                   1800                               SC 2627                   SC 20321
     335             1350                   2100                               SC 2631                   SC 20322




Cummins Engine Company, Inc.                             Page 1 Of 1                                      March 1, 2000


                Attachment B Replacement Fuel.lnjector


             mminsCritical:   Par     .     njectorPartNumber:
              CP                          *ReConInjectorNumber_ _
      ~—1855, 1856, 1857                       3087557 PX
      2036, 2037, 2370, 2371                     3411753 PX




                Attachment C: Diesel Oxidation Catalyst



~~~ESWCléantech,     Inc. Number_—_
      5100to 5199 series_




   ESW CLEANTECH, INC. — FLASH ANDMATCH SYSTEM — D—710—11





Document Created: 2013-06-25 06:32:05
Document Modified: 2013-06-25 06:32:05
