Approval Details

Valid E.O.

Validity

This Executive Order approved the specified parts on on October 31, 2013.
As of Friday, October 18th, 2019 this Executive Order has not been overturned or superceeded.

Approved Parts

Part Number
see pdf

This Executive Order may be listed as:
  • C.A.R.B.E.O. D-719
  • Executive Order 719 / D719
  • ARB # D-719
  • Executive Order No: D-719
  • C.A.R.B. No. D-719
  • Resolution D-719
For Free CARB Executive Order Status verification, email an image of the device Executive Order label as well as the Year/Make/Model and Test Group # of the vehicle to [email protected]

Download: Executive Order D-719 PDF

D-719 Document:



CO

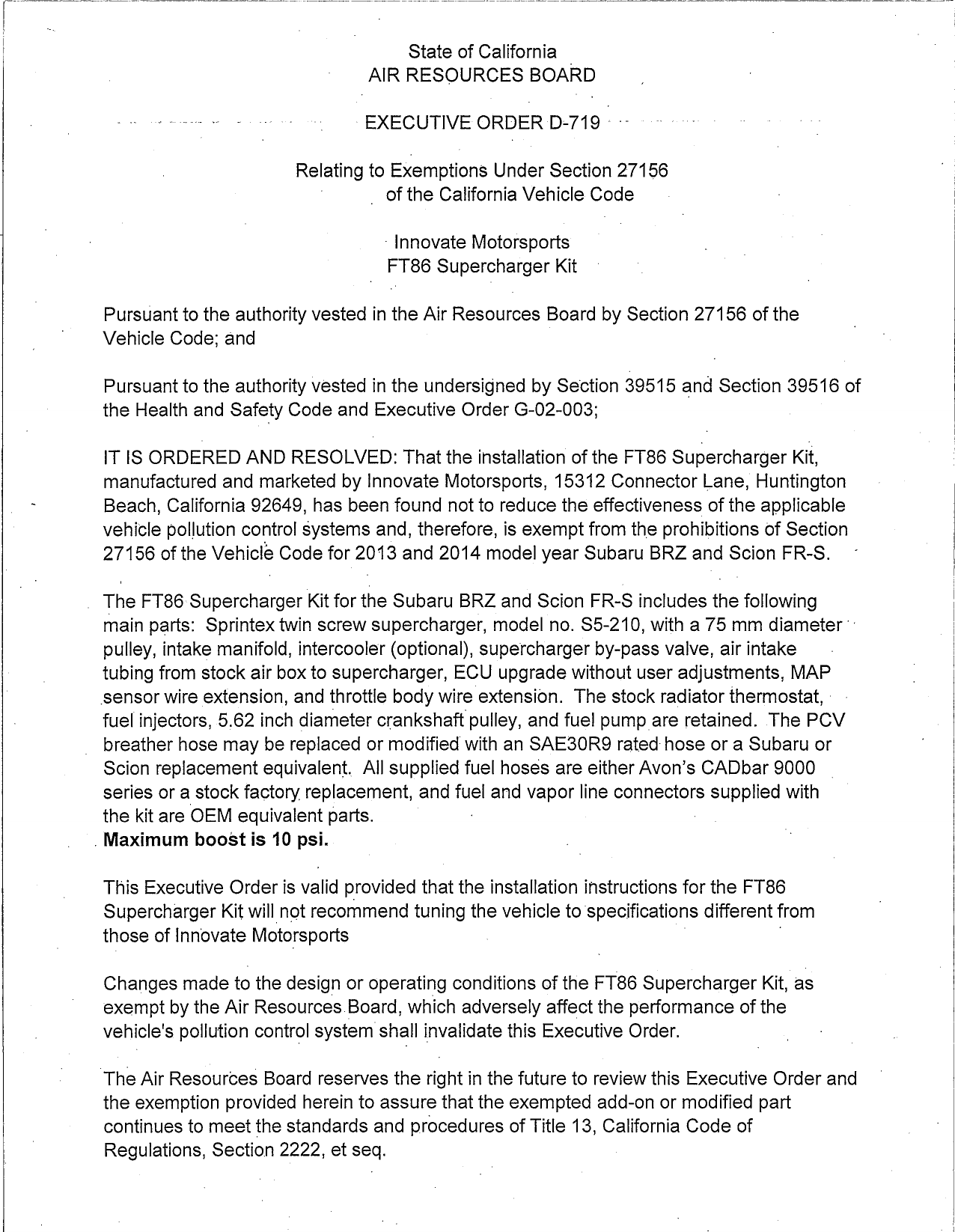

                                              State of California .
                                       AIR RESOURCES BOARD

                                      EXECUTIVE ORDER D—719 e

                              Relating to Exémption‘s Under Section 27156
                                        _ of the California Vehicle Code

                                            < Innovate Motorsports
                                            FT86 Supercharger Kit

       Pursuant to the authority vested in the Air Resources Board by Section 27156 of the
       Vehicle Code; and

       Pursuant to the authority vested in the undersigned by Section 39515 and Section 39516 of
       the Health and Safety Code and Executive Order G—02—003;

       IT IS ORDERED AND RESOLVED: That the installation of the FT86 Supercharger Kit,
       manufactured and marketed by Innovate Motorsports, 15312 Connector Lane, Huntington
       Beach, California 92649, has been found not to reduce the effectiveness of the applicable
       vehicle pollution control systems and, therefore, is exempt from the prohibitions of Section
       27156 of the Vehicle Code for 2013 and 2014 model year Subaru BRZ and Scion FR—S.

     ._The FT86 Supercharger Kit for the Subaru BRZ and Scion FR—S includes the following
       main parts: Sprintex twin screw supercharger, model no. $5—210, with a 75 mm diameter
       pulley, intake manifold, intercooler (optional), supercharger by—pass valve, air intake
      tubing from stock air box to supercharger, ECU upgrade without user adjustments, MAP
      sensor wire extension, and throttle body wire extension. The stock radiator thermostat, — >
       fuelinjectors, 5.62 inch diameter crankshaftpulley, and fuel pump are retained. The PCV
       breather hose may be replaced or modifiedwith an SAE30RY rated hose or a Subaru or
     _ Scion replacement equivalent. All supplied fuel hoses are either Avon‘s CADbar 9000 _
       series or astock factory replacement, and fuel and vapor line connectors supplied with
       the kit are OEM equivalent parts.              >                         ‘
      . Maximum boost is 10 psi.

       This Executive Order is valid provided that the installation instructions for the FT86
       Supercharger Kit will not recommend tuning the vehicle to specifications different from
       those of Innovate Motorsports                                             '          |

       Changes made to the design or operating conditions of the FT86 Supercharger Kit, as
       exempt by the Air Resources . Board, which adversely affect the performance of the
       vehicle‘s pollution control system'sha_ll invalidate this Executive Order.

      "The Air Resources Board reserves the right in the future to review this Executive Order and
       the exemption provided herein to assure that the exempted add—on or modified part
       continues to meet the standards and procedures of Title 13, California Code of
       Regulations, Section 2222, et seq.


This Executive Order is granted based on submitted emission test data generated on one
test vehicle modified with the FT86 Supercharger Kit. Test results showed that emission
levels, with the supercharger kit installed, met the applicable emission standards when
tested using the Cold—Start CVS—75 Federal Test Procedure (FTP) test cycle and the
Supplemental Federal Test Procedure (SFTP USO6/SC03) test cycle. Examination of the
OBD II system showed that the supercharger kit did not affect OBD II system operation.
Results from emissions testing conducted at Auto Club Emissions Laboratory, located at
Diamond Bar, California, are shown below, in grams per mile, with deterioration factors (df)
applied. >

2013 model year Scion FR—S             _ CVS—75 FTP
                                  NMOG      —CO   NOx              HCHO
Standards, 50OK*                  0.075     3.4   0.05             0.015
Device Test w/df 1                0.059     1.0   0.03             0.001
Device Test w/df 2                0.055     111   0.03             0.001

                                         USO6/SC03
                               NMHC+NOx          CO
Standards 4k                     0.14/0.20       8.0/2.7
Device                           0.10/0.12       5.3/1.2

*LEV II LEV CVS—75 FTP emissions standards.

The Air Resources Board reserves the right in the future to review this Executive Order and
the exemption provided herein to assure that the exempted add—on or modified part
continues to meet the standards and procedures of Title 13, California Code of
Regulations, Section 2222, et seq.                   ‘

THIS EXECUTIVE ORDER DOES NOT CONSTITUTE A CERTIFICATION,
ACCREDITATION, APPROVAL, OR ANY OTHER TYPE OF ENDORSEMENT BY THE
AIR RESOURCES BOARD OF ANY CLAIMS OF THE APPLICANT CONCERNING
ANTI—POLLUTION BENEFITS OR ANY ALLEGED BENEFITS OF THE
FT86 SUPERCHARGER KIT.

Marketing of the FT86 Supercharger Kit using any identification other than that shown in
this Executive Order or marketing of the FT86 Supercharger Kit for an application other
than those listed in this Executive Order shall be prohibited unless prior approval is
obtained from the Air Resources Board.

No claim of any kind; such as "Approved by the Air Resources Board", may be made with
respect to the action taken herein in any advertising or other oral or written communication.




             INNOVATE MOTORSPORTS — FT86 SUPERCHARGER KIT —D—719


 This Executive Order shall not apply to any FT86 Supercharger Kit advertised, offered for
 sale, sold with, or installed on a new motor vehicle prior to or concurrent with transfer to an
 ultimate purchaser.                :                                                      .

 Violation of any of the above conditions shall be grounds for revocation of this order. The
 order may be revoked only after a ten—daywritten notice of intention to revoke the order, in
 which period the holder of the order may request in writing a hearing to contest the
 proposed revocation. If a hearing is requested, it shall be held within ten days of receipt of
 the request and the order may not be revoked until a determination is made after the >
. hearing that grounds for revocation exist. _

 Executed at El Monte, Califomia, this     3 ) 3 day of October 2013.



                           9}(M/’)’?f/
                                        White, Chief
                                 /fl\@)lle Source Operatlons Division




           "INNOVATE MOTORSPORTS — FT86 SUPERCHARGER KIT — D-7fi9
