Approval Details

Valid E.O.

Validity

This Executive Order approved the specified parts on on June 29, 2015.
As of Wednesday, June 19th, 2019 this Executive Order has not been overturned or superceeded.

Approved Parts

Part NumberModels
See PDFSee PDF

This Executive Order may be listed as:
  • C.A.R.B.E.O. D-747
  • Executive Order 747 / D747
  • ARB # D-747
  • Executive Order No: D-747
  • C.A.R.B. No. D-747
  • Resolution D-747
For Free CARB Executive Order Status verification, email an image of the device Executive Order label as well as the Year/Make/Model and Test Group # of the vehicle to [email protected]

Download: Executive Order D-747 PDF

D-747 Document:

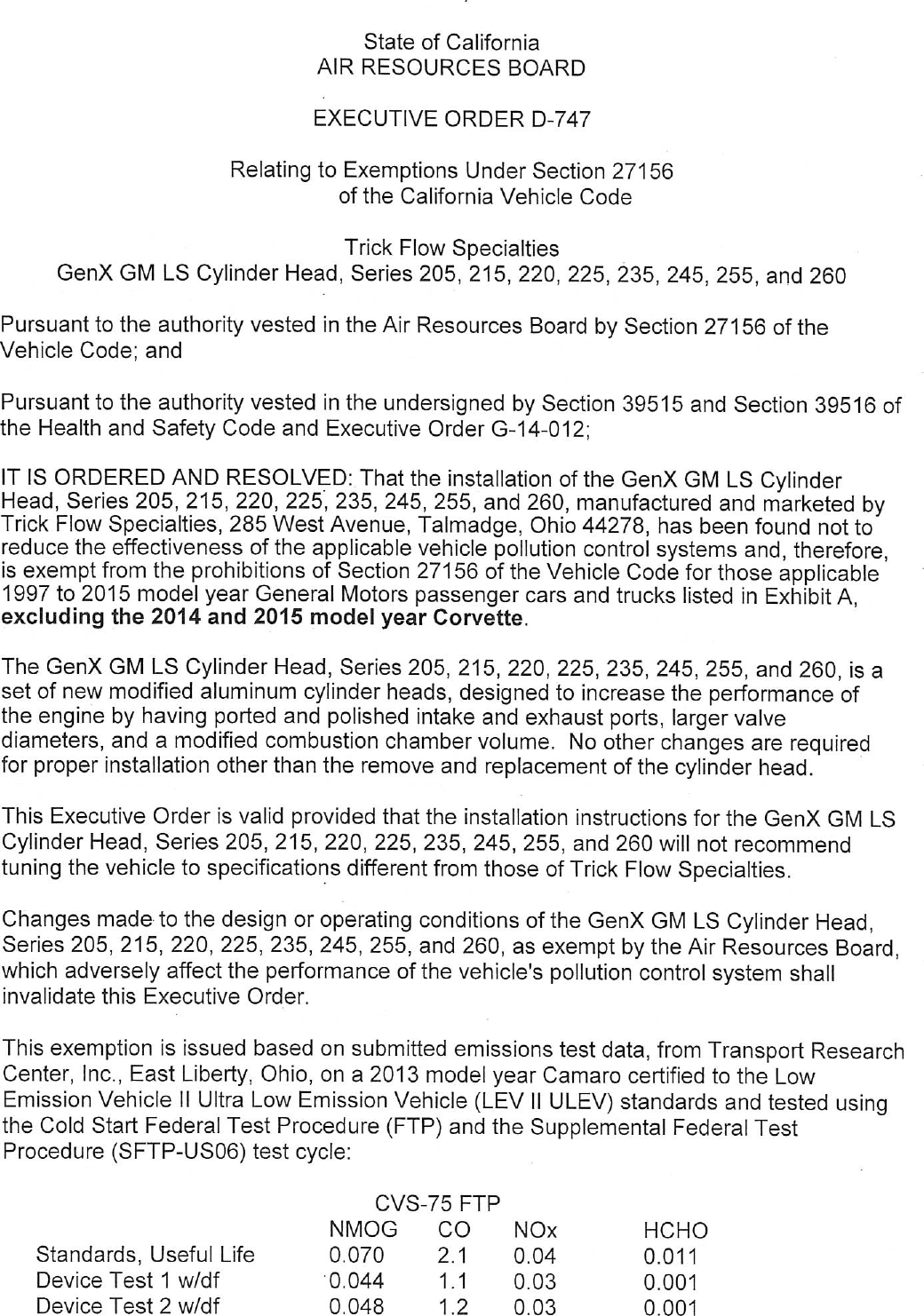

                                    State of California
                                AIR RESOURCES BOARD

                                EXECUTIVE ORDER D—747
                       Relating to Exemptions Under Section 27156
                                  of the California Vehicle Code

                              Trick Flow Specialties
     GenX GM LS Cylinder Head, Series 205, 215, 220, 225, 235, 245, 255, and 260

Pursuant to the authority vested in the Air Resources Board by Section 27156 of the
Vehicle Code; and

Pursuant to the authority vested in the undersigned by Section 39515 and Section 39516 of
the Health and Safety Code and Executive Order G—14—012;

IT IS ORDERED AND RESOLVED: That the installation of the GenX GM LS Cylinder
Head, Series 205, 215, 220, 225, 235, 245, 255, and 260, manufactured and marketed by
Trick Flow Specialties, 285 West Avenue, Talmadge, Ohio 44278, has been found not to
reduce the effectiveness of the applicable vehicle pollution control systems and, therefore,
is exempt from the prohibitions of Section 27156 of the Vehicle Code for those applicable
1997 to 2015 model year General Motors passenger cars and trucks listed in Exhibit A,
excluding the 2014 and 2015 model year Corvette.

The GenX GM LS Cylinder Head, Series 205, 215, 220, 225, 235, 245, 255, and 260, is a
set of new modified aluminum cylinder heads, designed to increase the performance of
the engine by having ported and polished intake and exhaust ports, larger valve
diameters, and a modified combustion chamber volume. No other changes are required
for proper installation other than the remove and replacement of the cylinder head.

This Executive Order is valid provided that the installation instructions for the GenX GM LS
Cylinder Head, Series 205, 215, 220, 225, 235, 245, 255, and 260 will not recommend
tuning the vehicle to specifications different from those of Trick Flow Specialties.

Changes made to the design or operating conditions of the GenX GM LS Cylinder Head,
Series 205, 215, 220, 225, 235, 245, 255, and 260, as exempt by the Air Resources Board,
which adversely affect the performance of the vehicle‘s pollution control system shall
invalidate this Executive Order.

This exemption is issued based on submitted emissions test data, from Transport Research
Center, Inc., East Liberty, Ohio, on a 2013 model year Camaro certified to the Low
Emission Vehicle II Ultra Low Emission Vehicle (LEV II ULEV) standards and tested using
the Cold Start Federal Test Procedure (FTP) and the Supplemental Federal Test
Procedure (SFTP—US06) test cycle:

                                      CVS—75 FTP
                                  NMOG     CO        NOx           HCHO
    Standards, Useful Life        0.070    2.1       0.04          0.011
    Device Test 1 w/df           ©0.044    11        0.03          0.001
    Device Test 2 w/df            0.048    1.2       0.03          0.001


                                       Uso6
                               NMHC+NOx              cCO
   Standards 4k                  0.14                 8.0
   Device                        0.09                2.0

Test results showed that the GenX 255 GM LS Cylinder Head when installed on the vehicle
did not cause exhaust emissions to exceed the applicable emission standards during the
FTP and SFTP. This Executive Order is also based on the On—Board Diagnostic II (OBD 1I)
testing conducted on the same test vehicle. The GenX 255 GM LS Cylinder Head when
installed on the test vehicle did not affect the vehicle‘s ability to perform its OBD II
monitoring. A similar effect on vehicle emissions and OBD II monitoring is expected with
the installation of the GenX GM LS Cylinder Head on the other vehicles listed in this
Executive Order.

The Air Resources Board reserves the right in the future to review this Executive Order and
the exemption provided herein to assure that the exempted add—on or modified part
continues to meet the standards and procedures of Title 13, California Code of
Regulations, Section 2222, et seq.

THIS EXECUTIVE ORDER DOES NOT CONSTITUTE A CERTIFICATION,
ACCREDITATION, APPROVAL, OR ANY OTHER TYPE OF ENDORSEMENT BY THE
AIR RESOURCES BOARD OF ANY CLAIMS OF THE APPLICANT CONCERNING
ANTI—POLLUTION BENEFITS OR ANY ALLEGED BENEFITS OF THE            '
GENX GM LS CYLINDER HEAD, SERIES 205, 215, 220, 225, 235, 245, 255, AND 260.

No claim of any kind, such as "Approved by the Air Resources Board", may be made with
respect to the action taken herein in any advertising or other oral or written communication.

Violation of any of the above conditions shall be grounds for revocation of this order. The
order may be revoked only after a ten—day written notice of intention to revoke the order, in
which period the holder of the order may request in writing a hearing to contest the
proposed revocation. If a hearing is requested, it shall be held within ten days of receipt of
the request and the order may not be revoked until a determination is made after the
hearing that grounds for revocation exist.

Executed at El Monte, California, this   ??         day of June 2015.



                         ).Ten
               z7 (' Annette Hebert, Chief
               W %missions Compliance, Automotive Regulations and Science Division




         TRICK FLOW SPECIALTIES — GENX GM LS CYLINDER HEAD — D—747


                                            Exhibit A




                                    TRICK FLOW SPECIALTIES
                                    GenX LS Cylinder Heads
           PART NUMBER MODEL YEAR                                  MODEL
Geny 2p5 TFS—20510001—c00| 1997—2015               GM VEHICLES WITH 4.8L/5.3L/5.7L V8 ENGINE
         TFS—3051T001—C00| 1997—2015               GM VEHICLES WITH 4.8L/5.3L/5.7L V8 ENGINE
Geny 215 IFS—20610001—c01|__1997—2015                GM VEHICLES WITH 5.71/6.0L V8 ENGINE
         TFS—30611T001—C01|   1997—2015              GM VEHICLES WITH 5.71/6.0L V8 ENGINE
           TFS—30610001       1997—2015              GM VEHICLES WITH 5.71/6.0L V8 ENGINE
GenX 220   TF5.3061T001       1997—2015              GM VEHICLES WITH 5.71/6.0L V8 ENGINE
           TFS—30610002       1997—2015              GM VEHICLES WITH 5.71/6.0L V8 ENGINE
           TFS—30611002       1997—2015              GM VEHICLES WITH 5.71/6.0L V8 ENGINE
Geny 225 TF5—20610001—c02|__1997—2015                GM VEHICLES WITH 5.71/6.0L V8 ENGINE
         TF5—30611T001—C02|___1997—2015              GM VEHICLES WITH 5.71/6.0L V8 ENGINE
Geny 235 IFS—2061T001—c03|__  1997—2015              GM VEHICLES WITH 5.71/6.0L V8 ENGINE
           TFS—30611T003—C03    1997—2015     GM VEHICLES WITH 5.7L/6.0L V8 ENGINE, 6 BOLT PATTERN
GenX 245   TFS—30611003—C04     1997—2015     GM VEHICLES WITH 5.7L/6.0L V8 ENGINE, 6 BOLT PATTERN
GenX 255   TFS—32610001—C01     2007—2015              GM VEHICLES WITH 6.2L V8 ENGINE
           TFS—32610002—CO1     2007—2015              GM VEHICLES WITH 6.2L V8 ENGINE
           TFS—32611001—C01     2007—2015              GM VEHICLES WITH 6.2L V8 ENGINE
           TFS—32611002—C0O1    2007—2015              GM VEHICLES WITH 6.2L V8 ENGINE
           TFS—32611003—C01     2007—2015       GM VEHICLES WITH 6.2L V8 ENGINE, 6 BOLT PATTERN
           TFS—32611T004—C0O1   2007—2015       GM VEHICLES WITH 6.2L V8 ENGINE, 6 BOLT PATTERN
GenX 260   TFS—32710001—C01     2006—2015              GM VEHICLES WITH 7.0L V8 ENGINE
           TFS—32710002—CO1     2006—2015               GM VEHICLES WITH 7.0L V8 ENGINE
           TFS—32711T001—C01    2006—2015               GM VEHICLES WITH 7.0L V8 ENGINE
           TFS—32711T002—C0O1   2006—2015               GM VEHICLES WITH 7.0L V8 ENGINE
           TFS—32711003—C01     2006—2015       GM VEHICLES WITH 7.0L V8 ENGINE, 6 BOLT PATTERN
           TFS—32711T004—C0O1   2006—2015       GM VEHICLES WITH 7.0L V8 ENGINE, 6 BOLT PATTERN
